NSN 5310-01-330-5234 MS21076L04N, MS5185911, MS51859-11
Product Details | PLATE SELF-LOCKING NUT
5310-01-330-5234 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21076L04N, MS5185911, MS51859-11 , 5310-01-330-5234, 01-330-5234, 5310013305234, 013305234
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 DEC 1990 | 01-330-5234 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

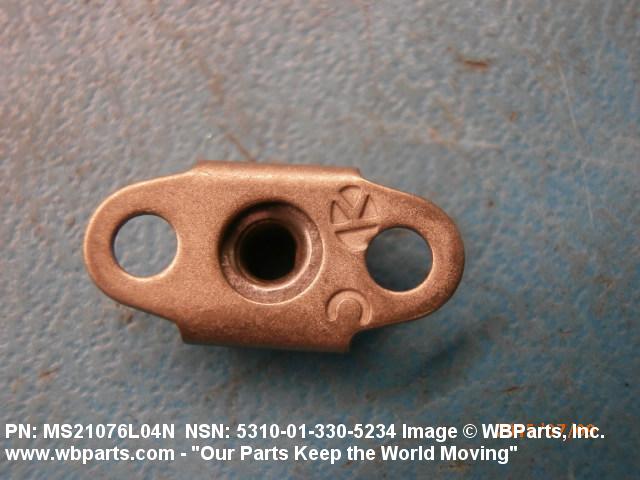

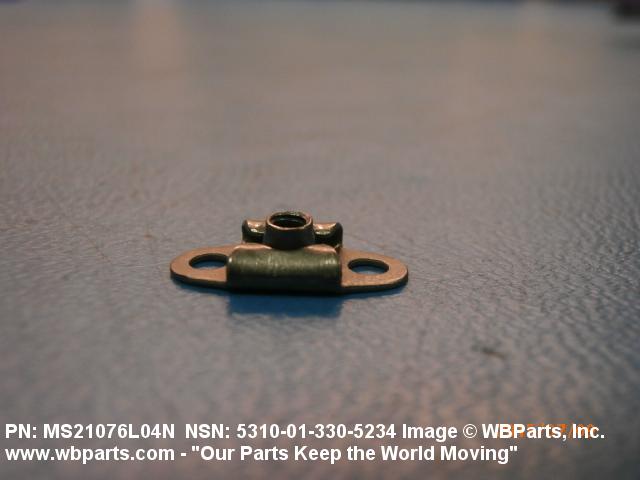

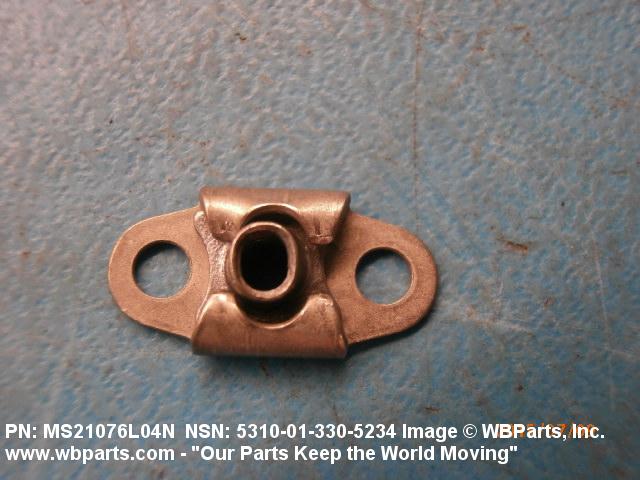

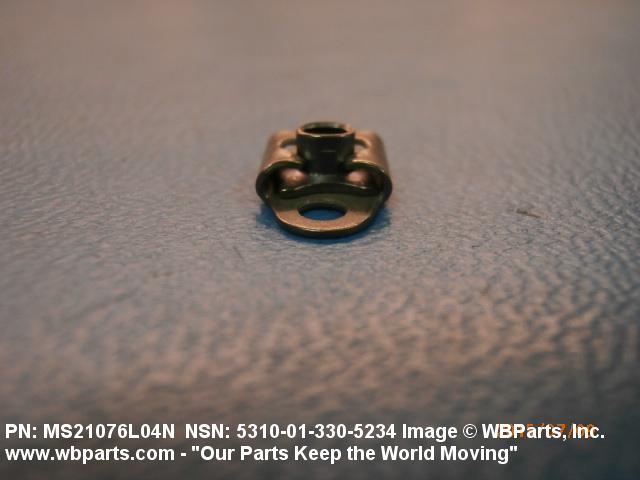

Drawings & Photos | NSN 5310-01-330-5234
Demand History | NSN 5310-01-330-5234
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-330-5234 | 2021-07-188 | 1 | US |
| MS21076L04N | 2020-06-164 | 5 | US |
| MS21076L04N | 2019-07-196 | 10 | South Korea |
| 5310-01-330-5234 | 2019-02-58 | 294 | DIBBS |
| MS21076L04N | 2019-02-35 | 5 | US |
| 5310-01-330-5234 | 2018-04-107 | 50 | Canada |
| 5310-01-330-5234 | 2018-01-05 | 170 | United States |
| MS21076L04N | 2017-11-307 | 6 | UK |
| MS21076L04N | 2016-10-301 | 200 | US |
| MS21076L04N | 2016-07-187 | 50 | United States |
| 5310-01-330-5234 | 2016-03-82 | 50 | US |
| 5310-01-330-5234 | 2015-08-235 | 1459 | DIBBS |
| MS21076L04N | 2015-07-183 | 12 | us |
| MS21076L04N | 2015-06-167 | 12 | us |
| 5310-01-330-5234 | 2015-03-75 | 25 | US |
| MS21076L04N | 2014-08-220 | 1 | US |
| MS21076L04N | 2013-11-323 | 480 | Israel |
| MS21076L04N | 2013-07-190 | 400 | Israel |
| MS21076L04N | 2012-10-303 | 200 | US |
| MS5185911 | 2011-09-269 | 200 | US |
| 5310-01-330-5234 | 2010-03-88 | 14 | US |
| MS21076L04N | 2009-11-316 | 80 | US |
| MS21076L04N | 2009-10-286 | 25 | US |
| MS21076L04N | 2009-02-55 | 300 | US |
| 5310-01-330-5234 | 2008-08-240 | 1060 | United States |
| MS21076L04N | 2007-10-302 | 100 | Spain |
| 5310-01-330-5234 | 2007-10-295 | 100 | us |
Cross Reference | NSN 5310-01-330-5234
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21076L04N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-330-5234
Related Products | NSN 5310-01-330-5234
Technical Data | NSN 5310-01-330-5234
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A123 PLATE |

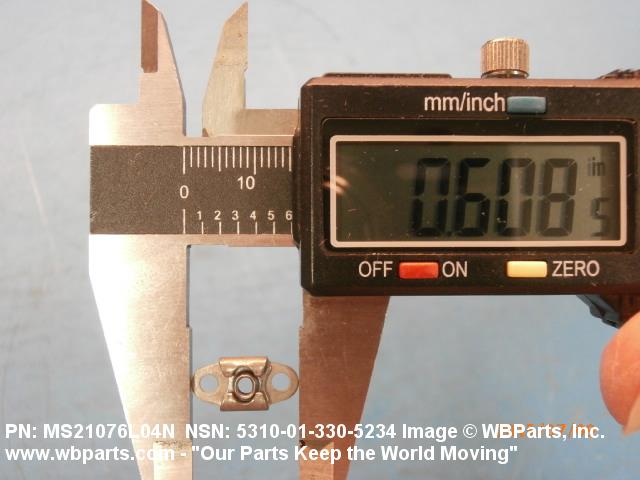

| NUT LENGTH | 0.651 INCHES MAXIMUM |

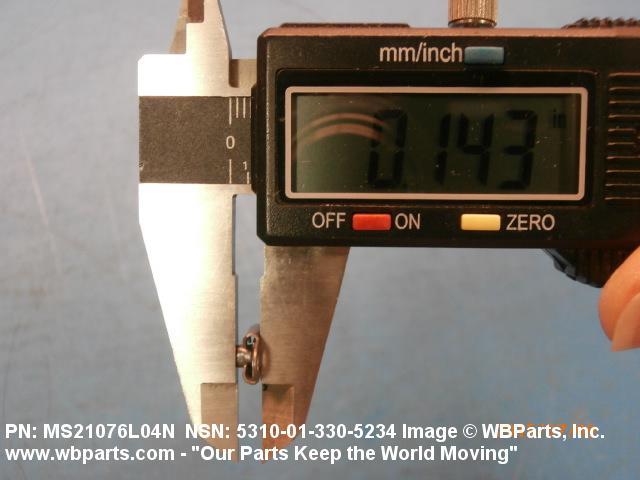

| NUT HEIGHT | 0.153 INCHES MAXIMUM |

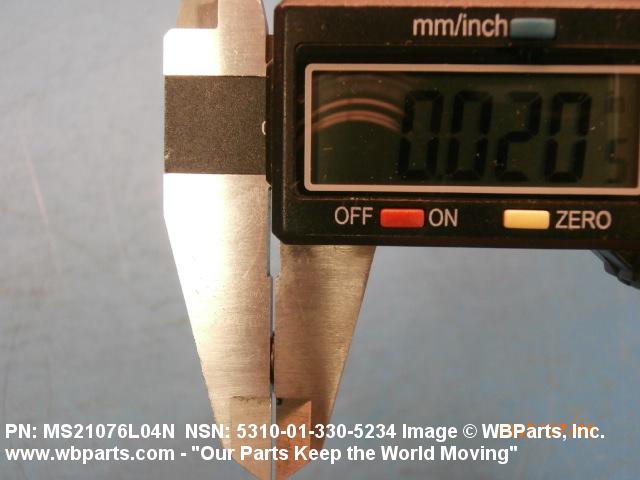

| PLATE THICKNESS | 0.015 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

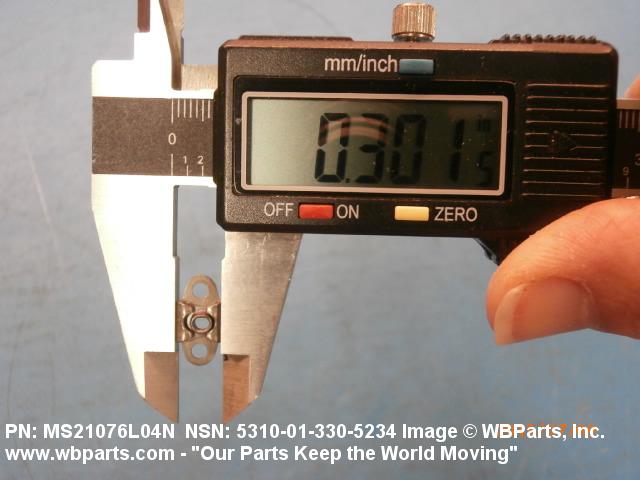

| PLATE WIDTH | 0.275 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |

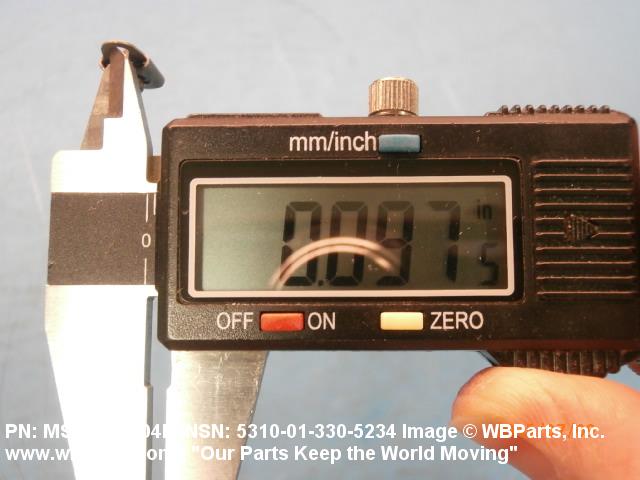

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |

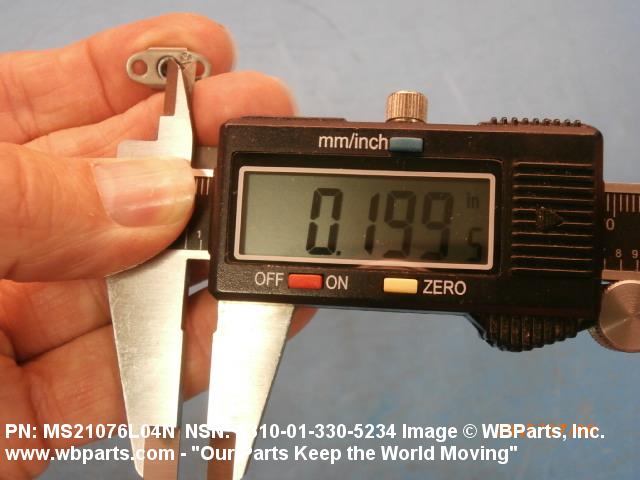

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.198 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |

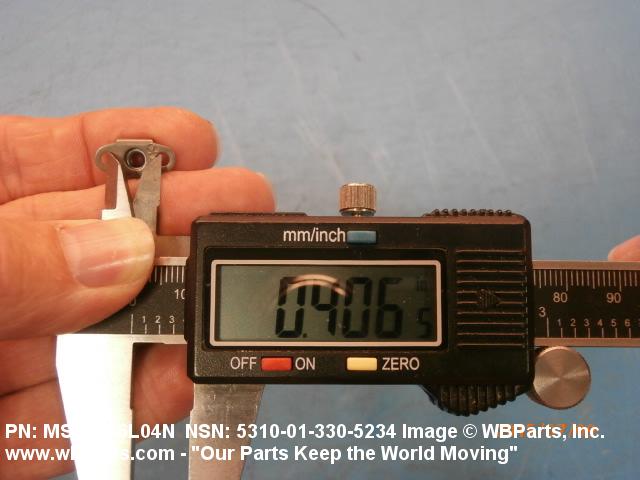

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.404 INCHES MINIMUM AND 0.408 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21076L04N |
Restrictions/Controls & Freight Information | NSN 5310-01-330-5234
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-330-5234
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
