NSN 5310-01-323-0233 NAS177904, NAS1779-04, 01-323-0233
Product Details | PLATE SELF-LOCKING NUT

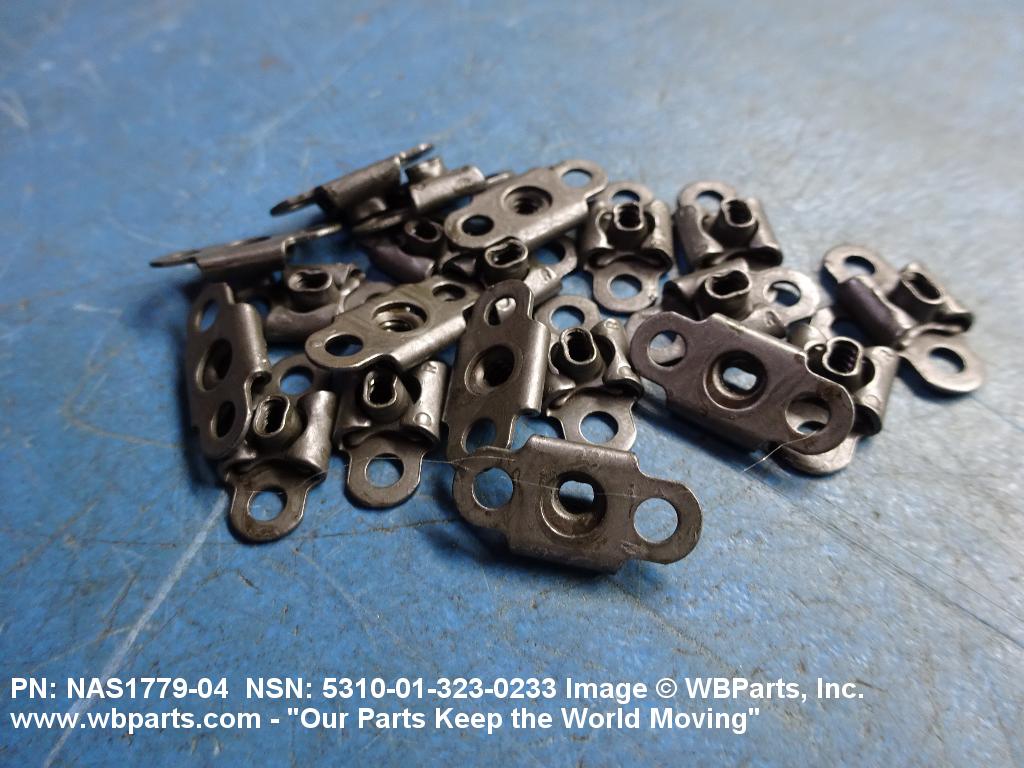

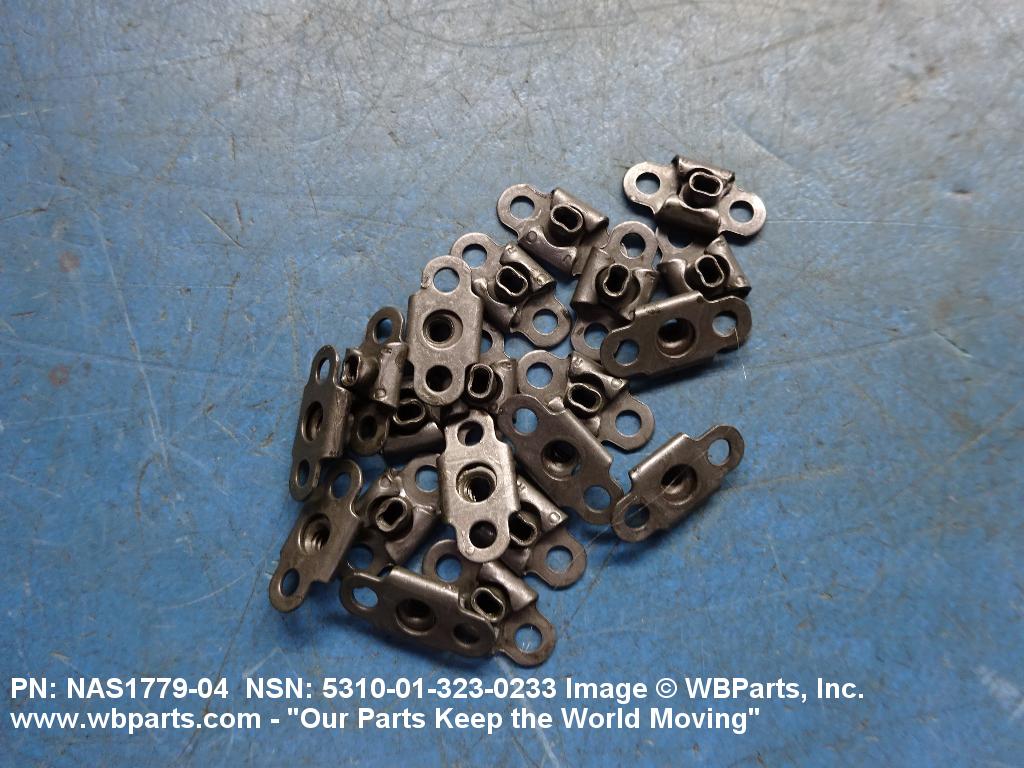

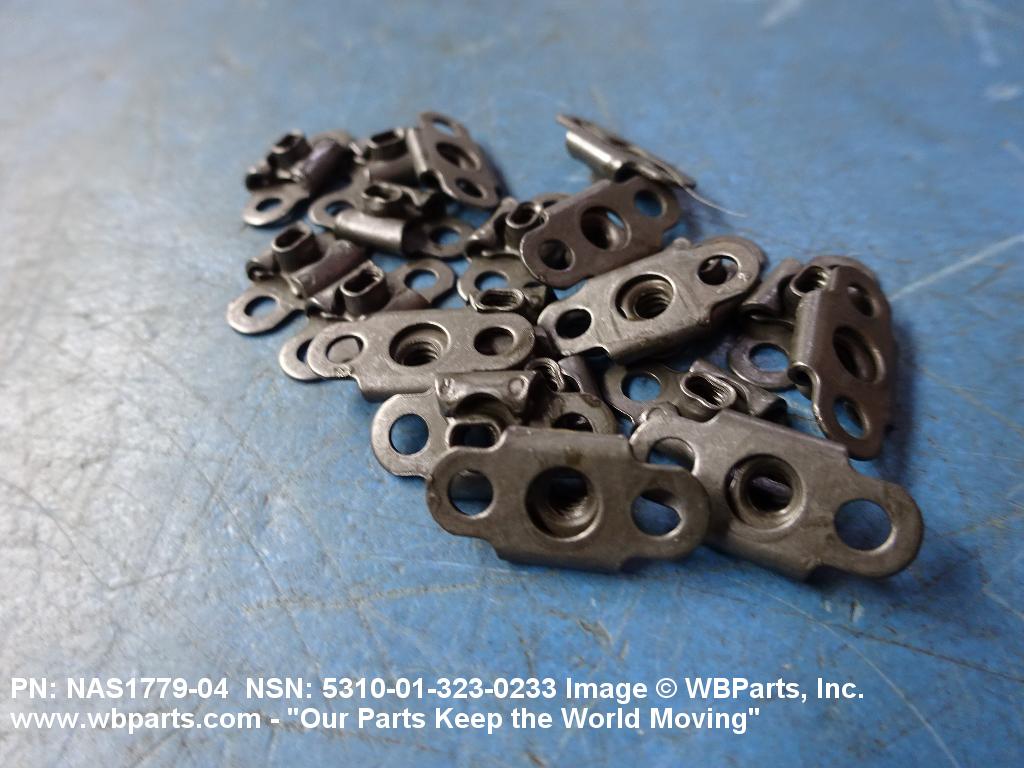

5310-01-323-0233 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS177904, NAS1779-04, 5310-01-323-0233, 01-323-0233, 5310013230233, 013230233
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUL 1990 | 01-323-0233 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

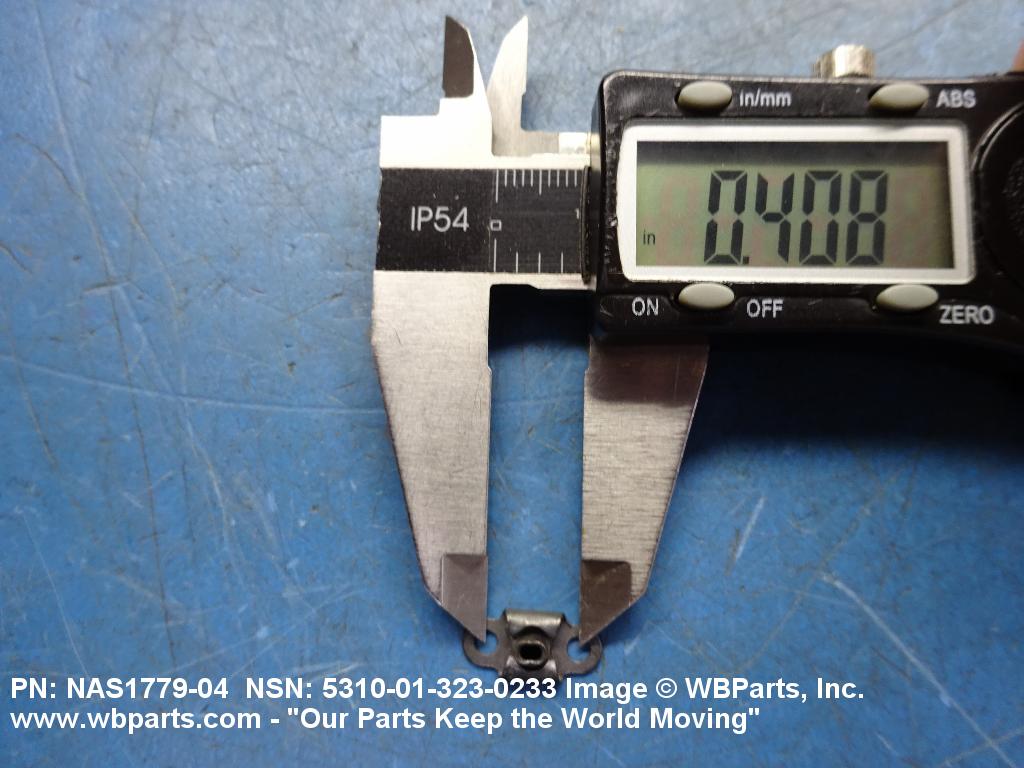

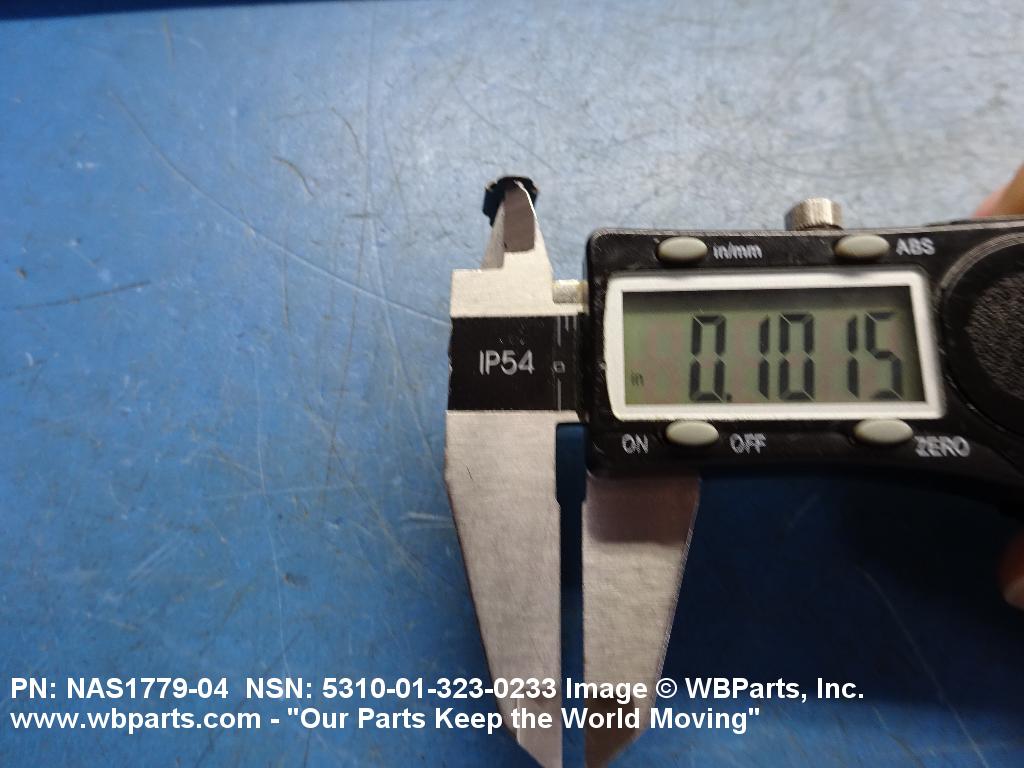

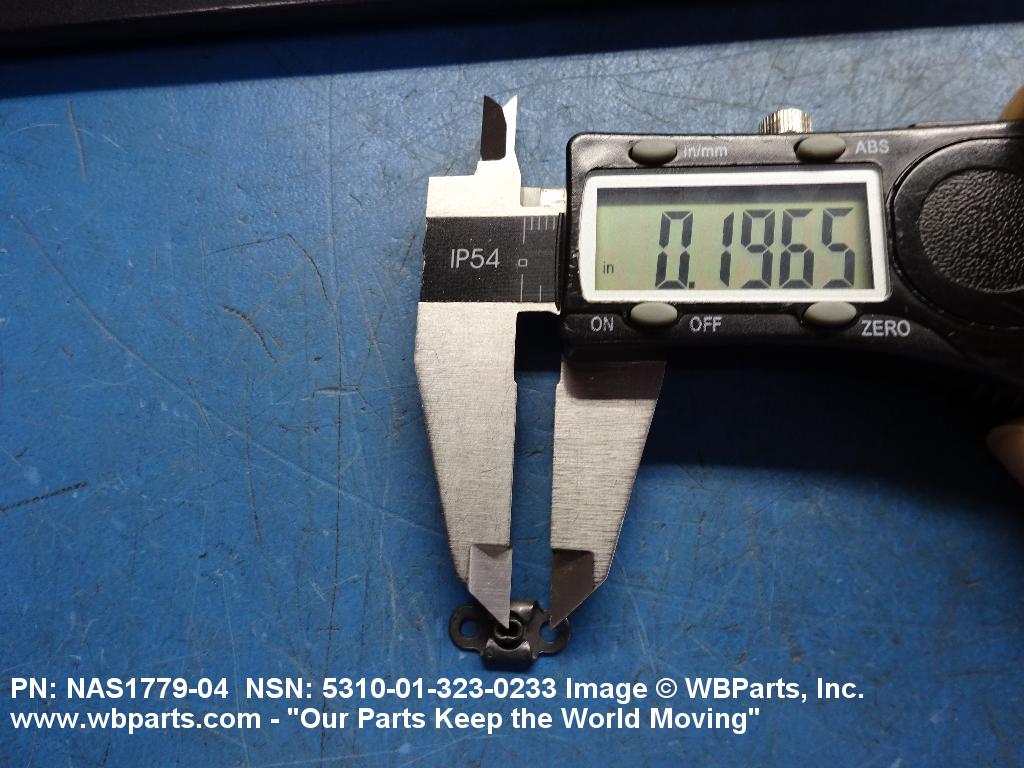

Drawings & Photos | NSN 5310-01-323-0233
Demand History | NSN 5310-01-323-0233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS177904 | 2024-07-211 | 100 | United States |
| NAS177904 | 2024-05-136 | 85 | United States |
| NAS177904 | 2024-05-136 | 100 | United States |
| NAS177904 | 2024-05-130 | 85 | US |
| NAS177904 | 2024-05-128 | 85 | United States |
| NAS177904 | 2024-05-128 | 100 | United States |
| 5310-01-323-0233 | 2022-10-283 | 100 | United States |
| NAS177904 | 2019-10-281 | 100 | United States |
Cross Reference | NSN 5310-01-323-0233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1779-04 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-323-0233
Related Products | NSN 5310-01-323-0233
Technical Data | NSN 5310-01-323-0233
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1030 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

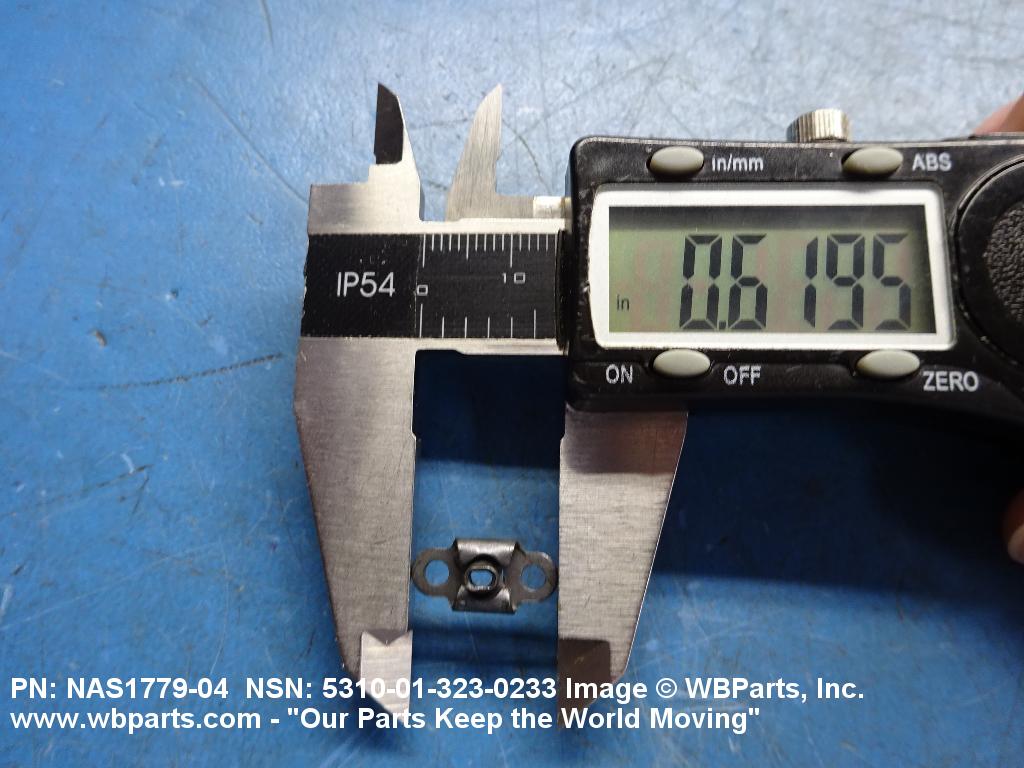

| NUT LENGTH | 0.651 INCHES MAXIMUM |

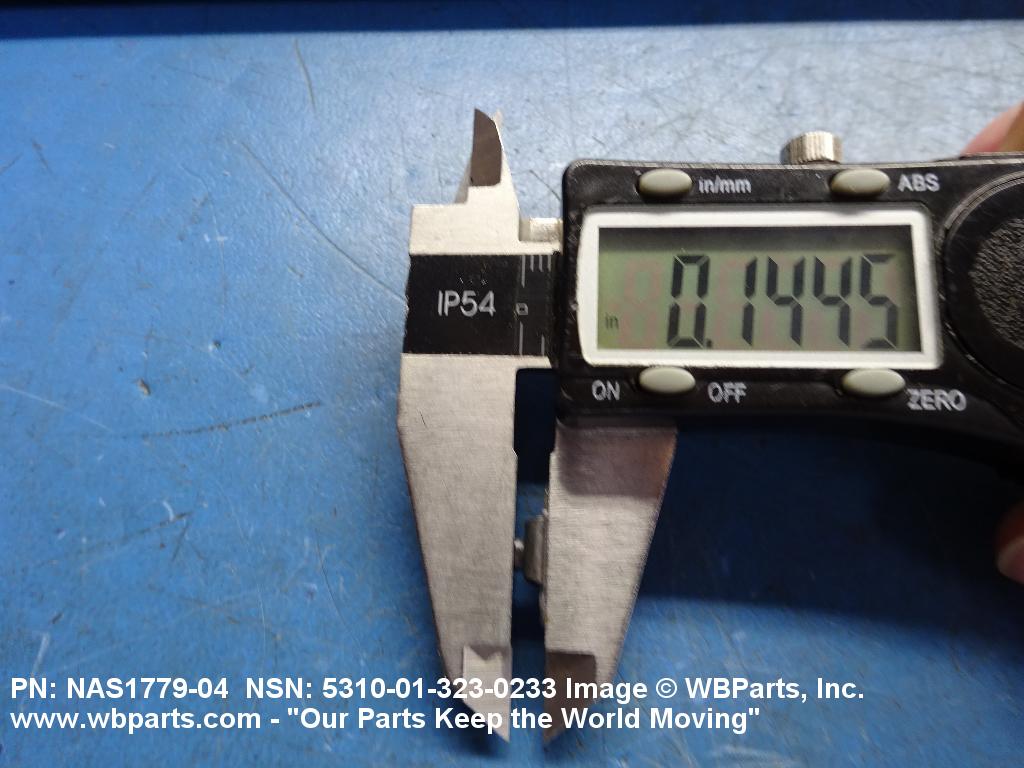

| NUT HEIGHT | 0.153 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |

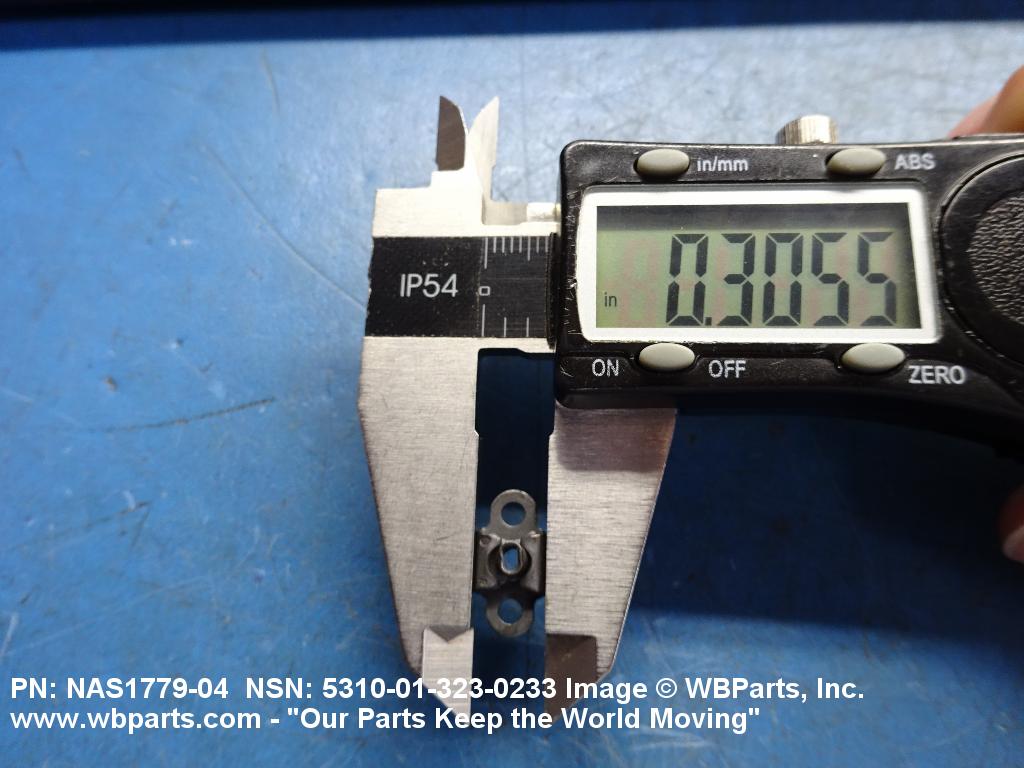

| PLATE WIDTH | 0.275 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
