NSN 5310-01-320-1018 7522010002, 7-522-010002, 94807A030
Product Details | PUSH ON NUT
5310-01-320-1018 An item formed from sheet spring material into varying flat, concave, curved, or nutlike design. It has an aperture with an elliptical-shaped hole or suitable lugs or prongs designed to retain threaded or unthreaded stud like projecting memebers. When pushed on, it grips by imbedding into the material of the projecting memebers, and does not mate with a thread helix. See also RING, RETAINING.
Part Alternates: 7522010002, 7-522-010002, 94807A030, 5310-01-320-1018, 01-320-1018, 5310013201018, 013201018
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAY 1990 | 01-320-1018 | 05281 ( PUSH ON NUT ) |

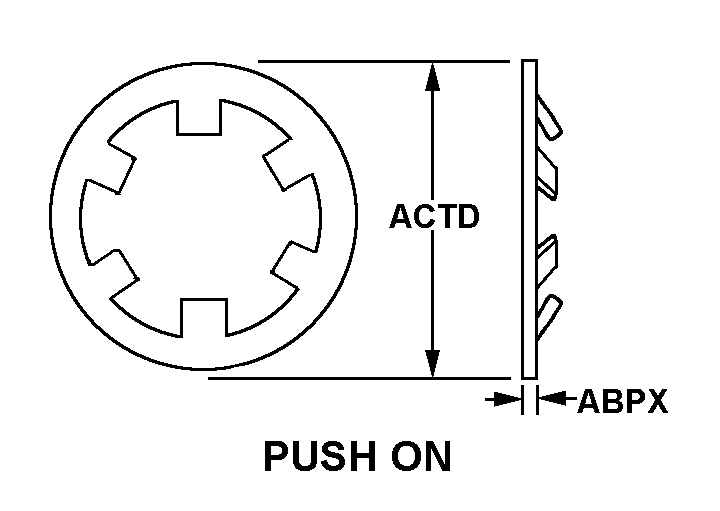

Drawings & Photos | NSN 5310-01-320-1018
Demand History | NSN 5310-01-320-1018
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-320-1018 | 2017-01-04 | 715 | DIBBS |
| 5310-01-320-1018 | 2016-11-329 | 715 | DIBBS |
| 5310-01-320-1018 | 2016-09-262 | 715 | DIBBS |
| 5310-01-320-1018 | 2016-08-223 | 715 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-320-1018
Technical Data | NSN 5310-01-320-1018
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.313 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| NUT STYLE | A213 PUSH ON |
| MATERIAL THICKNESS | ANY ACCEPTABLE |
| NUT DIAMETER | 0.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-320-1018
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-320-1018
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
