NSN 5310-01-310-1096 A62931102, A6293-11-02, NAS18033B3
Product Details | PLATE SELF-LOCKING NUT

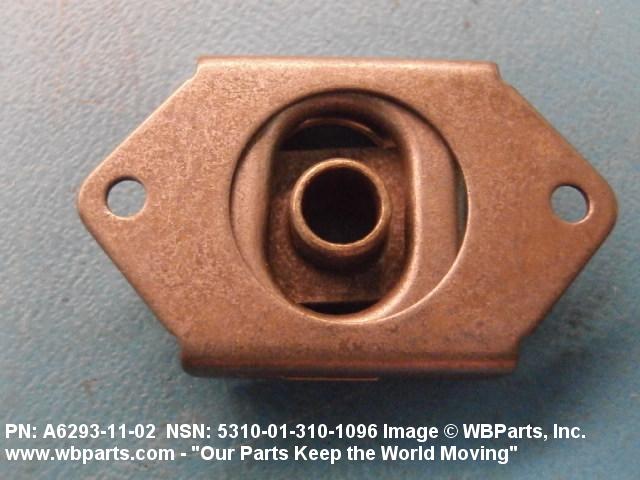

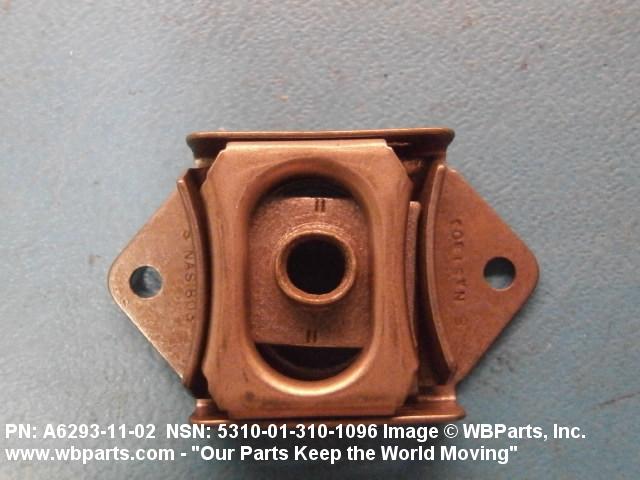

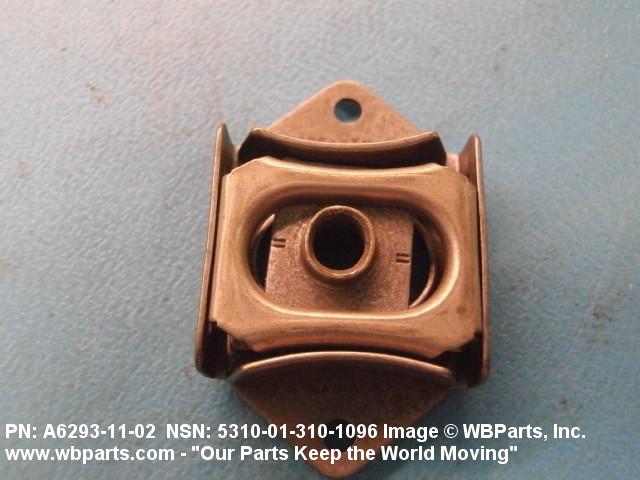

5310-01-310-1096 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: A62931102, A6293-11-02, NAS18033B3, NAS1803-3B3, 5310-01-310-1096, 01-310-1096, 5310013101096, 013101096
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 OCT 1989 | 01-310-1096 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

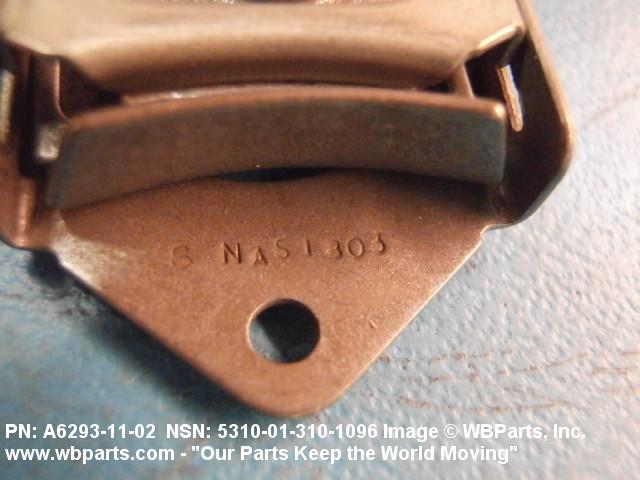

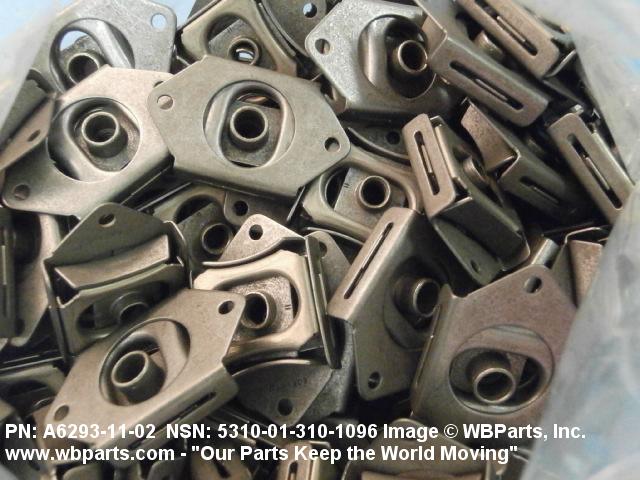

Drawings & Photos | NSN 5310-01-310-1096
Demand History | NSN 5310-01-310-1096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-310-1096 | 2013-09-244 | 90 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-310-1096
Technical Data | NSN 5310-01-310-1096

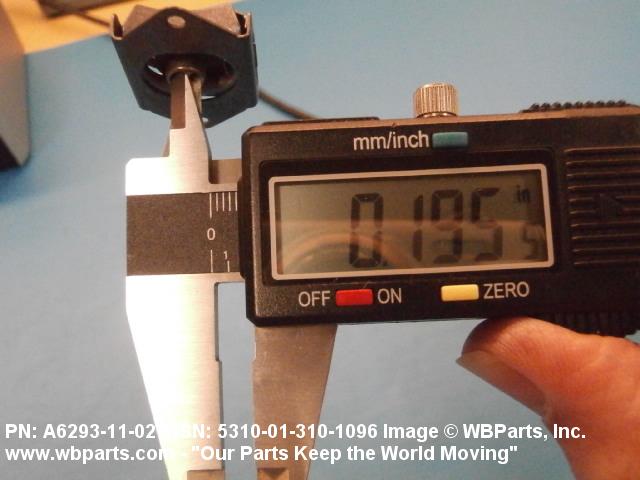

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 8740 NUT STEEL COMP 631 CLIP STEEL COMP 631 SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT PASSIVATE CLIP PASSIVATE SPRING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE CLIP QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

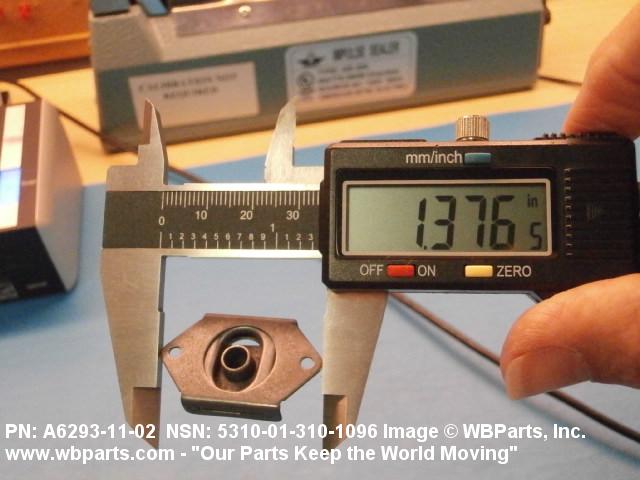

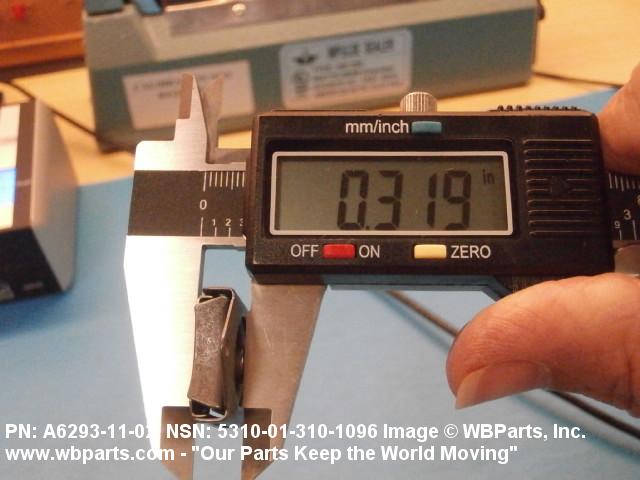

| NUT LENGTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |
| NUT HEIGHT | 0.333 INCHES MAXIMUM |

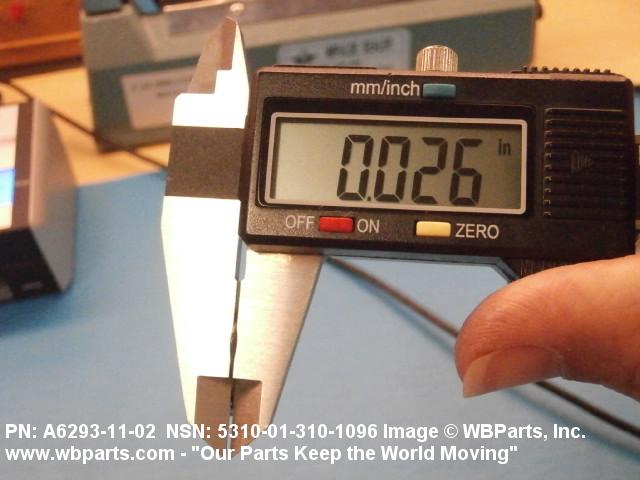

| PLATE THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |

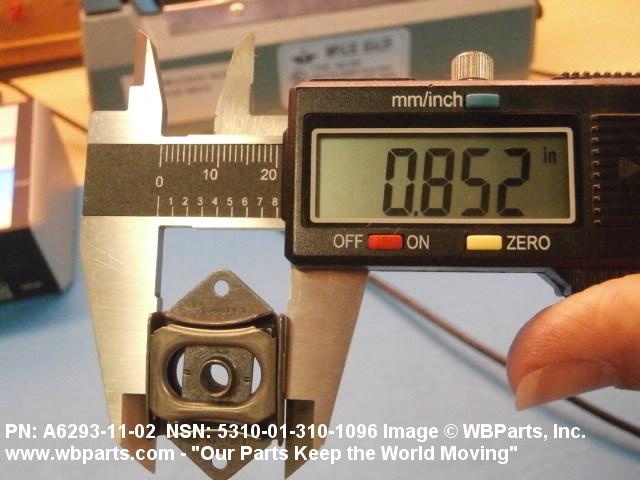

| PLATE WIDTH | 0.865 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |

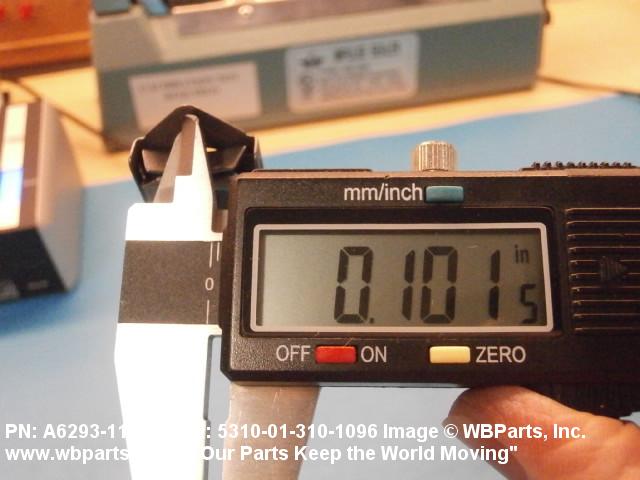

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |

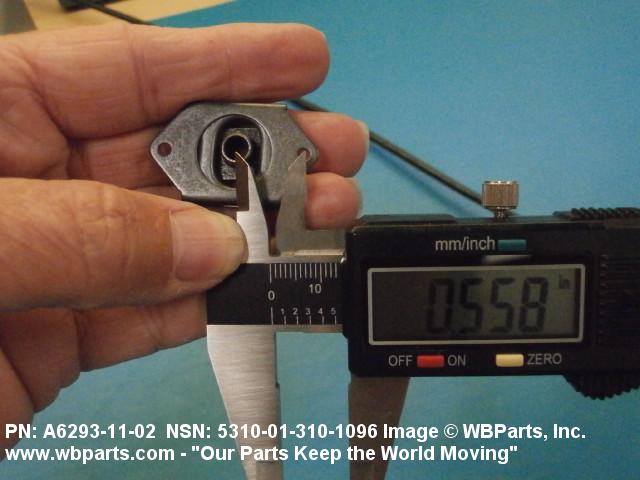

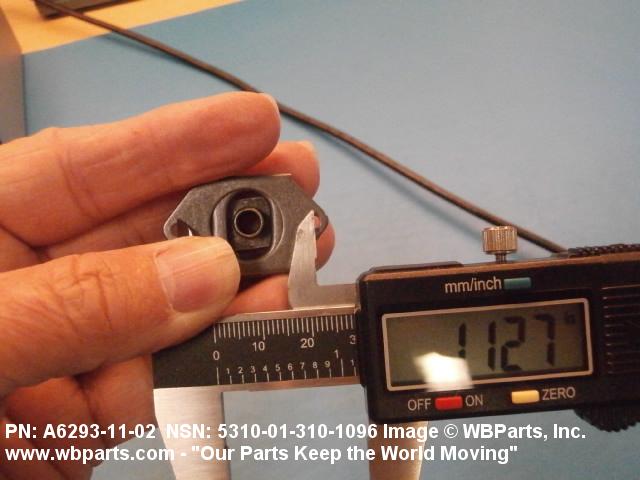

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
