NSN 5310-01-300-0559 1161491, 116149-1, 01-300-0559
Product Details | KEY WASHER
5310-01-300-0559 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 1161491, 116149-1, 5310-01-300-0559, 01-300-0559, 5310013000559, 013000559
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1989 | 01-300-0559 | 01869 ( WASHER, KEY ) |

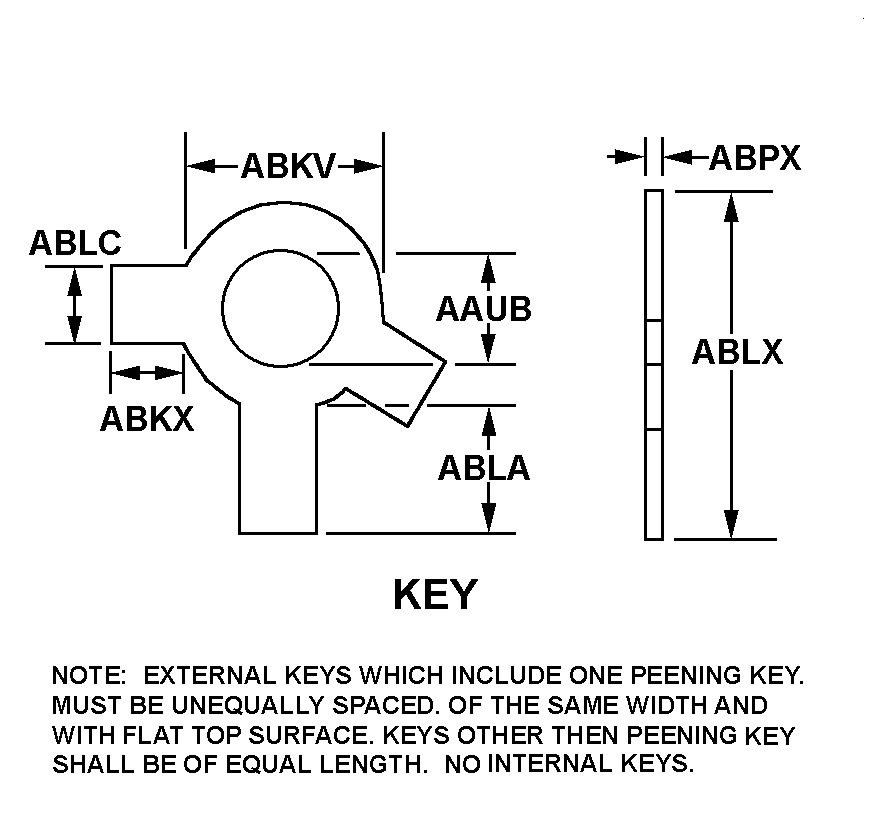

Drawings & Photos | NSN 5310-01-300-0559
Demand History | NSN 5310-01-300-0559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-300-0559 | 2024-08-231 | 96 | DIBBS |
| 5310-01-300-0559 | 2024-05-140 | 192 | DIBBS |
| 5310-01-300-0559 | 2024-02-51 | 84 | DIBBS |
| 5310-01-300-0559 | 2022-01-26 | 1434 | DIBBS |
| 5310-01-300-0559 | 2021-06-173 | 435 | DIBBS |
| 5310-01-300-0559 | 2018-08-219 | 1543 | DIBBS |
| 5310-01-300-0559 | 2017-07-187 | 1543 | DIBBS |
| 5310-01-300-0559 | 2016-08-224 | 1000 | DIBBS |
| 5310-01-300-0559 | 2015-10-301 | 1112 | DIBBS |
| 5310-01-300-0559 | 2015-07-182 | 759 | DIBBS |
| 5310-01-300-0559 | 2015-03-64 | 496 | DIBBS |
| 5310-01-300-0559 | 2014-08-233 | 392 | DIBBS |
| 5310-01-300-0559 | 2012-04-108 | 1147 | DIBBS |
| 5310-01-300-0559 | 2012-02-60 | 1130 | DIBBS |
| 5310-01-300-0559 | 2011-09-249 | 1130 | US |
| 5310-01-300-0559 | 2011-08-230 | 1130 | DIBBS |
| 5310-01-300-0559 | 2011-02-47 | 442 | DIBBS |
| 5310-01-300-0559 | 2010-12-348 | 345 | DIBBS |
| 5310-01-300-0559 | 2010-05-144 | 234 | DIBBS |
| 5310-01-300-0559 | 2009-10-293 | 381 | DIBBS |
| 5310-01-300-0559 | 2009-10-293 | 549 | DIBBS |
| 5310-01-300-0559 | 2009-05-141 | 997 | DIBBS |
| 5310-01-300-0559 | 2009-04-98 | 84 | DIBBS |
| 5310-01-300-0559 | 2009-03-86 | 286 | DIBBS |
| 5310-01-300-0559 | 2009-03-61 | 278 | DIBBS |
| 5310-01-300-0559 | 2009-01-05 | 38 | DIBBS |
| 5310-01-300-0559 | 2008-11-317 | 213 | DIBBS |
| 5310-01-300-0559 | 2008-10-295 | 109 | DIBBS |
| 5310-01-300-0559 | 2008-08-225 | 254 | DIBBS |
| 5310-01-300-0559 | 2008-04-119 | 59 | DIBBS |
Cross Reference | NSN 5310-01-300-0559
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 116149-1 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-300-0559
Related Products | NSN 5310-01-300-0559
Technical Data | NSN 5310-01-300-0559
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 159 KEY |
| HOLE DIAMETER | 0.318 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY LENGTH | 0.500 INCHES NOMINAL |
| PEENING KEY LENGTH | 0.220 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY WIDTH | 0.250 INCHES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES ALL SURFACES |
| SPECIAL FEATURES | NEXT ASSY 116019-1/NHA F-15/ EXTERNAL KEYS NOT EQUAL WIDTH/KEY WIDTH 0.200 |
Restrictions/Controls & Freight Information | NSN 5310-01-300-0559
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-300-0559
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
