NSN 5310-01-292-9568 MS2715118, MS27151-18, 01-292-9568
Product Details | STAMPED NUT
5310-01-292-9568 A nut formed from sheet spring material, usually steel, into various shapes, having the external appearance of a solid nut, and having an aperture with suitable bosses, lugs, notches, and/or slits capable of securely gripping a mating threaded member. See also NUT (1), SHEET SPRING.
Part Alternates: MS2715118, MS27151-18, 5310-01-292-9568, 01-292-9568, 5310012929568, 012929568
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JAN 1989 | 01-292-9568 | 05279 ( NUT, STAMPED ) |

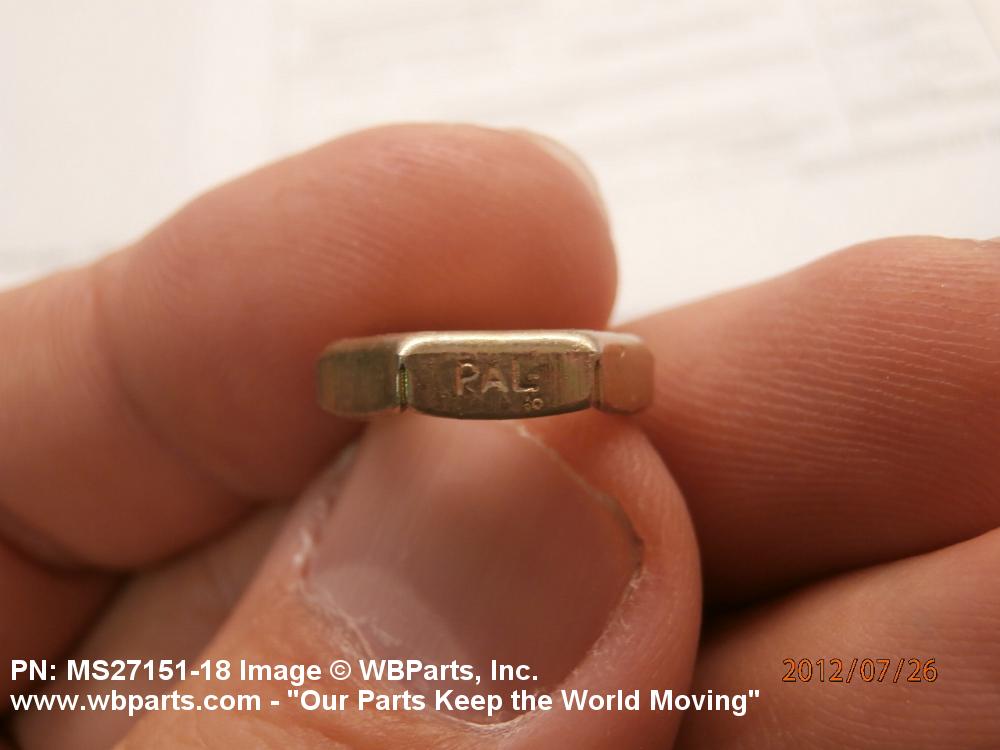

Drawings & Photos | NSN 5310-01-292-9568
Demand History | NSN 5310-01-292-9568
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-292-9568 | 2023-06-180 | 5 | DIBBS |
| 5310-01-292-9568 | 2023-06-174 | 1 | DIBBS |
| 5310-01-292-9568 | 2023-06-172 | 5 | DIBBS |
| 5310-01-292-9568 | 2023-06-166 | 1 | DIBBS |
| 5310-01-292-9568 | 2023-05-150 | 2 | DIBBS |
| 5310-01-292-9568 | 2022-12-342 | 1 | DIBBS |
| 5310-01-292-9568 | 2022-07-192 | 2 | DIBBS |
| 5310-01-292-9568 | 2022-06-181 | 2 | DIBBS |
| 5310-01-292-9568 | 2021-04-95 | 20 | United States |
| 5310-01-292-9568 | 2021-04-95 | 20 | United States |
| 5310-01-292-9568 | 2016-08-243 | 2 | DIBBS |
| MS2715118 | 2013-08-232 | 87 | United States |
| MS2715118 | 2009-01-08 | 1000 | US |
Cross Reference | NSN 5310-01-292-9568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27151-18 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-292-9568
Related Products | NSN 5310-01-292-9568
Technical Data | NSN 5310-01-292-9568
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1050 OR STEEL COMP 1551 OR STEEL COMP 1552 OR STEEL COMP 1053 OR STEEL COMP 1055 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1561 OR STEEL COMP 1064 OR STEEL COMP 1065 OR STEEL COMP 1566 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| NUT STYLE | A220 STAMPED |
| NUT HEIGHT | 0.135 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| GRIPPING NOTCH QUANTITY | 6 |
| NONDEFINITIVE SPEC/STD DATA | ZN FINISH |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY SURFACE TREATMENT |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27151-18 |
Restrictions/Controls & Freight Information | NSN 5310-01-292-9568
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-292-9568
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
