NSN 5310-01-286-1026 AS2436, AS243-6, N7228236056
Product Details | HEXAGON SLOTTED PLAIN NUT
5310-01-286-1026 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON.
Part Alternates: AS2436, AS243-6, N7228236056, 5310-01-286-1026, 01-286-1026, 5310012861026, 012861026
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 SEP 1988 | 01-286-1026 | 01859 ( NUT, PLAIN, SLOTTED, HEXAGON ) |

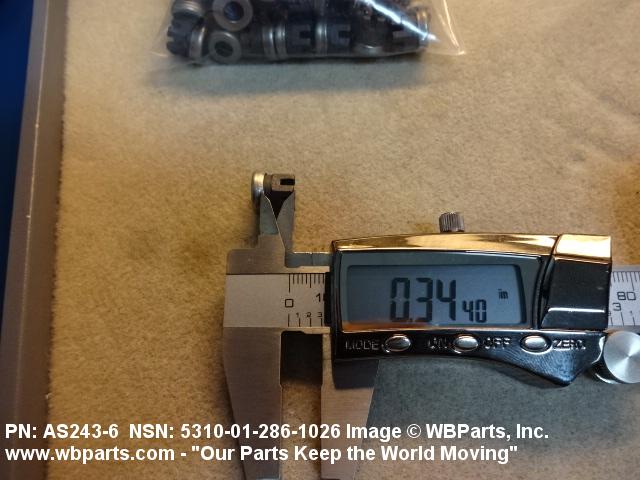

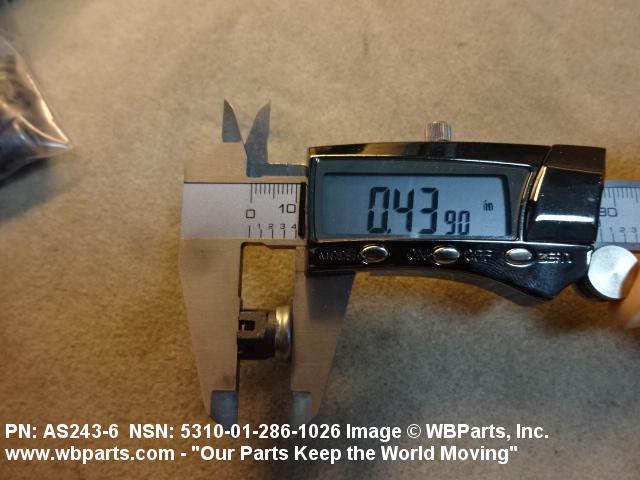

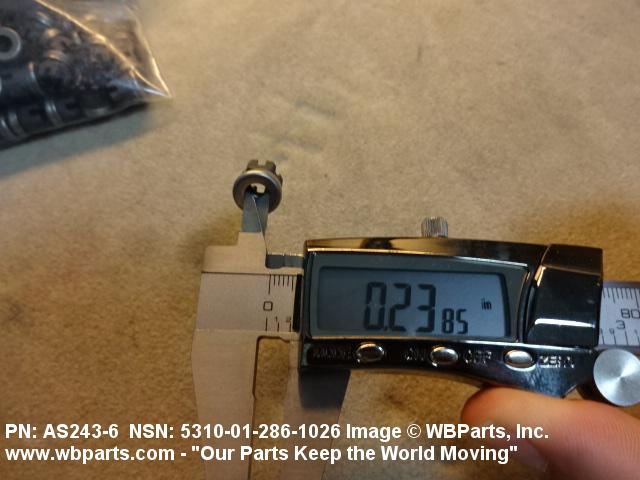

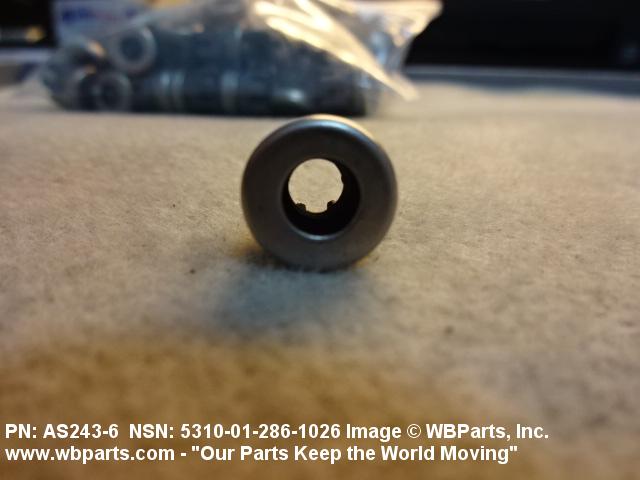

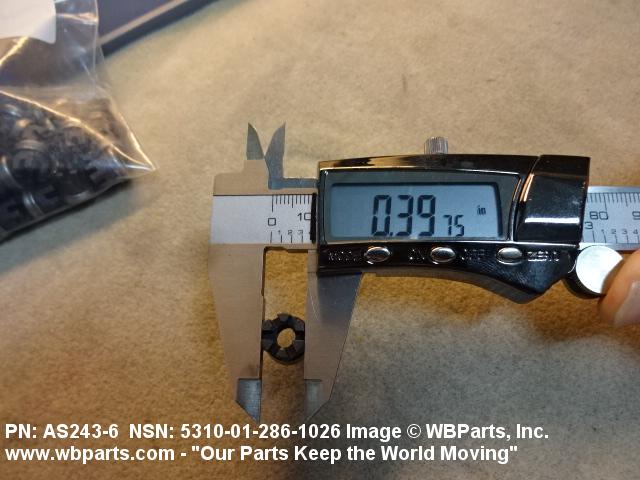

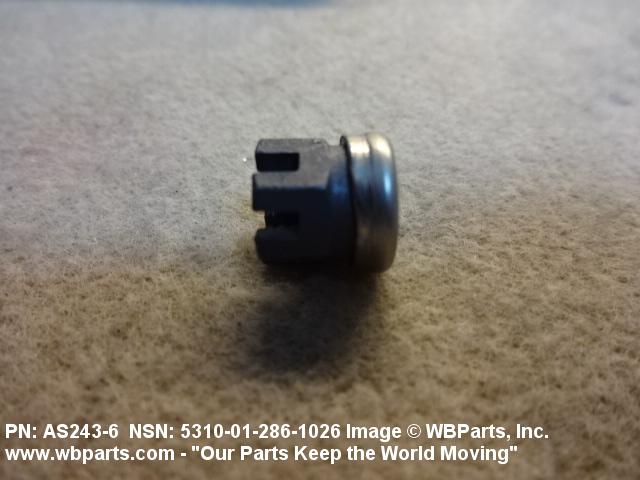

Drawings & Photos | NSN 5310-01-286-1026
Demand History | NSN 5310-01-286-1026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-286-1026 | 2023-01-19 | 10 | United States |
| 5310-01-286-1026 | 2022-11-334 | 100 | US |
| 5310-01-286-1026 | 2022-08-228 | 24 | US |
| 5310-01-286-1026 | 2022-08-228 | 24 | US |
| 5310-01-286-1026 | 2020-03-91 | 100 | United States |
| 5310-01-286-1026 | 2020-02-36 | 42 | United States |
| 5310-01-286-1026 | 2018-08-227 | 40 | us |
| 5310-01-286-1026 | 2016-07-204 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-286-1026
Related Products | NSN 5310-01-286-1026
Technical Data | NSN 5310-01-286-1026
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |
| NUT HEIGHT | 0.344 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | H1 CONFIGURATION A |
| DRILLED HOLE DIAMETER | 0.250 INCHES NOMINAL |
| BEARING SURFACE TYPE | FLAT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 84256 |
| DESIGN CONTROL REFERENCE | AS243-6 |
Restrictions/Controls & Freight Information | NSN 5310-01-286-1026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-286-1026
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
