NSN 5310-01-285-2784 MS210753N, MS21075-3N, 01-285-2784

Product Details | PLATE SELF-LOCKING NUT

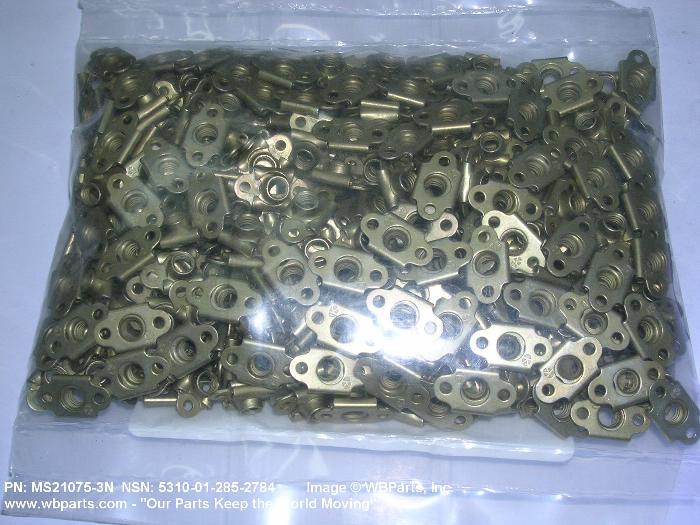

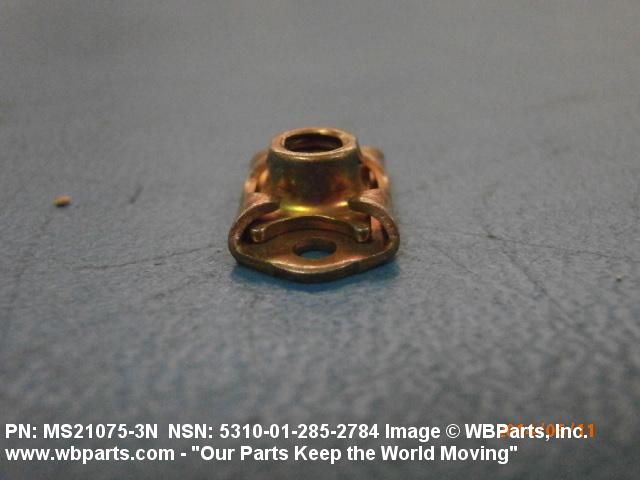

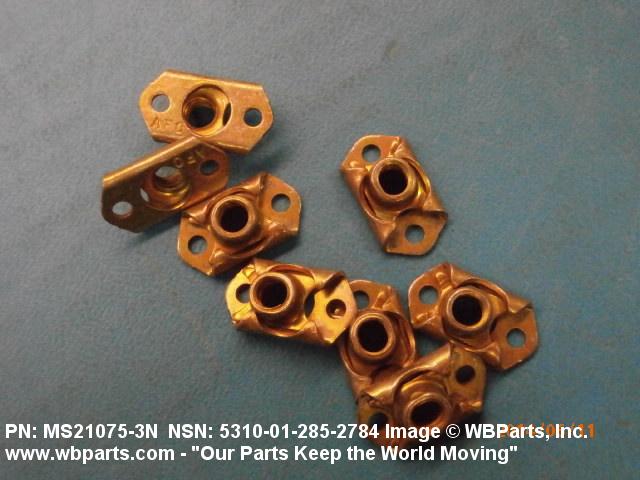

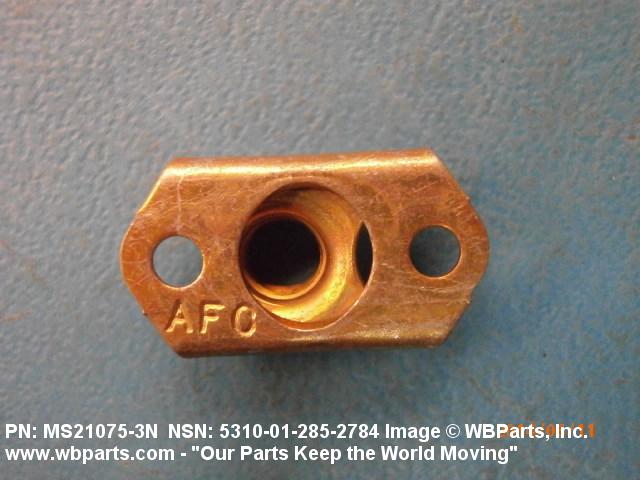

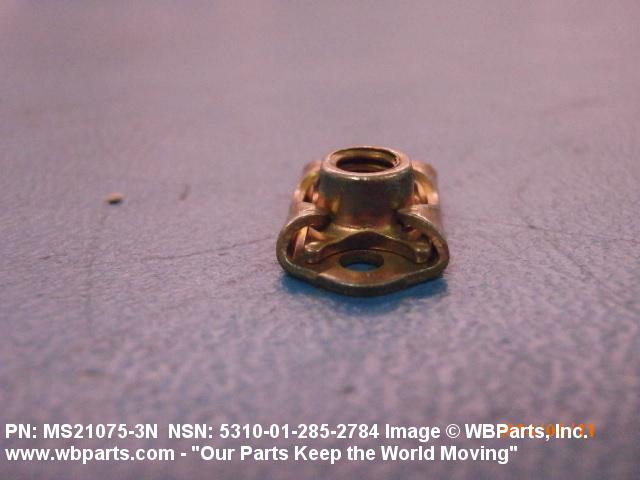

5310-01-285-2784 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS210753N, MS21075-3N, 5310-01-285-2784, 01-285-2784, 5310012852784, 012852784

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 SEP 1988	01-285-2784	05280 ( NUT, SELF-LOCKING, PLATE )

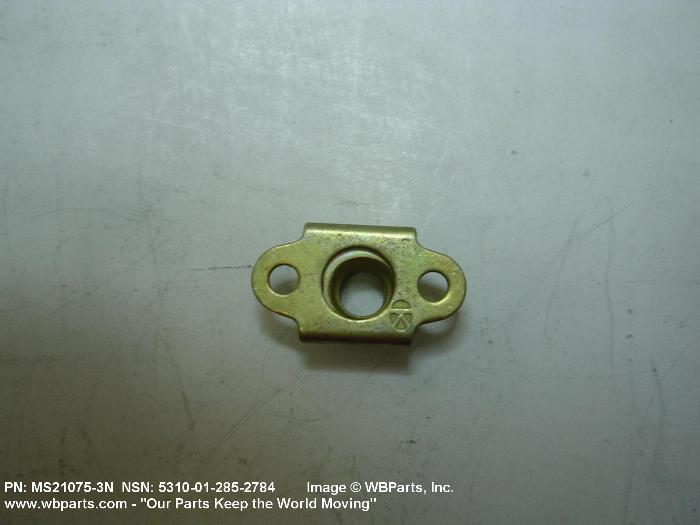

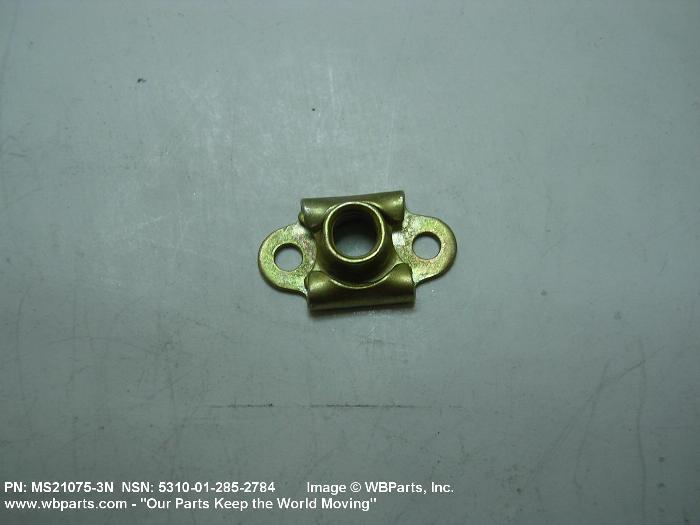

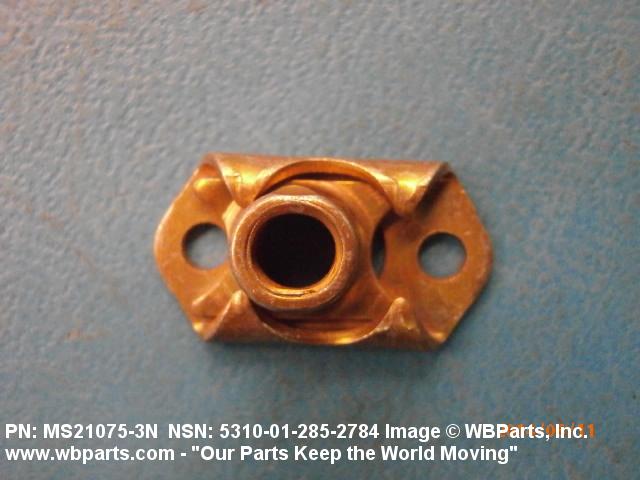

Drawings & Photos | NSN 5310-01-285-2784

Part Number	Request Date	QTY	Origin
5310-01-285-2784	2024-02-43	50	United States
MS210753N	2021-08-230	2040	IN
MS210753N	2021-02-53	61250	IN
MS210753N	2021-02-53	61250	IN
MS210753N	2021-02-41	72	India
MS210753N	2018-09-267	22	United States
5310-01-285-2784	2018-09-264	200	US
5310-01-285-2784	2018-09-260	200	Singapore
MS210753N	2017-10-290	10	Singapore
MS210753N	2017-10-289	10	Singapore
5310-01-285-2784	2017-09-270	7721	DIBBS
5310-01-285-2784	2017-09-248	5850	DIBBS
MS210753N	2017-01-04	1	Malaysia
MS210753N	2016-03-67	50	Thailand
5310-01-285-2784	2014-09-246	10564	DIBBS
MS210753N	2014-06-157	8	United States
MS210753N	2014-01-23	183	United States
5310-01-285-2784	2013-10-291	1	DIBBS-RFPs
5310-01-285-2784	2013-09-246	1	DIBBS-RFPs
MS210753N	2013-07-199	2500	United States
MS210753N	2013-06-155	8	US
MS210753N	2012-11-310	200	US
5310-01-285-2784	2012-07-191	100	US
MS210753N	2012-05-144	800	United States
MS210753N	2010-03-75	560	United States
MS210753N	2010-02-50	10	US
MS210753N	2009-09-265	100	United States
MS210753N	2009-09-265	1000	United States
5310-01-285-2784	2009-09-261	1281	US
5310-01-285-2784	2008-09-253	3500	IL
5310-01-285-2784	2008-09-253	3500	IL
5310-01-285-2784	2008-08-219	2717	United States
5310-01-285-2784	2008-08-214	50	US
MS210753N	2008-06-170	500	DE
MS210753N	2008-04-114	1650	United States
5310-01-285-2784	2008-03-86	350	United States
MS210753N	2008-03-67	40	United States
MS210753N	2008-03-67	50	United States
5310-01-285-2784	2008-03-65	1000	United States
MS210753N	2008-03-63	10000	us
5310-01-285-2784	2008-01-07	60	Canada
MS210753N	2007-12-354	50	United States
5310-01-285-2784	2007-12-354	1400	us
MS210753N	2007-09-262	50	United States
MS210753N	2007-01-29	250	us
5310-01-285-2784	2006-09-249	5870	Turkey

Cross Reference | NSN 5310-01-285-2784

Part Number	Cage Code	Manufacturer
MS21075-3N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075-3N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-285-2784

Compare

Related Products | NSN 5310-01-285-2784

5310-01-285-2785, 5310-01-285-2786, 5310-01-285-2787, 5310-01-285-3234, 5310-01-285-3291

Technical Data | NSN 5310-01-285-2784

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1035 OR STEEL COMP 1050 OR STEEL COMP 4130 OR STEEL COMP 1040 OR STEEL COMP 1042 OR STEEL COMP 4340 OR STEEL COMP 8740 OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

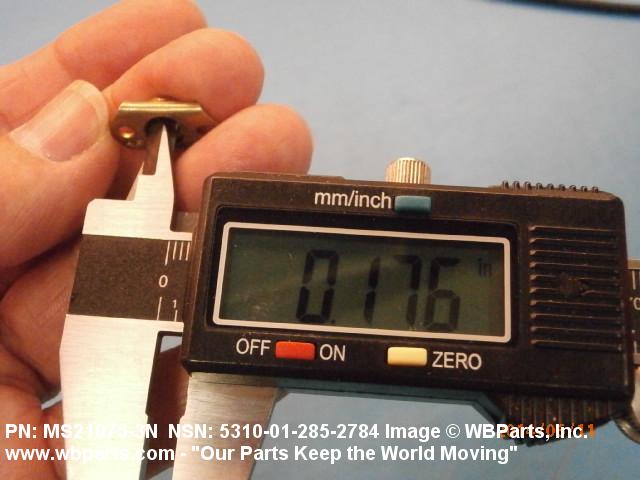

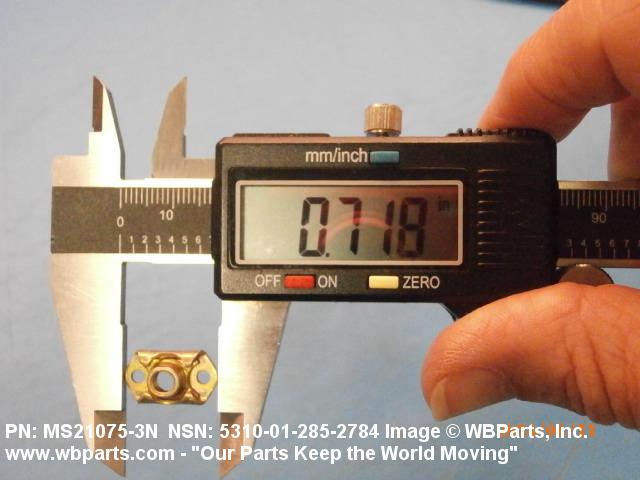

NUT LENGTH	0.739 INCHES MAXIMUM

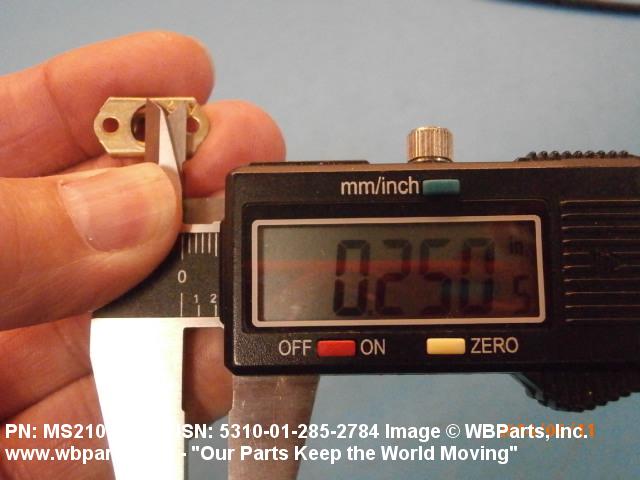

NUT HEIGHT	0.250 INCHES MAXIMUM

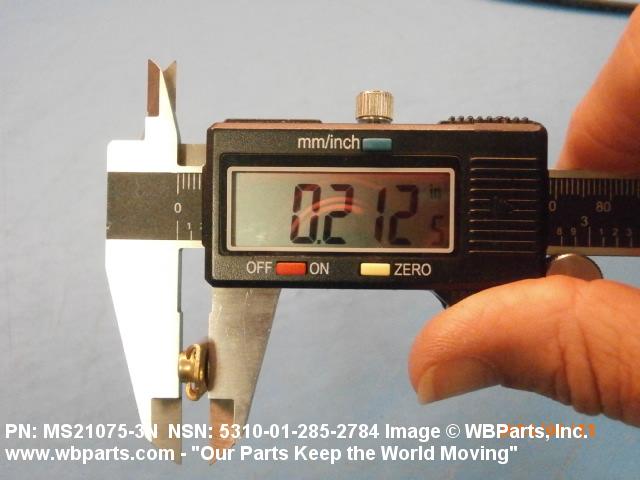

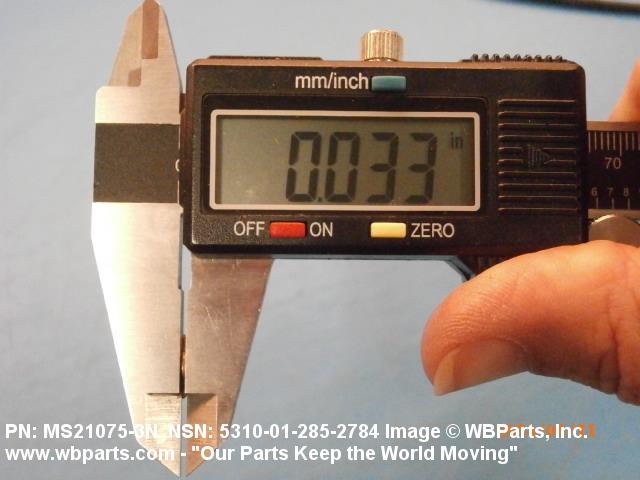

PLATE THICKNESS	0.025 INCHES MINIMUM AND 0.090 INCHES MAXIMUM

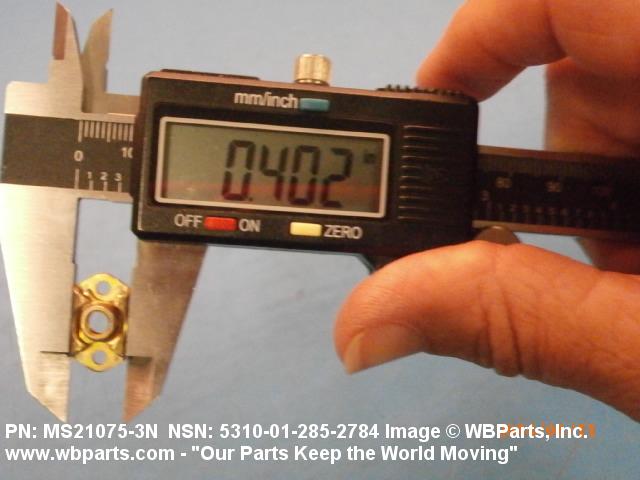

PLATE WIDTH	0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

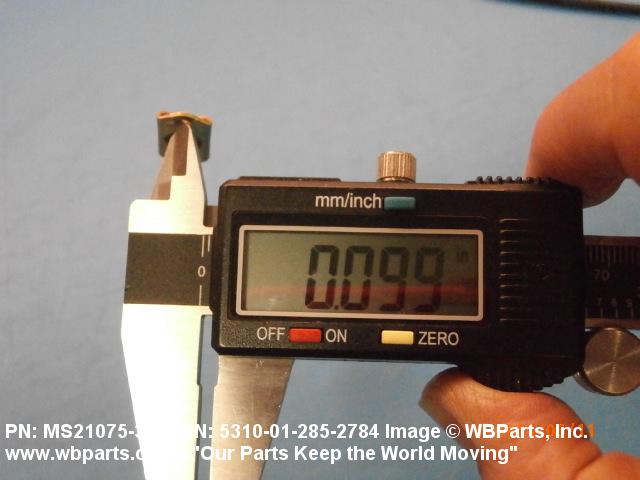

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.250 INCHES MINIMUM AND 0.255 INCHES MAXIMUM

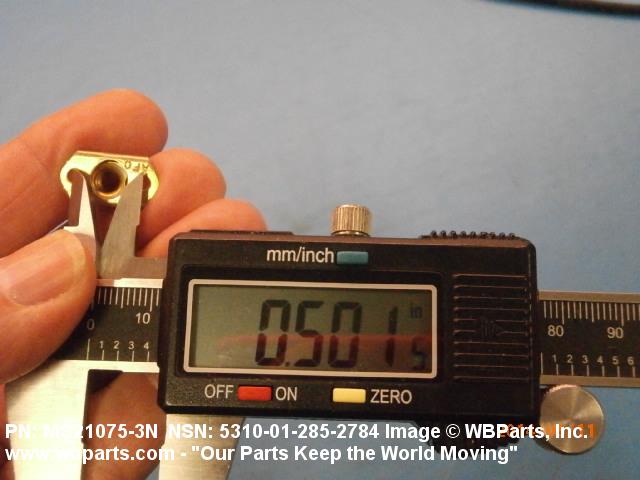

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.500 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM

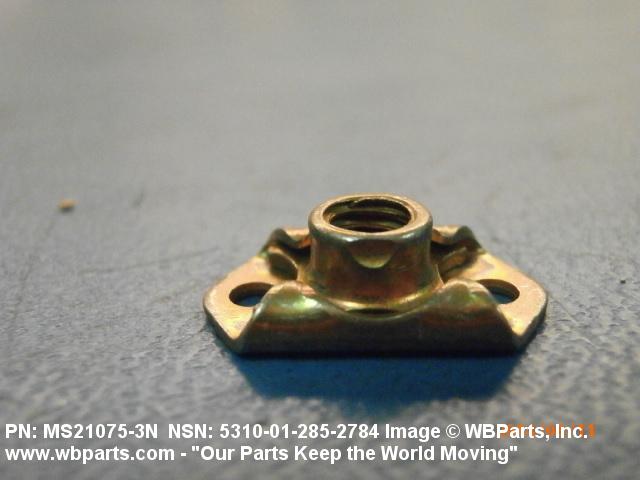

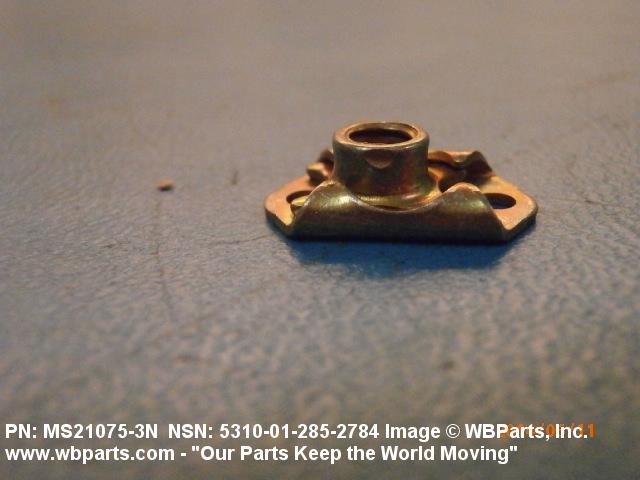

FEATURES PROVIDED	FLOATING NUT
SPECIAL FEATURES	W/O EYELETS
