NSN 5310-01-285-2044 26M02-7003 ITEM 35, 26M027003ITEM35, 57685700036
Product Details | SHOULDERED WASHER
5310-01-285-2044 A washer, round in shape, and having a centrally located hole. One bearing surface is flat and unbroken, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: 26M02-7003 ITEM 35, 26M027003ITEM35, 57685700036, 5768570-0036, 5310-01-285-2044, 01-285-2044, 5310012852044, 012852044
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 1988 | 01-285-2044 | 15934 ( WASHER, SHOULDERED ) |
Drawings & Photos | NSN 5310-01-285-2044
Demand History | NSN 5310-01-285-2044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-285-2044 | 2012-11-335 | 15 | DIBBS |
| 5310-01-285-2044 | 2012-08-241 | 16 | DIBBS |
| 5310-01-285-2044 | 2012-06-163 | 16 | DIBBS |
| 5310-01-285-2044 | 2012-01-03 | 16 | DIBBS |
| 5310-01-285-2044 | 2011-11-327 | 8 | DIBBS |
| 5310-01-285-2044 | 2011-11-312 | 16 | DIBBS |
| 5310-01-285-2044 | 2011-10-301 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-285-2044
Technical Data | NSN 5310-01-285-2044
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE OVERALL |

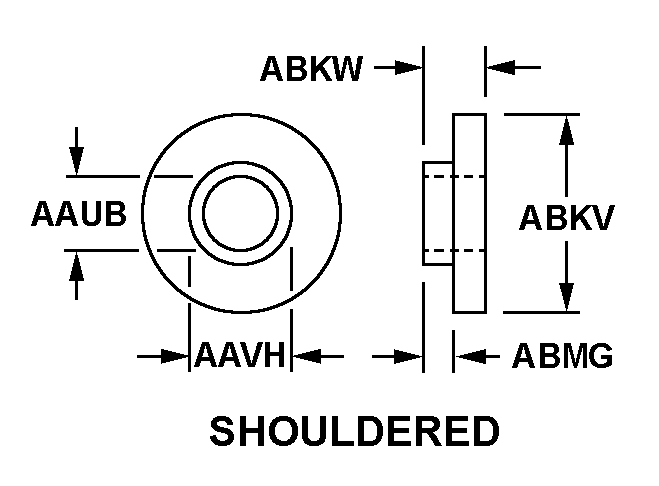

| STYLE DESIGNATOR | 8 SHOULDERED |
| HOLE DIAMETER | 1.051 INCHES MINIMUM AND 1.053 INCHES MAXIMUM |
| SHOULDER DIAMETER | 1.690 INCHES MINIMUM AND 1.710 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 2.570 INCHES MINIMUM AND 2.590 INCHES MAXIMUM |
| SHOULDER HEIGHT | 0.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | HOLE LOCATED ON FACE OF WASHER 0.250 IN. MIN DIA AND 0.252 IN.MAX DIA CSK 90 DEG TO 0.330 IN. MIN AND 0.350 IN. MAX DIA |
Restrictions/Controls & Freight Information | NSN 5310-01-285-2044
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-285-2044
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
