NSN 5310-01-244-2258 NAS1474R3, 01-244-2258, 012442258
Product Details | PLATE SELF-LOCKING NUT

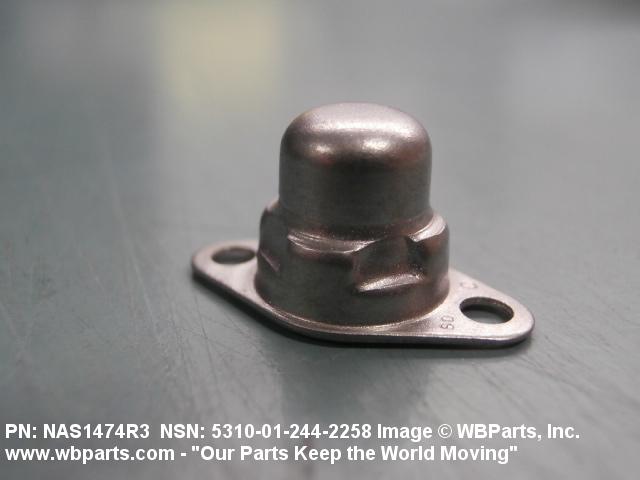

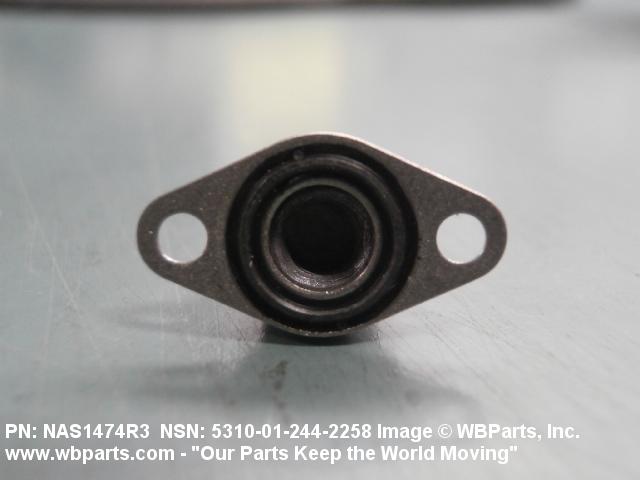

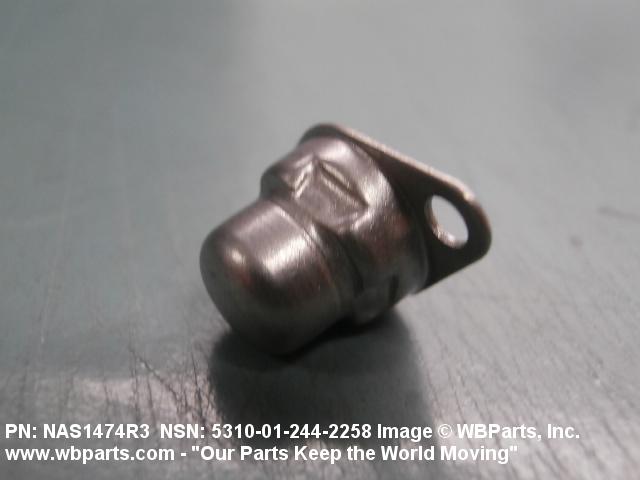

5310-01-244-2258 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1474R3, 5310-01-244-2258, 01-244-2258, 5310012442258, 012442258
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 NOV 1986 | 01-244-2258 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-244-2258
Demand History | NSN 5310-01-244-2258
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1474R3 | 2024-10-304 | 3 | US |
| NAS1474R3 | 2024-10-304 | 8 | US |
| NAS1474R3 | 2024-10-291 | 2000 | United States |
| 5310-01-244-2258 | 2024-08-239 | 1000 | Mexico |
| 5310-01-244-2258 | 2021-07-183 | 50 | Singapore |
| NAS1474R3 | 2020-05-128 | 25 | United States |
| 5310-01-244-2258 | 2020-02-59 | 700 | MX |
| NAS1474R3 | 2016-09-257 | 4 | United States |
| NAS1474R3 | 2014-12-357 | 120 | United States |
| NAS1474R3 | 2014-08-220 | 100 | Spain |
| NAS1474R3 | 2014-02-51 | 250 | US |
| NAS1474R3 | 2014-01-30 | 30 | UAE |
| 5310-01-244-2258 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-01-244-2258 | 2013-09-255 | 2 | US |
| 5310-01-244-2258 | 2013-09-255 | 2 | US |
| 5310-01-244-2258 | 2013-09-246 | 1 | DIBBS-RFPs |
| NAS1474R3 | 2013-05-142 | 100 | United States |
| 5310-01-244-2258 | 2013-03-63 | 2 | US |
| 5310-01-244-2258 | 2012-12-336 | 0 | DIBBS |
Cross Reference | NSN 5310-01-244-2258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1474R3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-244-2258
Related Products | NSN 5310-01-244-2258
Technical Data | NSN 5310-01-244-2258
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 NUT RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL IRON ALLOY 660 SHELL IRON ALLOY 660 WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE NUT MIL-R-6855,CLASS 1,GRADE 60 MIL SPEC SINGLE MATERIAL RESPONSE SEAL AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE SHELL AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | PASSIVATE NUT PASSIVATE SHELL PASSIVATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHELL QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE WASHER |
| HARDNESS RATING | 60.0 SHORE DUROMETER A NOMINAL |
| NUT STYLE | A116 PLATE |
| OVERALL HEIGHT | 0.405 INCHES MAXIMUM |
| NUT LENGTH | 0.840 INCHES MAXIMUM |
| NUT HEIGHT | 0.268 INCHES MAXIMUM |
| PLATE THICKNESS | 0.030 INCHES MAXIMUM |
| PLATE WIDTH | 0.443 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.070 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.220 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.290 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.588 INCHES MINIMUM AND 0.592 INCHES MAXIMUM |
| TEMP RATING | 65.0 DEG FAHRENHEIT MINIMUM AND 225.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1774 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
