NSN 5310-01-240-8840 MS1783010C, MS17830-10C, 60079329
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-240-8840 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS1783010C, MS17830-10C, 60079329, 60-07-9329, 218006585F, 5310-01-240-8840, 01-240-8840, 5310012408840, 012408840
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1986 | 01-240-8840 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

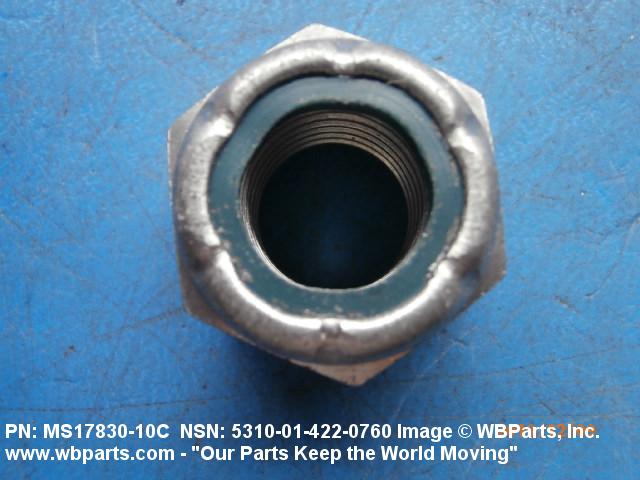

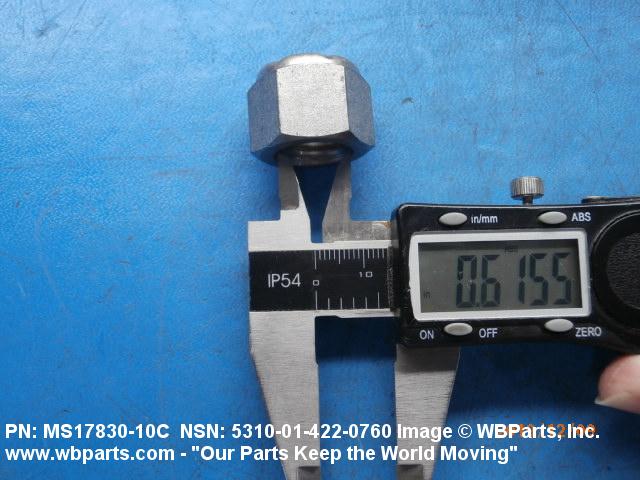

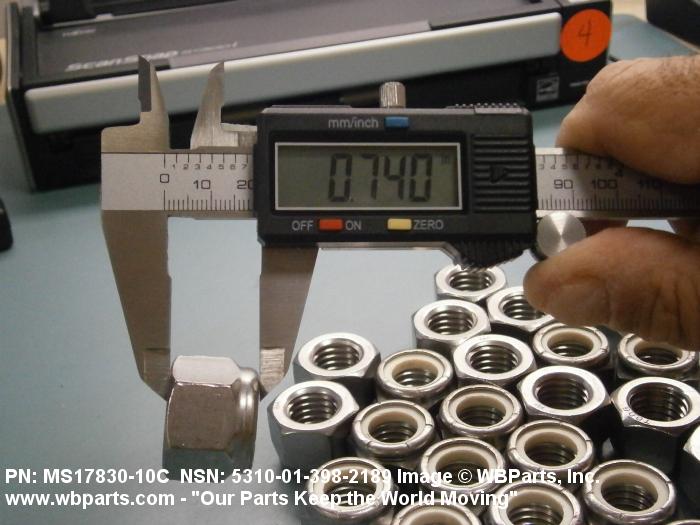

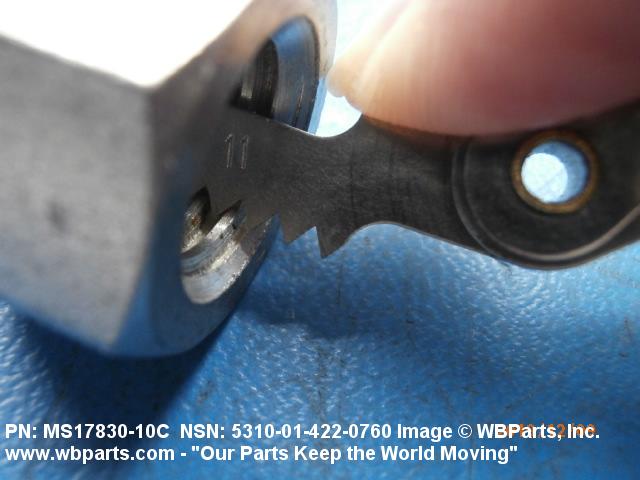

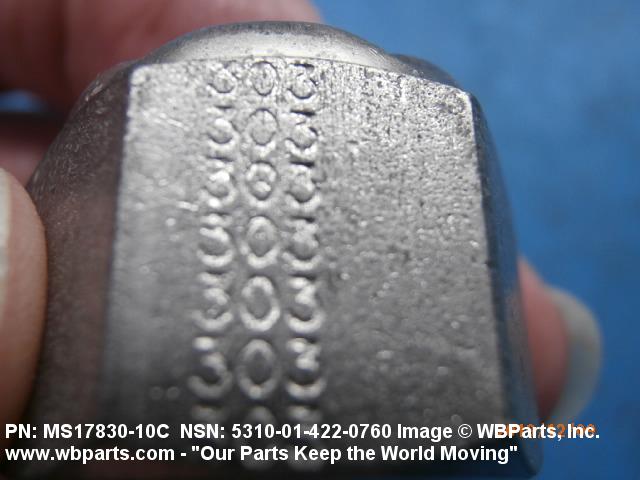

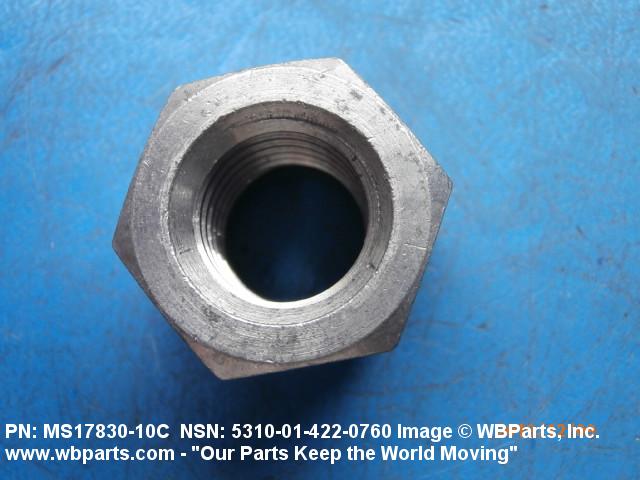

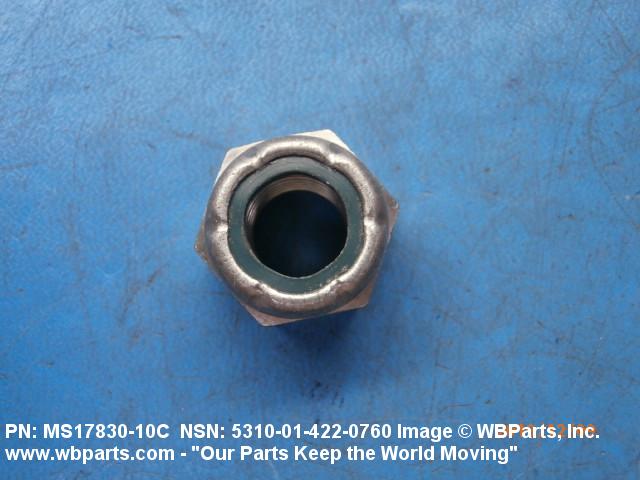

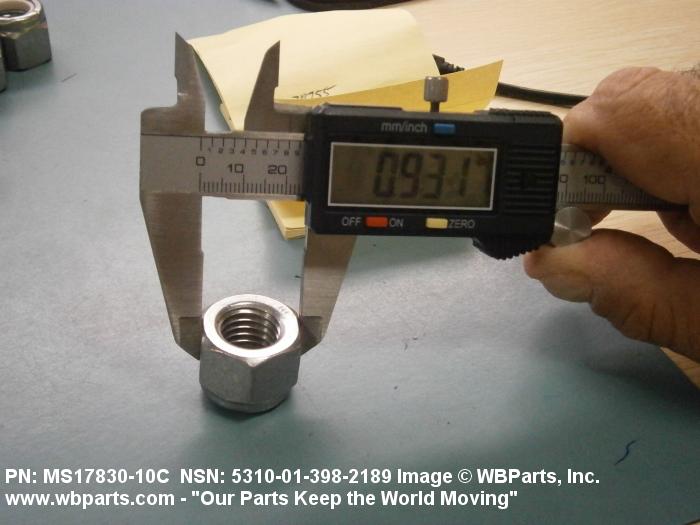

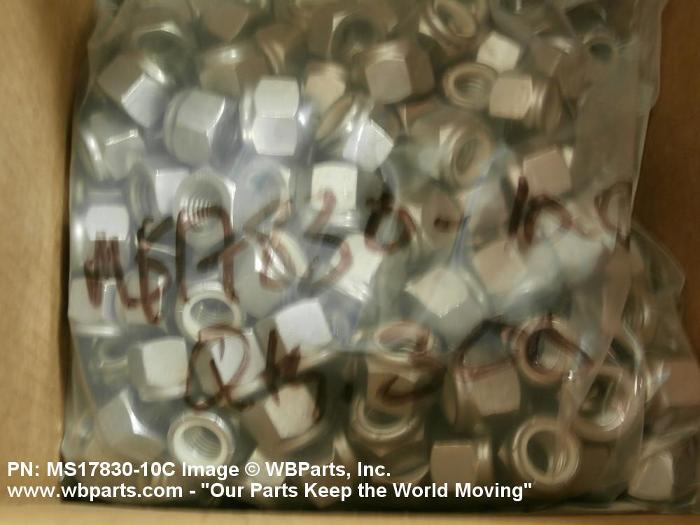

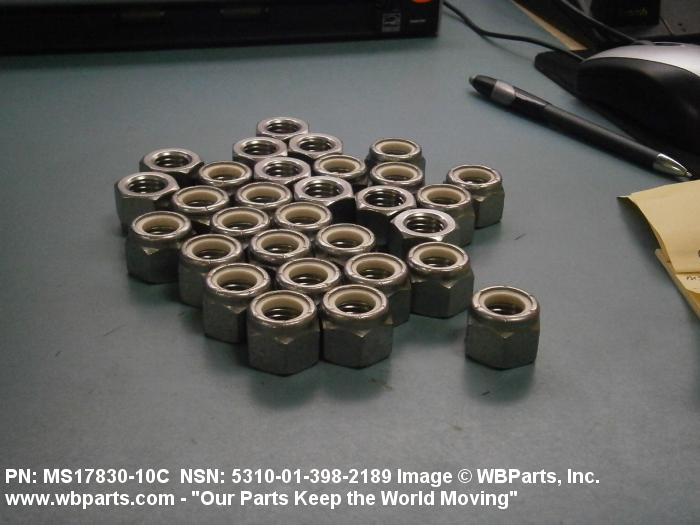

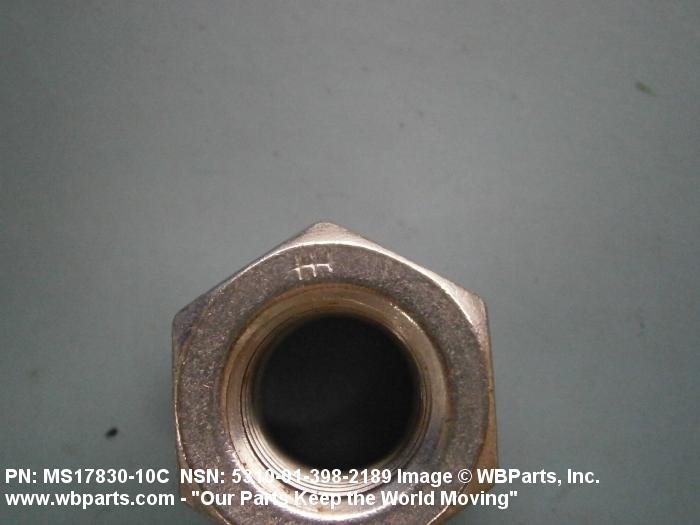

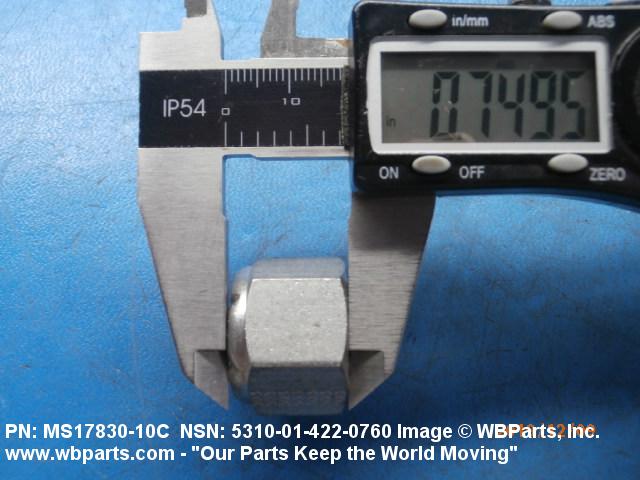

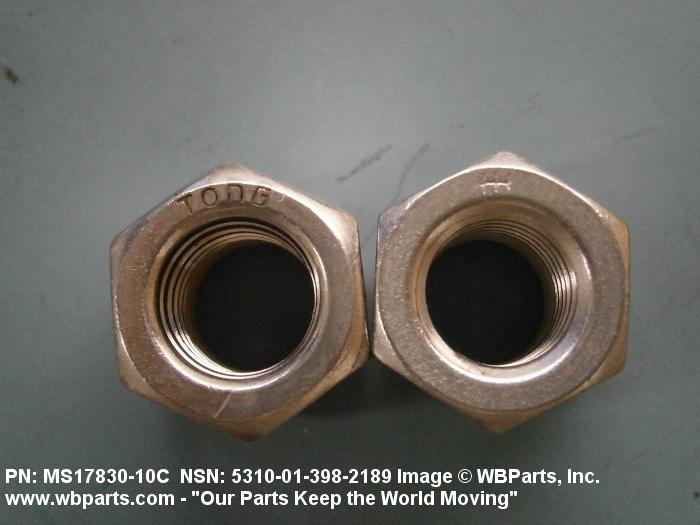

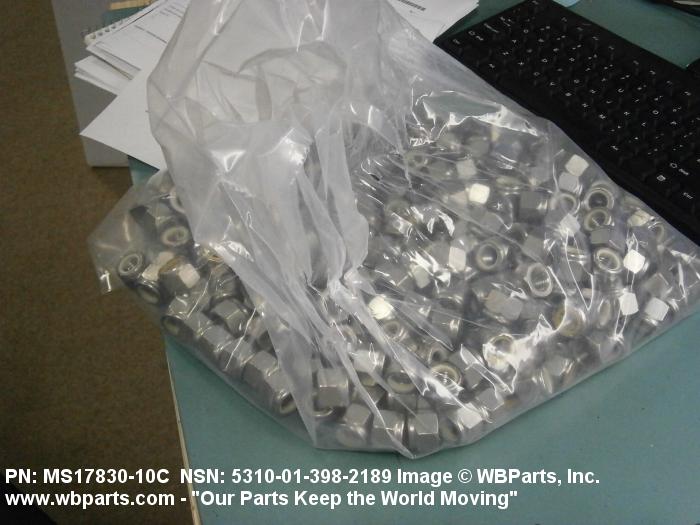

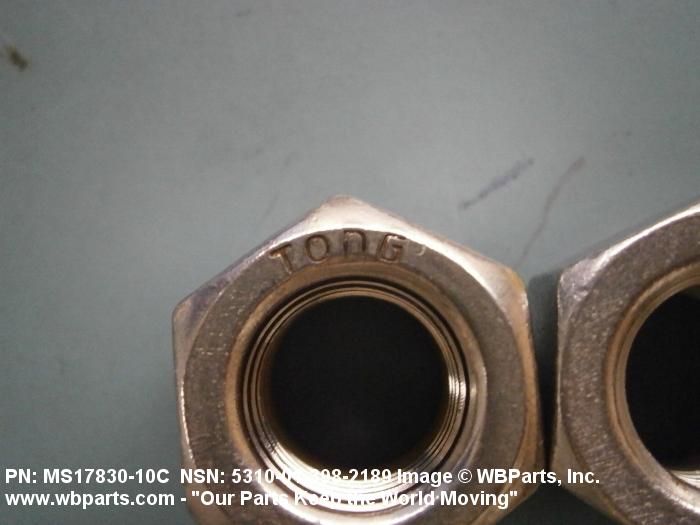

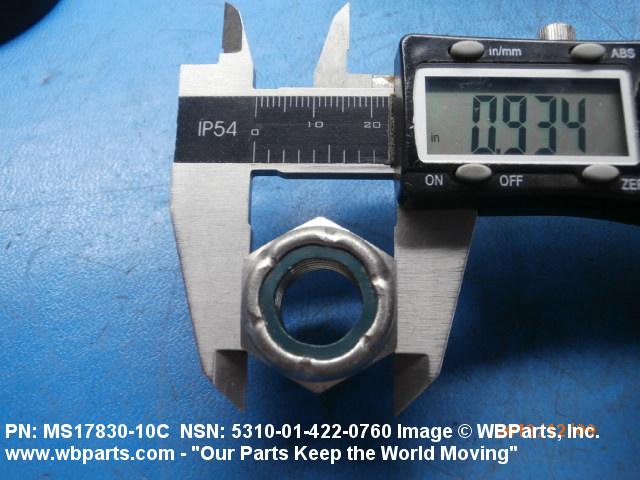

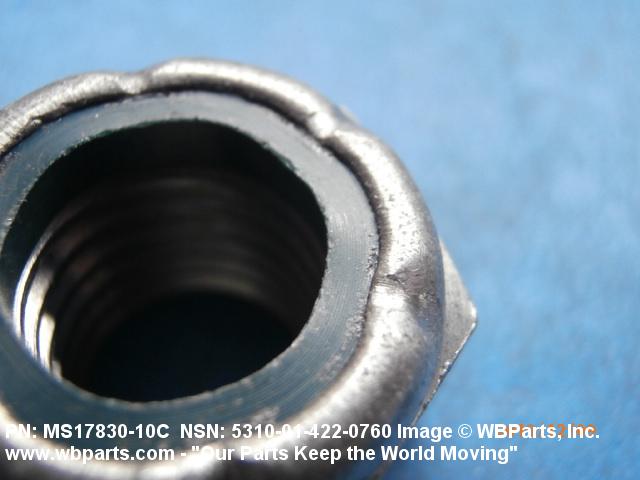

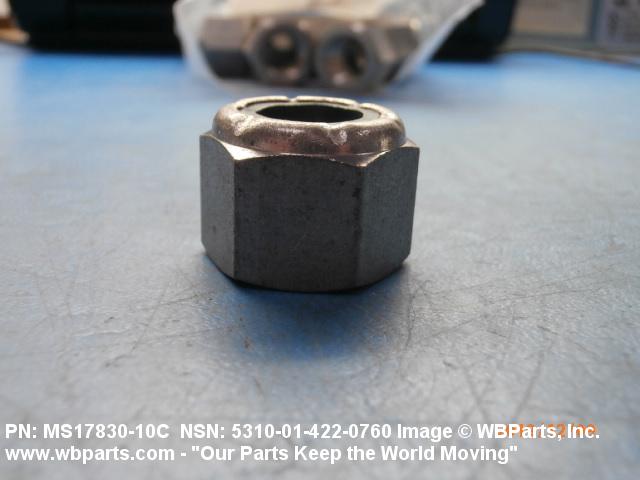

Drawings & Photos | NSN 5310-01-240-8840
Demand History | NSN 5310-01-240-8840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1783010C | 2023-05-24 | 50 | United States |
| 218006585F | 2020-10-20 | 300 | DIBBS |
| 218006585F | 2020-10-07 | 300 | DIBBS |
| 218006585F | 2020-08-28 | 20 | DIBBS |
| 218006585F | 2020-08-20 | 20 | DIBBS |
| 218006585F | 2020-08-18 | 21 | DIBBS |
| 218006585F | 2020-07-29 | 21 | DIBBS |
| MS1783010C | 2020-07-25 | 22 | US |
| 218006585F | 2020-06-04 | 508 | DIBBS |
| 218006585F | 2019-04-14 | 508 | DIBBS |
| MS17830-10C | 2018-11-06 | 62 | Israel |
| 5310-01-240-8840 | 2018-07-16 | 478 | DIBBS |
| 5310-01-240-8840 | 2018-07-08 | 478 | DIBBS |
| 5310-01-240-8840 | 2018-01-10 | 438 | DIBBS |
| 5310-01-240-8840 | 2017-11-02 | 438 | DIBBS |
| 5310-01-240-8840 | 2016-02-03 | 295 | DIBBS |
| MS1783010C | 2015-09-17 | 25 | United States |
| 5310-01-240-8840 | 2015-09-10 | 158 | DIBBS |
| 5310-01-240-8840 | 2015-08-30 | 158 | DIBBS |
| MS17830-10C | 2015-05-18 | 4 | United States |
| 5310-01-240-8840 | 2014-10-02 | 28 | DIBBS |
| 5310-01-240-8840 | 2014-09-11 | 28 | DIBBS |
| 5310-01-240-8840 | 2014-08-01 | 28 | DIBBS |
| 5310-01-240-8840 | 2014-07-21 | 28 | DIBBS |
| 5310-01-240-8840 | 2014-05-11 | 36 | DIBBS |
| MS1783010C | 2013-04-17 | 200 | us |
| MS1783010C | 2013-04-17 | 300 | us |
| MS1783010C | 2013-04-17 | 400 | us |
| MS1783010C | 2013-04-17 | 500 | us |
| 5310-01-240-8840 | 2013-02-14 | 39 | DIBBS |
| MS1783010C | 2013-01-09 | 300 | Israel |
| MS1783010C | 2013-01-09 | 300 | Israel |
| 5310-01-240-8840 | 2012-07-19 | 27 | DIBBS |
| MS1783010C | 2011-12-14 | 75 | US |
| 5310-01-240-8840 | 2011-07-22 | 22 | DIBBS |
| MS1783010C | 2011-06-23 | 16 | US |
| 5310-01-240-8840 | 2011-06-13 | 11 | DIBBS |
| MS1783010C | 2011-05-18 | 8 | US |
| 5310-01-240-8840 | 2011-02-16 | 14 | DIBBS |
| 5310-01-240-8840 | 2010-02-24 | 19 | DIBBS |
| 5310-01-240-8840 | 2009-11-02 | 27 | DIBBS |
| 5310-01-240-8840 | 2009-09-14 | 10 | DIBBS |
| 5310-01-240-8840 | 2009-09-14 | 20 | DIBBS |
| 5310-01-240-8840 | 2009-08-22 | 10 | DIBBS |
| MS1783010C | 2008-06-16 | 25 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-240-8840
Related Products | NSN 5310-01-240-8840
Technical Data | NSN 5310-01-240-8840
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.6250 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL EXCEPT INSERT |
| NUT STYLE | HEXAGON |
| NUT HEIGHT | 0.732 INCHES MINIMUM AND |
| WIDTH ACROSS FLATS | 0.928 INCHES MINIMUM AND |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| SPECIAL FEATURES | MATERIAL IS 300 SERIES STEEL; NON-METTALLIC INSERT |
| III END ITEM IDENTIFICATION | MRAP BUFFALO MK2A2 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | 5/8"-11 SELF-LOCKING HEX NUT |
Restrictions/Controls & Freight Information | NSN 5310-01-240-8840
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-240-8840
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
