NSN 5310-01-237-8858 K4933344, K49333-4-4, 5256249161
Product Details | GANG CHANNEL SELF-LOCKING NUT
5310-01-237-8858 A nut having ears or lugs designed to hold it in position after its installation in a specially designed channel. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: K4933344, K49333-4-4, 5256249161, 525-624-9161, 5310-01-237-8858, 01-237-8858, 5310012378858, 012378858
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1986 | 01-237-8858 | 01863 ( NUT, SELF-LOCKING, GANG CHANNEL ) |

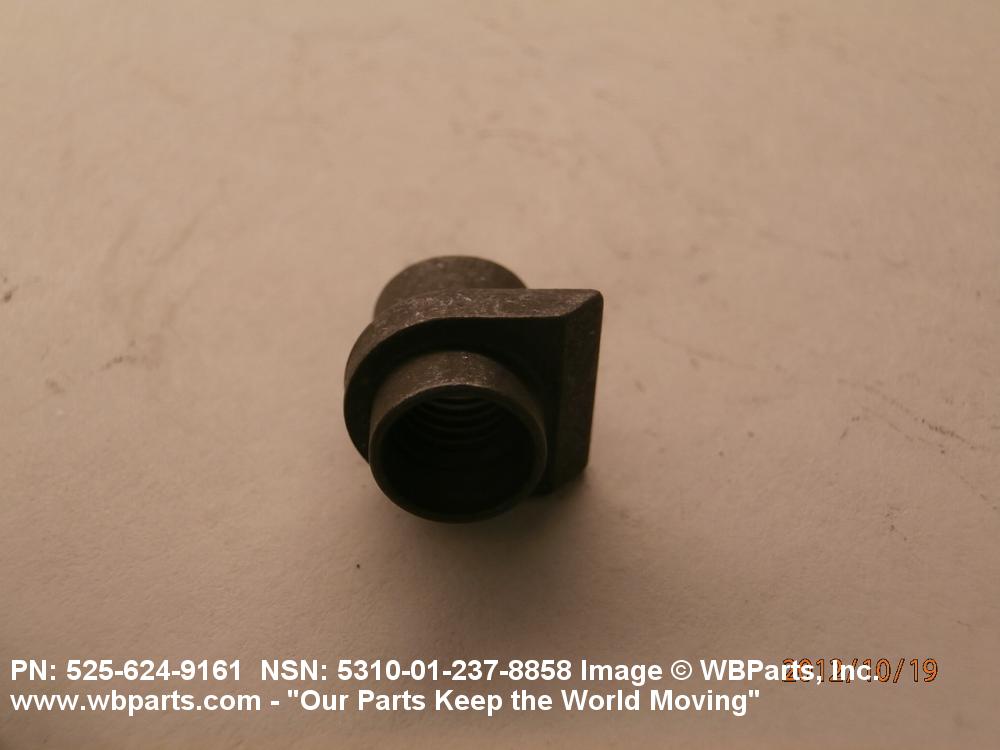

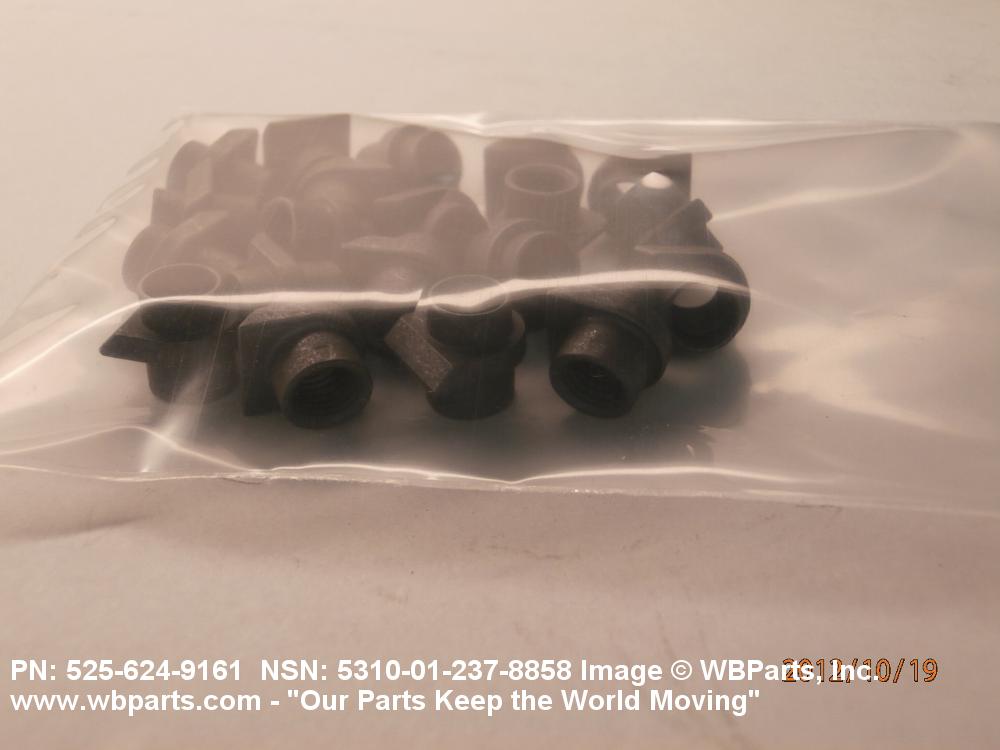

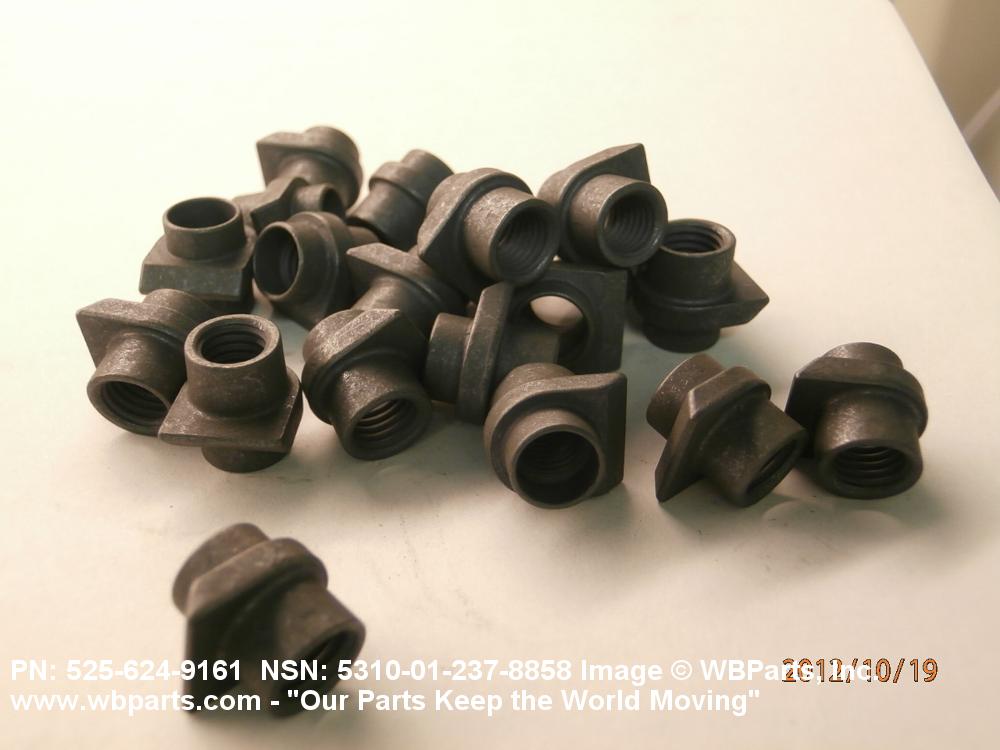

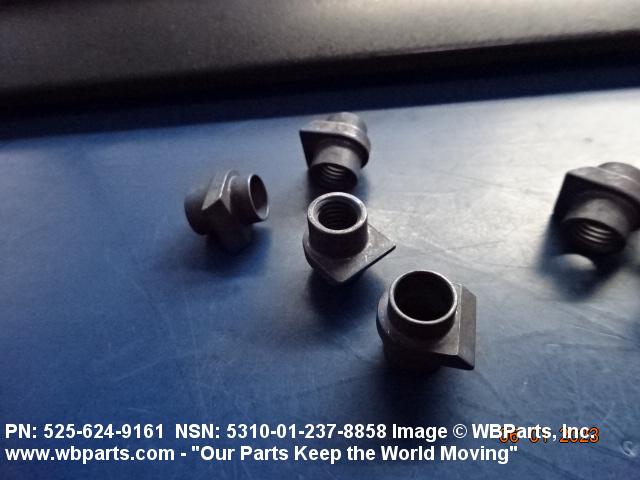

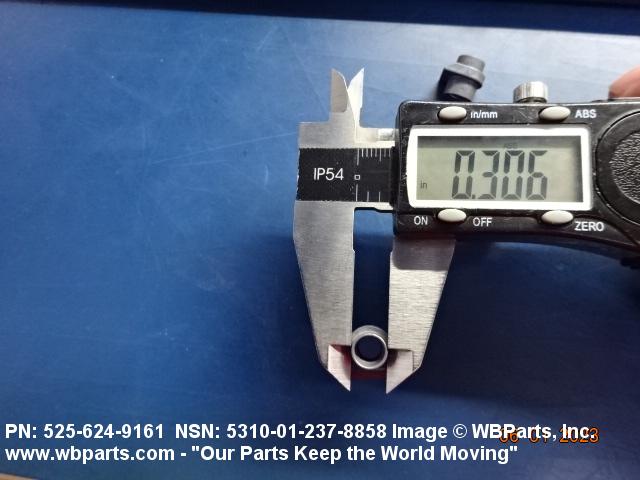

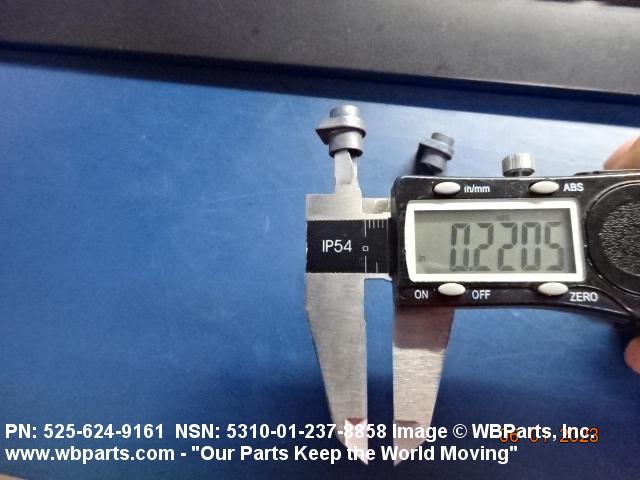

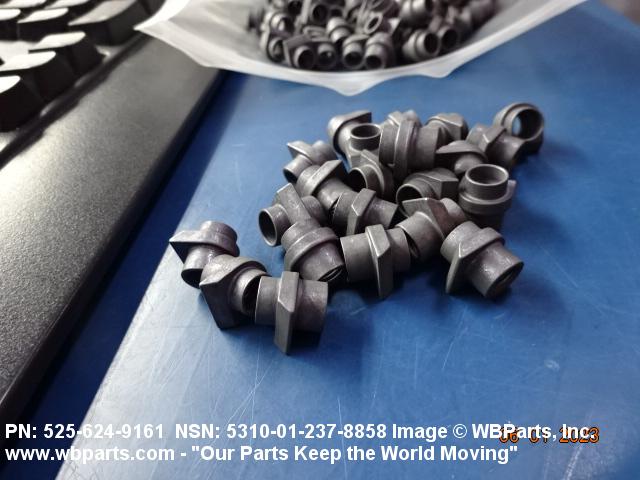

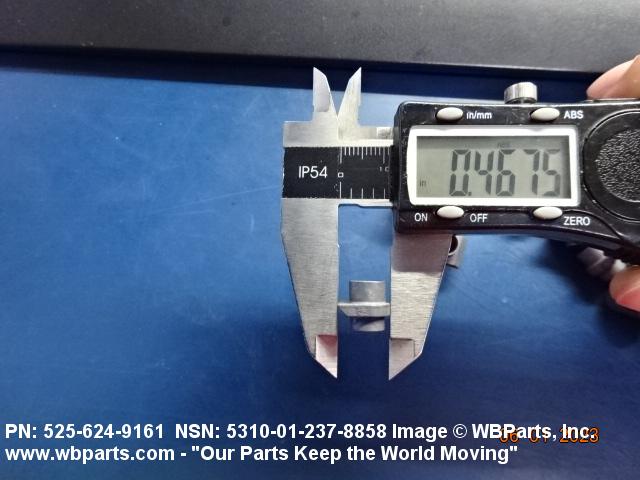

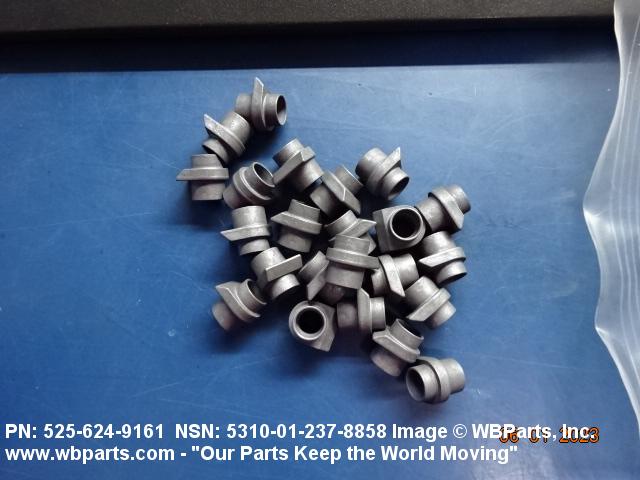

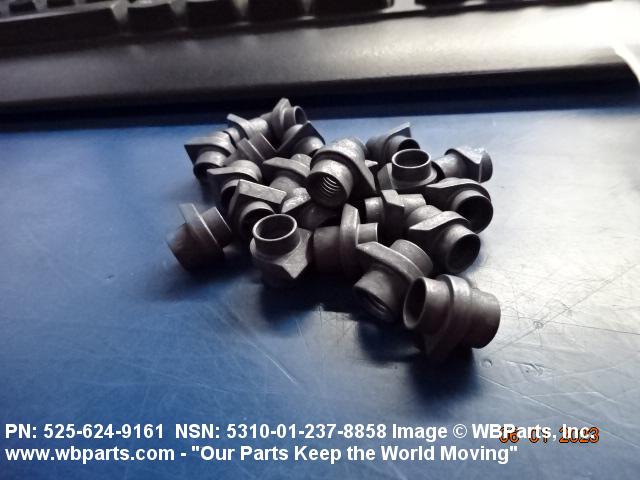

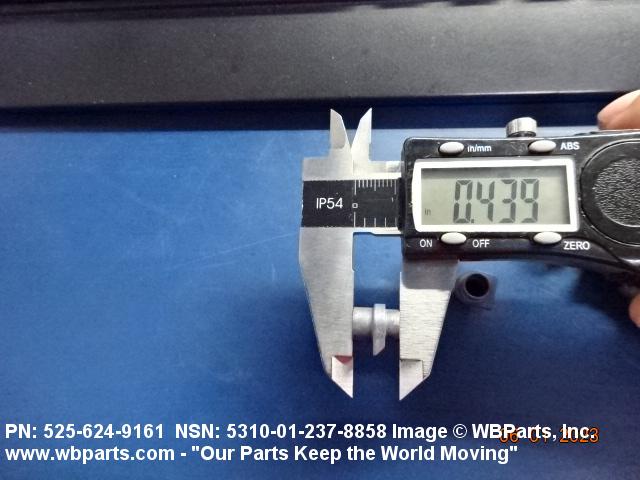

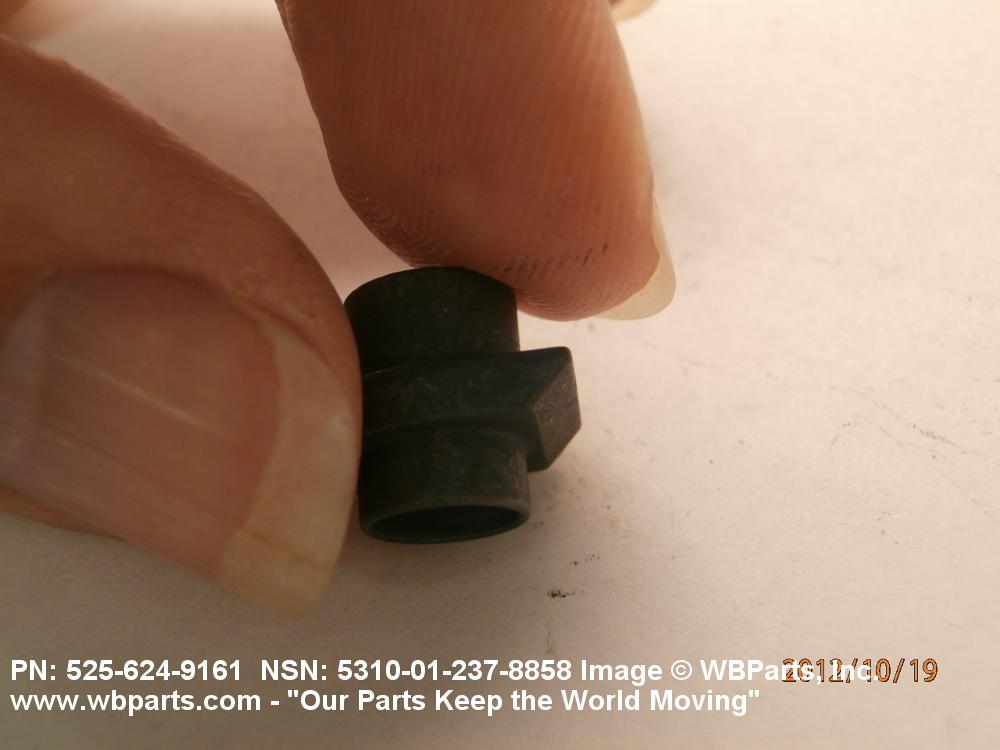

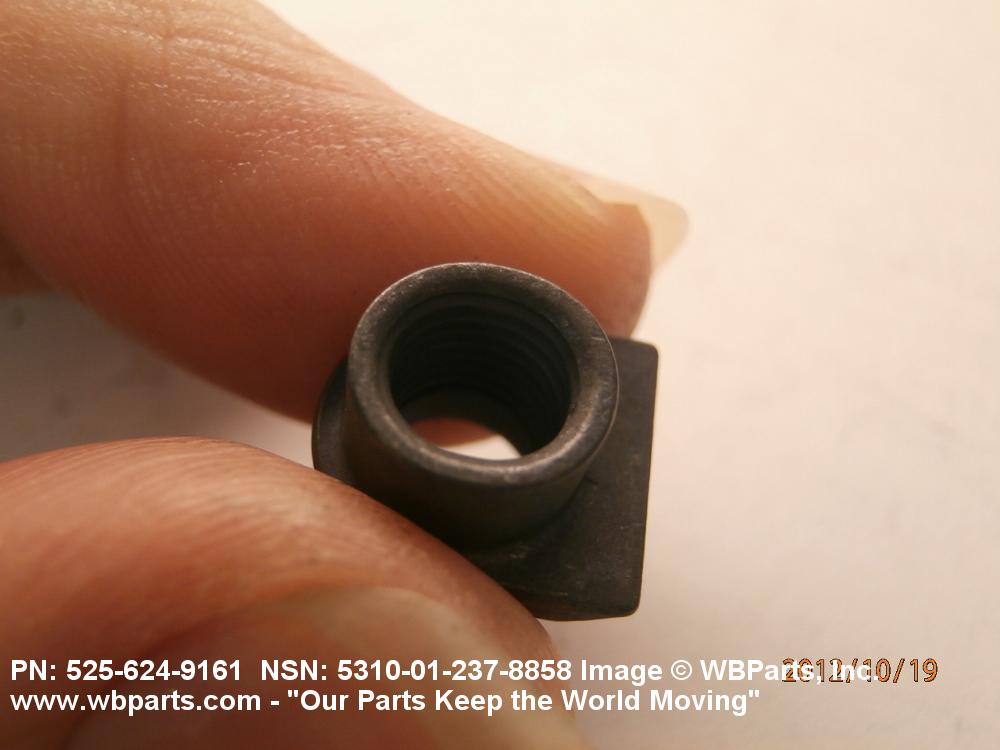

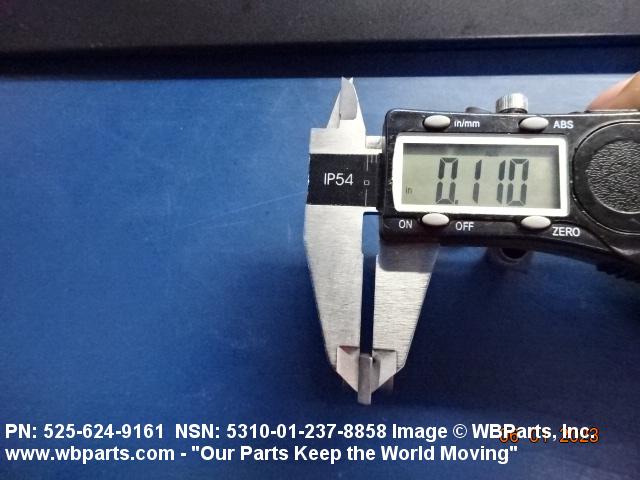

Drawings & Photos | NSN 5310-01-237-8858
Demand History | NSN 5310-01-237-8858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-237-8858 | 2023-05-130 | 300 | Sweden |
| 5256249161 | 2013-06-154 | 33 | United States |
| 5310-01-237-8858 | 2012-10-286 | 20 | Sweden |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-237-8858
Technical Data | NSN 5310-01-237-8858
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| BASE WIDTH | 0.409 INCHES NOMINAL |
| NUT LENGTH | 0.469 INCHES NOMINAL |
| BASE THICKNESS | 0.105 INCHES NOMINAL |
| NUT HEIGHT | 0.441 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 850.0 DEG FAHRENHEIT NOMINAL |
| III END ITEM IDENTIFICATION | ACFT APPL HU25A ENGINE ATF3-6 |
| MANUFACTURERS CODE | 15653 |
| DESIGN CONTROL REFERENCE | K49333-4-4 |
Restrictions/Controls & Freight Information | NSN 5310-01-237-8858
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
