Product Details | PLATE SELF-LOCKING NUT

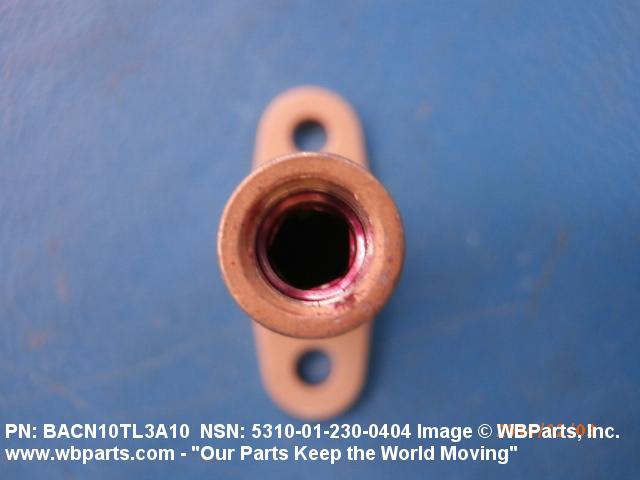

5310-01-230-0404 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10TL3A10, WSI4A10, WSI-4A-10, 5310-01-230-0404, 01-230-0404, 5310012300404, 012300404
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 1986 | 01-230-0404 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

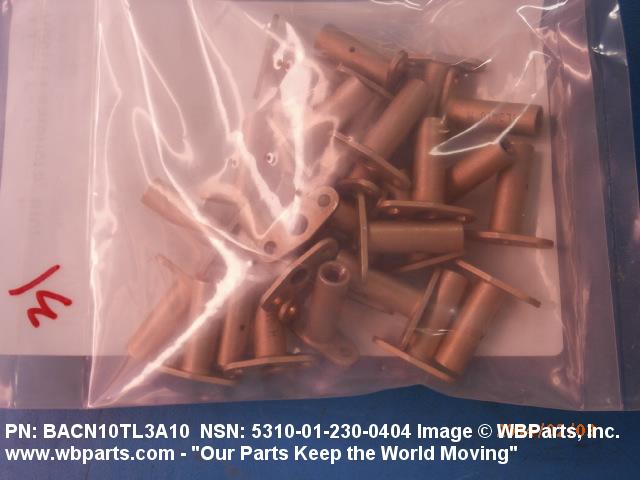

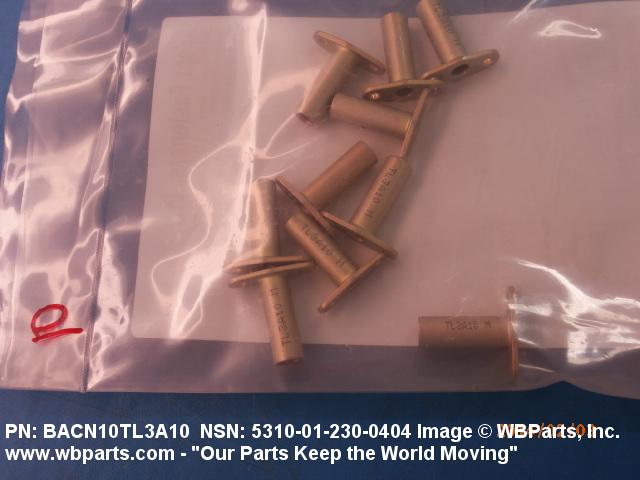

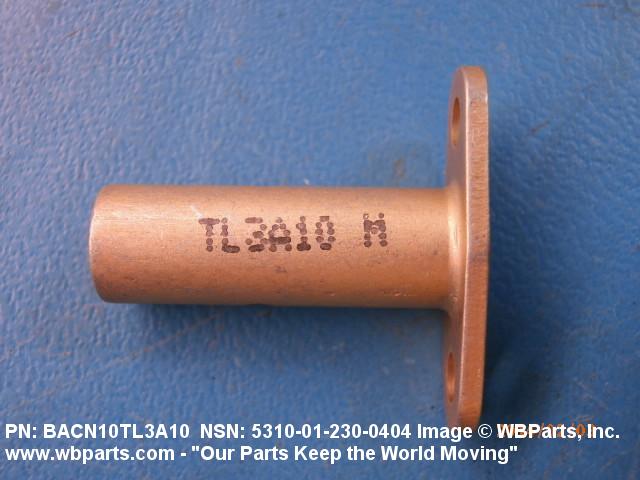

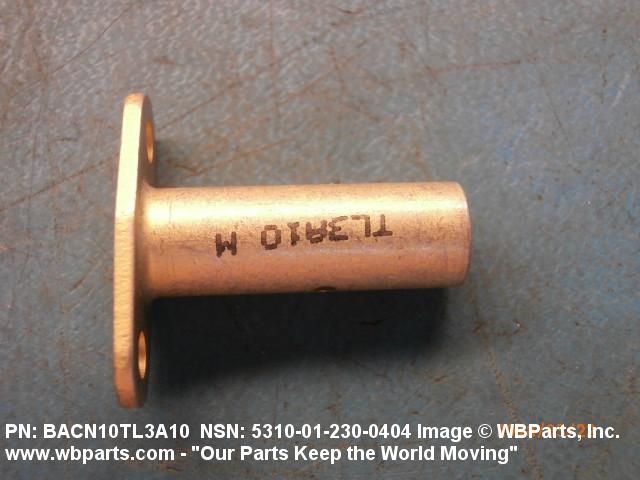

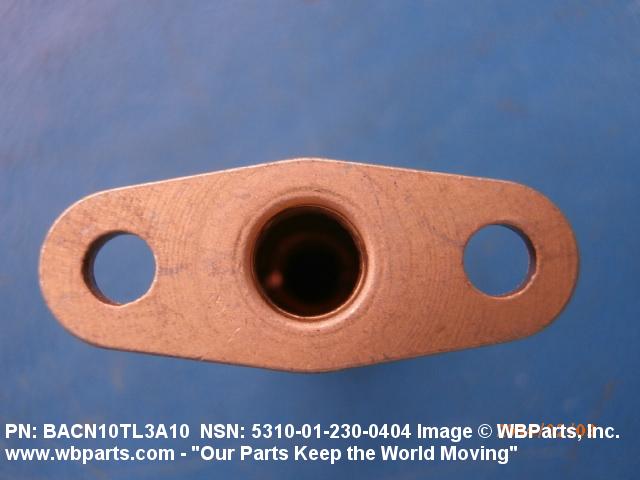

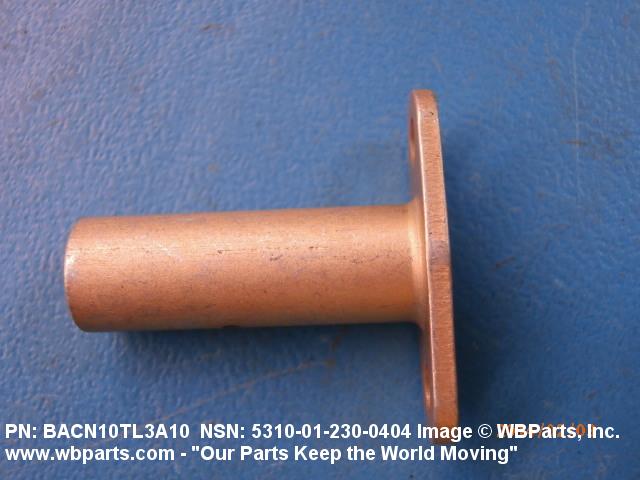

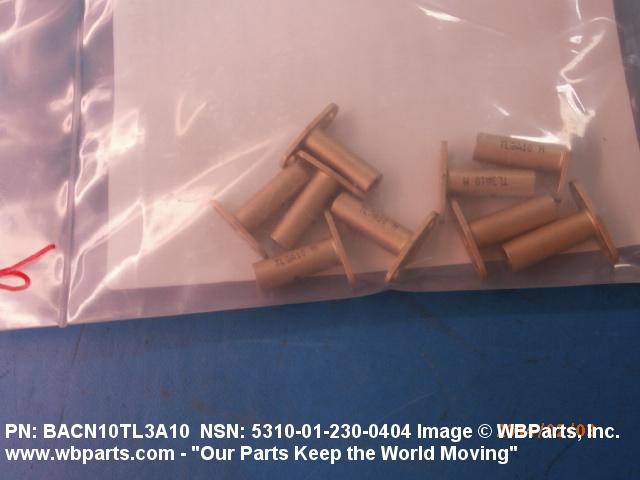

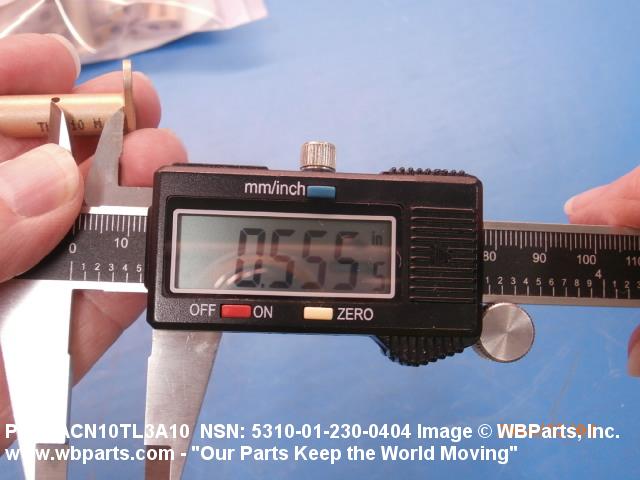

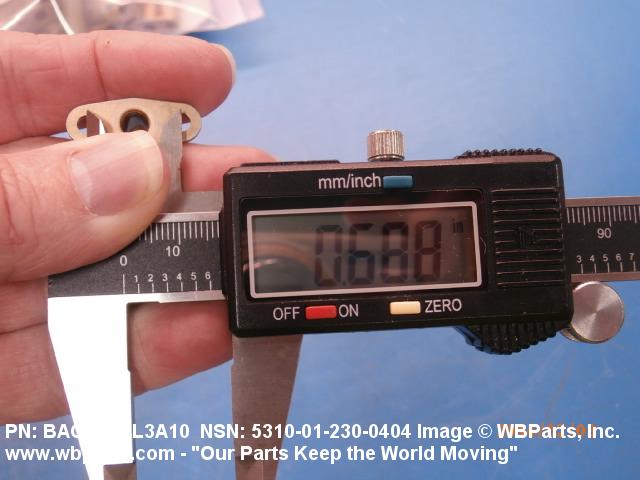

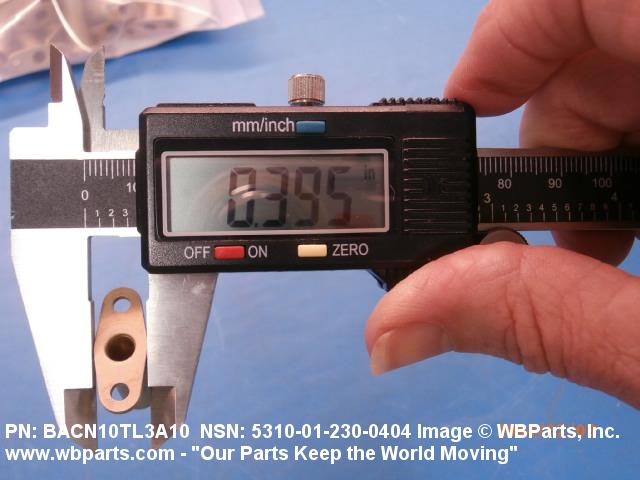

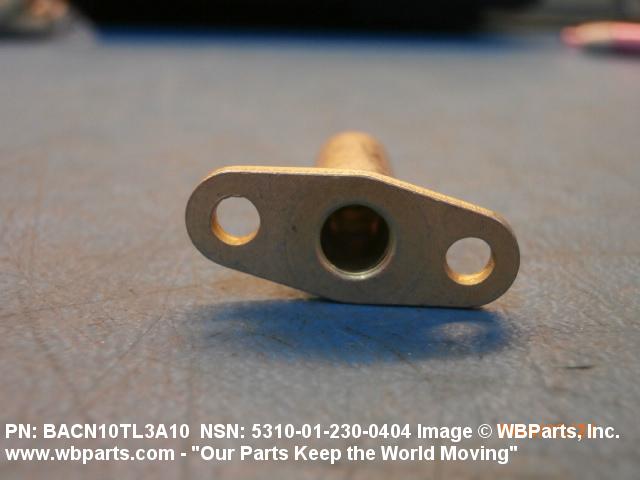

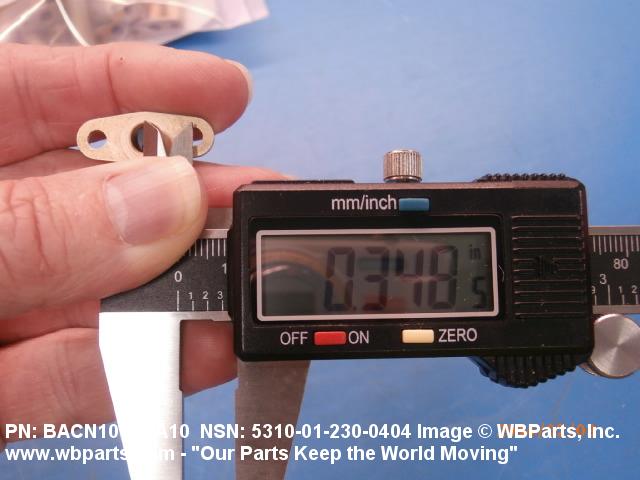

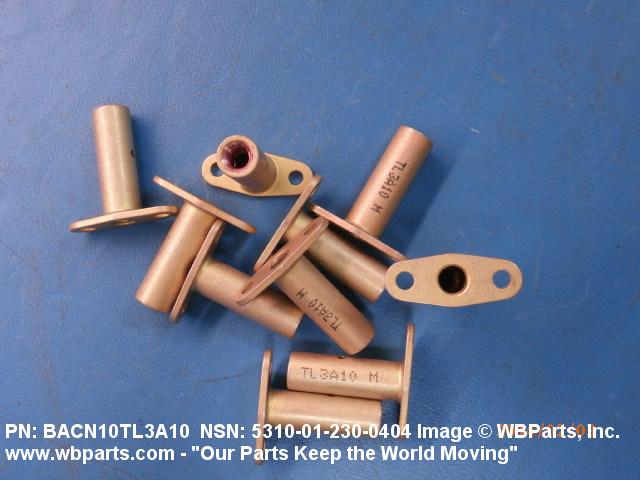

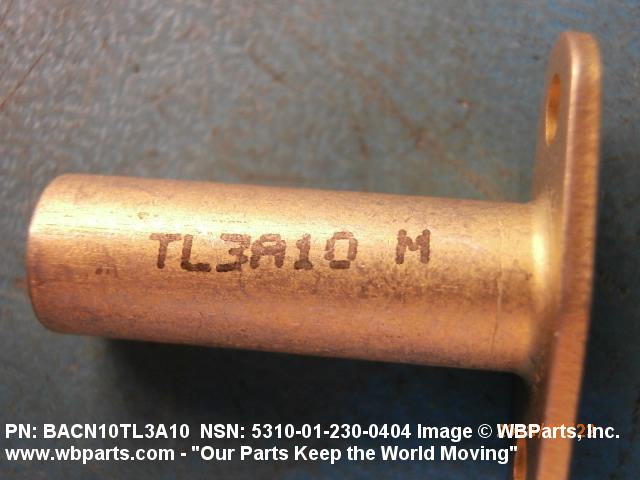

Drawings & Photos | NSN 5310-01-230-0404
Demand History | NSN 5310-01-230-0404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10TL3A10 | 2023-05-145 | 50 | Malta |
| BACN10TL3A10 | 2023-05-137 | 50 | Malta |
| BACN10TL3A10 | 2023-05-128 | 25 | Malta |
| BACN10TL3A10 | 2023-02-48 | 8 | Malta |
| 5310-01-230-0404 | 2022-11-332 | 2 | UK |
| BACN10TL3A10 | 2022-11-326 | 42 | us |
| BACN10TL3A10 | 2022-01-11 | 32 | Malta |
| BACN10TL3A10 | 2022-01-10 | 5 | United States |
| BACN10TL3A10 | 2021-11-307 | 1147 | DIBBS |
| BACN10TL3A10 | 2021-02-46 | 244 | DIBBS |
| BACN10TL3A10 | 2021-01-24 | 965 | DIBBS |
| BACN10TL3A10 | 2019-08-226 | 400 | United States |
| 5310-01-230-0404 | 2019-07-210 | 400 | United States |
| 5310-01-230-0404 | 2019-07-189 | 400 | United States |
| BACN10TL3A10 | 2019-05-135 | 170 | United States |
| 5310-01-230-0404 | 2019-05-121 | 200 | United States |
| BACN10TL3A10 | 2018-12-338 | 80 | United States |
| 5310-01-230-0404 | 2018-11-305 | 330 | DIBBS |
| 5310-01-230-0404 | 2018-09-256 | 82 | DIBBS |
| 5310-01-230-0404 | 2018-01-29 | 80 | United States |
| 5310-01-230-0404 | 2017-12-338 | 80 | United States |
| BACN10TL3A10 | 2015-08-218 | 30 | United States |
| BACN10TL3A10 | 2014-01-29 | 50 | United States |
| BACN10TL3A10 | 2013-09-268 | 250 | United States |
| BACN10TL3A10 | 2013-08-217 | 50 | United States |
| BACN10TL3A10 | 2013-08-217 | 100 | United States |
| BACN10TL3A10 | 2013-08-217 | 200 | United States |
| BACN10TL3A10 | 2013-08-217 | 500 | United States |
Cross Reference | NSN 5310-01-230-0404
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-230-0404
Related Products | NSN 5310-01-230-0404
Technical Data | NSN 5310-01-230-0404
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-12545 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A116 PLATE |

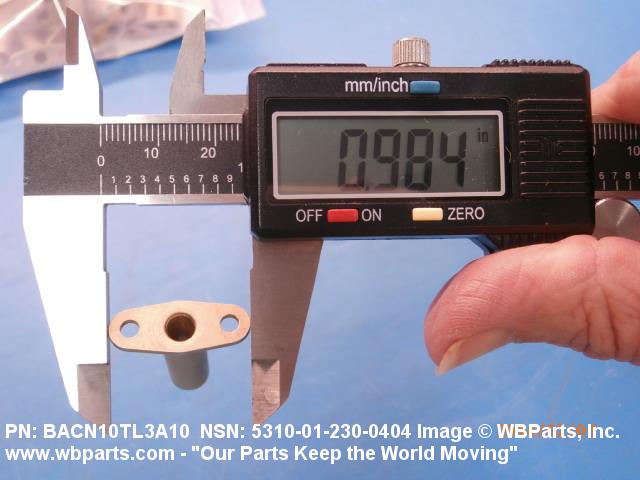

| NUT LENGTH | 0.975 INCHES MINIMUM AND 0.995 INCHES MAXIMUM |

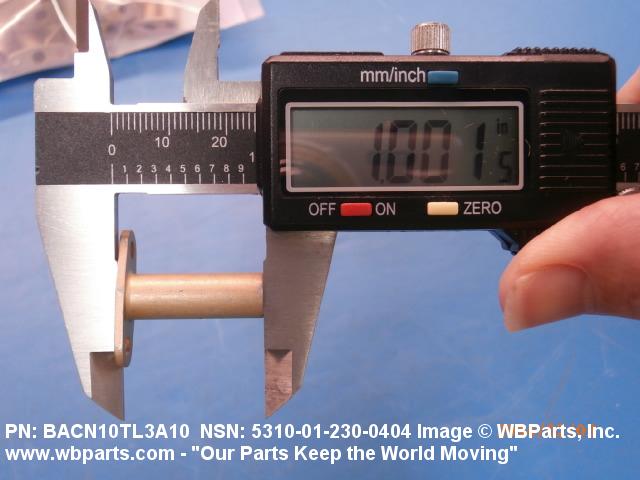

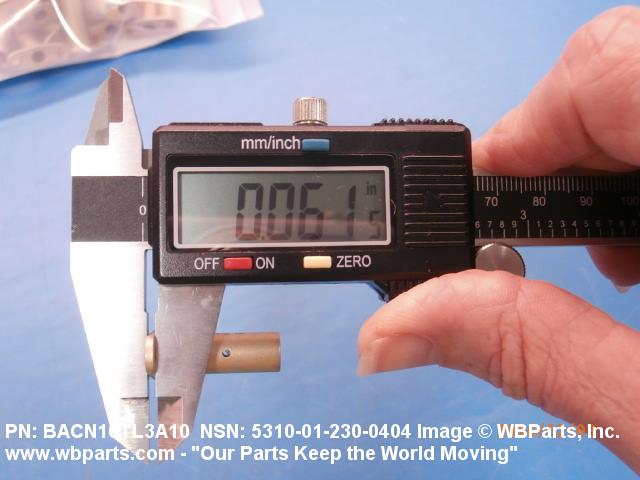

| NUT HEIGHT | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| PLATE THICKNESS | 0.050 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |

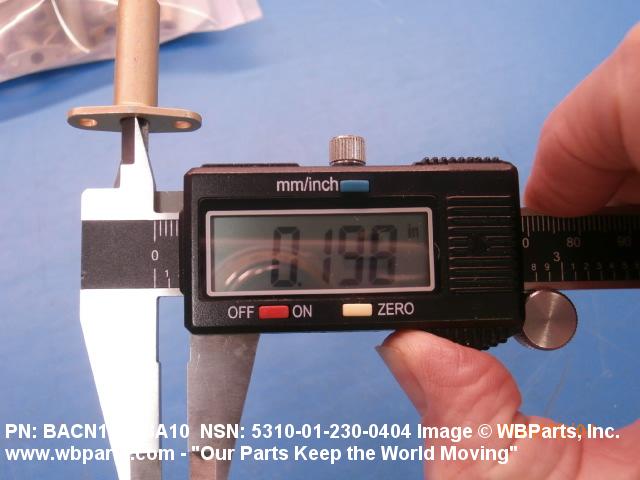

| PLATE WIDTH | 0.386 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.540 INCHES MINIMUM AND 0.590 INCHES MAXIMUM OVERALL |

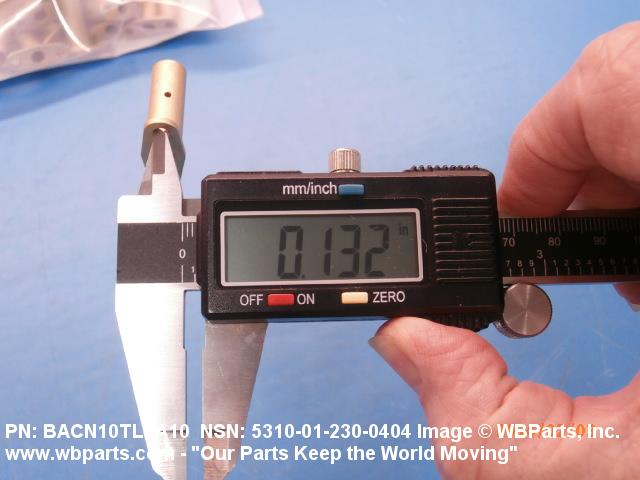

| COUNTERBORE DIAMETER | 0.196 INCHES MINIMUM AND 0.202 INCHES MAXIMUM OVERALL |
