NSN 5310-01-216-8260 A62931302, A6293-13-02, NAS18033B7
Product Details | PLATE SELF-LOCKING NUT

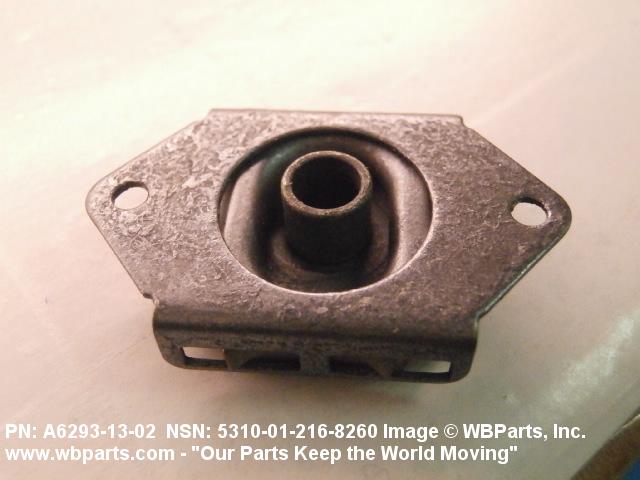

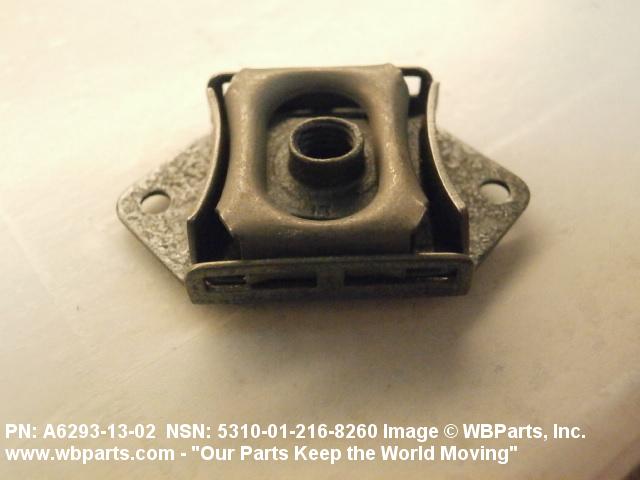

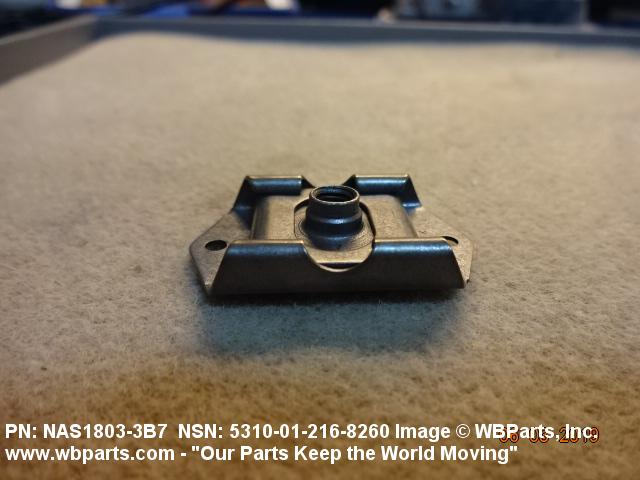

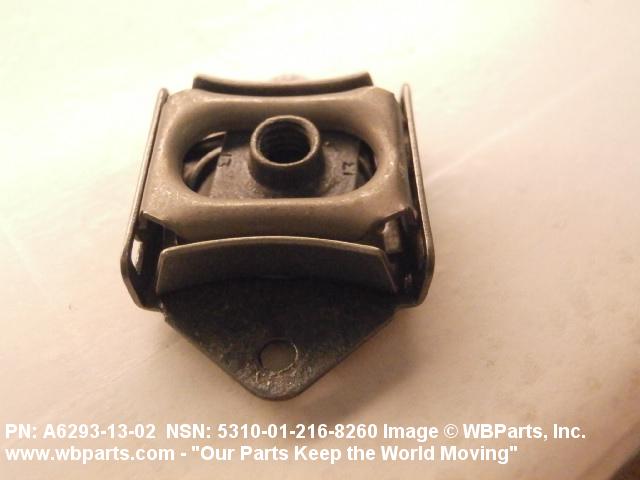

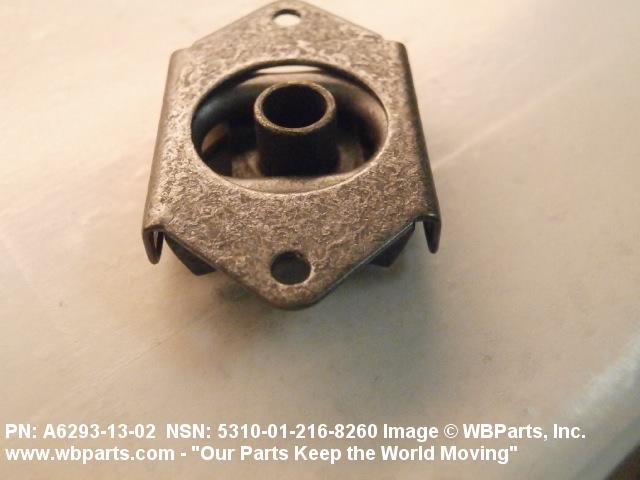

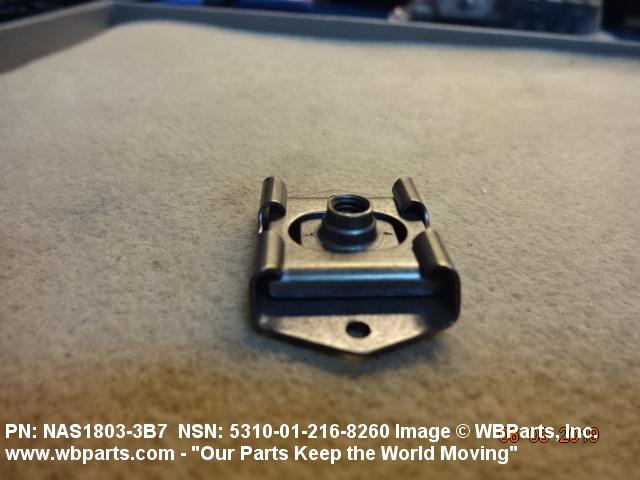

5310-01-216-8260 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: A62931302, A6293-13-02, NAS18033B7, NAS1803-3B7, 5310-01-216-8260, 01-216-8260, 5310012168260, 012168260
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 SEP 1985 | 01-216-8260 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-216-8260
Demand History | NSN 5310-01-216-8260
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-216-8260 | 2019-05-147 | 50 | Malaysia |
| 5310-01-216-8260 | 2019-05-147 | 40 | Malaysia |
| 5310-01-216-8260 | 2013-09-244 | 7 | United States |
| NAS18033B7 | 2012-09-272 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-216-8260
Related Products | NSN 5310-01-216-8260
Technical Data | NSN 5310-01-216-8260
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 631 BASE STEEL COMP 8740 NUT STEEL COMP 631 SHELL STEEL COMP 631 CLIP |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | PASSIVATE BASE CADMIUM AND CHROMATE NUT PASSIVATE SHELL PASSIVATE CLIP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| NUT STYLE | A116 PLATE |

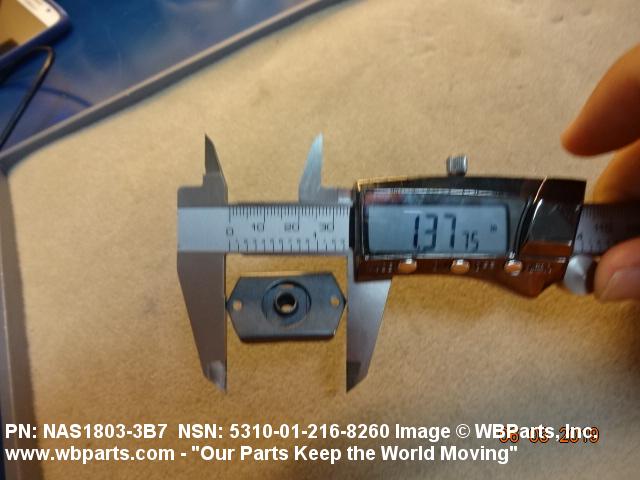

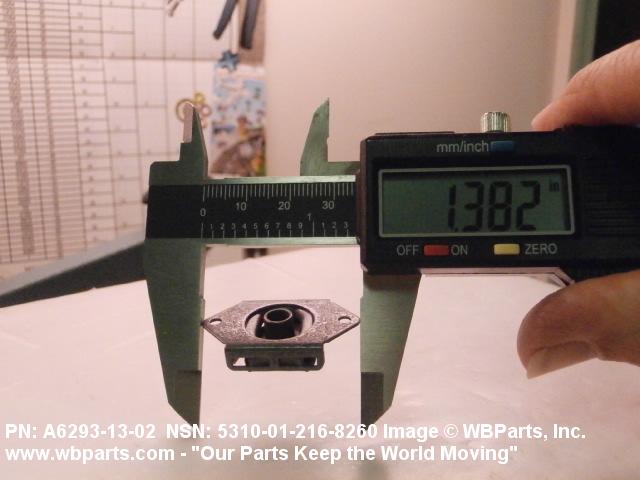

| NUT LENGTH | 1.375 INCHES NOMINAL |

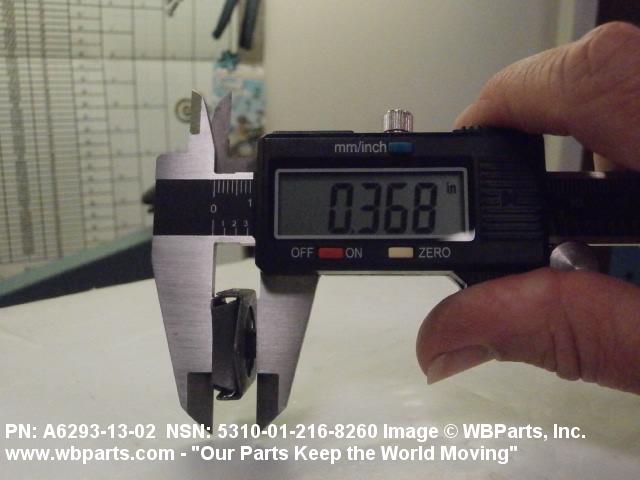

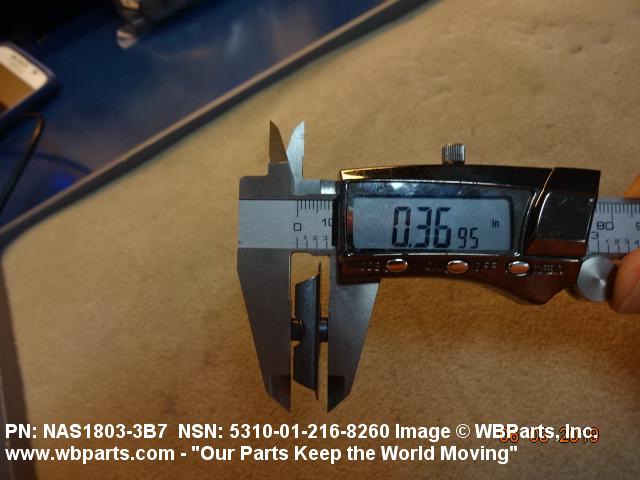

| NUT HEIGHT | 0.373 INCHES MAXIMUM |

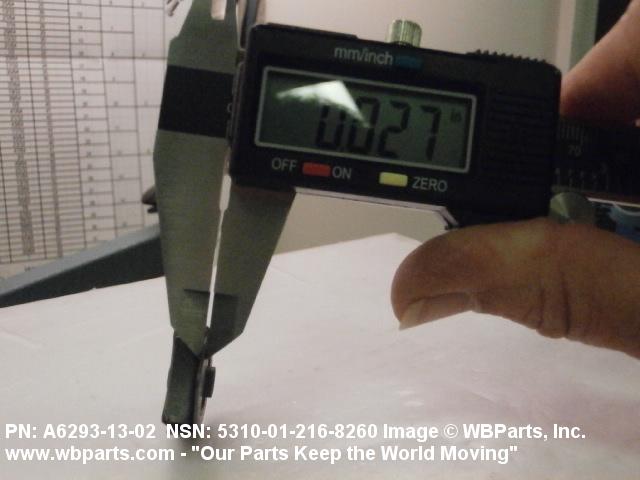

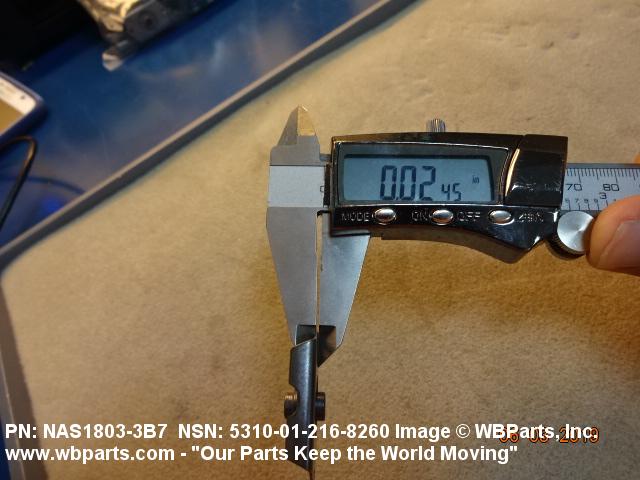

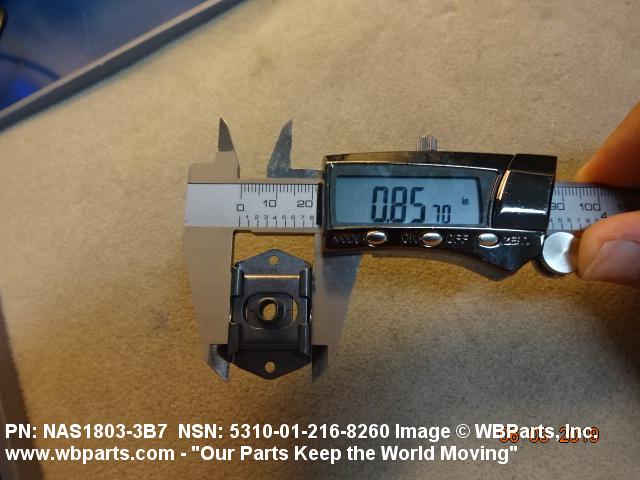

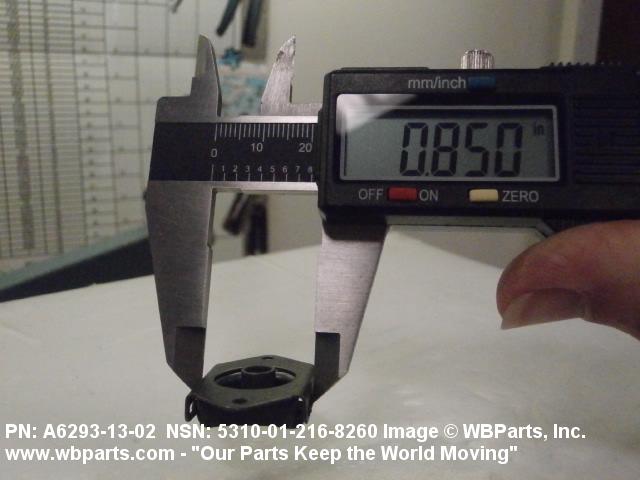

| PLATE THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
| PLATE WIDTH | 0.830 INCHES MINIMUM AND 0.850 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.228 INCHES MINIMUM AND 0.238 INCHES MAXIMUM NUT |

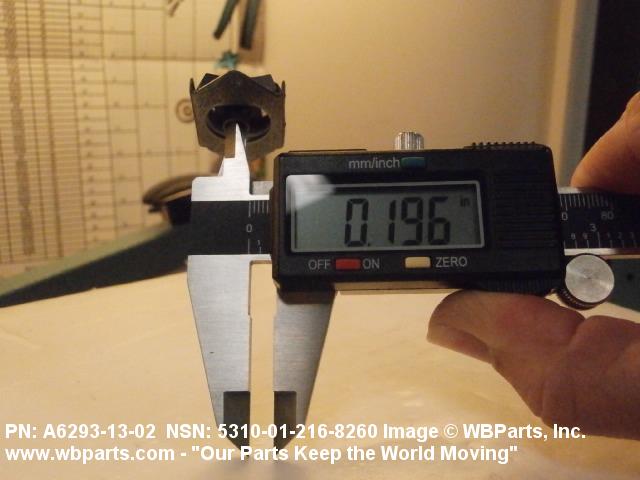

| COUNTERBORE DIAMETER | 0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |

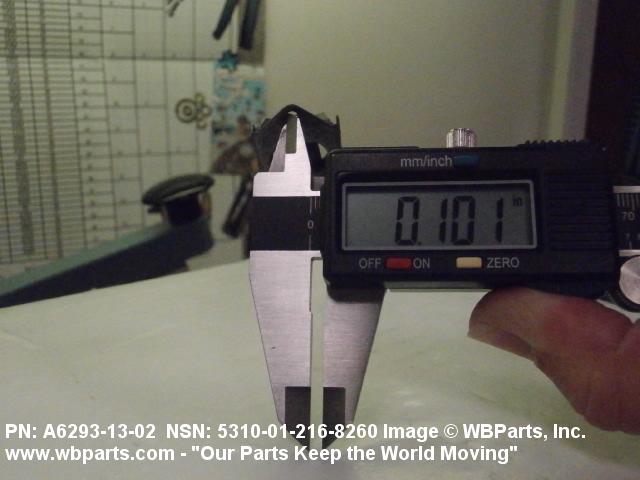

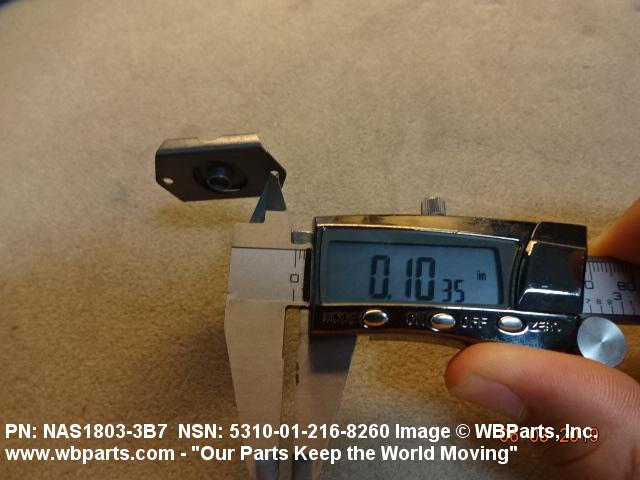

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |

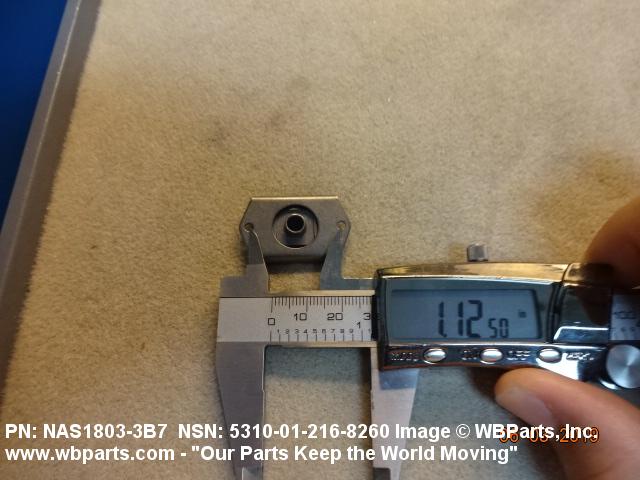

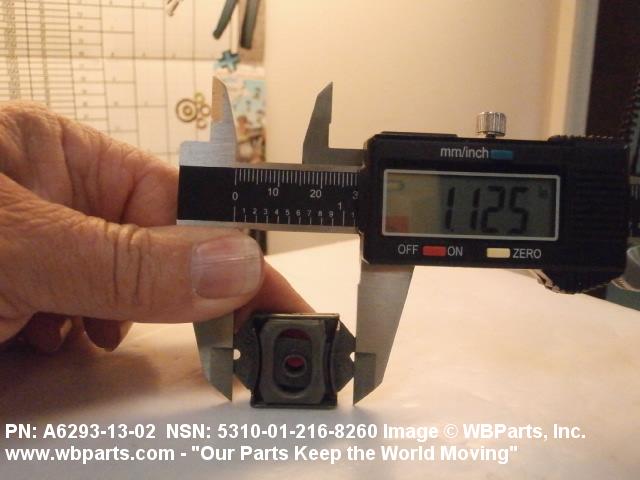

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.123 INCHES MINIMUM AND 1.127 INCHES MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | SPRING LOADED; NUT EXTENDS BELOW BASE |
