NSN 5310-01-216-7894 NAS18033B10, NAS1803-3B10, 01-216-7894
Product Details | PLATE SELF-LOCKING NUT
5310-01-216-7894 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS18033B10, NAS1803-3B10, 5310-01-216-7894, 01-216-7894, 5310012167894, 012167894
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 SEP 1985 | 01-216-7894 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

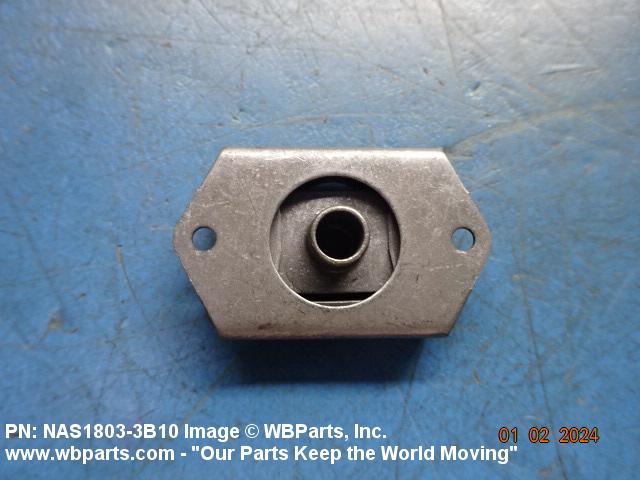

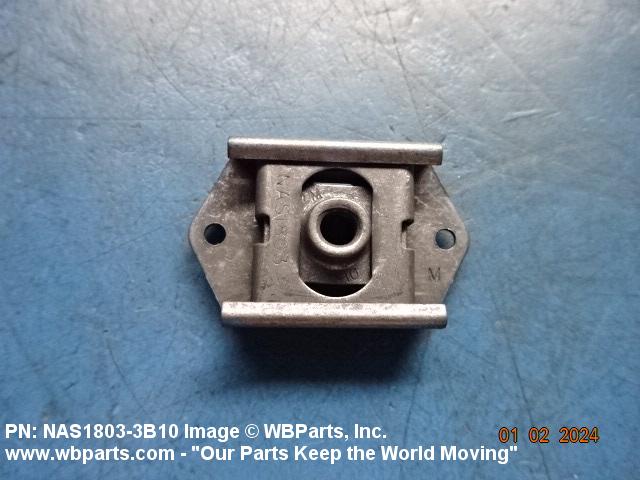

Drawings & Photos | NSN 5310-01-216-7894
Demand History | NSN 5310-01-216-7894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-216-7894 | 2024-06-161 | 37 | DIBBS |
| NAS18033B10 | 2023-12-361 | 24 | United States |
| 5310-01-216-7894 | 2016-10-286 | 10 | US |
| 5310-01-216-7894 | 2016-10-286 | 50 | US |
Cross Reference | NSN 5310-01-216-7894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1803-3B10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-216-7894
Related Products | NSN 5310-01-216-7894
Technical Data | NSN 5310-01-216-7894
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 631 BASE STEEL COMP 4130 OR STEEL COMP 8740 NUT STEEL COMP 631 CLIP |
| SURFACE TREATMENT | PASSIVATE BASE CADMIUM OR CADMIUM AND CHROMATE NUT PASSIVATE CLIP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BASE QQ-P-416,CL 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TY 2 FED SPEC 2ND TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE CLIP |
| NUT STYLE | A116 PLATE |

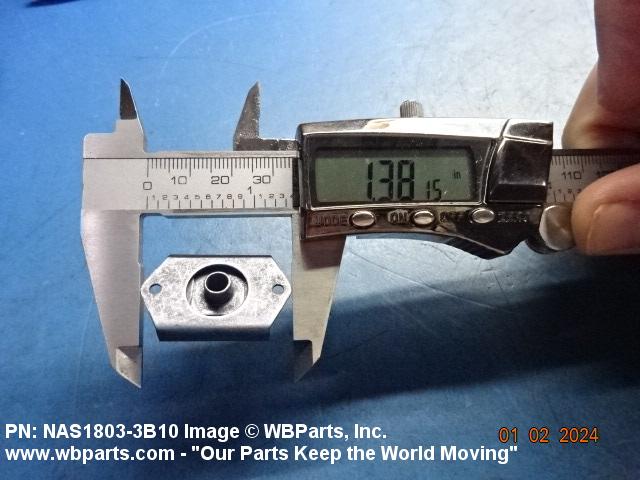

| NUT LENGTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |

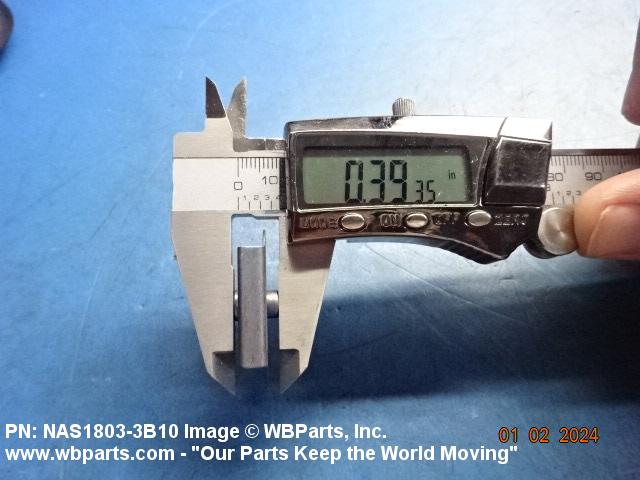

| NUT HEIGHT | 0.403 INCHES MAXIMUM |

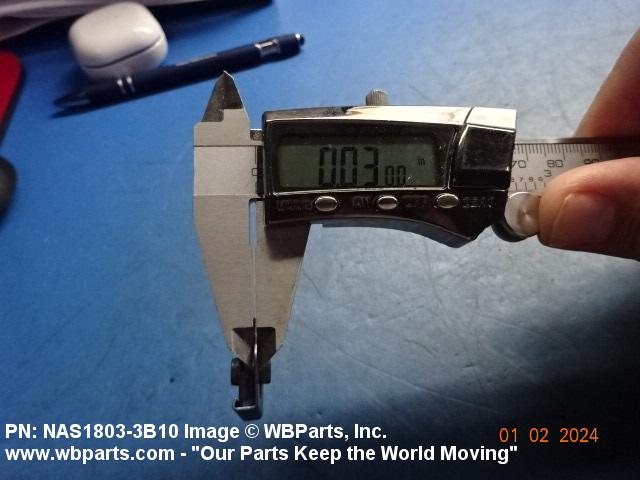

| PLATE THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
| PLATE WIDTH | 0.865 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.258 INCHES MINIMUM AND 0.268 INCHES MAXIMUM BASE |
| COUNTERBORE DIAMETER | 0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM BASE |
| LUBRICATION | DRY FILM LUBRICANT |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |

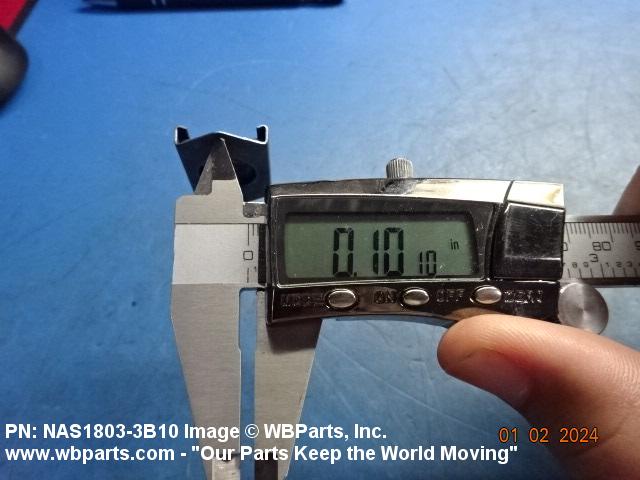

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-216-7894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-216-7894
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
