NSN 5310-01-215-7315 AN960KD10LL, FFW92, FF-W-92
Product Details | FLAT WASHER
5310-01-215-7315 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN960KD10LL, FFW92, FF-W-92, 938.77.81.012, 9387781012, 5310-01-215-7315, 01-215-7315, 5310012157315, 012157315
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 AUG 1985 | 01-215-7315 | 13393 ( WASHER, FLAT ) |

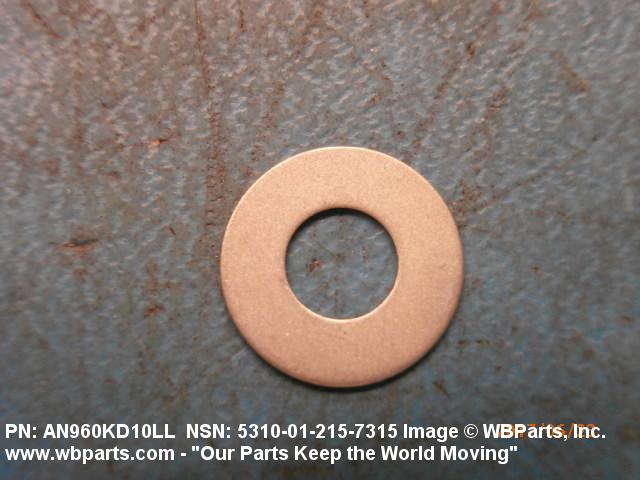

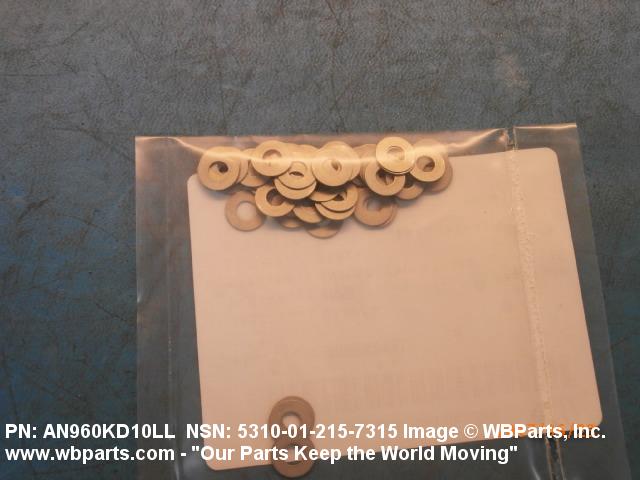

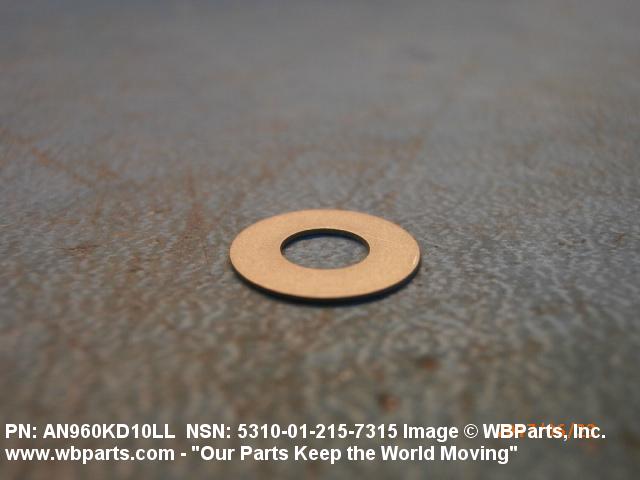

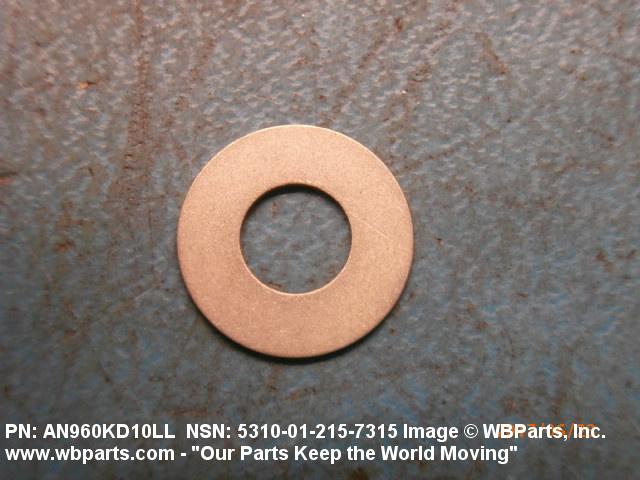

Drawings & Photos | NSN 5310-01-215-7315
Demand History | NSN 5310-01-215-7315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-215-7315 | 2024-10-304 | 135583 | DIBBS |
| 5310-01-215-7315 | 2024-02-60 | 125021 | DIBBS |
| FF-W-92 | 2023-01-18 | 60 | Saudi Arabia |
| 5310-01-215-7315 | 2022-04-115 | 176 | TW |
| 5310-01-215-7315 | 2021-10-297 | 300000 | DIBBS |
| 5310-01-215-7315 | 2020-06-182 | 176 | MANUAL |
| 5310-01-215-7315 | 2019-08-238 | 69166 | DIBBS |
| 5310-01-215-7315 | 2019-08-230 | 69166 | DIBBS |
| 5310-01-215-7315 | 2018-11-318 | 277749 | DIBBS |
| FFW92 | 2018-07-207 | 2 | United States |
| 5310-01-215-7315 | 2018-06-173 | 1 | DIBBS-RFPs |
| 5310-01-215-7315 | 2017-06-164 | 50 | United States |
| 5310-01-215-7315 | 2016-11-335 | 16918 | DIBBS |
| 5310-01-215-7315 | 2016-11-327 | 16918 | DIBBS |
| FFW92 | 2016-08-217 | 21 | US |
| 5310-01-215-7315 | 2015-06-159 | 247550 | DIBBS |
| 5310-01-215-7315 | 2015-05-148 | 247550 | DIBBS |
| 5310-01-215-7315 | 2014-10-301 | 110000 | DIBBS |
| 5310-01-215-7315 | 2014-08-229 | 6 | Seychelles |
| 5310-01-215-7315 | 2014-01-20 | 40 | US |
| FFW92 | 2011-10-304 | 495 | United States |
| 5310-01-215-7315 | 2011-09-262 | 100 | United States |
| AN960KD10LL | 2010-08-217 | 100 | US |
| 5310-01-215-7315 | 2010-03-71 | 298014 | DIBBS |
| AN960KD10LL | 2010-02-49 | 20 | Malaysia |
| 5310-01-215-7315 | 2009-11-334 | 298014 | DIBBS |
| 5310-01-215-7315 | 2009-09-264 | 328299 | DIBBS |
| 5310-01-215-7315 | 2009-04-111 | 131717 | DIBBS |
| 5310-01-215-7315 | 2008-09-273 | 280000 | DIBBS |
| 5310-01-215-7315 | 2008-05-140 | 113195 | DIBBS |
| 5310-01-215-7315 | 2008-04-112 | 112996 | DIBBS |
| AN960KD10LL | 2007-08-226 | 300 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-215-7315
Related Products | NSN 5310-01-215-7315
Technical Data | NSN 5310-01-215-7315
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE OVERALL |

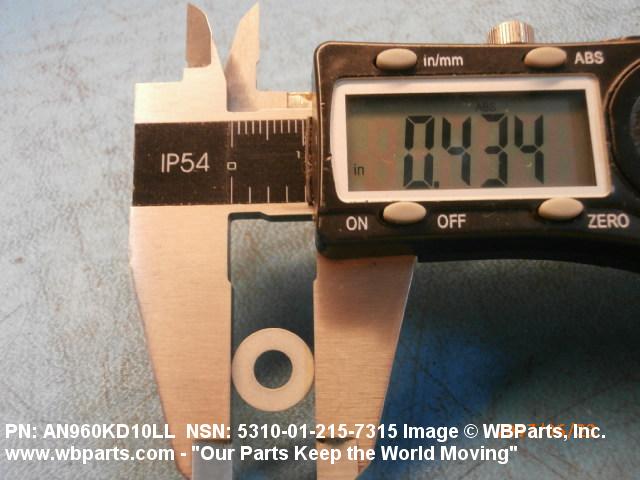

| OVERALL DIAMETER | 0.433 INCHES MINIMUM AND 0.458 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| PERIPHERAL SHAPE STYLE | ROUND |
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| CENTER HOLE SHAPE STYLE | ROUND |

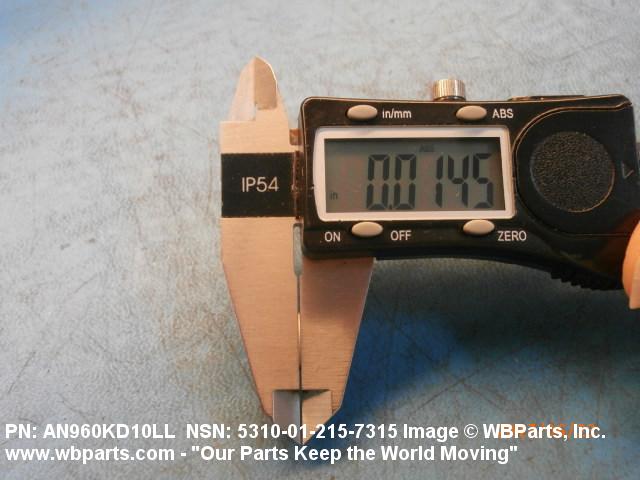

| THICKNESS | 0.013 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T3 OR T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 OR TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

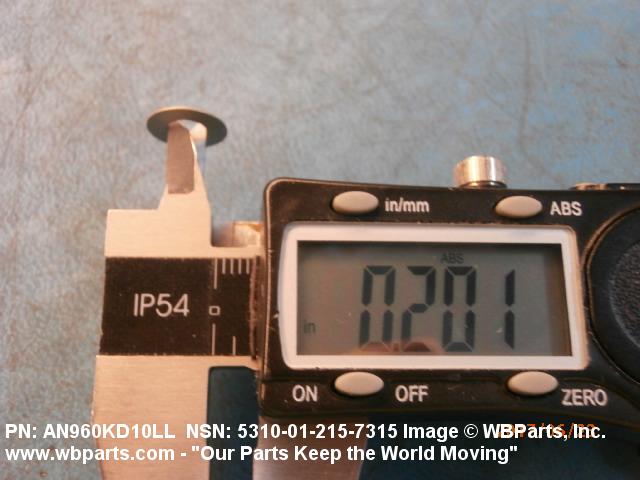

| HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 1 GRADE AND D CLASS |
Restrictions/Controls & Freight Information | NSN 5310-01-215-7315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-215-7315
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
