NSN 5310-01-213-3666 MS211266, MS21126-6, A503476
Product Details | KEYWAY WASHER
5310-01-213-3666 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more notches. Excludes thrust type washers.
Part Alternates: MS211266, MS21126-6, A503476, 503476 , 5310-01-213-3666, 01-213-3666, 5310012133666, 012133666
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUL 1985 | 01-213-3666 | 06158 ( WASHER, KEYWAY ) |

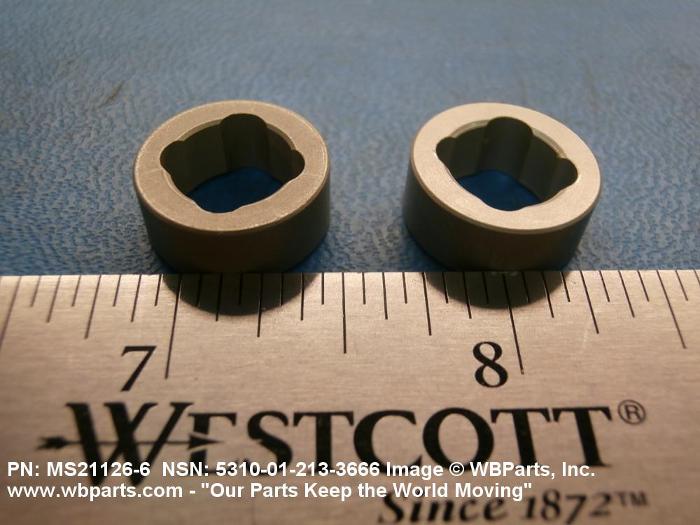

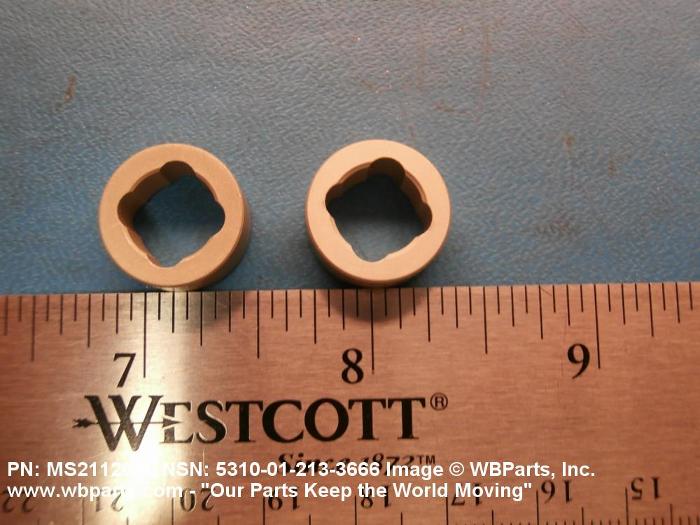

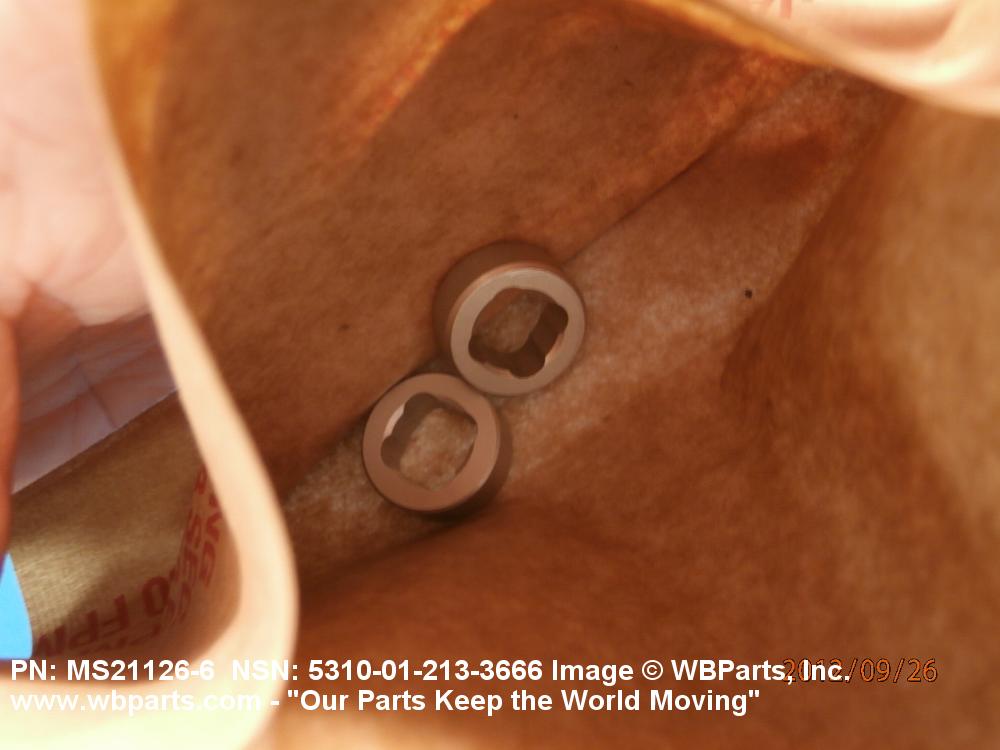

Drawings & Photos | NSN 5310-01-213-3666
Demand History | NSN 5310-01-213-3666
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS211266 | 2012-11-332 | 2 | United States |
| MS21126-6 | 2012-06-160 | 2 | United States |
| 5310-01-213-3666 | 2012-04-101 | 2 | United States |
| MS21126-6 | 2012-04-93 | 2 | United States |
| 5310-01-213-3666 | 2009-03-89 | 10 | DIBBS |
Cross Reference | NSN 5310-01-213-3666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21126-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-213-3666
Related Products | NSN 5310-01-213-3666
Technical Data | NSN 5310-01-213-3666
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4,T4 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/5,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HOLE DIAMETER | 0.380 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| INTERNAL KEYWAY WIDTH | 0.148 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO BOTTOM OF INTERNAL KEYWAY | 0.227 INCHES MINIMUM AND 0.238 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.238 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| SPECIAL FEATURES | FOUR EQUALLY SPACED KEYWAYS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21126-6 |
Restrictions/Controls & Freight Information | NSN 5310-01-213-3666
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-213-3666
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
