NSN 5310-01-203-0246 NS20247602, NS202476-02, BACN10JR3CFD
Product Details | PLATE SELF-LOCKING NUT

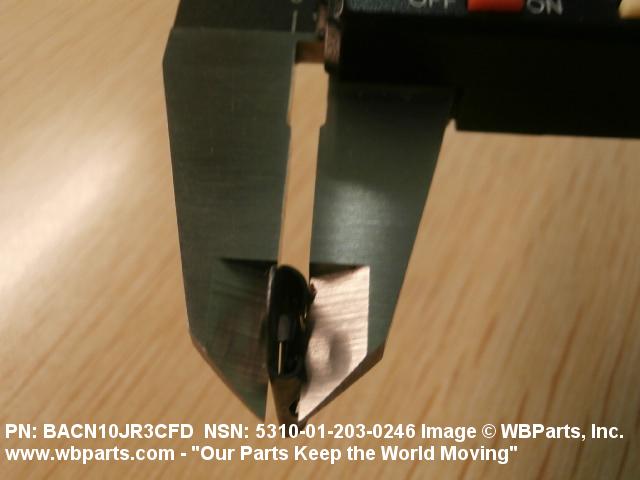

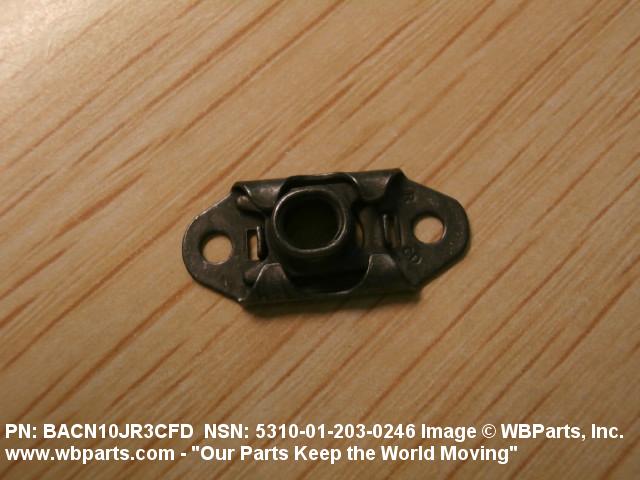

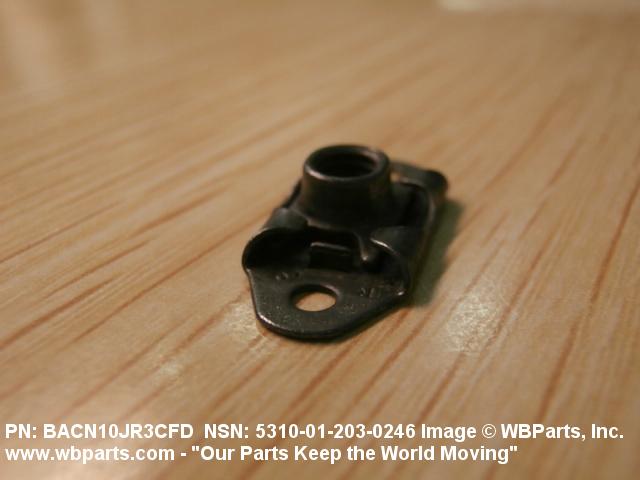

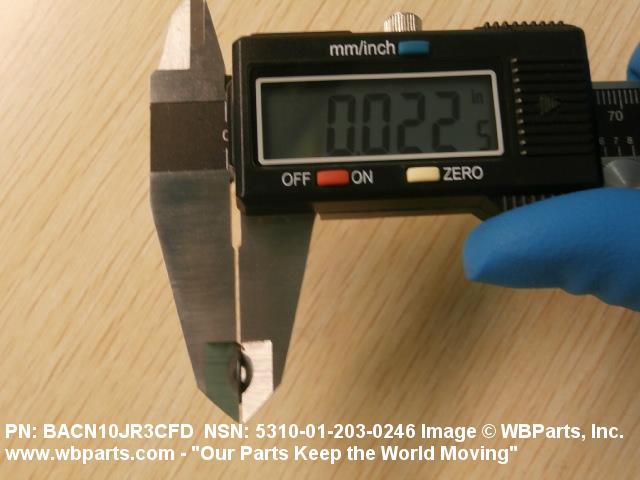

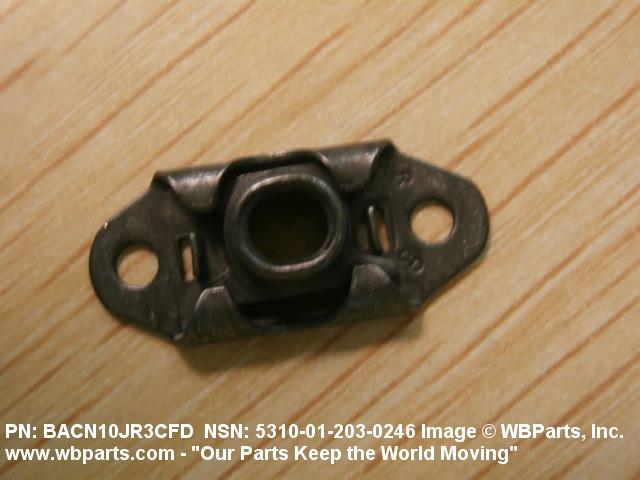

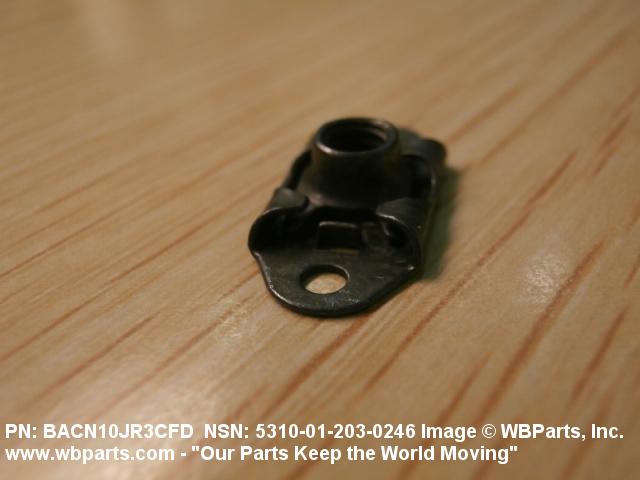

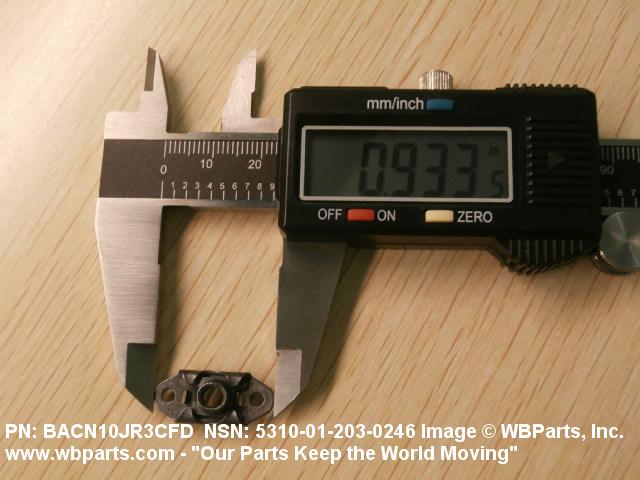

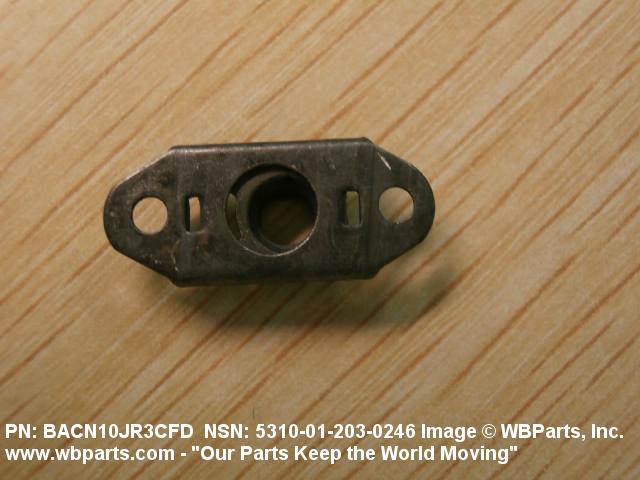

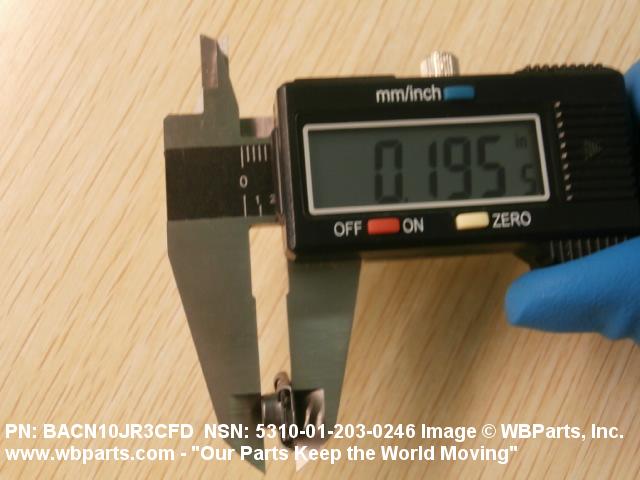

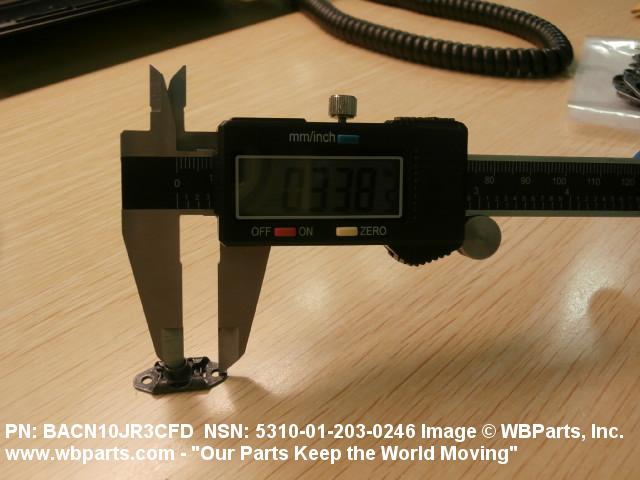

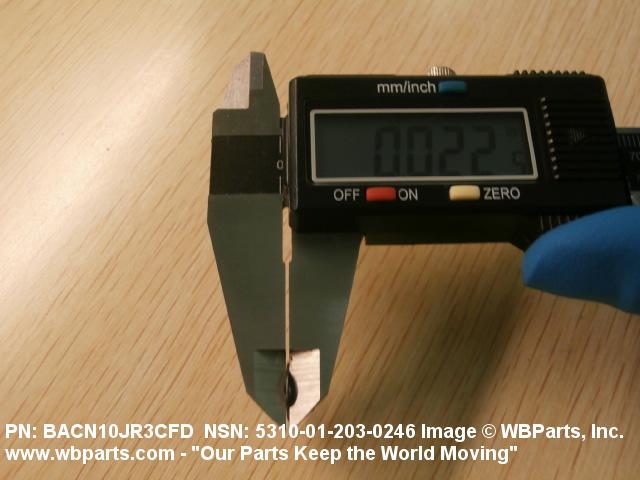

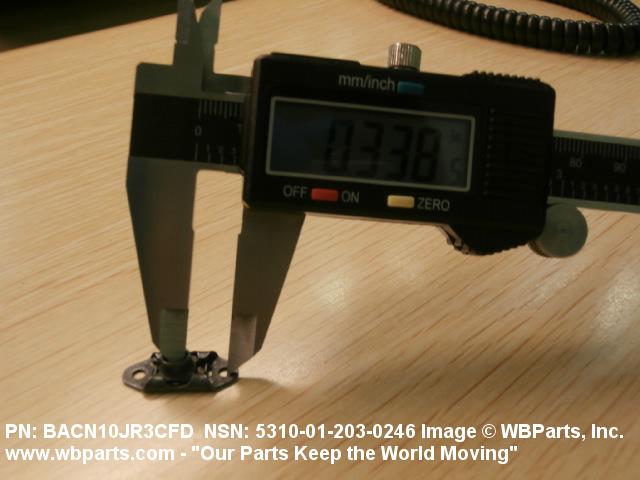

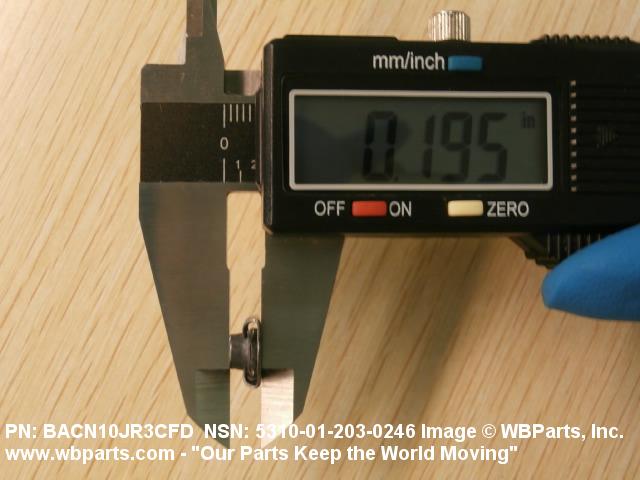

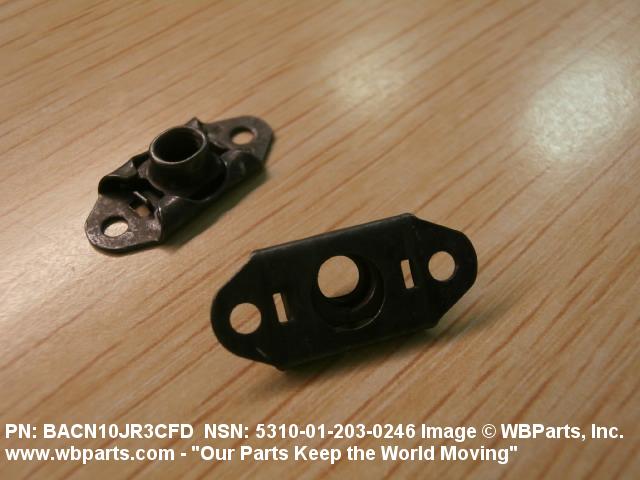

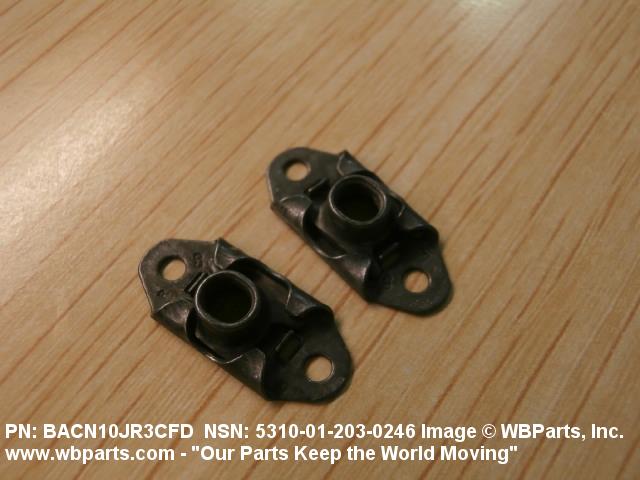

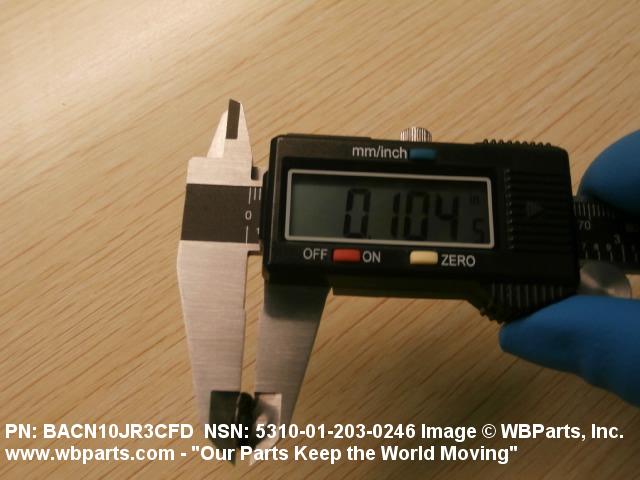

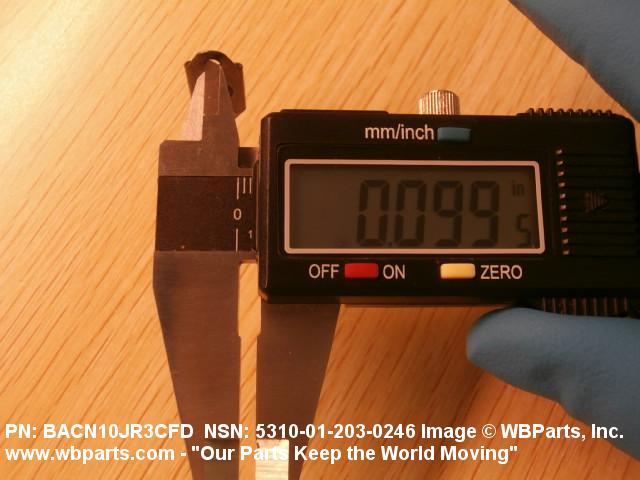

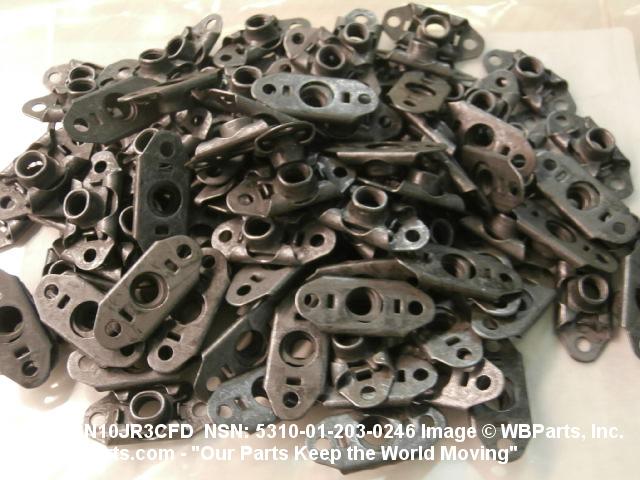

5310-01-203-0246 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS20247602, NS202476-02, BACN10JR3CFD, BRF200C3D, K516023, K51602-3, K516023BAC, K51602-3BAC, T8902C1032CD, 102F92013, 102F9201-3, 5310-01-203-0246, 01-203-0246, 5310012030246, 012030246
