NSN 5310-01-193-7642 MF516373, MF51637-3, MF530503CD
Product Details | PLATE SELF-LOCKING NUT

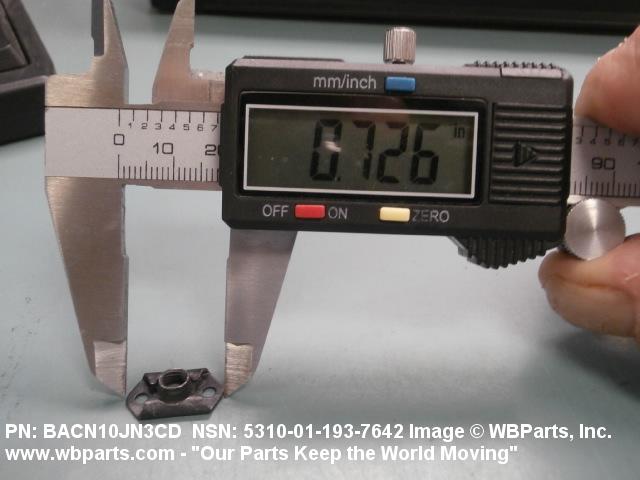

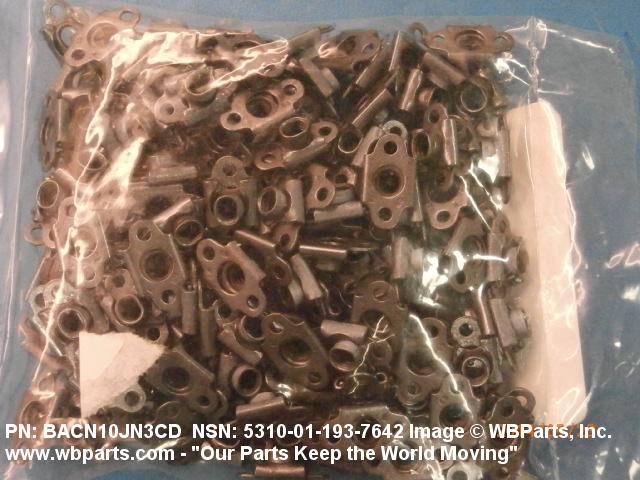

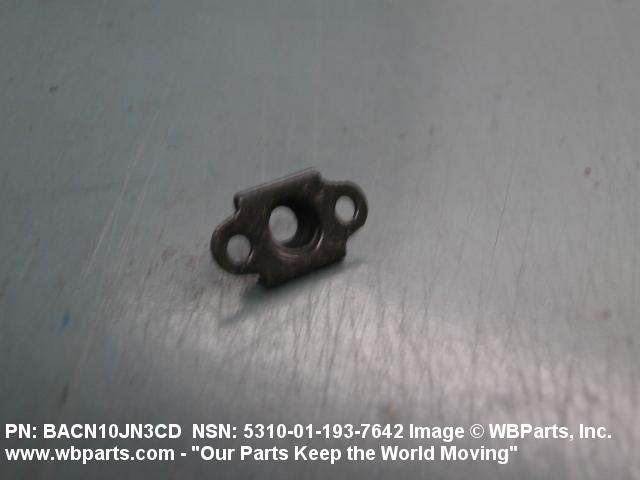

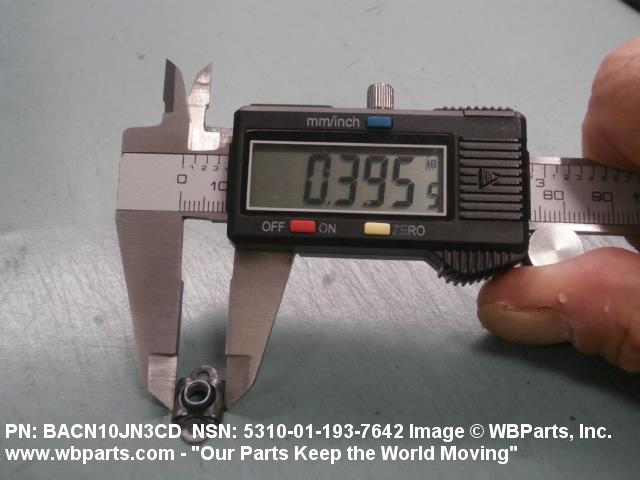

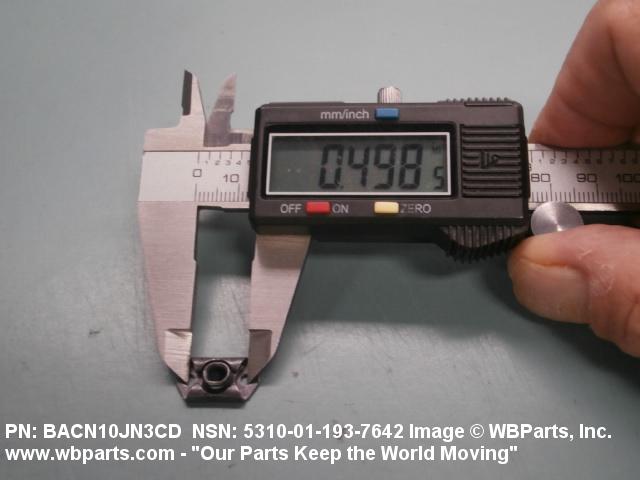

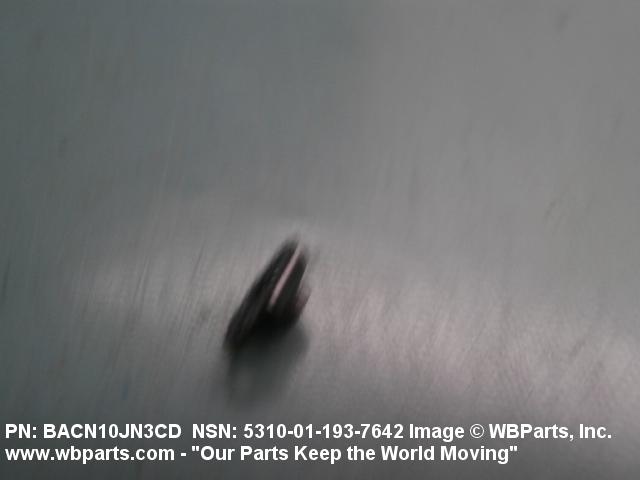

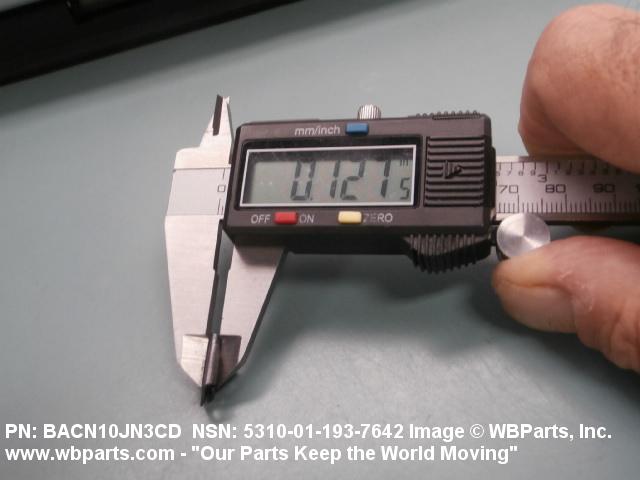

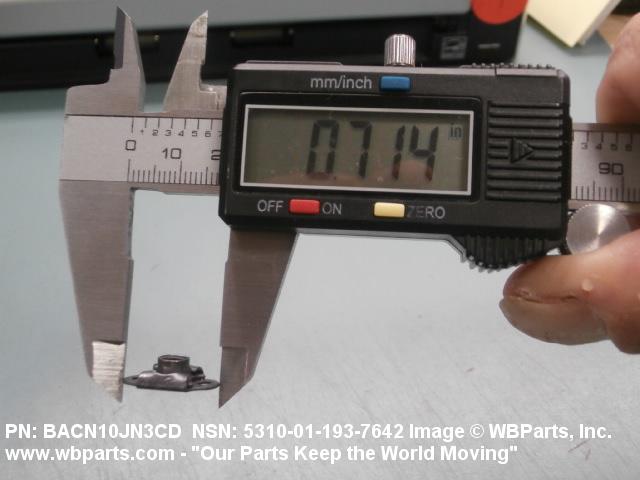

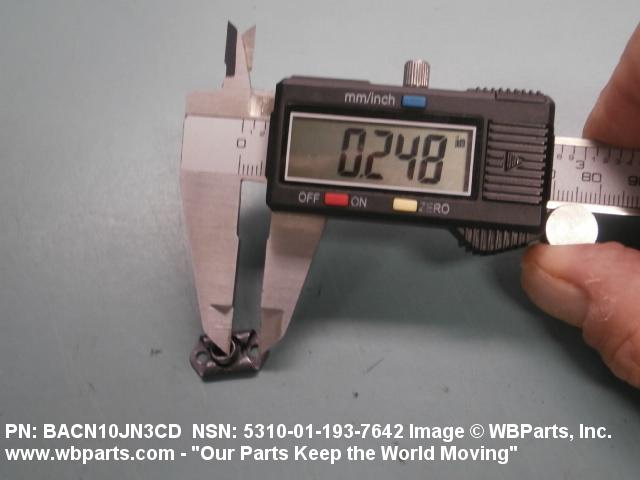

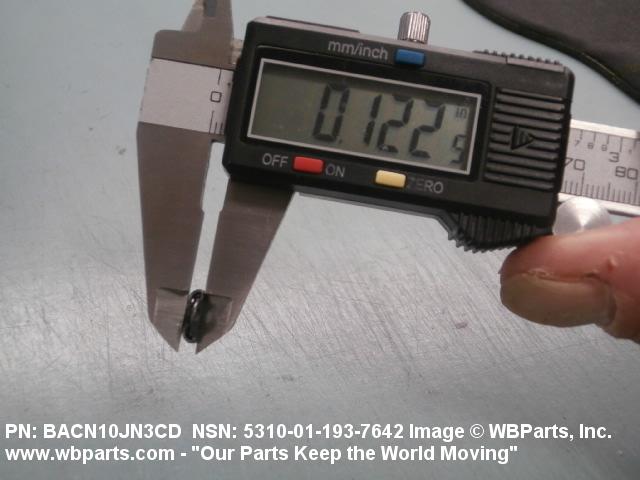

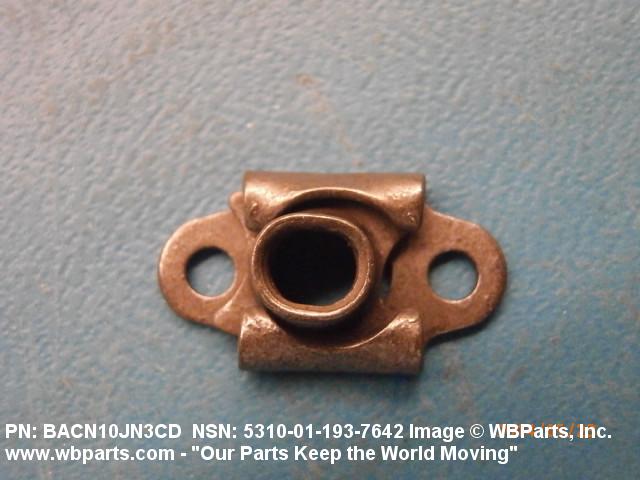

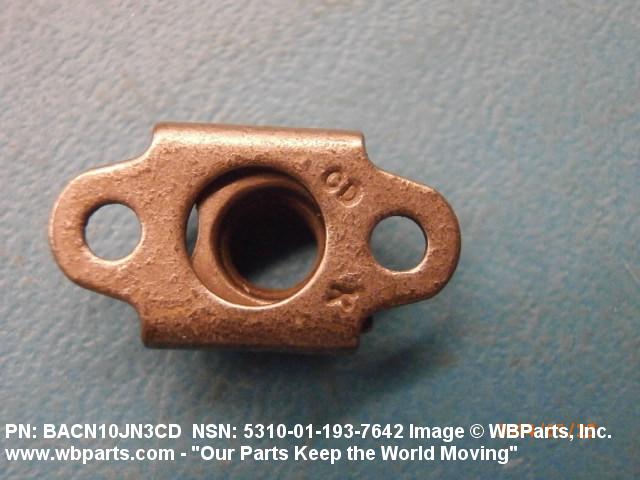

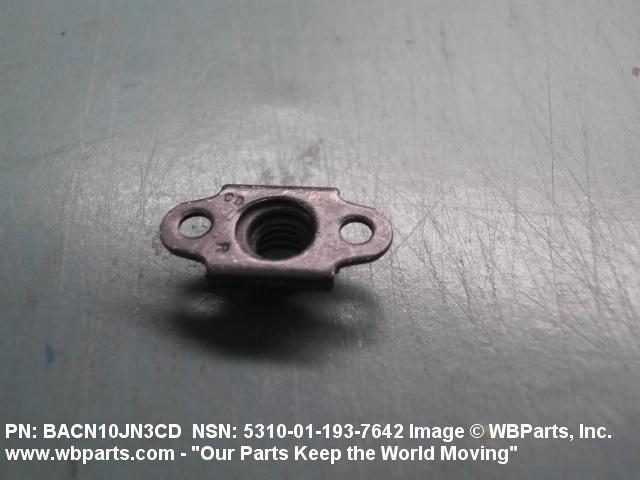

5310-01-193-7642 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MF516373, MF51637-3, MF530503CD, MF53050-3CD , NS20248702, NS202487-02, BACN10JN3CD, BRFM20C3D, 102F9201M3, 102F9201M-3, 5310-01-193-7642, 01-193-7642, 5310011937642, 011937642
