NSN 5310-01-185-7205 NAS51322, NAS513-22, 01-185-7205

Product Details | KEY WASHER

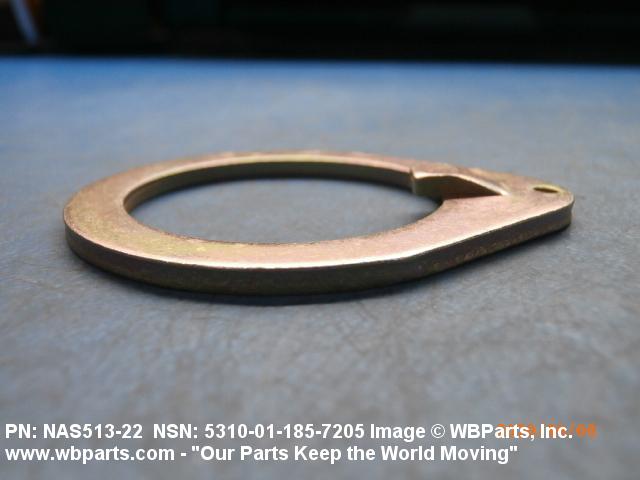

5310-01-185-7205 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.

Part Alternates: NAS51322, NAS513-22, 5310-01-185-7205, 01-185-7205, 5310011857205, 011857205

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 AUG 1984	01-185-7205	01869 ( WASHER, KEY )

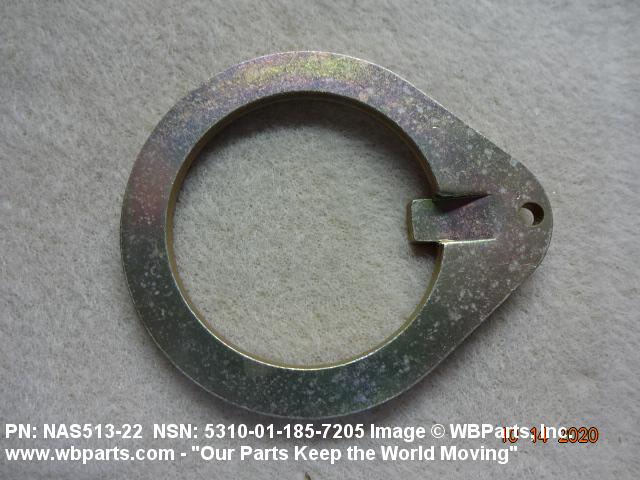

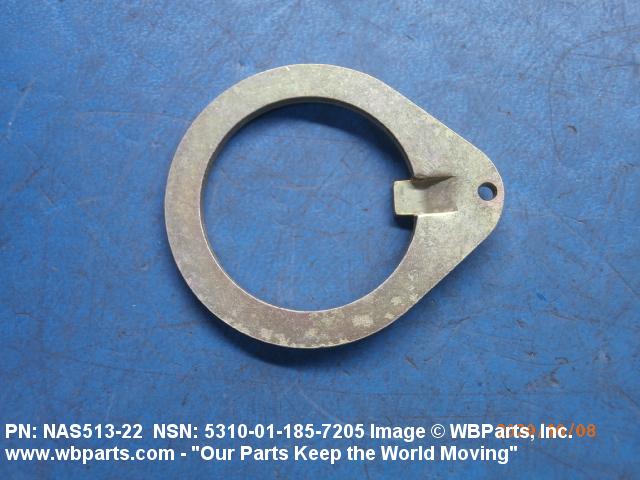

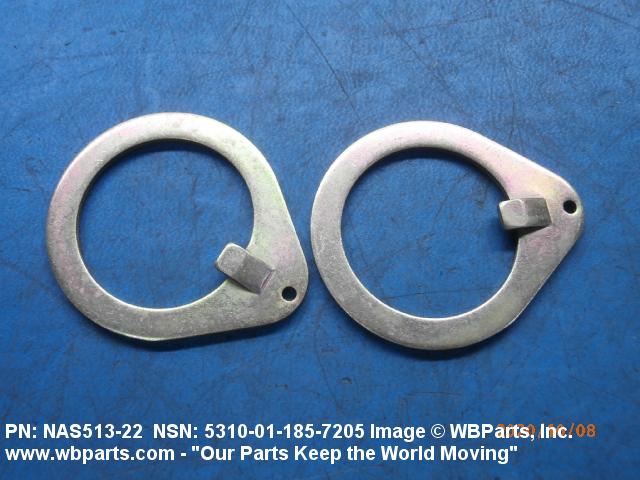

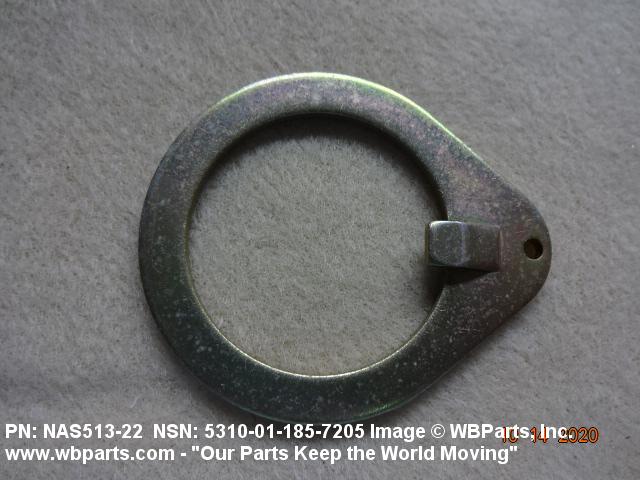

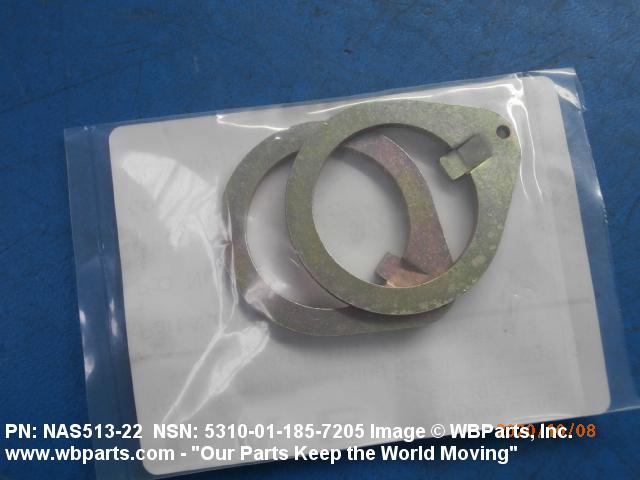

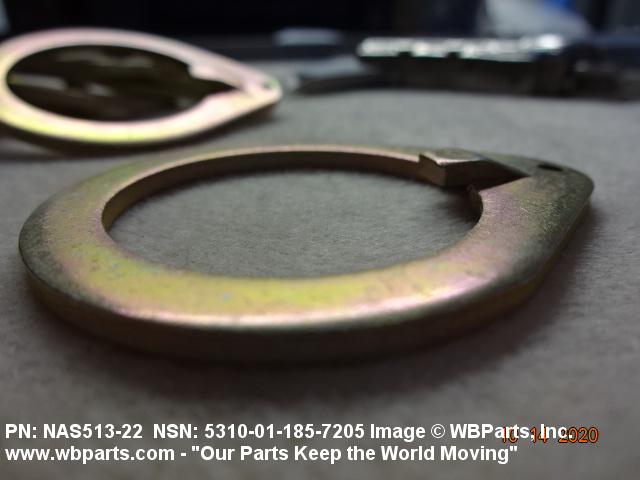

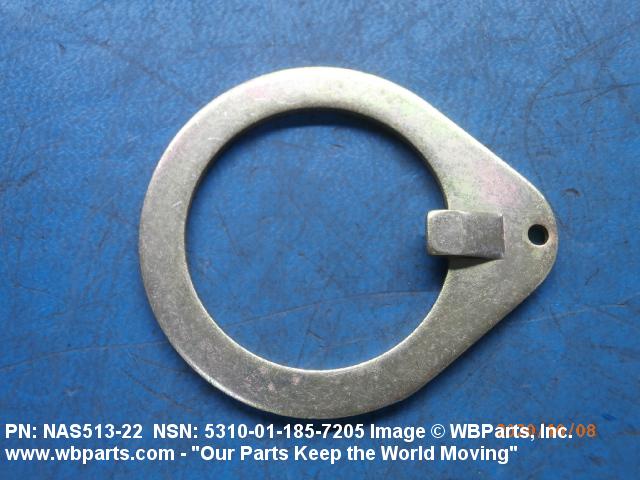

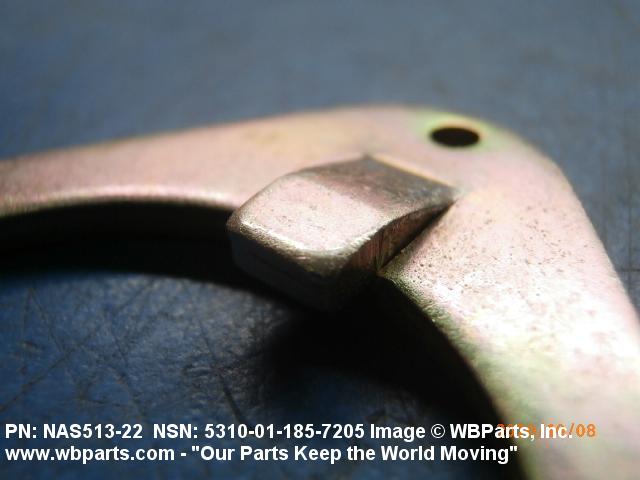

Drawings & Photos | NSN 5310-01-185-7205

Part Number	Request Date	QTY	Origin
NAS51322	2024-09-249	150	us
NAS51322	2022-06-180	60	United States
NAS51322	2022-04-95	50	United States
NAS51322	2022-02-49	30	United States
5310-01-185-7205	2021-08-230	2	US
NAS51322	2021-05-134	60	United States
5310-01-185-7205	2020-05-149	10	United States
NAS51322	2018-09-260	2	United States
5310-01-185-7205	2014-03-78	54	DIBBS

Cross Reference | NSN 5310-01-185-7205

Part Number	Cage Code	Manufacturer
NAS513-22	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-185-7205

Compare

Related Products | NSN 5310-01-185-7205

5310-01-185-7206, 5310-01-185-7207, 5310-01-185-7208, 5310-01-185-7211, 5310-01-185-7212

Technical Data | NSN 5310-01-185-7205

Characteristic	Specifications
MATERIAL	STEEL COMP 1095 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7947,COND A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM
STYLE DESIGNATOR	179 INTERNAL PREBENT KEY

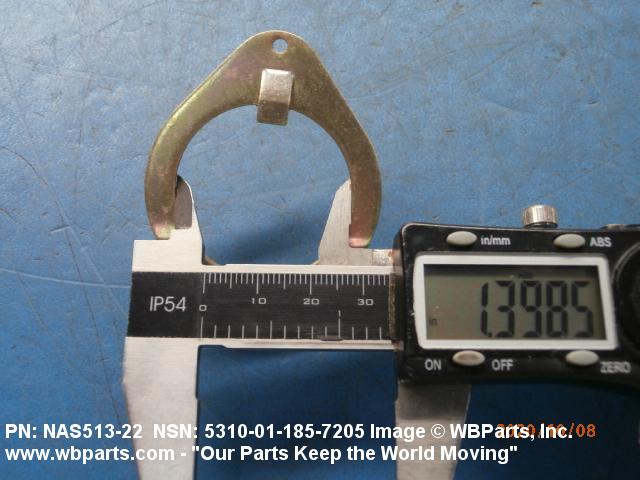

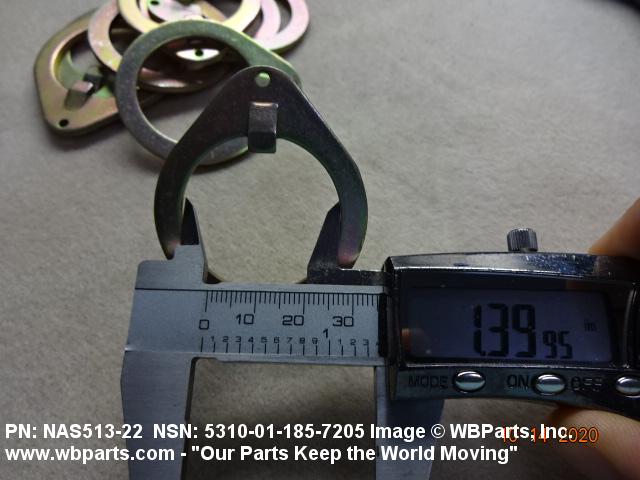

HOLE DIAMETER	1.387 INCHES MINIMUM AND 1.407 INCHES MAXIMUM

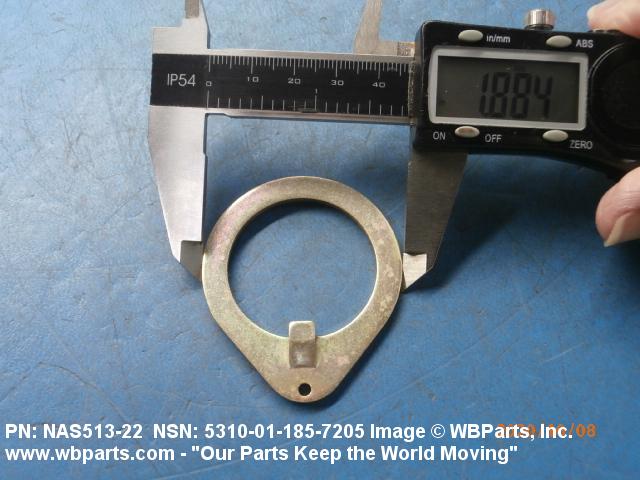

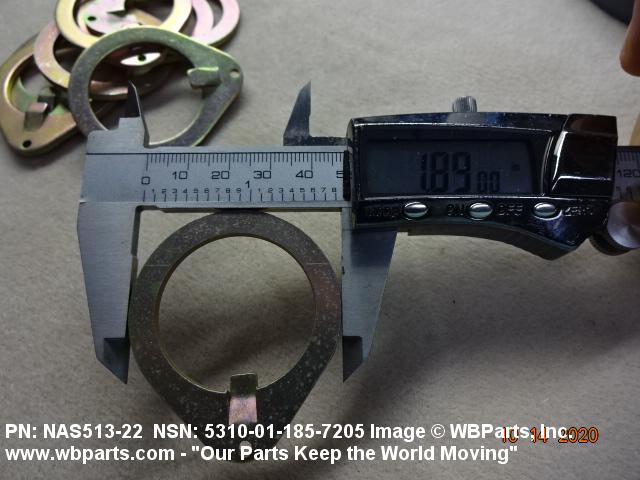

OUTSIDE DIAMETER	1.880 INCHES MINIMUM AND 1.900 INCHES MAXIMUM

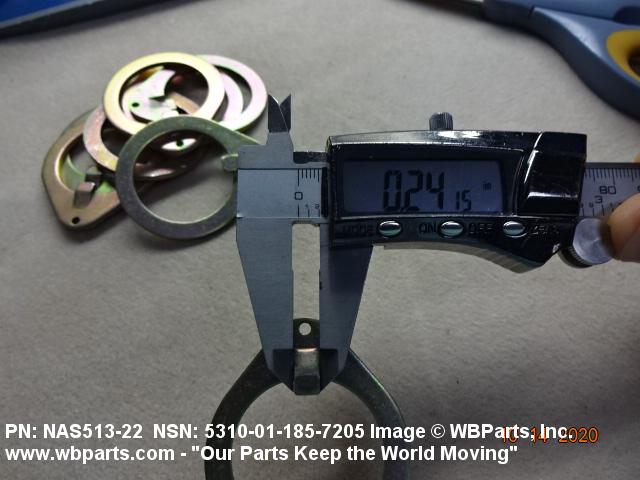

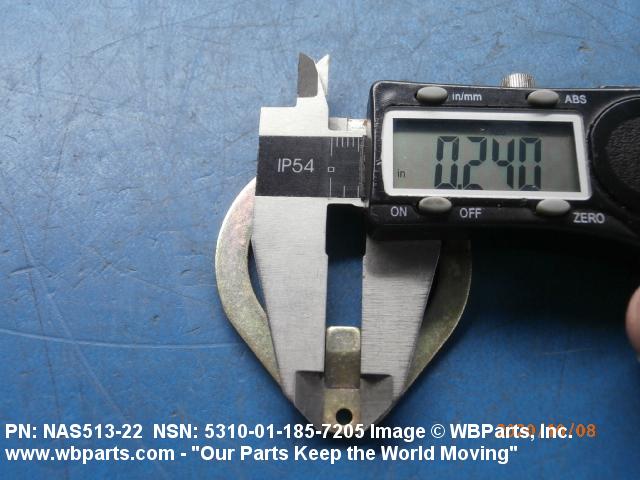

INTERNAL PREBENT KEY WIDTH	0.231 INCHES MINIMUM AND 0.241 INCHES MAXIMUM

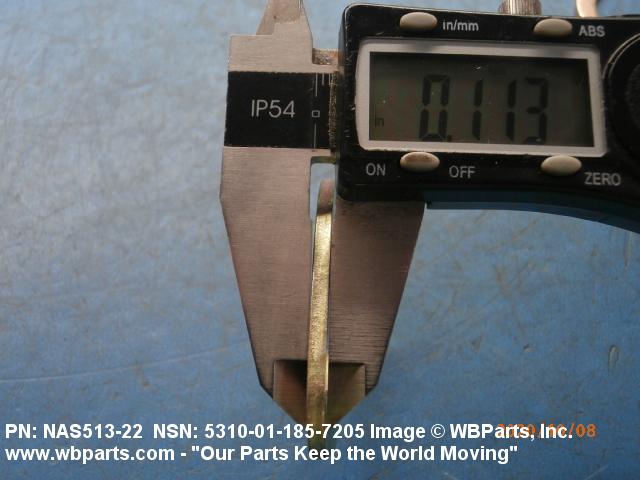

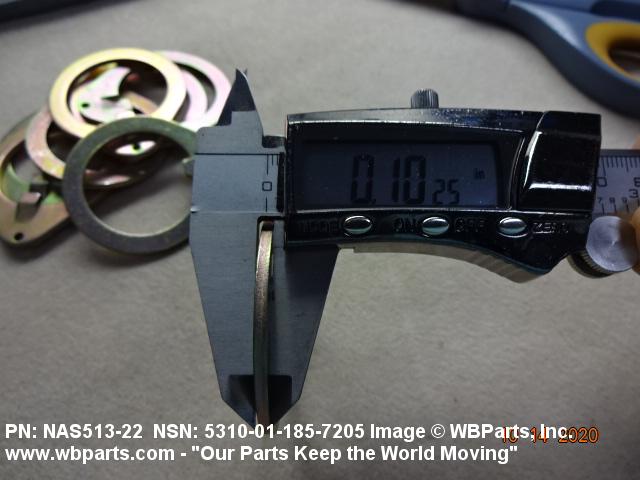

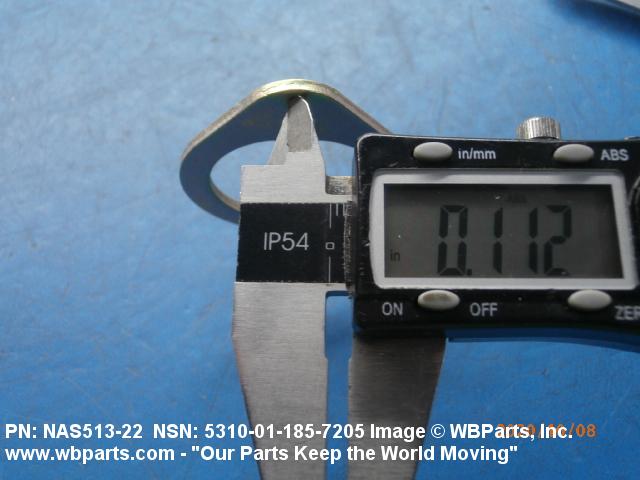

MATERIAL THICKNESS	0.112 INCHES NOMINAL

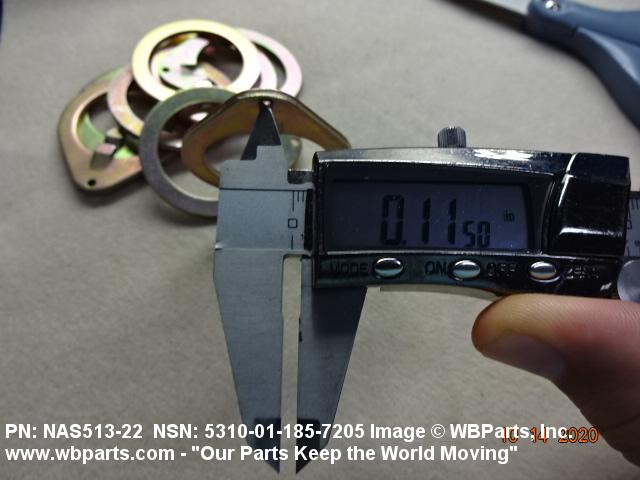

WIRE HOLE DIAMETER	0.112 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	80205-NAS513 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III MINIMUM TENSILE STRENGTH	180000 POUNDS PER SQUARE INCH

Restrictions/Controls & Freight Information | NSN 5310-01-185-7205

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-185-7205

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
