NSN 5310-01-177-5728 M1364082, M13640-82, HS415382

Product Details | PLATE SELF-LOCKING NUT

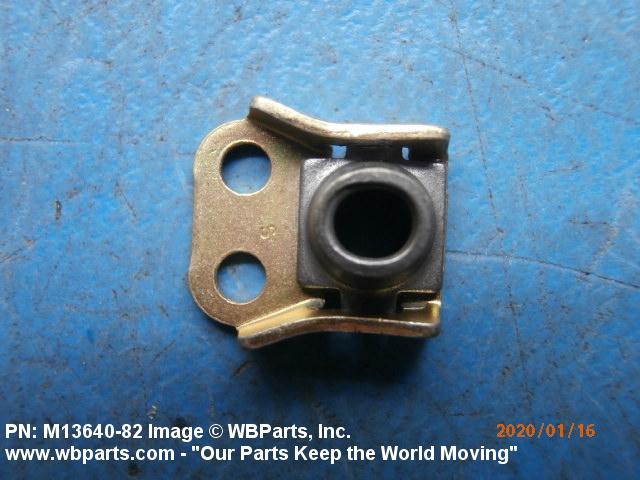

5310-01-177-5728 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: M1364082, M13640-82, HS415382, HS4153-82, 5310-01-177-5728, 01-177-5728, 5310011775728, 011775728

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 APR 1984	01-177-5728	05280 ( NUT, SELF-LOCKING, PLATE )

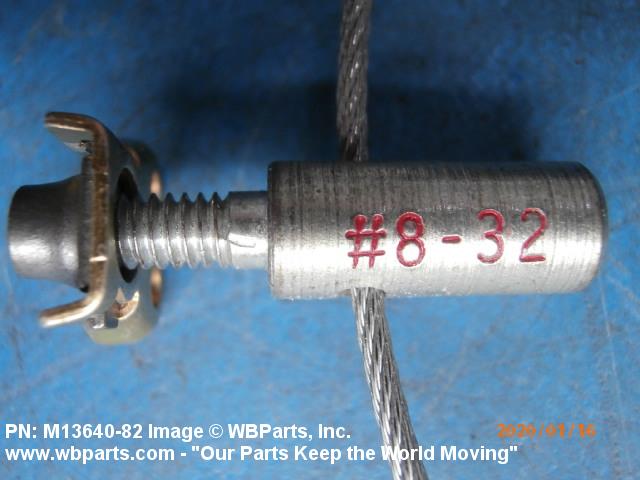

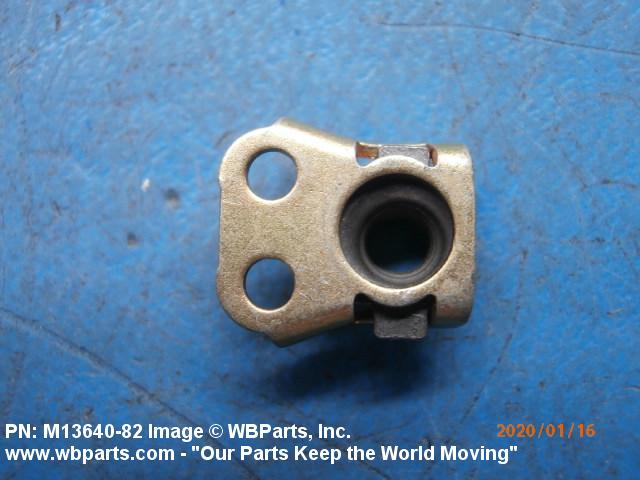

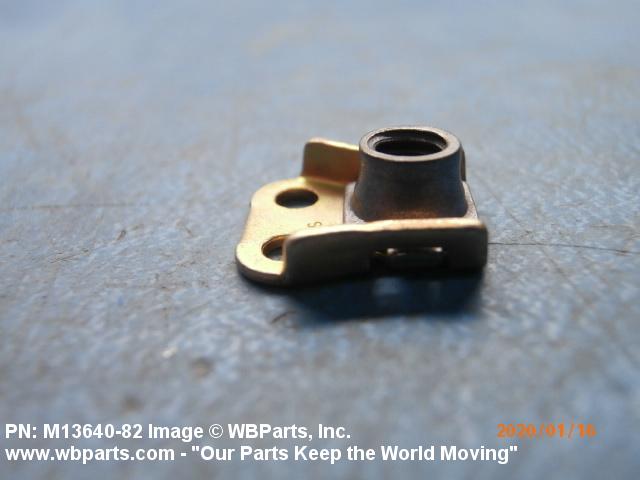

Drawings & Photos | NSN 5310-01-177-5728

Part Number	Request Date	QTY	Origin
HS415382	2024-10-289	200	IN
M13640-82	2023-04-96	343	DIBBS
HS415382	2023-01-03	3456	IN
5310-01-177-5728	2022-10-293	3500	India
5310-01-177-5728	2022-10-287	3500	IN
5310-01-177-5728	2022-06-181	1000	India
5310-01-177-5728	2022-06-181	3500	India
M13640-82	2022-04-95	343	DIBBS
HS415382	2021-09-244	10	US
M13640-82	2021-03-69	259	DIBBS
M13640-82	2020-09-260	119	DIBBS
M13640-82	2020-04-106	30	DIBBS
M13640-82	2020-03-83	241	DIBBS
M13640-82	2020-03-77	60	DIBBS
M1364082	2020-01-07	6	United States
M1364082	2019-12-344	15	United States
M1364082	2019-08-232	1	US
M13640-82	2019-06-171	283	DIBBS
M13640-82	2019-03-62	241	DIBBS
5310-01-177-5728	2018-09-249	189	DIBBS
5310-01-177-5728	2018-08-232	131	DIBBS
5310-01-177-5728	2018-08-217	131	DIBBS
5310-01-177-5728	2016-06-171	417	DIBBS
5310-01-177-5728	2015-09-246	269	DIBBS
5310-01-177-5728	2013-03-88	1256	US
5310-01-177-5728	2010-04-100	472	DIBBS
5310-01-177-5728	2010-01-04	58	DIBBS
5310-01-177-5728	2009-09-244	84	DIBBS
HS415382	2009-04-97	400	India
5310-01-177-5728	2008-11-309	552	DIBBS
5310-01-177-5728	2008-08-220	740	DIBBS
5310-01-177-5728	2007-11-313	75	United States

Cross Reference | NSN 5310-01-177-5728

Part Number	Cage Code	Manufacturer
HS4153-82	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS4153-82	8V613	BOEING COMPANY, THE DBA BOEING
M13640-82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
M13640-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-177-5728

Compare

Related Products | NSN 5310-01-177-5728

5310-01-177-5729, 5310-01-177-5730, 5310-01-177-5794, 5310-01-177-5795, 5310-01-177-5796

Technical Data | NSN 5310-01-177-5728

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1050 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD 1ST MATERIAL RESPONSE OR AMS 6350 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A127 PLATE

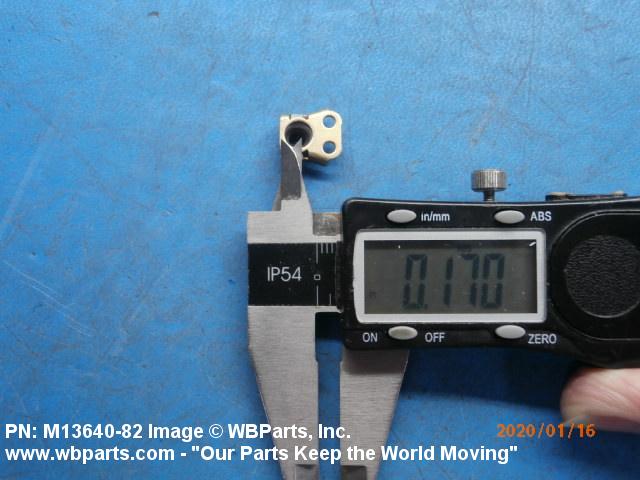

DISTANCE FROM CENTERLINE TO FLAT	0.175 INCHES NOMINAL

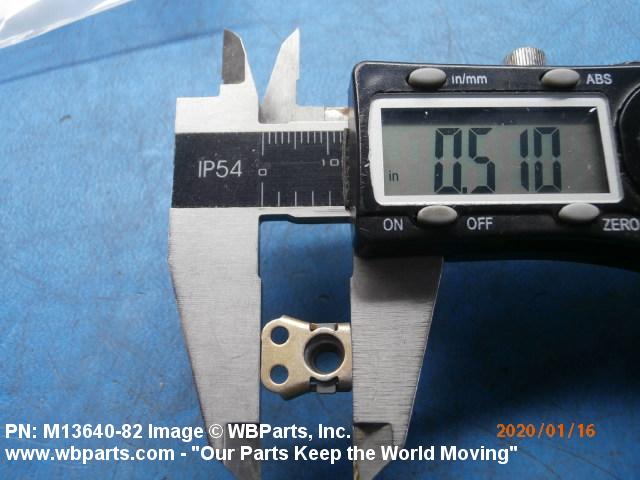

NUT LENGTH	0.525 INCHES MAXIMUM

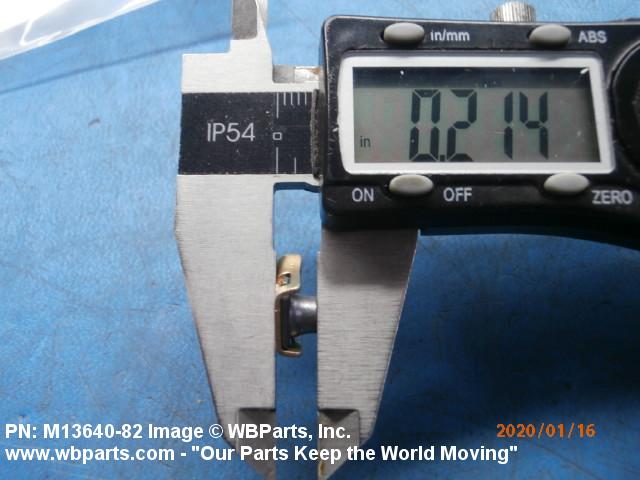

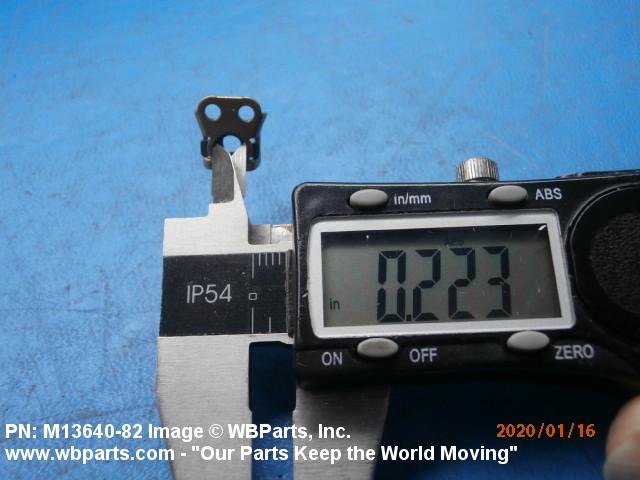

NUT HEIGHT	0.227 INCHES MAXIMUM

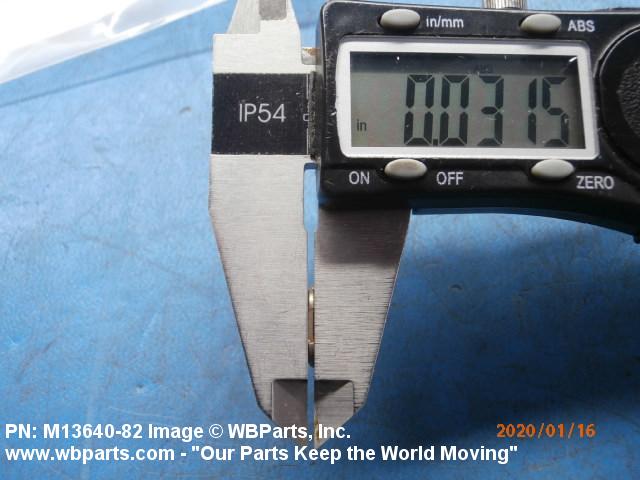

PLATE THICKNESS	0.030 INCHES NOMINAL

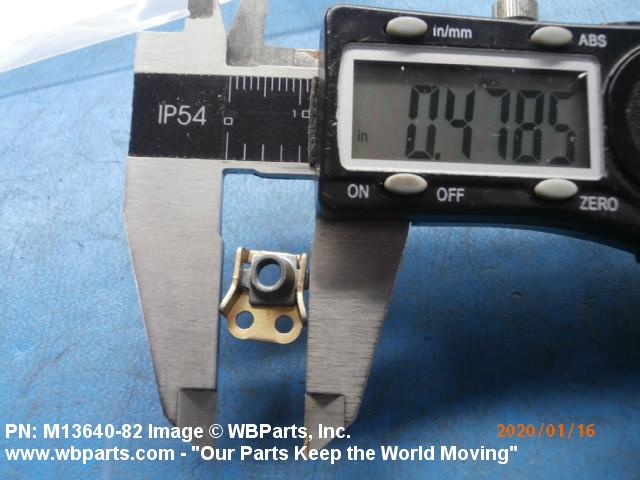

PLATE WIDTH	0.486 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.077 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.232 INCHES MAXIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F45 2 HOLES

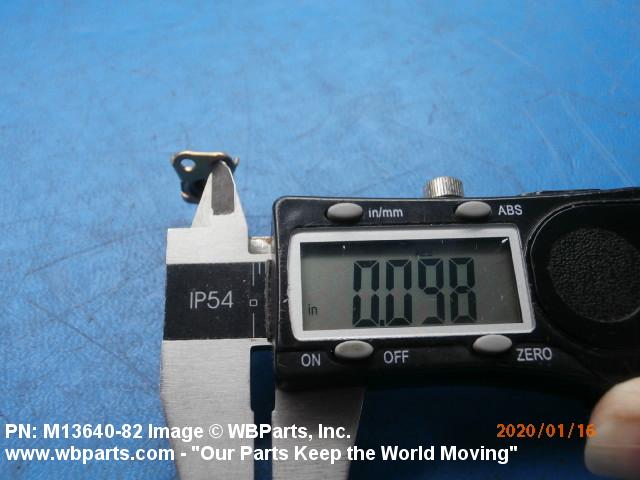

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM

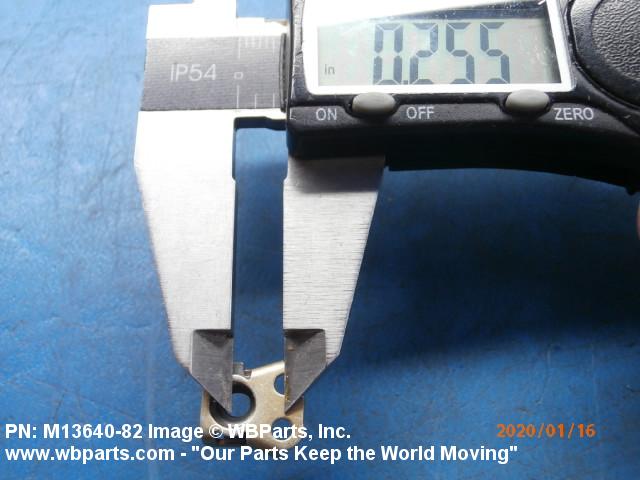

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM

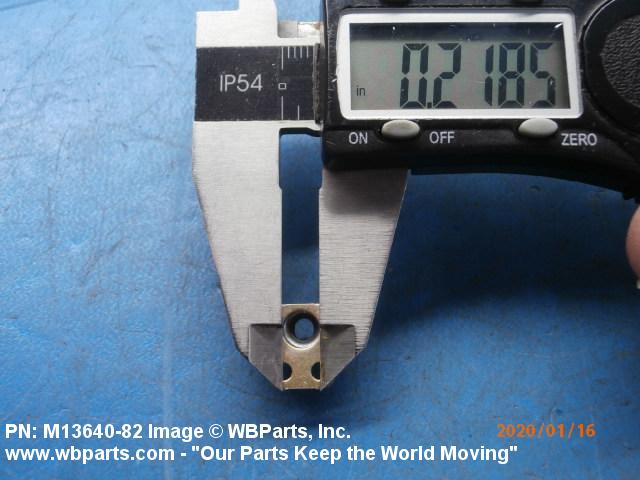

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH	0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT
MANUFACTURERS CODE	02731
MFR SOURCE CONTROLLING REFERENCE	HS4153-82

Restrictions/Controls & Freight Information | NSN 5310-01-177-5728

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating	U	50
Less than truck load rating	U	50.0
Water commodity Code	596	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-177-5728

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
