NSN 5310-01-174-4011 11546718, 115467-18, 01-174-4011
Product Details | SPRING TENSION WASHER
5310-01-174-4011 A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place.
Part Alternates: 11546718, 115467-18, 5310-01-174-4011, 01-174-4011, 5310011744011, 011744011
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 MAR 1984 | 01-174-4011 | 15938 ( WASHER, SPRING TENSION ) |

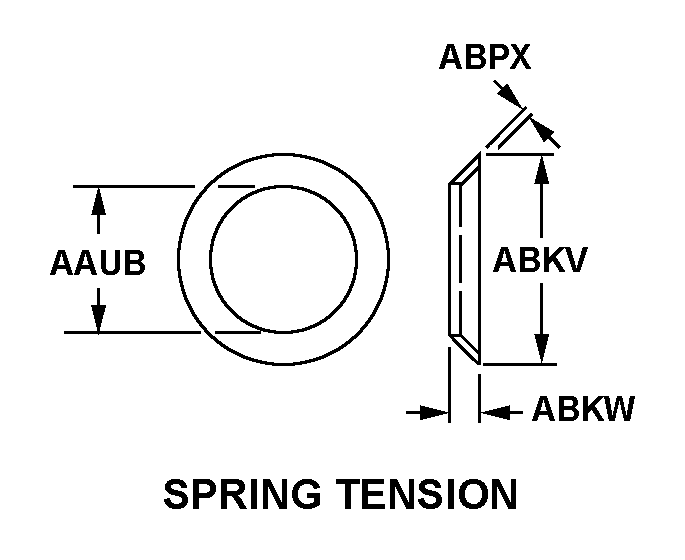

Drawings & Photos | NSN 5310-01-174-4011
Demand History | NSN 5310-01-174-4011
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 115467-18 | 2021-06-171 | 74 | DIBBS |
| 5310-01-174-4011 | 2018-06-156 | 377 | DIBBS |
| 5310-01-174-4011 | 2017-08-216 | 308 | DIBBS |
| 5310-01-174-4011 | 2017-07-204 | 308 | DIBBS |
| 5310-01-174-4011 | 2015-12-348 | 216 | DIBBS |
| 5310-01-174-4011 | 2015-08-230 | 104 | DIBBS |
| 5310-01-174-4011 | 2015-06-169 | 104 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-174-4011
Related Products | NSN 5310-01-174-4011
Technical Data | NSN 5310-01-174-4011
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 631 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-25043,COND A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE I,CLASS 8 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17 SPRING TENSION |
| HOLE DIAMETER | 0.377 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.515 INCHES MINIMUM AND 0.580 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.026 INCHES MINIMUM AND 0.029 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.011 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-174-4011
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-174-4011
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YQ | SX:"ENGINE ACCESSORIES, AIRCRAFT" |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
