Product Details | PLATE SELF-LOCKING NUT
5310-01-156-4326 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1794A41, NAS1794A4-1, 10109851 , 5310-01-156-4326, 01-156-4326, 5310011564326, 011564326
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUN 1983 | 01-156-4326 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

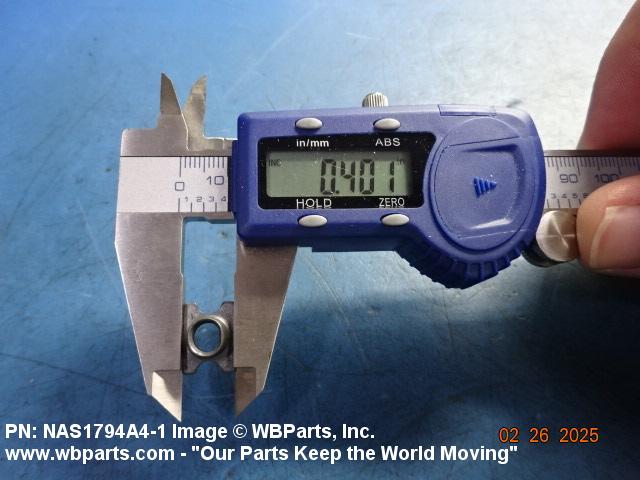

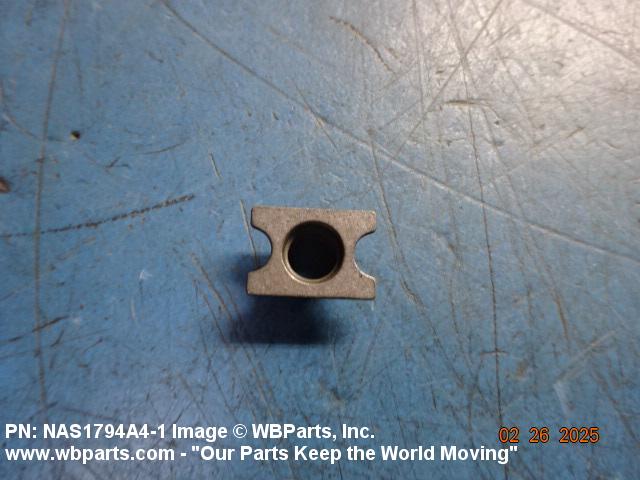

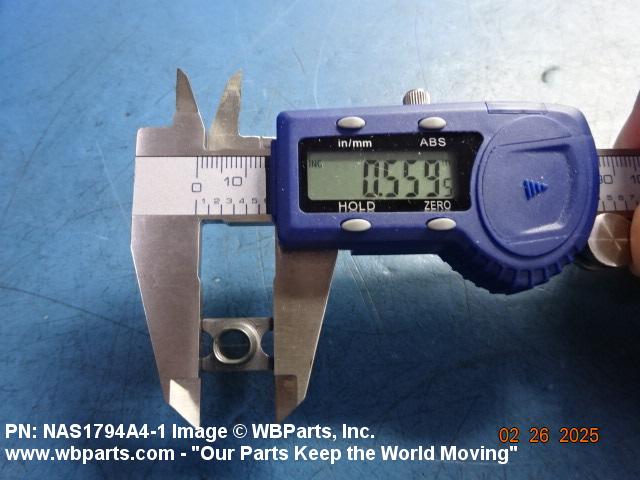

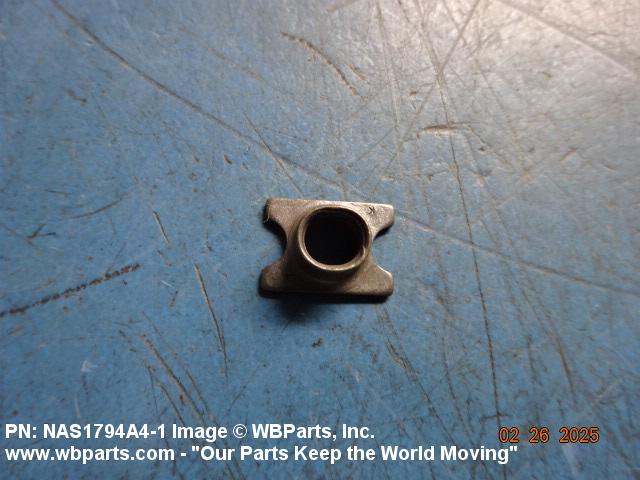

Drawings & Photos | NSN 5310-01-156-4326
Demand History | NSN 5310-01-156-4326
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-156-4326 | 2024-10-289 | 277 | DIBBS |
| NAS1794A41 | 2016-10-301 | 20 | US |
| NAS1794A4-1 | 2016-10-301 | 110 | US |
Cross Reference | NSN 5310-01-156-4326
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1794A4-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-156-4326
Related Products | NSN 5310-01-156-4326
Technical Data | NSN 5310-01-156-4326
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| NUT HEIGHT | 0.253 INCHES NOMINAL |
| PLATE THICKNESS | 0.040 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| PLATE WIDTH | 0.395 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.036 INCHES NOMINAL BASE |
| COUNTERBORE DIAMETER | 0.254 INCHES NOMINAL BASE |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1794 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
