NSN 5310-01-152-6186 NAS1794A43, NAS1794A4-3, 01-152-6186
Product Details | PLATE SELF-LOCKING NUT
5310-01-152-6186 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1794A43, NAS1794A4-3, 5310-01-152-6186, 01-152-6186, 5310011526186, 011526186
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1983 | 01-152-6186 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

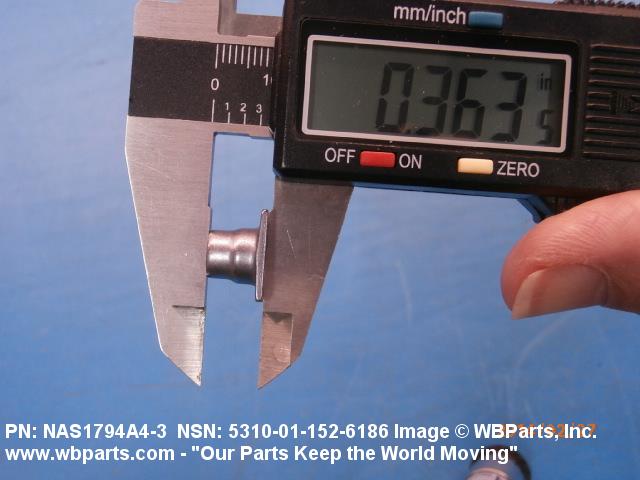

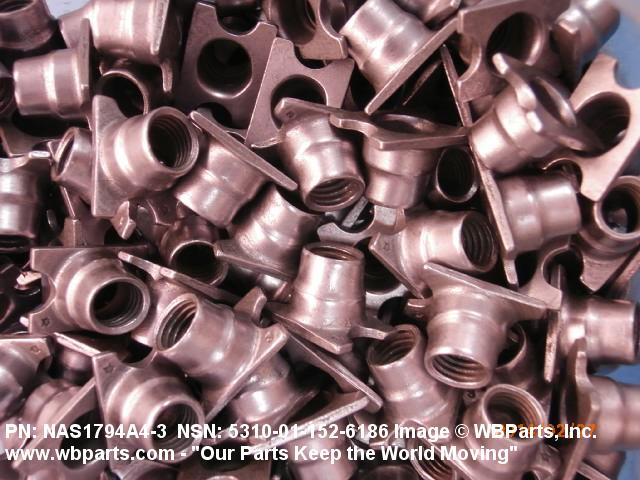

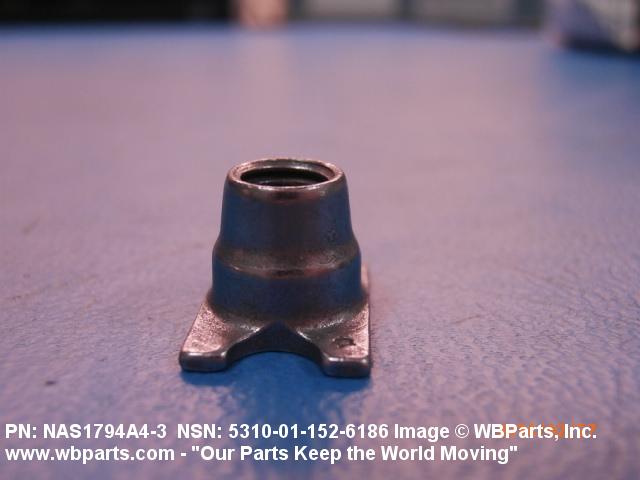

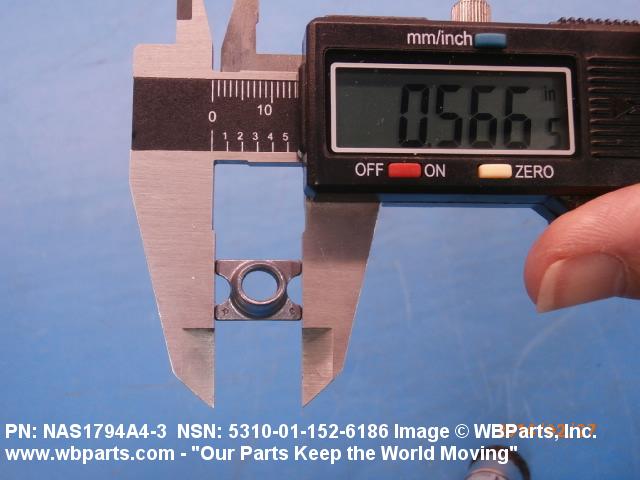

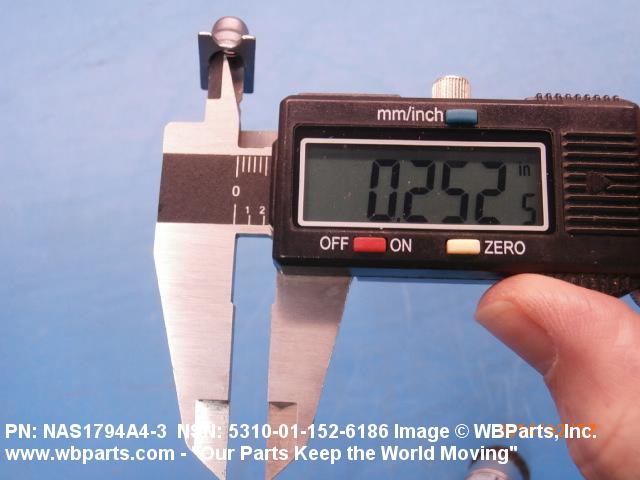

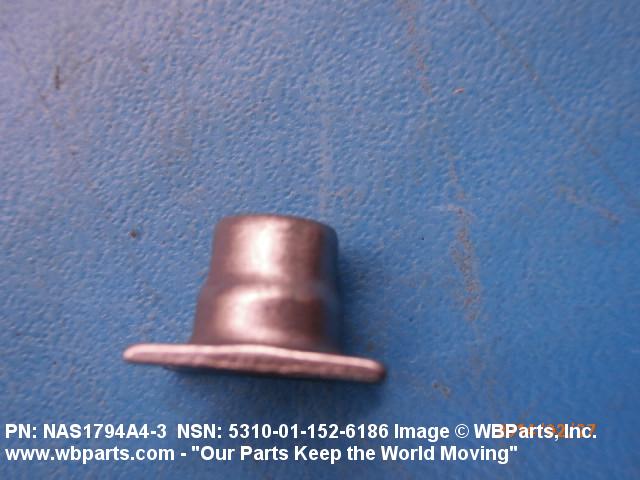

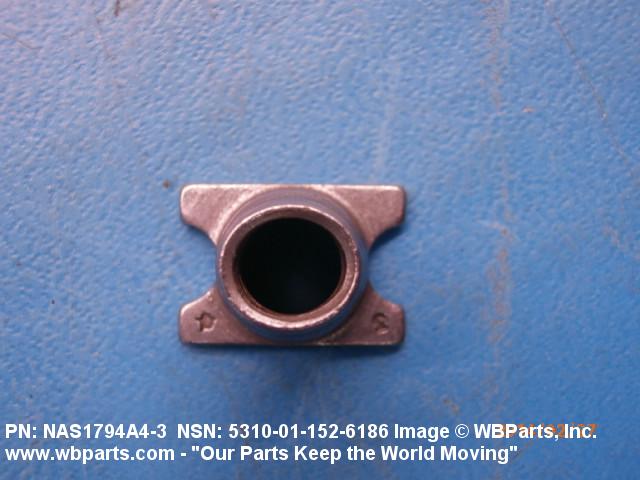

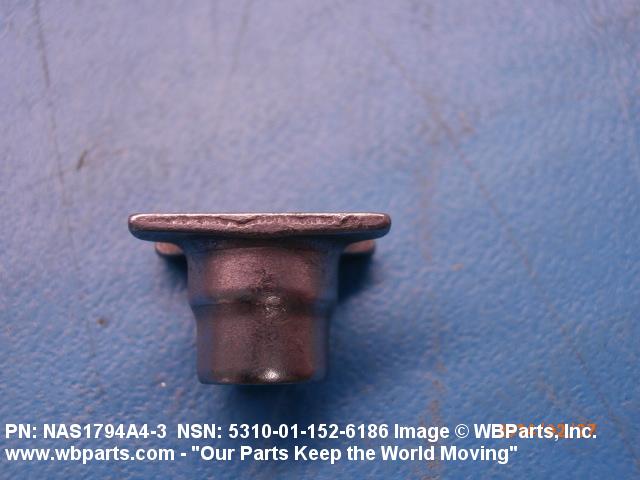

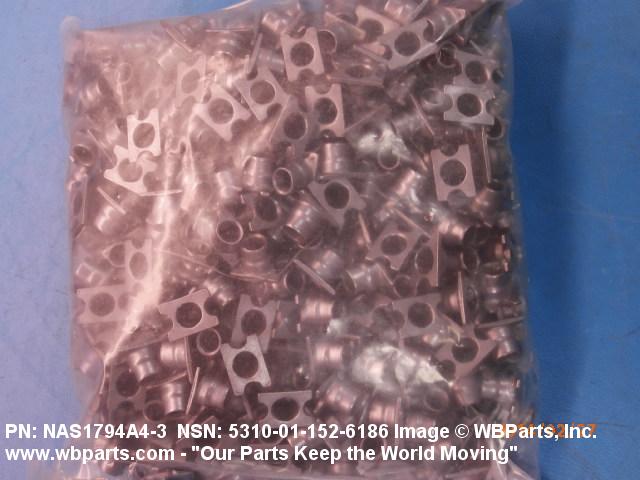

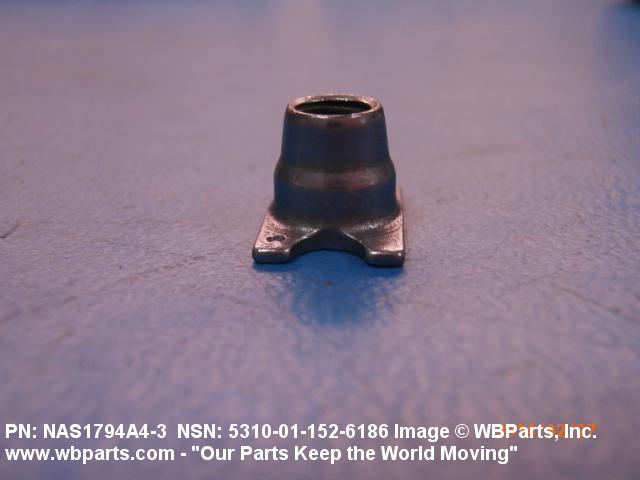

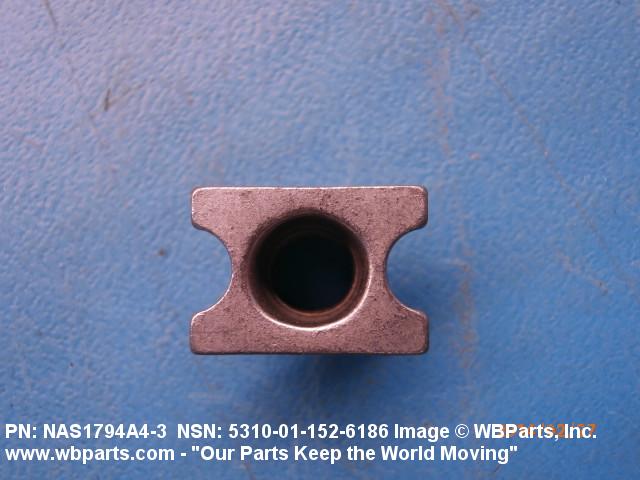

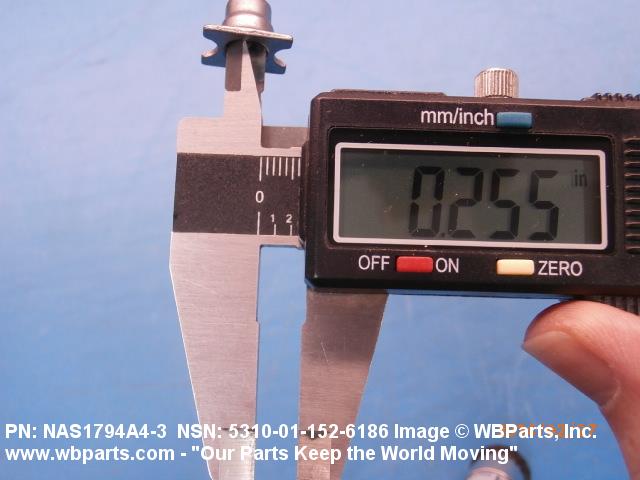

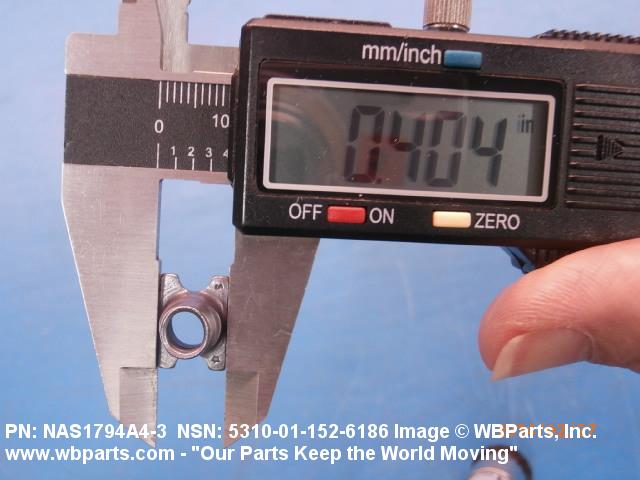

Drawings & Photos | NSN 5310-01-152-6186
Demand History | NSN 5310-01-152-6186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1794A43 | 2017-03-88 | 533 | US |
| 5310-01-152-6186 | 2015-12-338 | 250 | US |
| 5310-01-152-6186 | 2014-03-70 | 500 | US |
| NAS1794A43 | 2014-02-45 | 500 | United States |
| NAS1794A43 | 2012-03-88 | 154 | US |
Cross Reference | NSN 5310-01-152-6186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1794A4-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-152-6186
Technical Data | NSN 5310-01-152-6186
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.562 INCHES NOMINAL |
| NUT HEIGHT | 0.377 INCHES NOMINAL |

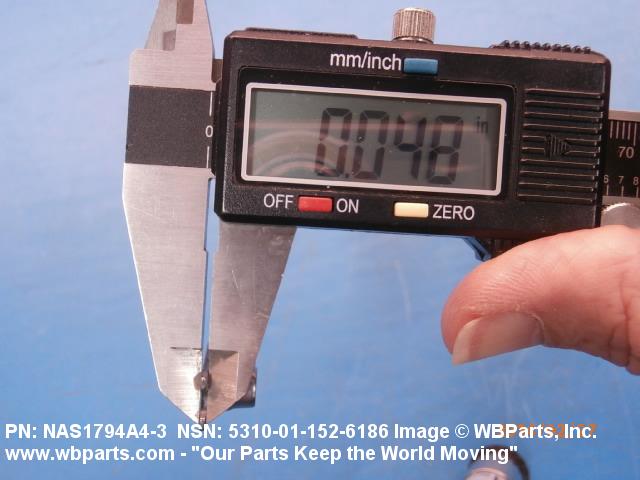

| PLATE THICKNESS | 0.046 INCHES NOMINAL |
| PLATE WIDTH | 0.562 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.163 INCHES NOMINAL BASE |
| COUNTERBORE DIAMETER | 0.254 INCHES NOMINAL BASE |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1794 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-152-6186
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
