NSN 5310-01-138-4712 BCN445A31, BCN445A3-1, CN5006331
Product Details | GANG CHANNEL SELF-LOCKING NUT

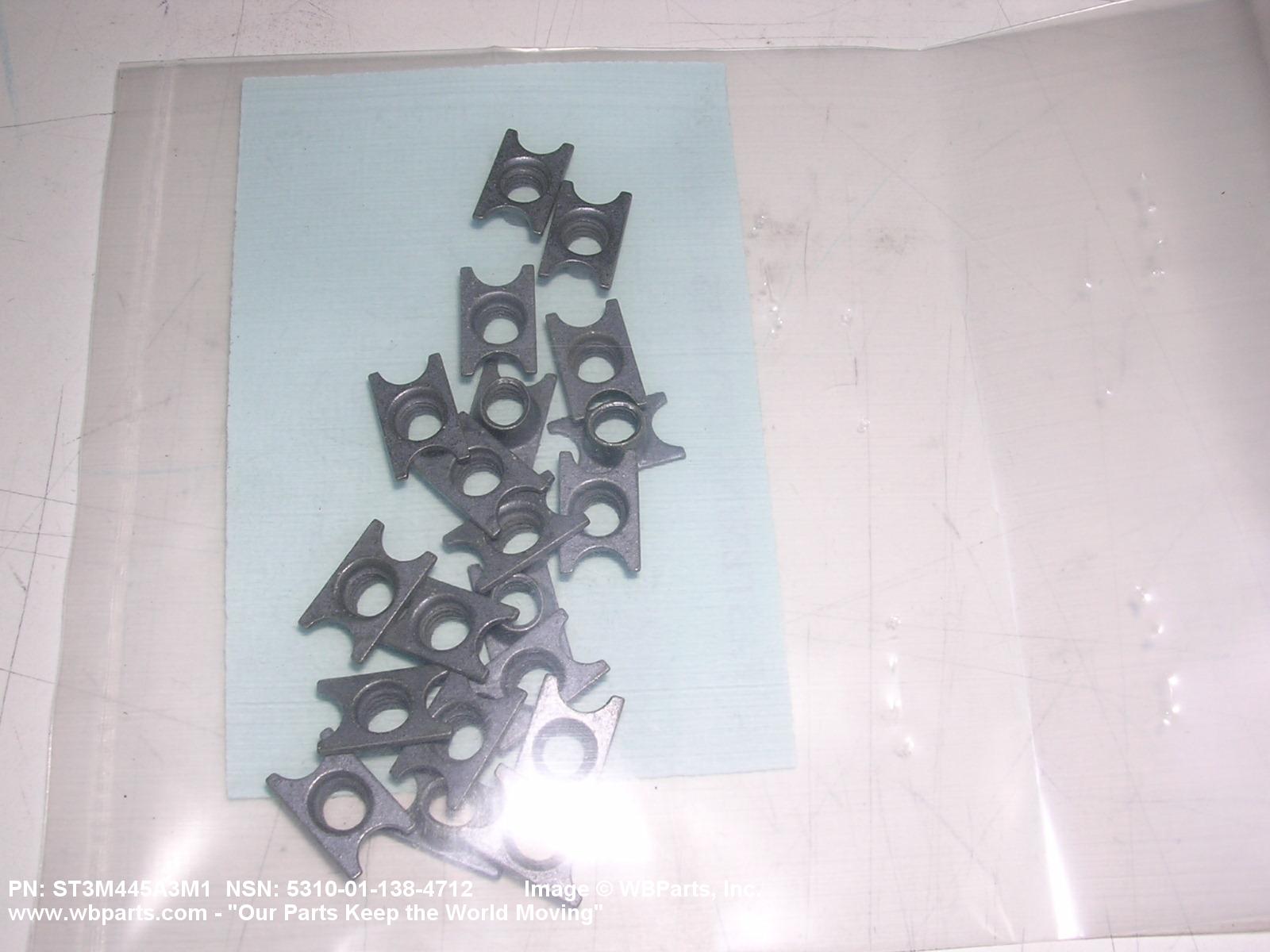

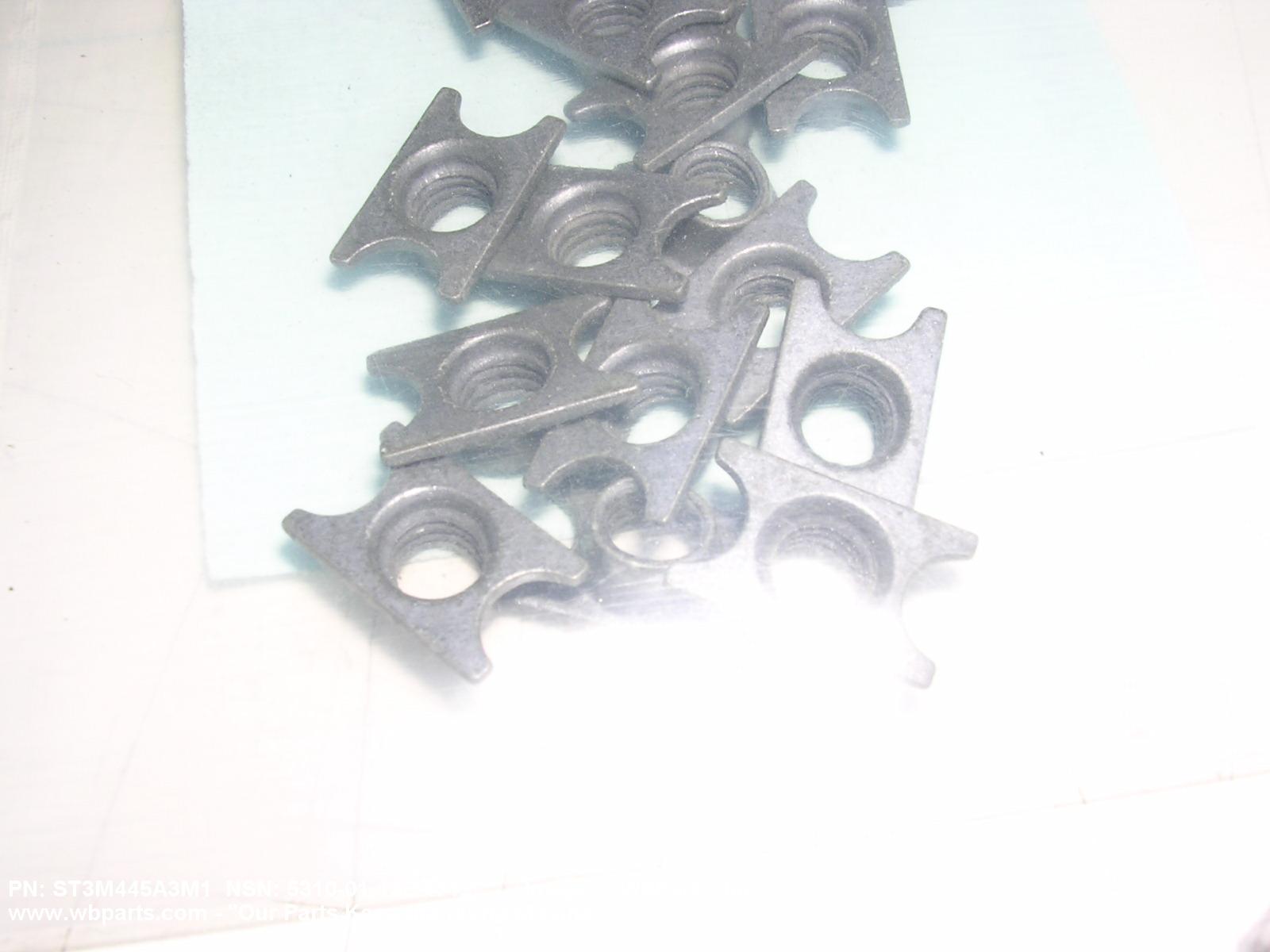

5310-01-138-4712 A nut having ears or lugs designed to hold it in position after its installation in a specially designed channel. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BCN445A31, BCN445A3-1, CN5006331, CN50063-3-1, ST3M445A3M1, G1442113, G14421-1-3, 10109757 , 5310-01-138-4712, 01-138-4712, 5310011384712, 011384712
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 SEP 1982 | 01-138-4712 | 01863 ( NUT, SELF-LOCKING, GANG CHANNEL ) |
Drawings & Photos | NSN 5310-01-138-4712
Demand History | NSN 5310-01-138-4712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BCN445A3-1 | 2019-02-35 | 36 | DIBBS |
| CN50063-3-1 | 2019-02-35 | 36 | DIBBS |
| G14421-1-3 | 2019-02-35 | 36 | DIBBS |
| ST3M445A3M1 | 2019-02-35 | 36 | DIBBS |
| 5310-01-138-4712 | 2010-04-103 | 53 | DIBBS |
| ST3M445A3M1 | 2008-01-23 | 18 | United States |
Cross Reference | NSN 5310-01-138-4712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BCN445A3-1 | 27238 | BRISTOL INDUSTRIES |
| CN50063-3-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| G14421-1-3 | 72962 | HARVARD INDUSTRIES INC |
| G14421-1-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M445A3M1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M445A3M1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-138-4712
Related Products | NSN 5310-01-138-4712
Technical Data | NSN 5310-01-138-4712
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| BASE WIDTH | 0.295 INCHES MINIMUM AND 0.305 INCHES MAXIMUM |
| NUT LENGTH | 0.482 INCHES MINIMUM AND 0.492 INCHES MAXIMUM |
| BASE THICKNESS | 0.030 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| NUT HEIGHT | 0.184 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.041 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-138-4712
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
