NSN 5310-01-136-1770 AN960KD616, FFW92, FF-W-92
Product Details | FLAT WASHER

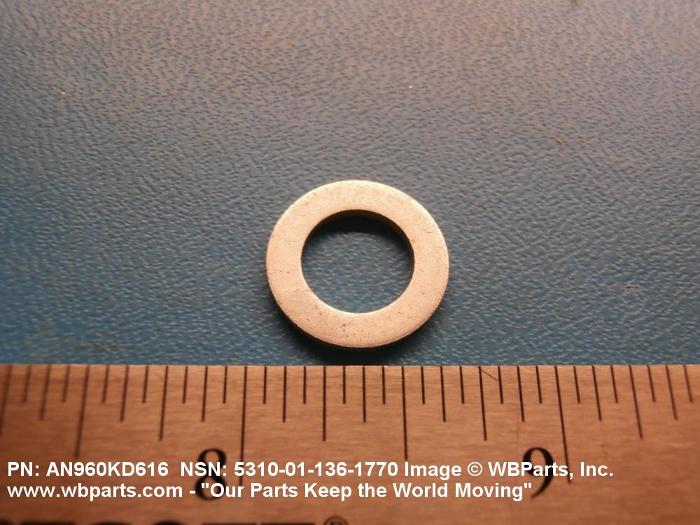

5310-01-136-1770 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN960KD616, FFW92, FF-W-92, 5310-01-136-1770, 01-136-1770, 5310011361770, 011361770
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 AUG 1982 | 01-136-1770 | 13393 ( WASHER, FLAT ) |
Drawings & Photos | NSN 5310-01-136-1770
Demand History | NSN 5310-01-136-1770
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 011361770 | 2024-09-268 | 100 | United States |
| 5310-01-136-1770 | 2024-08-241 | 22 | United States |
| 5310-01-136-1770 | 2024-02-60 | 100 | United States |
| FF-W-92 | 2023-01-18 | 60 | Saudi Arabia |
| FFW92 | 2018-07-207 | 2 | United States |
| FFW92 | 2016-08-217 | 21 | US |
| AN960KD616 | 2012-08-242 | 100 | Canada |
| AN960KD616 | 2012-07-191 | 74 | Canada |
| AN960KD616 | 2012-07-187 | 74 | Canada |
| FFW92 | 2011-10-304 | 495 | United States |
| 5310-01-136-1770 | 2010-10-274 | 500 | PH |
| 5310-01-136-1770 | 2008-09-261 | 2 | US |
| 5310-01-136-1770 | 2007-02-59 | 10 | US |
