Product Details | BLIND RIVET PLAIN NUT

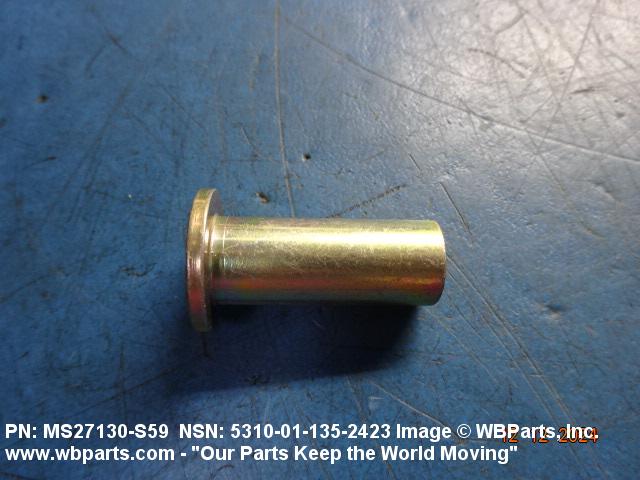

5310-01-135-2423 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.

Part Alternates: MS27130S59, MS27130-S59, 5310-01-135-2423, 01-135-2423, 5310011352423, 011352423

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 20 JUL 1982 01-135-2423

Drawings & Photos | NSN 5310-01-135-2423


Demand History | NSN 5310-01-135-2423

Part Number Request Date QTY Origin
5310-01-135-2423 2024-11-328 100 United States

Cross Reference | NSN 5310-01-135-2423

Part Number Cage Code Manufacturer
MS27130-S59 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-135-2423

Technical Data | NSN 5310-01-135-2423

Characteristic Specifications
THREAD SERIES UNC
NOMINAL THREAD SIZE 0.375 INCHES
THREAD QUANTITY PER INCH 16
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 1108 OR STEEL COMP 1110 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A22 BLIND RIVET W/SMOOTH ROUND SHANK
NUT DIAMETER 0.486 INCHES MINIMUM AND 0.490 INCHES MAXIMUM
NUT LENGTH 1.203 INCHES MINIMUM AND 1.233 INCHES MAXIMUM
NUT GRIP RANGE 0.370 TO 0.455 INCHES
HEAD STYLE D13 FLAT
HEAD DIAMETER 0.766 INCHES MINIMUM AND 0.796 INCHES MAXIMUM
HEAD HEIGHT 0.088 INCHES NOMINAL
SHANK END TYPE OPEN
TEMP RATING NOT RATED
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS27130-S59
