NSN 5310-01-134-5758 NAS509L4C, 01-134-5758, 011345758

Product Details | HEXAGON PLAIN NUT

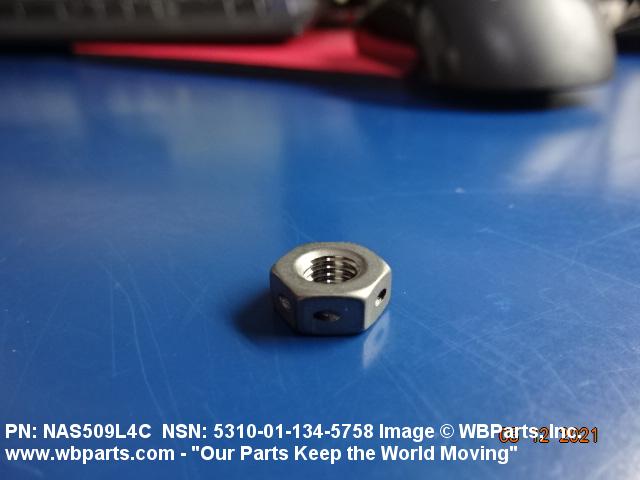

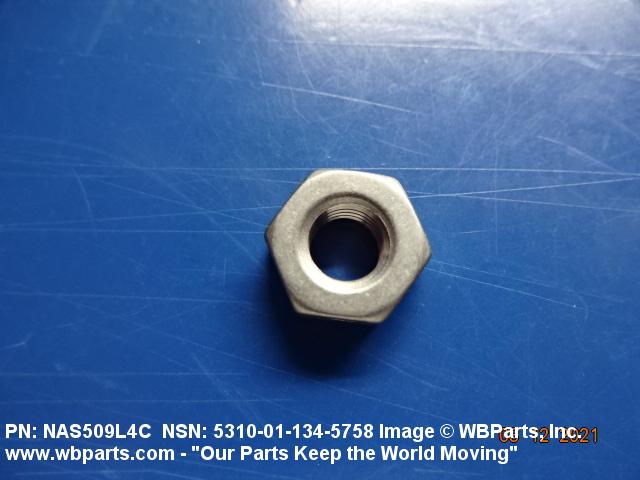

5310-01-134-5758 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: NAS509L4C, 5310-01-134-5758, 01-134-5758, 5310011345758, 011345758

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 JUL 1982	01-134-5758	01857 ( NUT, PLAIN, HEXAGON )

Drawings & Photos | NSN 5310-01-134-5758

Part Number	Request Date	QTY	Origin
5310-01-134-5758	2021-03-64	2	United States
NAS509L4C	2020-08-225	100	US
NAS509L4C	2010-03-71	10	US
NAS509L4C	2007-06-170	210	Canada

Cross Reference | NSN 5310-01-134-5758

Part Number	Cage Code	Manufacturer
NAS509L4C	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-134-5758

Compare

Related Products | NSN 5310-01-134-5758

5310-01-134-5760, 5310-01-134-5761, 5310-01-134-5762, 5310-01-134-5765, 5310-01-134-5766

Technical Data | NSN 5310-01-134-5758

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.2500 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	LEFT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 ASSN STD 1ST TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

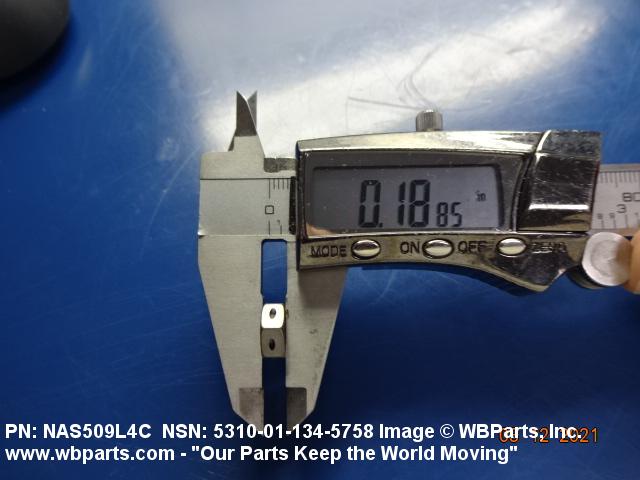

NUT HEIGHT	0.188 INCHES NOMINAL

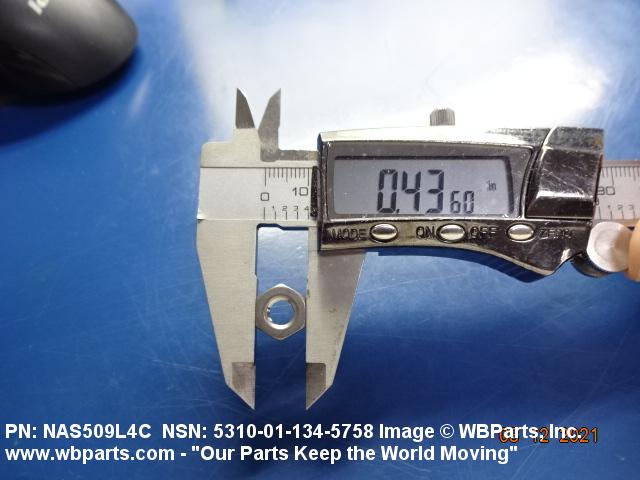

WIDTH ACROSS FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	H2 CONFIGURATION B
HOLE TYPE AND QUANTITY	3 DRILLED
DRILLED HOLE DIAMETER	0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
SPECIFICATION/STANDARD DATA	80205-NAS509 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
