NSN 5310-01-123-1421 8712289-14, 01-123-1421, 871228914
Product Details | HEXAGON CONE SEAT SELF-LOCKING NUT
5310-01-123-1421 A nut having 6 flat sides and a cone seat bearing surface. Items may have a removable collar. An integral feature is incorporated for locking on the threads of a mating member. See also NUT (1), SELF-LOCKING, SINGLE BALL SEAT, HEXAGON.
Part Alternates: 8712289-14, 5310-01-123-1421, 01-123-1421, 5310011231421, 871228914, 011231421
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1981 | 01-123-1421 | 29727 ( NUT, SELF-LOCKING, CONE SEAT, HEXAGON ) |

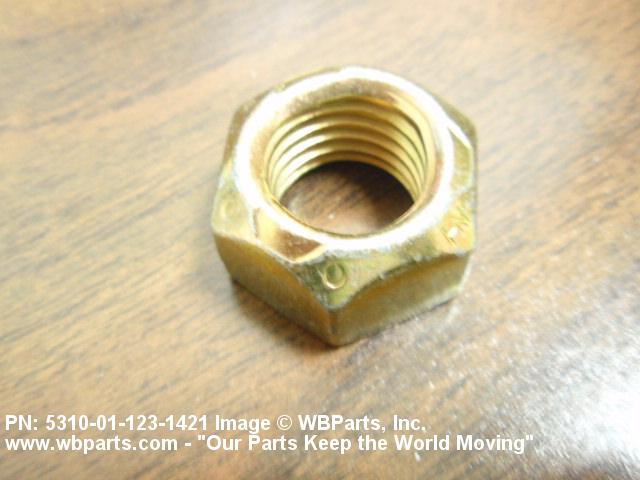

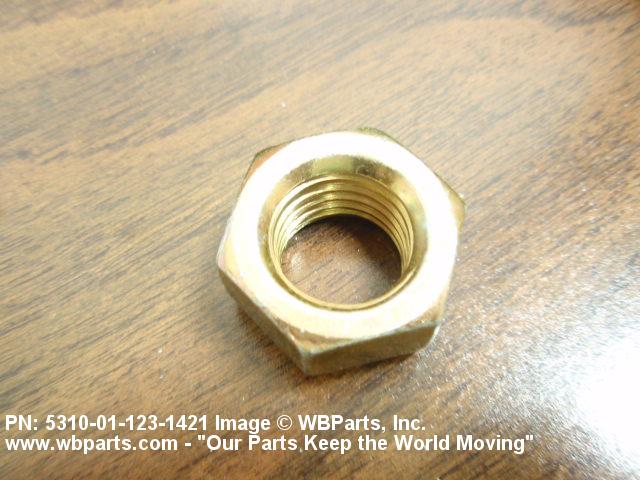

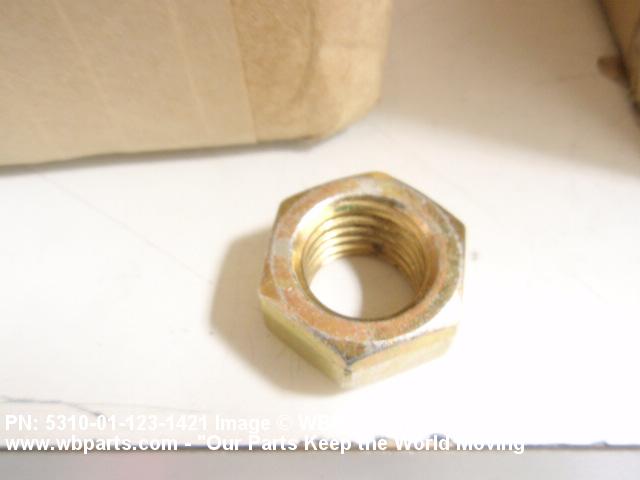

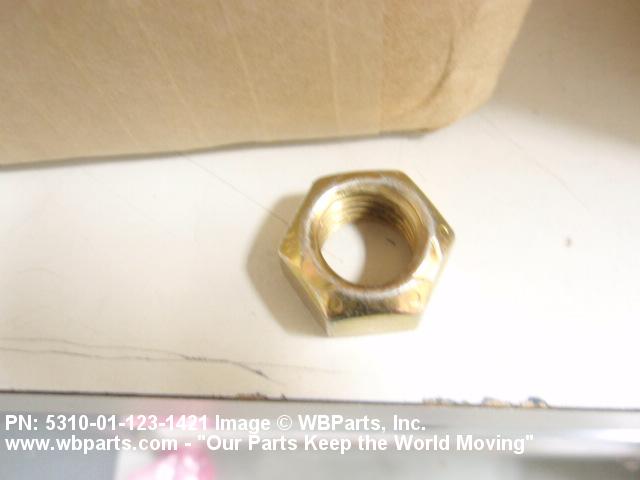

Drawings & Photos | NSN 5310-01-123-1421
Demand History | NSN 5310-01-123-1421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-123-1421 | 2021-01-12 | 21603 | DIBBS |
| 5310-01-123-1421 | 2020-01-30 | 20841 | DIBBS |
| 5310-01-123-1421 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-01-123-1421 | 2016-11-321 | 11500 | US |
| 5310-01-123-1421 | 2016-09-270 | 25000 | DIBBS |
| 5310-01-123-1421 | 2016-08-223 | 11500 | DIBBS |
| 5310-01-123-1421 | 2016-08-215 | 11500 | DIBBS |
| 5310-01-123-1421 | 2016-03-62 | 10000 | DIBBS |
| 5310-01-123-1421 | 2014-12-337 | 15081 | DIBBS |
| 5310-01-123-1421 | 2014-09-262 | 1 | US |
| 5310-01-123-1421 | 2014-09-246 | 20000 | US |
| 5310-01-123-1421 | 2012-03-89 | 37126 | DIBBS |
| 5310-01-123-1421 | 2011-11-326 | 36736 | DIBBS |
| 5310-01-123-1421 | 2011-06-171 | 22718 | DIBBS |
| 871228914 | 2011-03-88 | 4000 | Belgium |
| 5310-01-123-1421 | 2011-03-67 | 19134 | DIBBS |
| 5310-01-123-1421 | 2010-12-354 | 11256 | DIBBS |
| 871228914 | 2010-11-334 | 1000 | Belgium |
| 5310-01-123-1421 | 2010-10-280 | 1483 | DIBBS |
| 5310-01-123-1421 | 2010-09-251 | 1266 | DIBBS |
| 5310-01-123-1421 | 2010-08-229 | 1250 | Belgium |
| 871228914 | 2010-07-195 | 108 | United States |
| 5310-01-123-1421 | 2009-11-327 | 9200 | DIBBS |
| 5310-01-123-1421 | 2008-07-184 | 2808 | DIBBS |
| 5310-01-123-1421 | 2008-06-182 | 2808 | DIBBS |
Cross Reference | NSN 5310-01-123-1421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8712289-14 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-123-1421
Related Products | NSN 5310-01-123-1421
Technical Data | NSN 5310-01-123-1421
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1005 OR STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1023 OR STEEL COMP 1026 OR STEEL COMP 1029 OR STEEL COMP 1030 OR STEEL COMP 1034 OR STEEL COMP 1035 OR STEEL COMP 1037 OR STEEL COMP 1038 OR STEEL COMP 1039 OR STEEL COMP 1040 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A7 CONE SEAT, HEXAGON |
| NUT HEIGHT | 0.665 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 1.088 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| CONE SEAT ANGLE | 90.0 DEGREES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL NUT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-123-1421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-123-1421
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
