NSN 5310-01-118-2480 M45938/7-8, M4593878, A25A409060107
Product Details | CLINCH SELF-LOCKING NUT
5310-01-118-2480 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: M45938/7-8, M4593878, A25A409060107, A25A409-060-107, FE032, FE-032, FE1032, FEX032, FEX-032, MILN45938, MIL-N-45938, 10109319 , 33484917, 334849-17, 74443155004, 5310-01-118-2480, 01-118-2480, 5310011182480, 011182480
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 AUG 1981 | 01-118-2480 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

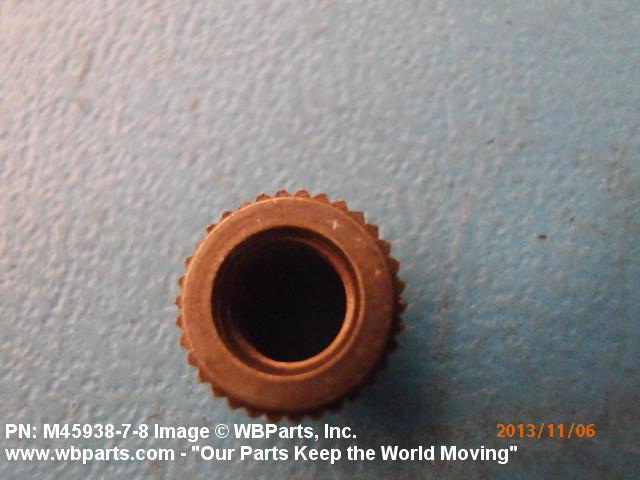

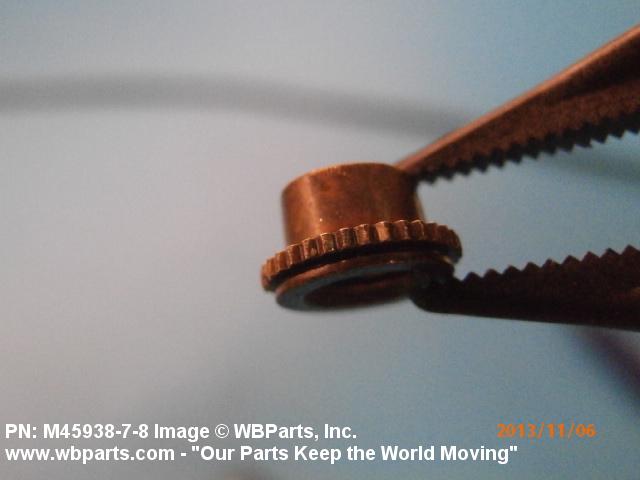

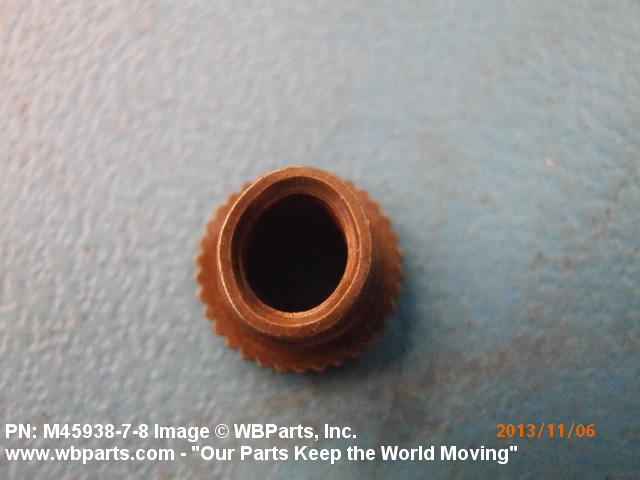

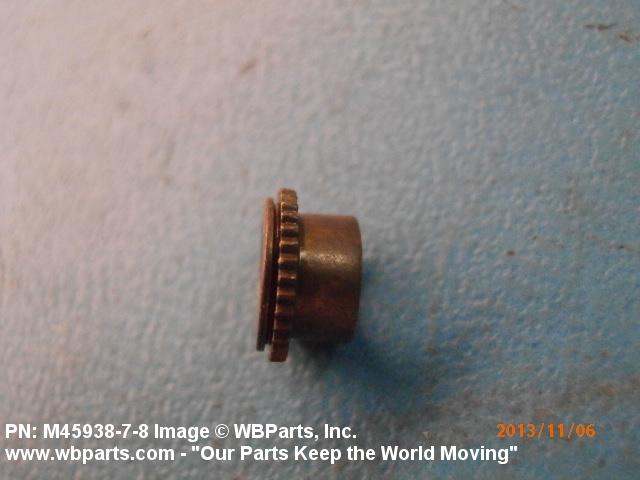

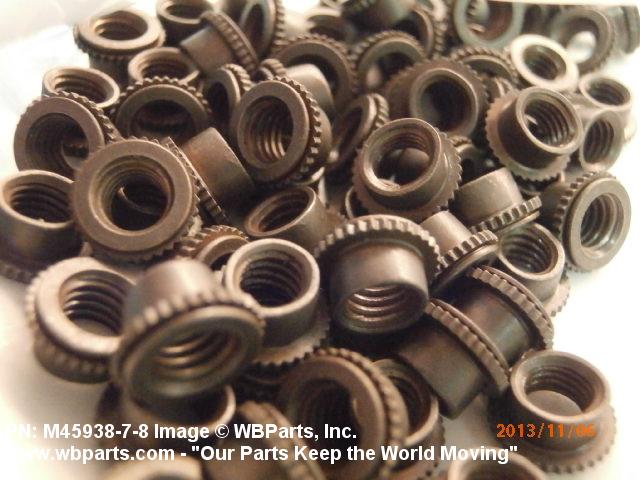

Drawings & Photos | NSN 5310-01-118-2480
Demand History | NSN 5310-01-118-2480
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-118-2480 | 2022-01-26 | 20 | United States |
| FE032 | 2020-08-244 | 46 | US |
| FE032 | 2020-08-244 | 46 | US |
| FE032 | 2016-04-96 | 104 | US |
| FEX032 | 2016-04-96 | 414 | US |
| M4593878 | 2013-10-290 | 1000 | India |
| M4593878 | 2013-10-276 | 75 | India |
| 5310-01-118-2480 | 2013-09-250 | 50 | IN |
| 5310-01-118-2480 | 2013-08-228 | 50 | India |
| 5310-01-118-2480 | 2012-01-23 | 172 | US |
| M4593878 | 2011-03-61 | 1100 | US |
| FEX032 | 2008-03-86 | 60 | US |
| FEX032 | 2007-12-340 | 100 | US |
Cross Reference | NSN 5310-01-118-2480
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 334849-17 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 74443155004 | 89944 | KOLLSMAN, INC. |
| A25A409-060-107 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| A25A409-060-107 | 99696 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
| FE-032 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| FE1032 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| FEX-032 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M45938/7-8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-N-45938 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-118-2480
Related Products | NSN 5310-01-118-2480
Technical Data | NSN 5310-01-118-2480
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 70.0 ROCKWELL B MAXIMUM |
| NUT STYLE | A64 CLINCH |

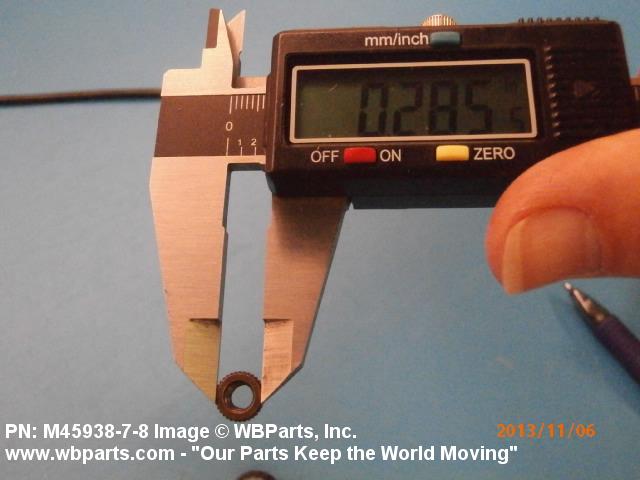

| PILOT DIAMETER | 0.284 INCHES MINIMUM AND 0.289 INCHES MAXIMUM |
| PILOT LENGTH | 0.050 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |

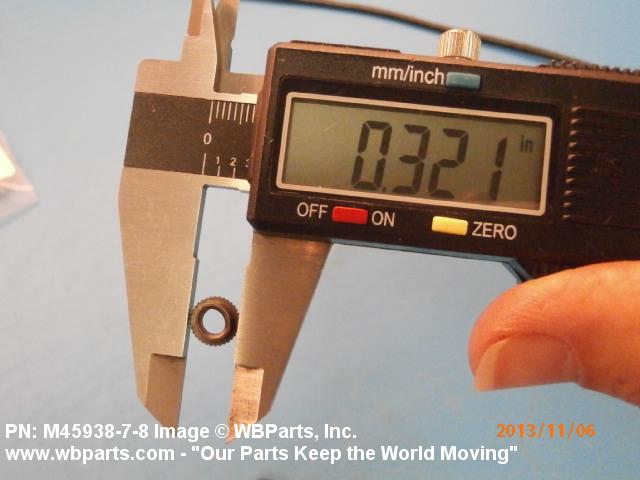

| NUT DIAMETER | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

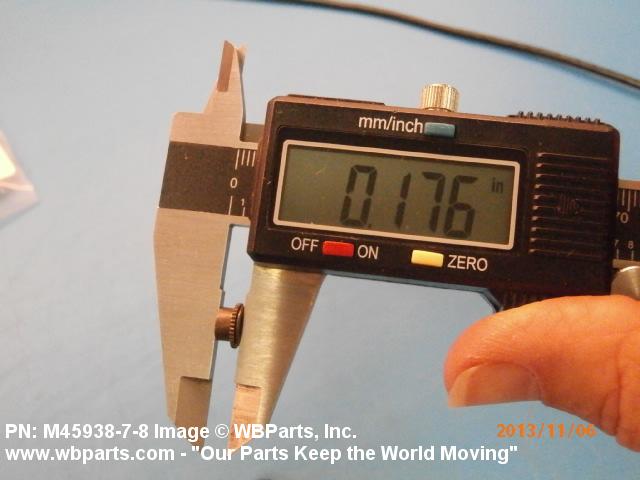

| NUT HEIGHT | 0.160 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-N-45938 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45938/7-8 |
Restrictions/Controls & Freight Information | NSN 5310-01-118-2480
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
