NSN 5310-01-116-4436 145D011414, 145D0114-14, 01-116-4436
Product Details | KEY WASHER
5310-01-116-4436 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 145D011414, 145D0114-14, 5310-01-116-4436, 01-116-4436, 5310011164436, 011164436
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JUL 1981 | 01-116-4436 | 01869 ( WASHER, KEY ) |

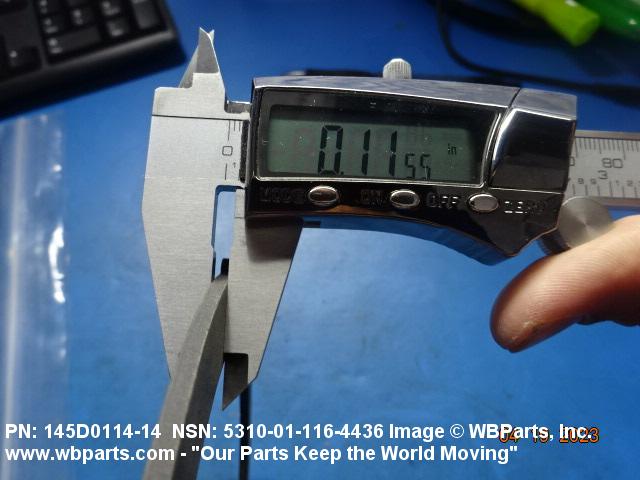

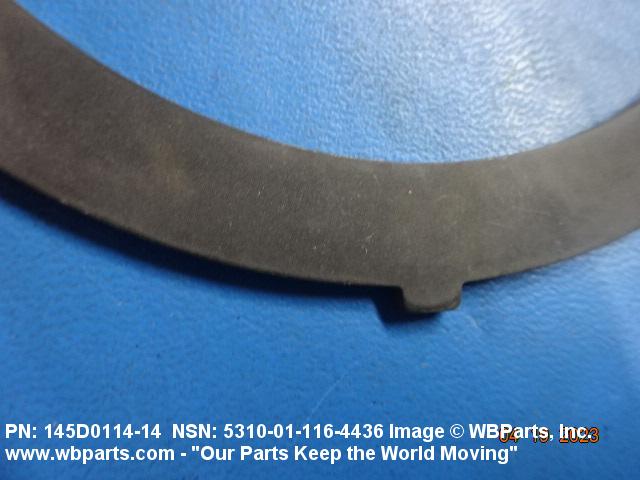

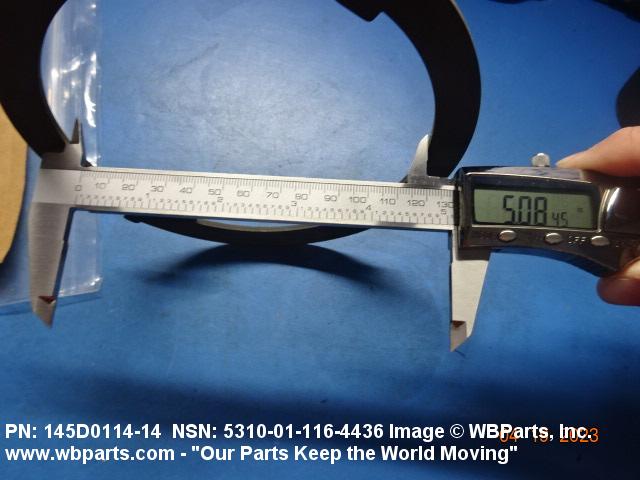

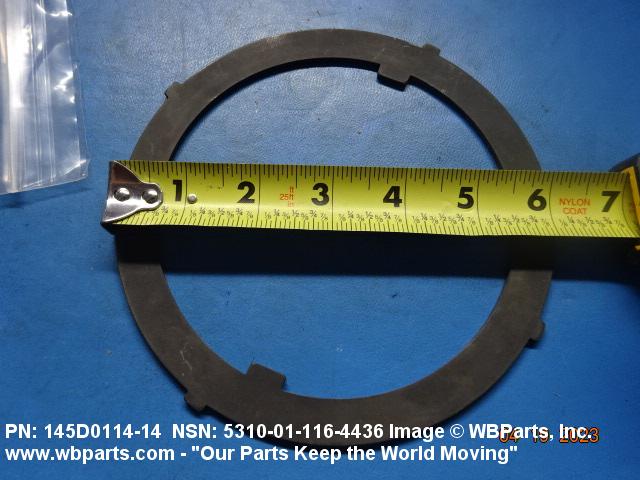

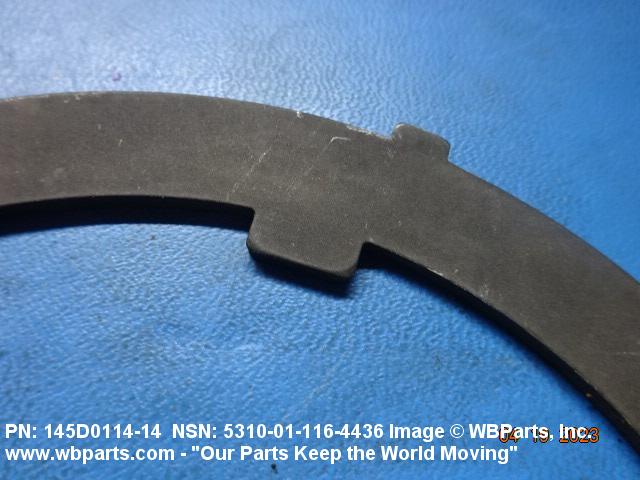

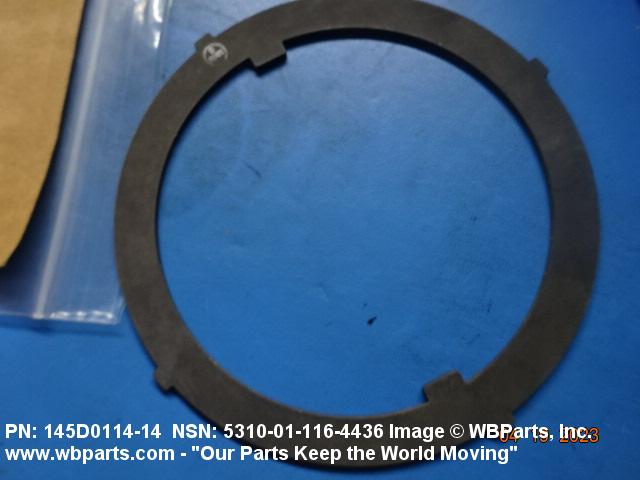

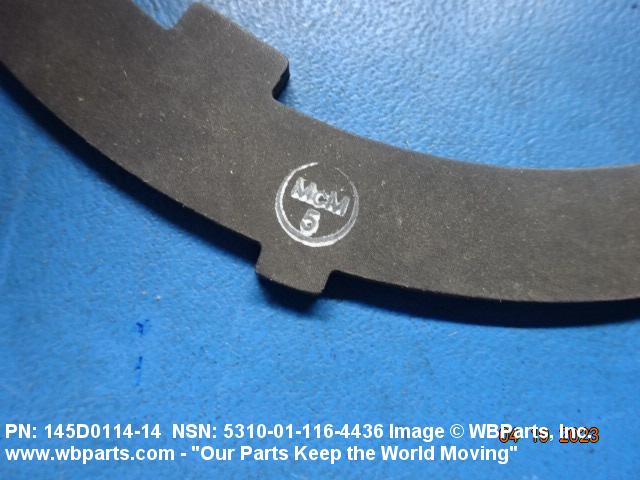

Drawings & Photos | NSN 5310-01-116-4436
Demand History | NSN 5310-01-116-4436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 145D011414 | 2023-03-24 | 2 | United States |
| 145D0114-14 | 2021-11-18 | 68 | DIBBS |
| 145D0114-14 | 2021-09-20 | 112 | DIBBS |
| 145D0114-14 | 2021-09-09 | 112 | DIBBS |
| 145D0114-14 | 2021-08-16 | 652 | DIBBS |
| 145D0114-14 | 2021-08-03 | 652 | DIBBS |
| 145D0114-14 | 2021-06-25 | 990 | DIBBS |
| 145D0114-14 | 2021-06-17 | 990 | DIBBS |
| 145D0114-14 | 2020-11-15 | 857 | DIBBS |
| 5310-01-116-4436 | 2020-04-26 | 990 | DIBBS |
| 5310-01-116-4436 | 2014-04-17 | 1419 | DIBBS |
| 5310-01-116-4436 | 2014-03-13 | 1089 | DIBBS |
| 5310-01-116-4436 | 2013-11-12 | 990 | DIBBS |
| 5310-01-116-4436 | 2010-05-27 | 741 | DIBBS |
| 5310-01-116-4436 | 2009-09-09 | 1599 | DIBBS |
| 5310-01-116-4436 | 2009-05-31 | 1599 | DIBBS |
| 5310-01-116-4436 | 2009-04-15 | 699 | DIBBS |
| 5310-01-116-4436 | 2009-02-10 | 272 | DIBBS |
| 5310-01-116-4436 | 2008-11-12 | 234 | DIBBS |
Cross Reference | NSN 5310-01-116-4436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145D0114-14 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-116-4436
Related Products | NSN 5310-01-116-4436
Technical Data | NSN 5310-01-116-4436
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6359 ASSN STD SINGLE MATERIAL RESPONSE OR AMS6415 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE Z,CLASS 4A MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 142 KEY |
| EXTERNAL KEY QUANTITY | 4 |
| INTERNAL KEY QUANTITY | 2 |
| HOLE DIAMETER | 5.094 INCHES MINIMUM AND 5.114 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 6.200 INCHES MINIMUM AND 6.220 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.270 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 145D0114-14 |
Restrictions/Controls & Freight Information | NSN 5310-01-116-4436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-116-4436
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
