NSN 5310-01-111-7546 M39018/04-1145 , M39018/04-2145 , M39018/04-2145M

Product Details | PLATE SELF-LOCKING NUT

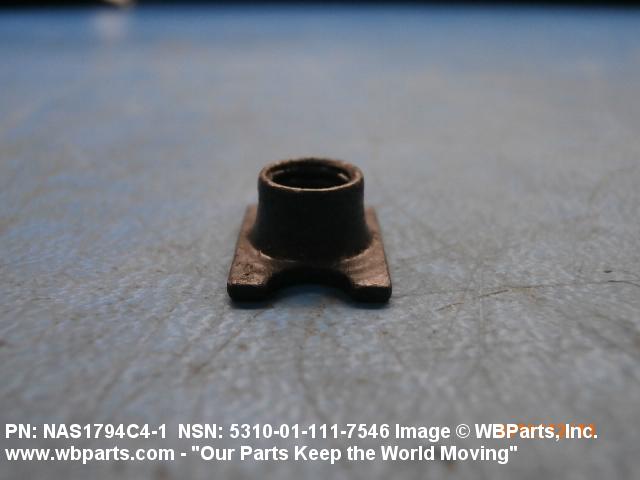

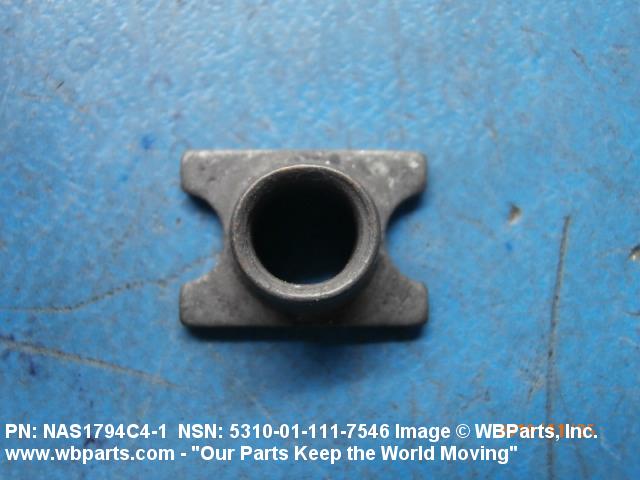

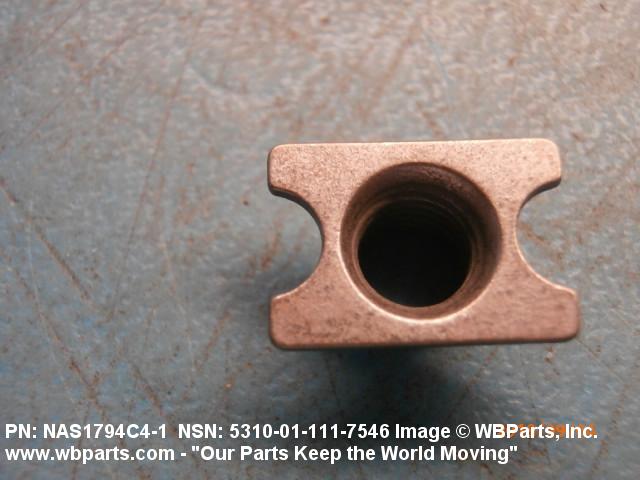

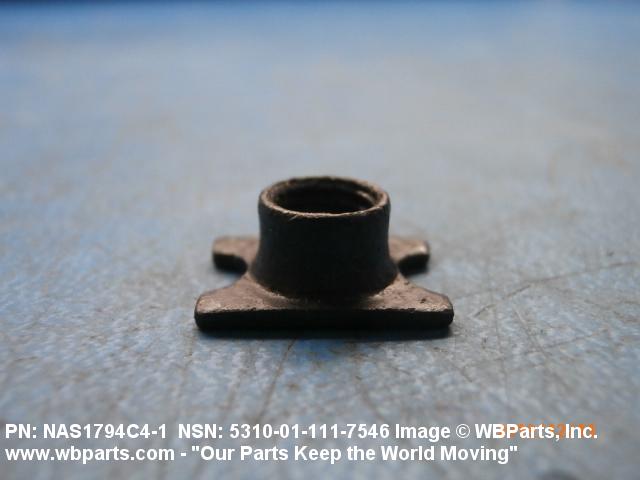

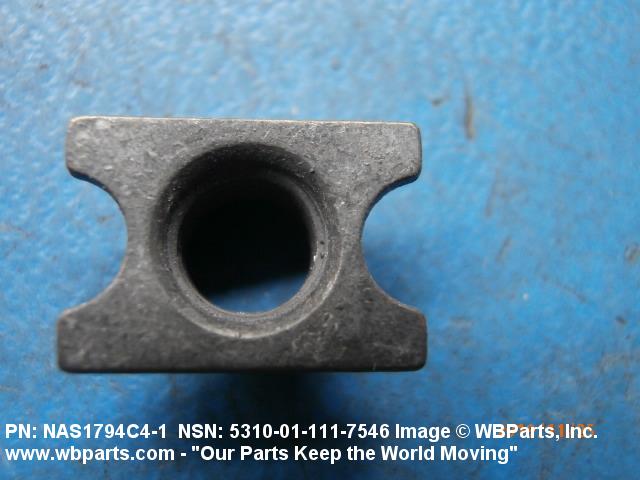

5310-01-111-7546 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: M39018/04-1145 , M39018/04-2145 , M39018/04-2145M , M39018/4-2145 , M39018041145, M39018042145, M39018042145M, M3901842145, NAS1794C41, NAS1794C4-1, CG152U025R2C, CG152U25A1 , CG152U50B1, D38733 , FAH150050A2, FAH1500-50A2 , PFP152JR2J1P2 , PL26660 FIND 6 , PL26660FIND6, TYPE 68D D38733-DFP , TYPE68DD38733DFP, MIL-C-39018/4 , MILC390184, 602D142G050AA2A , 01801894, 0180-1894 , 0N175206 , 322-017-351 , 32D2122T , 36D132G050AA6B, 4206092, 420609-2 , 5310-01-111-7546, 01-111-7546, 5310011117546, 322017351, 011117546

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 APR 1981	01-111-7546	05280 ( NUT, SELF-LOCKING, PLATE )

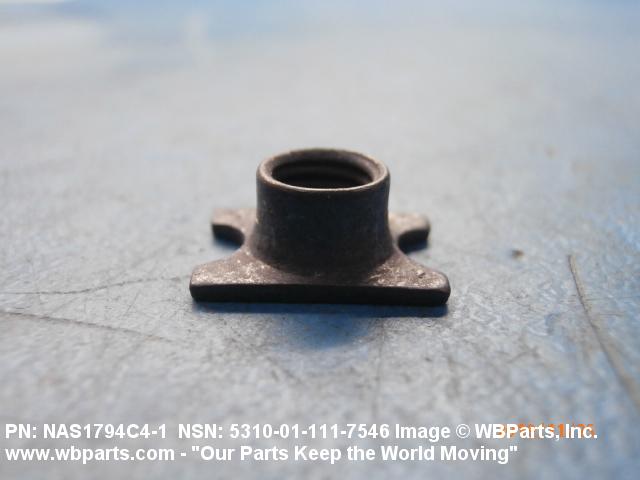

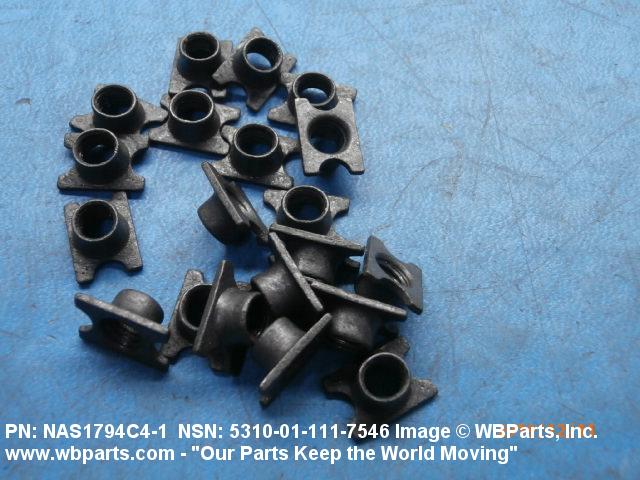

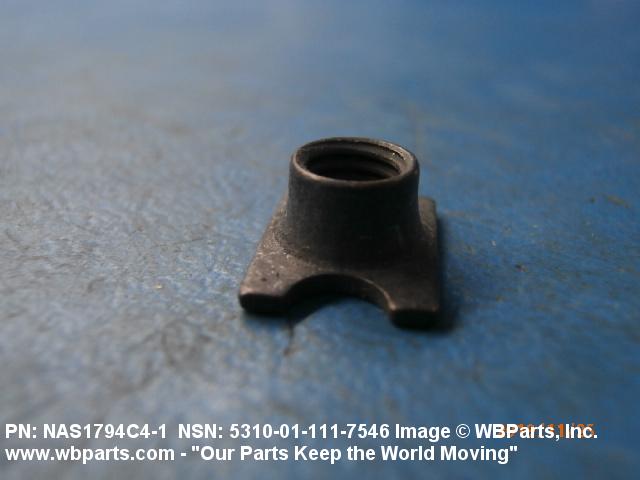

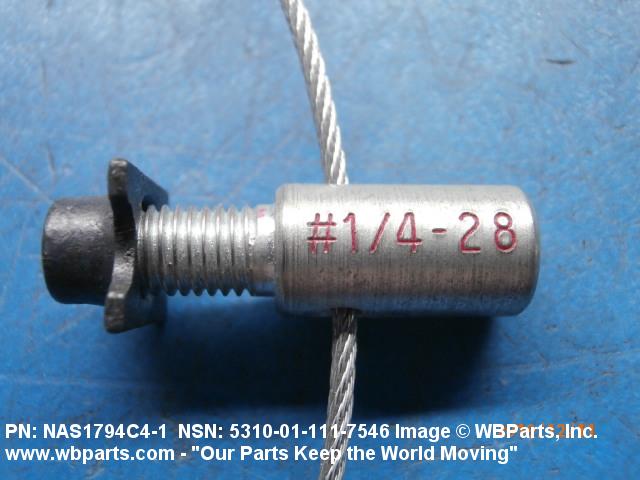

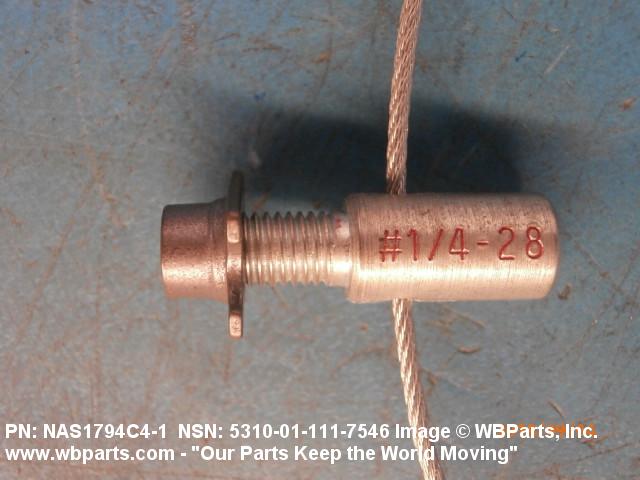

Drawings & Photos | NSN 5310-01-111-7546

Part Number	Request Date	QTY	Origin
NAS1794C41	2024-09-26	36	United States
5310-01-111-7546	2024-05-14	4928	DIBBS
5310-01-111-7546	2019-12-04	20	United States
5310-01-111-7546	2019-10-18	140	United States
5310-01-111-7546	2019-10-16	30	United States
5310-01-111-7546	2019-06-10	20500	United States
5310-01-111-7546	2019-06-10	41000	United States
5310-01-111-7546	2019-06-10	82000	United States
5310-01-111-7546	2018-08-28	90	United States
5310-01-111-7546	2018-08-27	90	United States
NAS1794C41	2012-05-24	1000	United States
NAS1794C41	2012-05-24	2000	United States
NAS1794C41	2012-05-24	3000	United States
5310-01-111-7546	2012-03-30	19178	DIBBS
5310-01-111-7546	2011-02-09	1800	US
NAS1794C41	2010-09-10	144	United States
5310-01-111-7546	2010-08-16	418	DIBBS
5310-01-111-7546	2009-12-04	465	DIBBS
5310-01-111-7546	2009-06-17	121	DIBBS
NAS1794C41	2008-03-14	100	US
NAS1794C41	2008-03-14	100	US

Cross Reference | NSN 5310-01-111-7546

Part Number	Cage Code	Manufacturer
NAS1794C4-1	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-111-7546

Compare

Related Products | NSN 5310-01-111-7546

5310-01-111-7549, 5310-01-111-7552, 5310-01-111-7553, 5310-01-111-8244, 5310-01-111-8245

Technical Data | NSN 5310-01-111-7546

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE

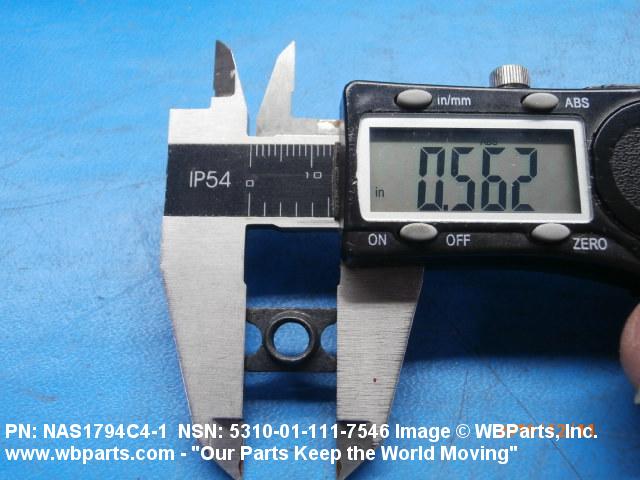

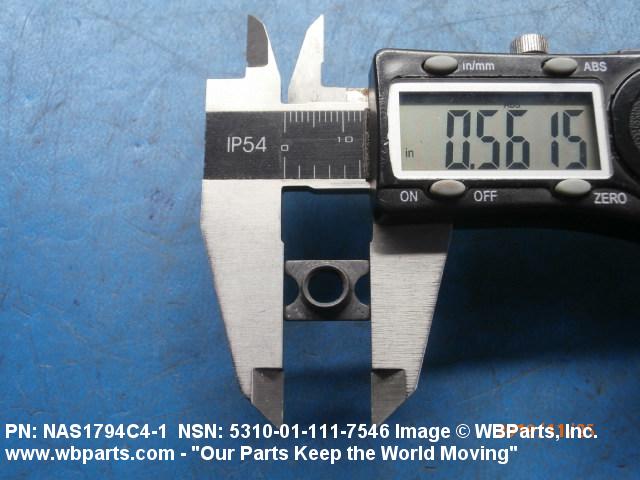

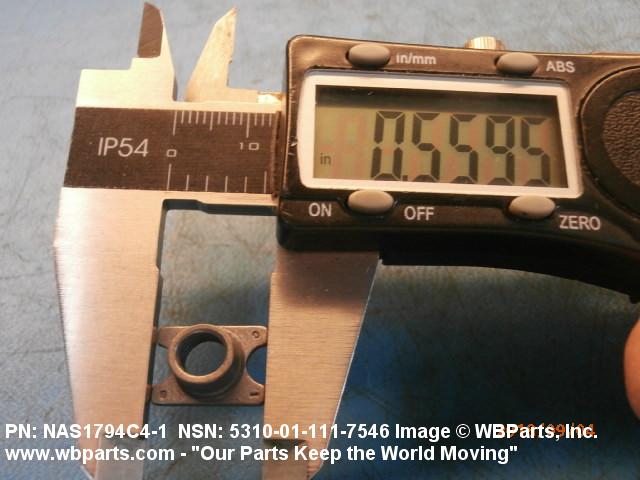

NUT LENGTH	0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM

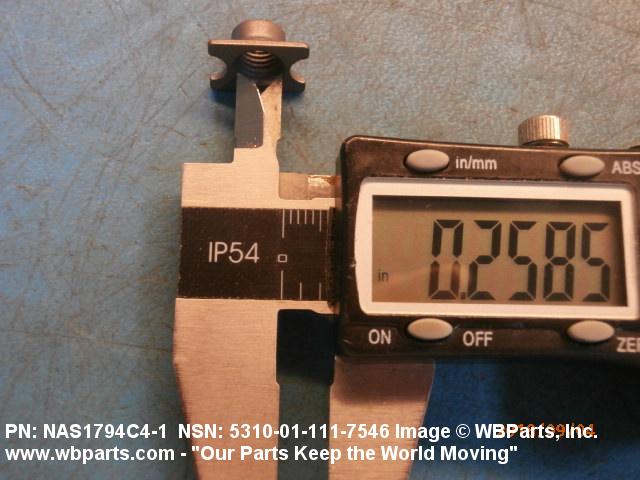

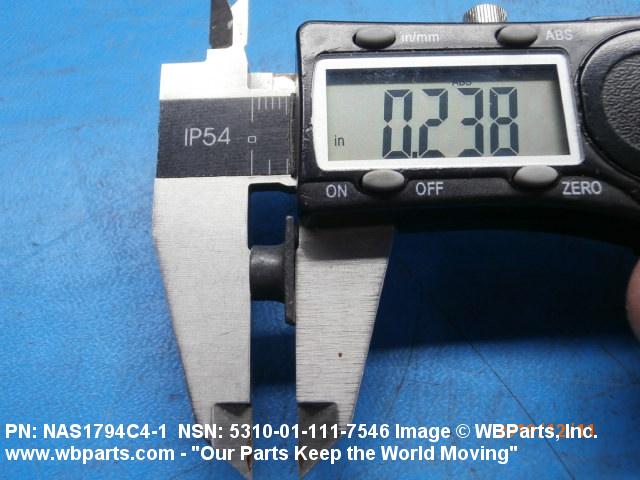

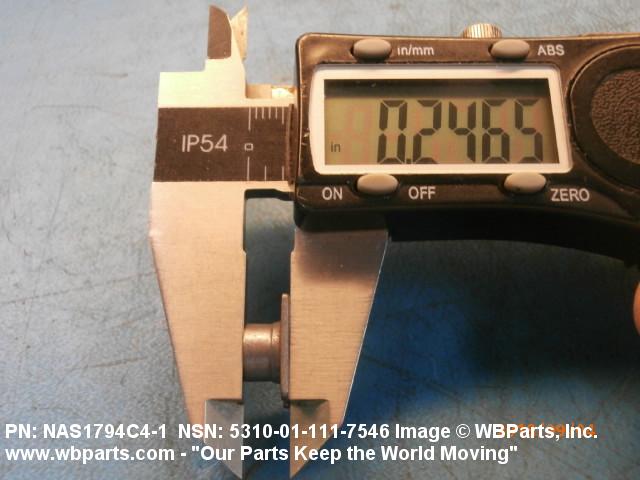

NUT HEIGHT	0.253 INCHES MAXIMUM

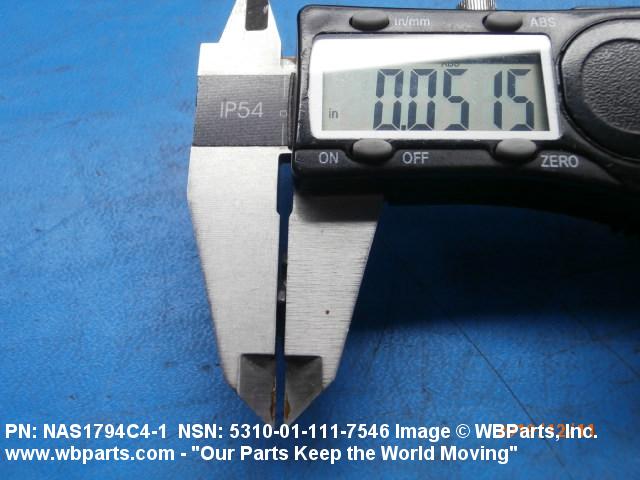

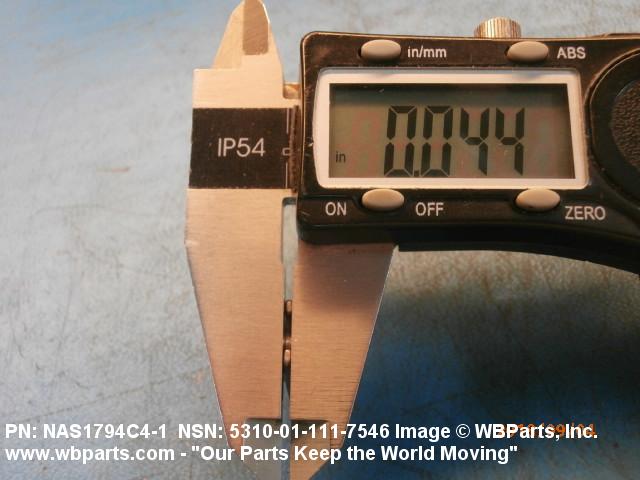

PLATE THICKNESS	0.040 INCHES MINIMUM AND 0.052 INCHES MAXIMUM

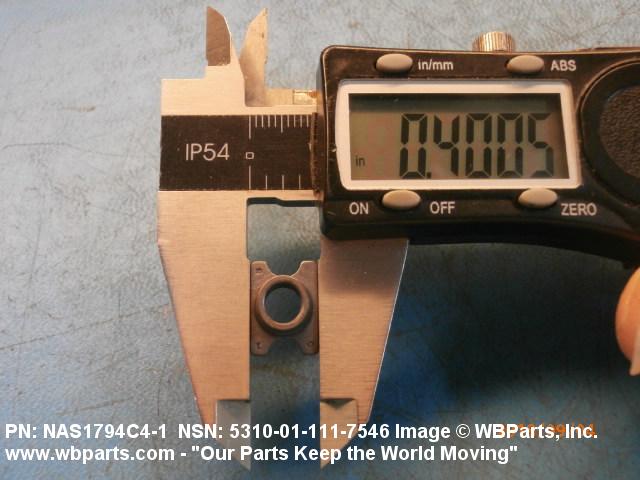

PLATE WIDTH	0.395 INCHES MINIMUM AND 0.405 INCHES MAXIMUM
REMOVABLE NUT MANUFACTURER CODE	80205
REMOVABLE NUT MANUFACTURER PART NUMBER	NAS1794C4-1
LOCKING FEATURE	FREE-RUNNING ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.036 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.254 INCHES MINIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	NOT RATED
SPECIFICATION/STANDARD DATA	80205-NAS1794 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
