Product Details | PLATE SELF-LOCKING NUT

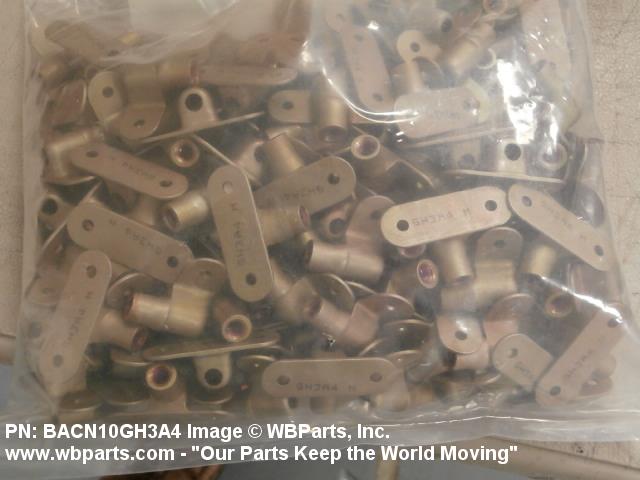

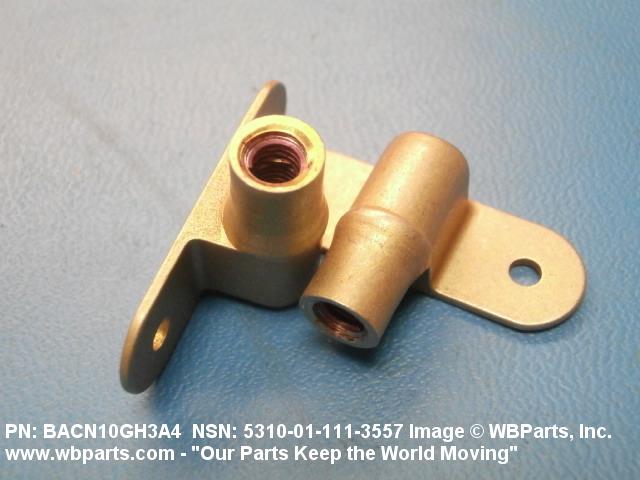

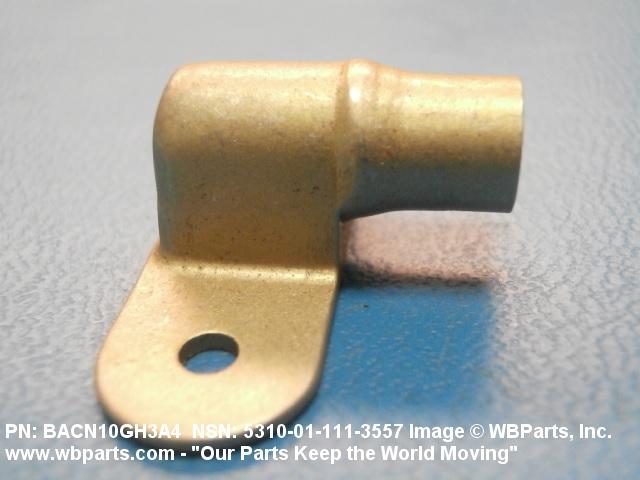

5310-01-111-3557 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10GH3A4, BACN10GH3-A4, WSI332A4, WSI-332-A4, 5310-01-111-3557, 01-111-3557, 5310011113557, 011113557
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1981 | 01-111-3557 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

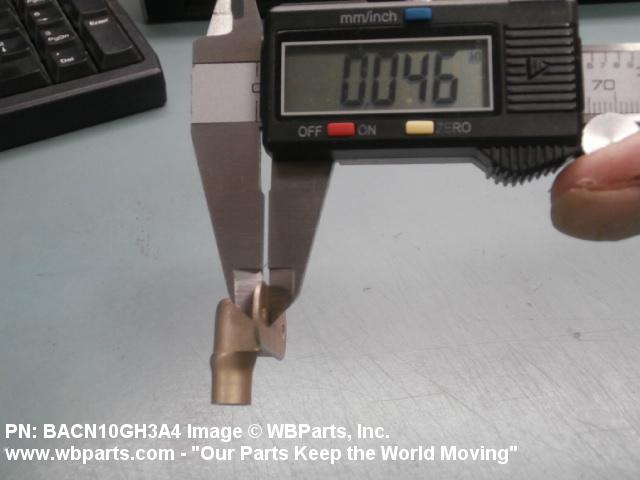

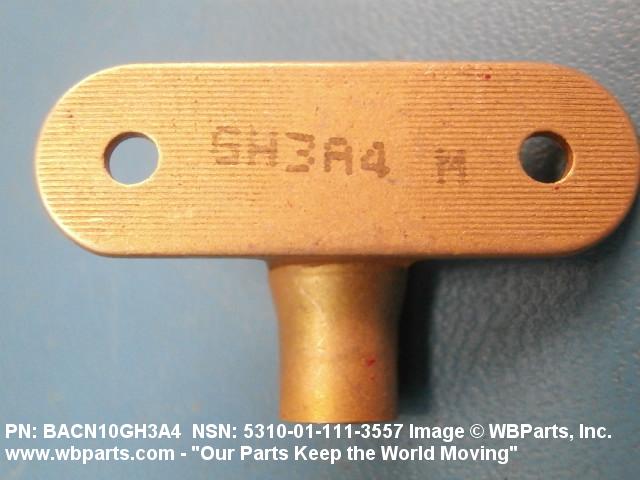

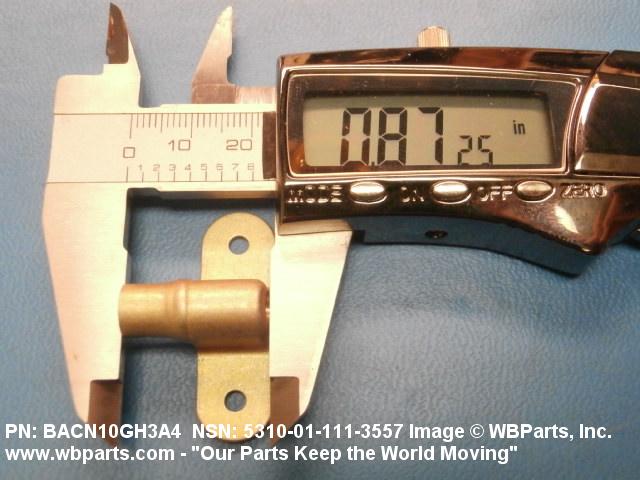

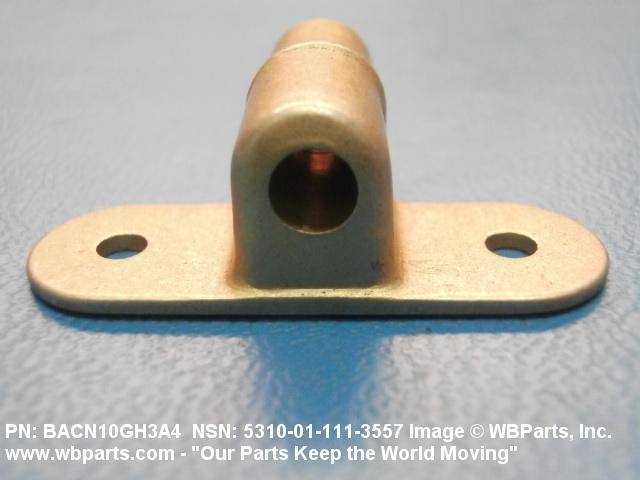

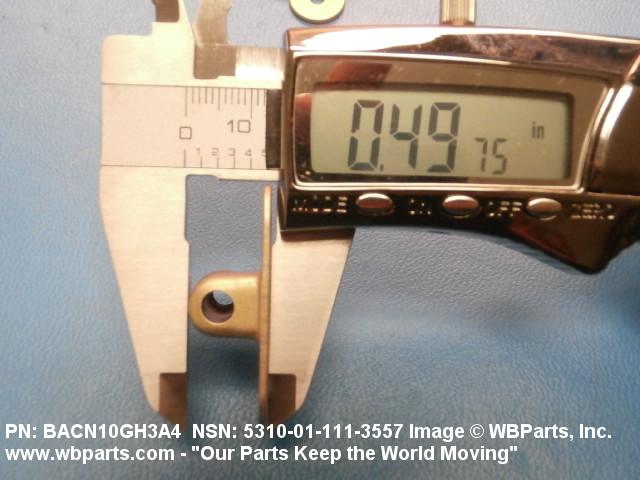

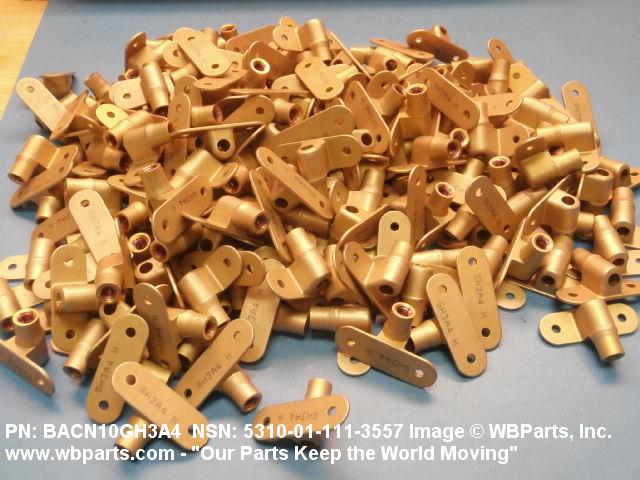

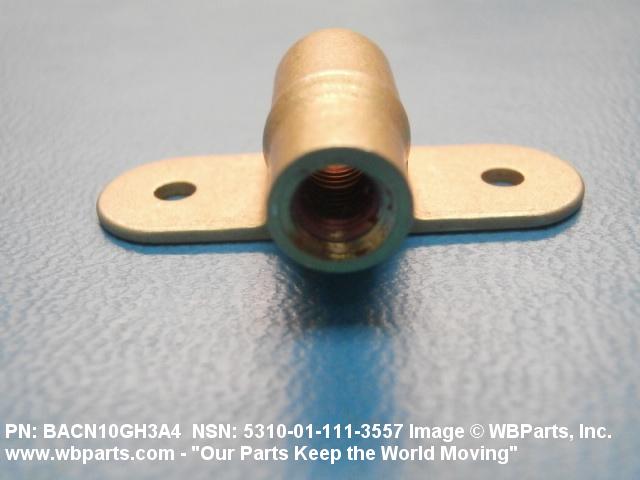

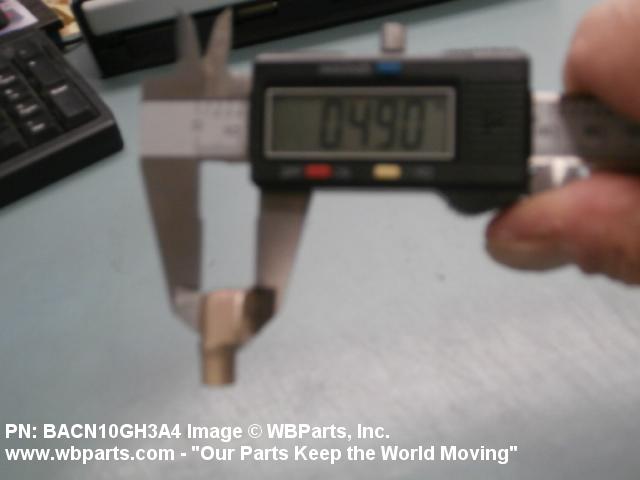

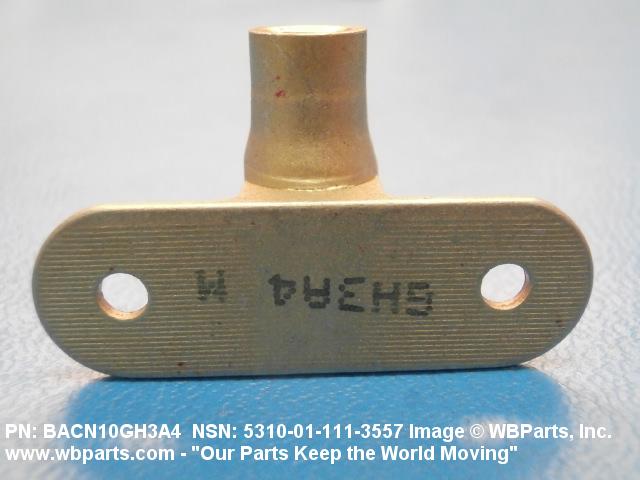

Drawings & Photos | NSN 5310-01-111-3557
Demand History | NSN 5310-01-111-3557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10GH3A4 | 2023-07-07 | 100 | United States |
| BACN10GH3A4 | 2023-05-08 | 45 | UM |
| 5310-01-111-3557 | 2023-04-06 | 300 | United States |
| BACN10GH3A4 | 2023-02-24 | 50 | United States |
| BACN10GH3A4 | 2022-11-15 | 10 | United States |
| BACN10GH3-A4 | 2022-03-07 | 236 | DIBBS |
| BACN10GH3A4 | 2021-01-12 | 315 | United States |
| BACN10GH3-A4 | 2019-08-01 | 240 | DIBBS |
| BACN10GH3A4 | 2019-07-17 | 250 | United States |
| BACN10GH3A4 | 2018-12-04 | 75 | United States |
| BACN10GH3A4 | 2018-10-09 | 75 | United States |
| 5310-01-111-3557 | 2018-09-11 | 100 | United States |
| 5310-01-111-3557 | 2017-07-26 | 30 | United States |
| BACN10GH3A4 | 2017-01-18 | 8 | United States |
| BACN10GH3A4 | 2016-01-14 | 150 | United States |
| BACN10GH3A4 | 2015-08-06 | 11 | United States |
| BACN10GH3A4 | 2015-03-26 | 200 | United States |
| BACN10GH3A4 | 2014-04-22 | 25 | United States |
| BACN10GH3A4 | 2013-12-02 | 1 | US |
| BACN10GH3A4 | 2013-12-02 | 1 | US |
| BACN10GH3A4 | 2013-07-29 | 250 | United States |
| 5310-01-111-3557 | 2010-08-10 | 500 | DIBBS |
| 5310-01-111-3557 | 2010-02-05 | 53 | DIBBS |
| 5310-01-111-3557 | 2009-12-29 | 53 | DIBBS |
Cross Reference | NSN 5310-01-111-3557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10GH3-A4 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| BACN10GH3-A4 | 6D154 | HARTWELL CORPORATION |
| BACN10GH3-A4 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10GH3-A4 | 83014 | HARTWELL CORPORATION |
| BACN10GH3A4 | Z03F0 | BOEING DEFENCE AUSTRALIA LTD |
| BACN10GH3A4 | Z8T75 | BOEING DEFENCE AUSTRALIA LTD |
| WSI-332-A4 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-111-3557
Related Products | NSN 5310-01-111-3557
5310-01-111-3558, 5310-01-111-3561, 5310-01-111-3562, 5310-01-111-3565, 5310-01-111-3566
Technical Data | NSN 5310-01-111-3557

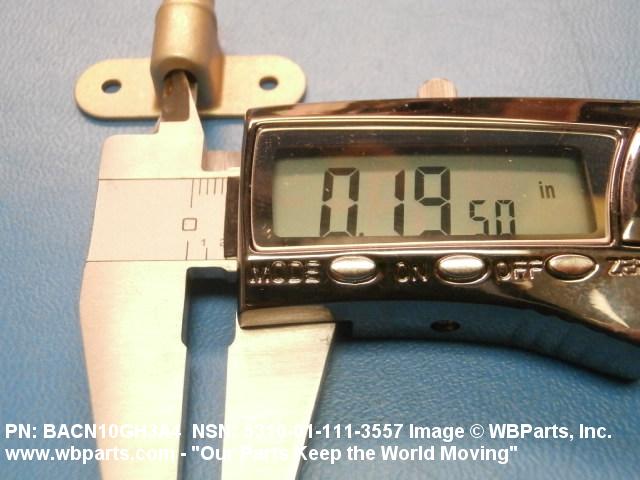

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A129 PLATE |

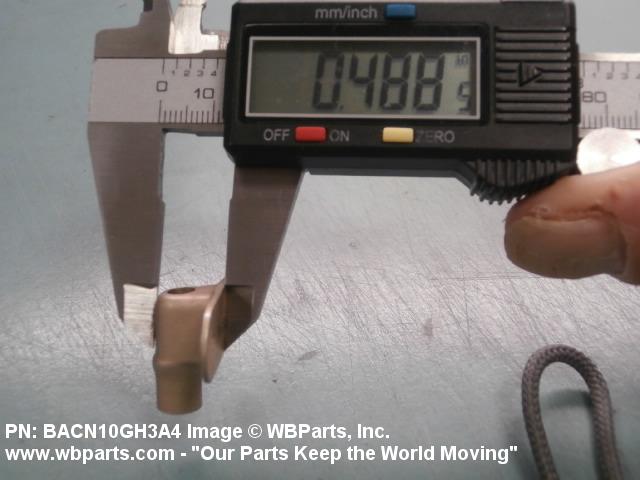

| NUT LENGTH | 0.850 INCHES MINIMUM AND 0.950 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.290 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |

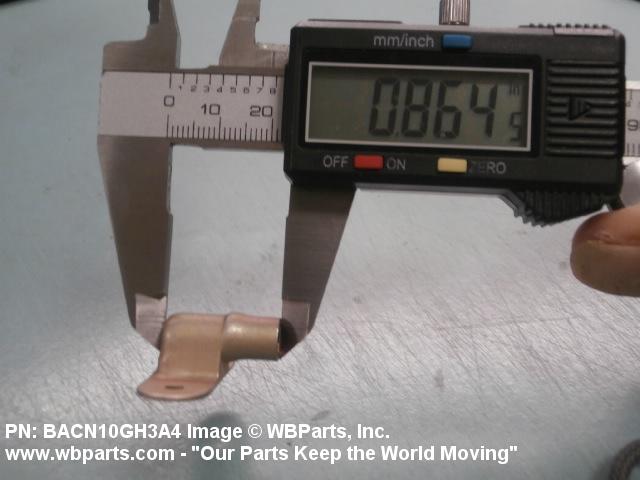

| NUT HEIGHT | 0.810 INCHES MINIMUM AND 0.870 INCHES MAXIMUM |
| PLATE THICKNESS | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |

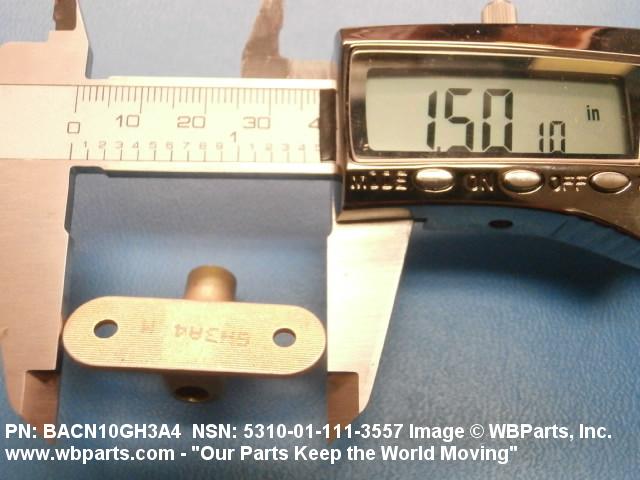

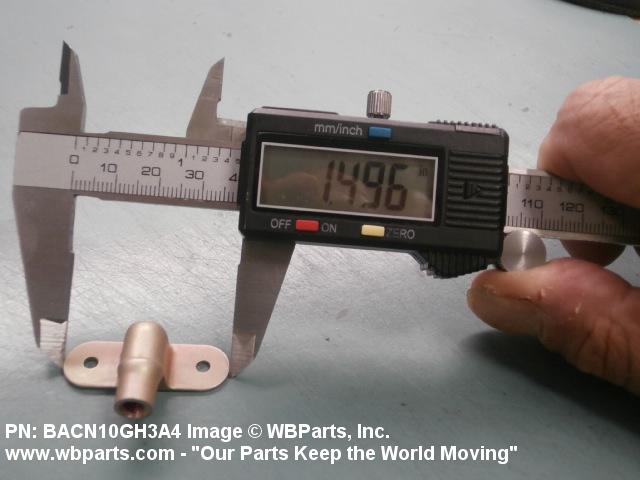

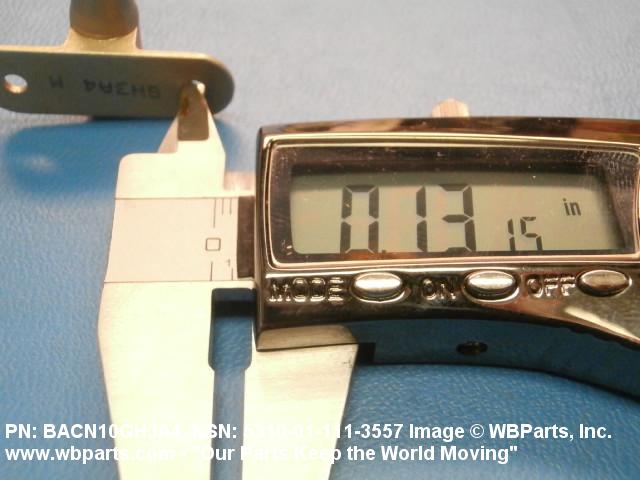

| PLATE WIDTH | 1.460 INCHES MINIMUM AND 1.570 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F57 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |

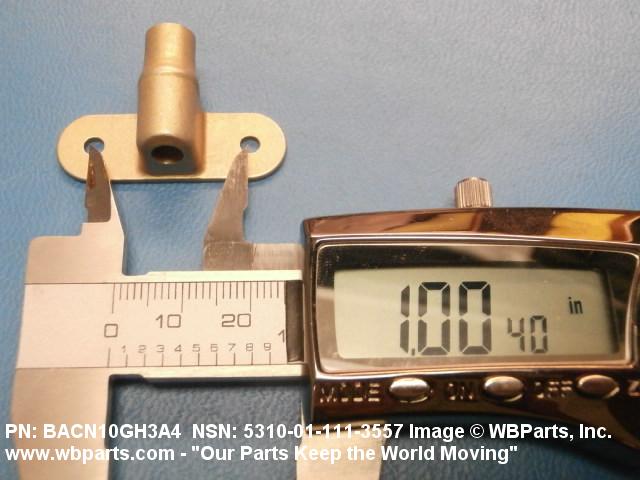

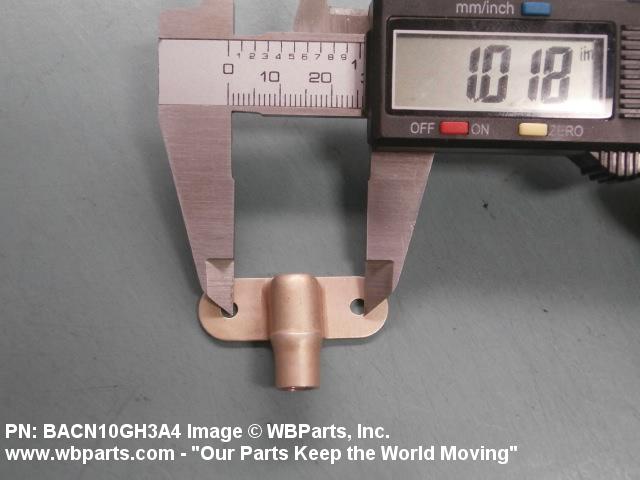

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.000 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
