NSN 5310-01-105-7241 AN960JD10L, ASNA2397JD10L, NAS1149D0332J

Product Details | FLAT WASHER

5310-01-105-7241 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: AN960JD10L, ASNA2397JD10L, NAS1149D0332J, FFW92, FF-W-92, 10122149 , 4197410159, 4197410-159, 5310-01-105-7241, 01-105-7241, 5310011057241, 011057241

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 JAN 1981	01-105-7241	13393 ( WASHER, FLAT )

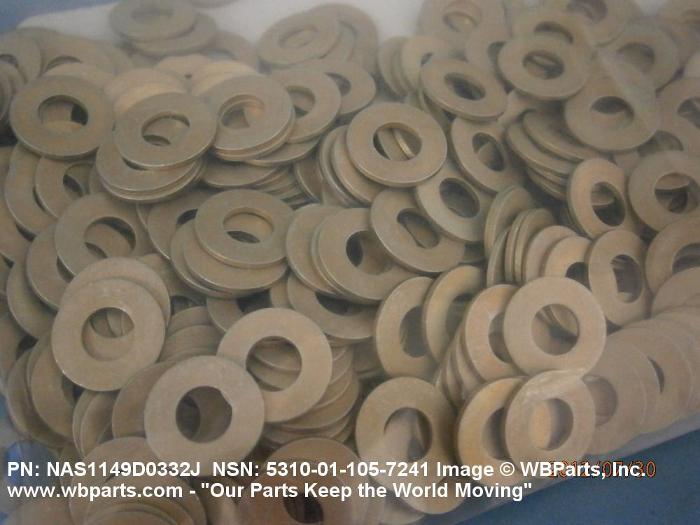

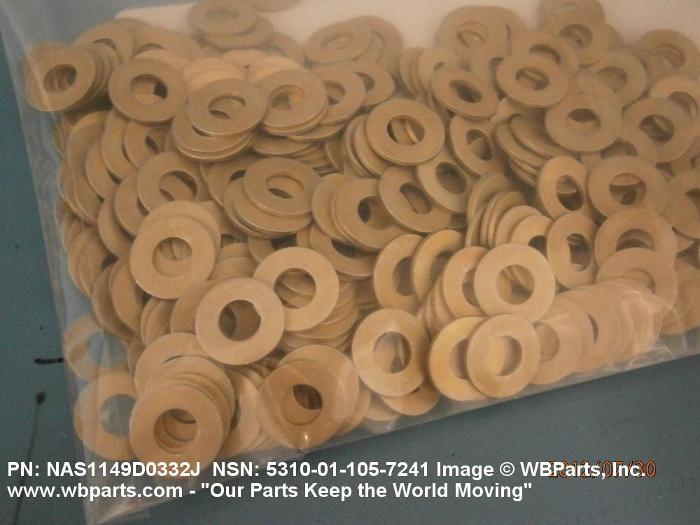

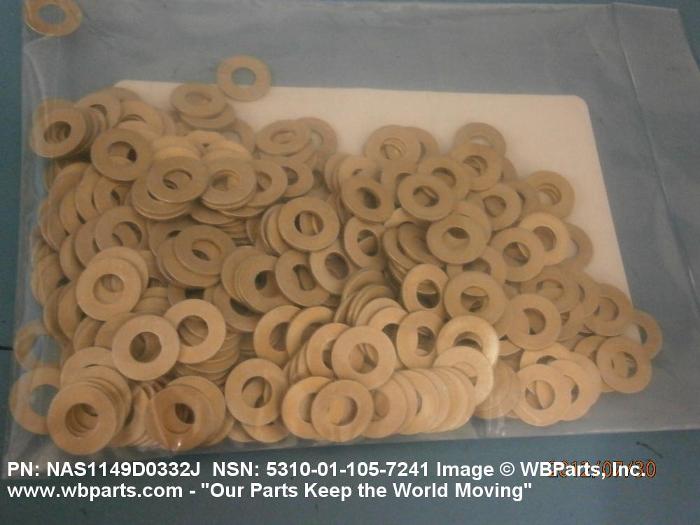

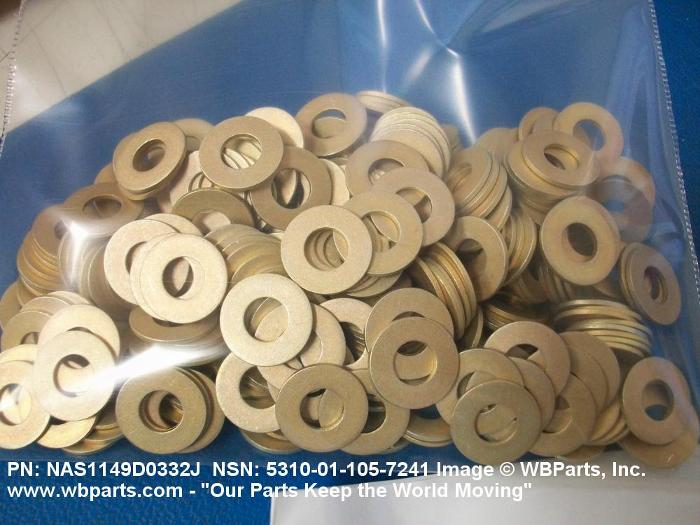

Drawings & Photos | NSN 5310-01-105-7241

Part Number	Request Date	QTY	Origin
FFW92	2025-06-161	16	United States
NAS1149D0332J	2025-05-140	20	US
NAS1149D0332J	2025-04-99	73	US
NAS1149D0332J	2025-04-98	4	US
NAS1149D0332J	2024-11-319	300	United States
NAS1149D0332J	2024-10-303	46	CN
NAS1149D0332J	2024-10-288	6	United States
NAS1149D0332J	2024-10-281	38	United Kingdom
5310-01-105-7241	2024-10-278	14400	United States
5310-01-105-7241	2024-10-278	86000	United States
NAS1149D0332J	2024-08-219	720	us
NAS1149D0332J	2024-05-129	57	United States
NAS1149D0332J	2024-04-120	250	US
NAS1149D0332J	2024-04-120	500	US
5310-01-105-7241	2024-04-117	6	US
5310-01-105-7241	2024-04-115	100	US
NAS1149D0332J	2024-03-81	618	US
NAS1149D0332J	2024-03-67	30	United States
NAS1149D0332J	2024-02-47	8	US
NAS1149D0332J	2024-02-46	10	US
NAS1149D0332J	2023-11-319	1	US
NAS1149D0332J	2023-11-306	10	US
NAS1149D0332J	2023-09-265	10	United States
NAS1149D0332J	2023-08-233	20	US
NAS1149D0332J	2023-07-202	3	CA
5310-01-105-7241	2023-07-193	80	Spain
FF-W-92	2023-01-18	60	Saudi Arabia
NAS1149D0332J	2022-11-333	1	US
NAS1149D0332J	2022-10-298	500	US
NAS1149D0332J	2022-10-298	4	US
5310-01-105-7241	2022-04-102	1	United States
NAS1149D0332J	2021-11-328	2500	US
NAS1149D0332J	2021-10-300	1000	United States
5310-01-105-7241	2021-09-271	60	United States
5310-01-105-7241	2021-09-256	2938	DIBBS
NAS1149D0332J	2021-08-230	4500	IN
NAS1149D0332J	2021-06-159	100	Singapore
5310-01-105-7241	2021-06-157	100	Singapore
5310-01-105-7241	2021-05-126	500	us
5310-01-105-7241	2021-04-109	5000	DIBBS
NAS1149D0332J	2021-03-75	196	AE
NAS1149D0332J	2021-03-71	196	US
5310-01-105-7241	2021-03-70	3049	DIBBS
NAS1149D0332J	2021-02-53	70000	IN
NAS1149D0332J	2021-02-53	70000	IN
AN960JD10L	2021-01-06	280	United States
5310-01-105-7241	2020-11-318	160	UK
NAS1149D0332J	2020-10-290	20	United States
5310-01-105-7241	2020-10-280	100	MANUAL
NAS1149D0332J	2020-10-280	100	SA
NAS1149D0332J	2020-09-274	11	United States
AN960JD10L	2020-09-274	10	United States
NAS1149D0332J	2020-06-153	32	US
NAS1149D0332J	2020-04-104	100	BA
NAS1149D0332J	2020-03-84	80	IN
AN960JD10L	2020-02-57	10	US
AN960JD10L	2020-02-57	4	US
AN960JD10L	2020-02-57	8	US
AN960JD10L	2020-02-57	2	US
NAS1149D0332J	2019-08-219	10	Poland
5310-01-105-7241	2019-05-127	4600	DIBBS
NAS1149D0332J	2019-03-87	150	US
5310-01-105-7241	2018-12-352	23813	DIBBS
5310-01-105-7241	2018-08-236	1	United States
FFW92	2018-07-207	2	United States
NAS1149D0332J	2018-05-143	8	United States
NAS1149D0332J	2018-04-120	100	us
NAS1149D0332J	2018-02-47	100	United States
NAS1149D0332J	2018-01-03	5	United States
5310-01-105-7241	2017-12-348	50	MANUAL
NAS1149D0332J	2017-12-348	50	US
NAS1149D0332J	2017-11-317	20	Australia
5310-01-105-7241	2017-08-242	5533	DIBBS
5310-01-105-7241	2017-08-227	5533	DIBBS
NAS1149D0332J	2017-06-172	120	United States
5310-01-105-7241	2017-06-170	18450	DIBBS
5310-01-105-7241	2017-05-122	1008	DIBBS
AN960JD10L	2017-04-107	60	US
AN960JD10L	2017-04-107	150	US
NAS1149D0332J	2017-04-103	75	United States
NAS1149D0332J	2017-03-89	100	Korea
5310-01-105-7241	2016-12-356	1574	US
5310-01-105-7241	2016-12-356	4770	DIBBS
NAS1149D0332J	2016-12-348	504	US
NAS1149D0332J	2016-11-320	200	US
NAS1149D0332J	2016-10-299	14	US
NAS1149D0332J	2016-08-244	2	United States
FFW92	2016-08-217	21	US
AN960JD10L	2016-04-118	100	Thailand
NAS1149D0332J	2015-10-299	150	United States
NAS1149D0332J	2015-10-299	150	United States
AN960JD10L	2015-10-293	1	US
NAS1149D0332J	2015-09-251	144	United States
NAS1149D0332J	2015-06-174	12	Greece
NAS1149D0332J	2015-05-147	260	United States
5310-01-105-7241	2015-05-141	200	US
5310-01-105-7241	2015-05-127	83	United States
NAS1149D0332J	2015-04-91	5	Greece
NAS1149D0332J	2015-03-61	29	US
NAS1149D0332J	2015-02-34	200	United States
NAS1149D0332J	2014-12-363	200	us
NAS1149D0332J	2014-12-356	145	United States
AN960JD10L	2014-11-330	25	United States
AN960JD10L	2014-11-330	150	United States
NAS1149D0332J	2014-08-241	80	United States
NAS1149D0332J	2014-08-229	100	Seychelles
NAS1149D0332J	2014-06-155	4	United States
NAS1149D0332J	2013-10-291	12	United States
5310-01-105-7241	2013-07-190	34000	DIBBS
5310-01-105-7241	2013-05-126	20822	DIBBS
5310-01-105-7241	2013-02-44	17399	DIBBS
AN960JD10L	2013-01-07	20	Indonesia
AN960JD10L	2013-01-07	150	Indonesia
NAS1149D0332J	2012-12-354	10	BR
NAS1149D0332J	2012-12-345	20	US
NAS1149D0332J	2012-07-200	376	Mexico
NAS1149D0332J	2012-06-177	750	India
NAS1149D0332J	2012-06-157	1	US
NAS1149D0332J	2012-04-110	376	Mexico
5310-01-105-7241	2011-12-354	2	United States
FFW92	2011-10-304	495	United States
NAS1149D0332J	2011-10-285	80	United Kingdom
5310-01-105-7241	2011-09-263	65	US
NAS1149D0332J	2011-09-259	100	Sri Lanka
5310-01-105-7241	2011-08-214	300	MANUAL
NAS1149D0332J	2011-08-214	300	United States
NAS1149D0332J	2011-06-180	3	United States
NAS1149D0332J	2011-05-146	1988	United States
ASNA2397JD10L	2011-05-133	10	Spain
NAS1149D0332J	2011-05-124	50	United States
NAS1149D0332J	2011-03-87	350	United States
NAS1149D0332J	2011-03-75	4	Brazil
ASNA2397JD10L	2011-03-62	2	IE
5310-01-105-7241	2011-02-48	27935	DIBBS
5310-01-105-7241	2011-02-39	100	KR
NAS1149D0332J	2010-12-350	1000	United States
5310-01-105-7241	2010-12-347	2000	United States
5310-01-105-7241	2010-12-344	2000	United States
NAS1149D0332J	2010-08-217	100	US
5310-01-105-7241	2010-06-165	8	US
AN960JD10L	2010-01-20	204	us
5310-01-105-7241	2010-01-06	200	United States
NAS1149D0332J	2009-12-343	80	India
5310-01-105-7241	2009-09-267	4	United States
5310-01-105-7241	2009-09-245	100	US
5310-01-105-7241	2009-08-217	48	US
5310-01-105-7241	2009-04-93	1000	Turkey
5310-01-105-7241	2009-03-77	5000	India
5310-01-105-7241	2008-09-261	17	South Korea
AN960JD10L	2008-09-260	50	India
5310-01-105-7241	2008-09-252	1000	US
5310-01-105-7241	2008-09-250	50	India
5310-01-105-7241	2008-08-242	50	India
NAS1149D0332J	2008-07-213	1800	Italy
NAS1149D0332J	2008-06-169	140	Netherlands
NAS1149D0332J	2008-06-169	140	Netherlands
AN960JD10L	2008-04-112	400	India
NAS1149D0332J	2008-01-31	46	US
NAS1149D0332J	2008-01-11	2	US
AN960JD10L	2007-11-333	84	US
5310-01-105-7241	2007-05-143	5	US
5310-01-105-7241	2006-09-250	4	Thailand
5310-01-105-7241	2006-08-242	66	France

Cross Reference | NSN 5310-01-105-7241

Part Number	Cage Code	Manufacturer
4197410-159	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN960JD10L	10630	ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES
AN960JD10L	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FF-W-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
NAS1149D0332J	10630	ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES
NAS1149D0332J	5M696	UFC AEROSPACE CORP.
NAS1149D0332J	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1149D0332J	K1987	BAE SYSTEMS PLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-105-7241

Compare

Related Products | NSN 5310-01-105-7241

5310-01-105-7242, 5310-01-105-7244, 5310-01-105-7246, 5310-01-105-7247, 5310-01-105-7248

Technical Data | NSN 5310-01-105-7241

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5,TEMPER T3 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/5,TEMPER T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541,CL 3 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HOLE DIAMETER	0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	0.433 INCHES MINIMUM AND 0.458 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR
THICKNESS	0.028 INCHES MINIMUM AND 0.036 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	A TYPE AND 1 GRADE AND D CLASS
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-W-92

Restrictions/Controls & Freight Information | NSN 5310-01-105-7241

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-105-7241

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
