NSN 5310-01-098-6193 NAS1791C51, NAS1791C5-1, NS2020410541
Product Details | PLATE SELF-LOCKING NUT

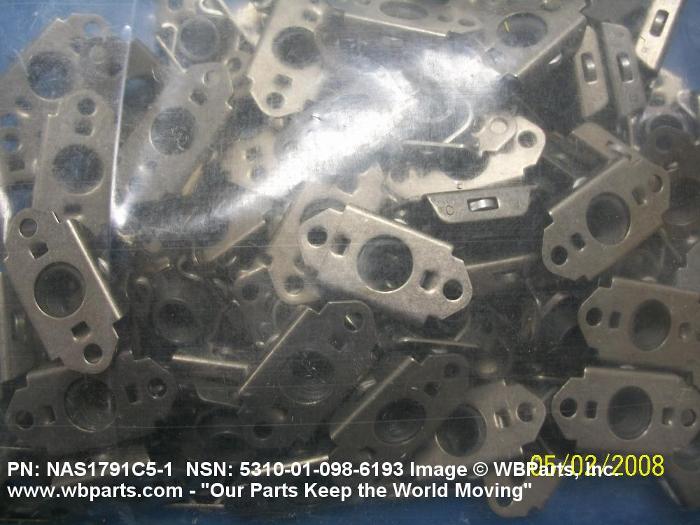

5310-01-098-6193 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1791C51, NAS1791C5-1, NS2020410541, NS202041-054-1, ST3M4435A1, ST3M443-5A1, BFN44351, BFN443-5-1, F18421L15, F18421L1-5, F49249E51, F49249E5-1, 10122135, 5310-01-098-6193, 01-098-6193, 5310010986193, 010986193
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1980 | 01-098-6193 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-098-6193
Demand History | NSN 5310-01-098-6193
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BFN443-5-1 | 2024-09-259 | 332 | DIBBS |
| F18421L1-5 | 2024-09-259 | 332 | DIBBS |
| F49249E5-1 | 2024-09-259 | 332 | DIBBS |
| NAS1791C5-1 | 2024-09-259 | 332 | DIBBS |
| NS202041-054-1 | 2024-09-259 | 332 | DIBBS |
| BFN443-5-1 | 2024-07-184 | 892 | DIBBS |
| F18421L1-5 | 2024-07-184 | 892 | DIBBS |
| F49249E5-1 | 2024-07-184 | 892 | DIBBS |
| NAS1791C5-1 | 2024-07-184 | 892 | DIBBS |
| NS202041-054-1 | 2024-07-184 | 892 | DIBBS |
| BFN443-5-1 | 2024-06-172 | 287 | DIBBS |
| F18421L1-5 | 2024-06-172 | 287 | DIBBS |
| F49249E5-1 | 2024-06-172 | 287 | DIBBS |
| NAS1791C5-1 | 2024-06-172 | 287 | DIBBS |
| NS202041-054-1 | 2024-06-172 | 287 | DIBBS |
| BFN443-5-1 | 2022-12-353 | 2240 | DIBBS |
| F18421L1-5 | 2022-12-353 | 2240 | DIBBS |
| F49249E5-1 | 2022-12-353 | 2240 | DIBBS |
| NAS1791C5-1 | 2022-12-353 | 2240 | DIBBS |
| NS202041-054-1 | 2022-12-353 | 2240 | DIBBS |
| BFN443-5-1 | 2022-09-251 | 472 | DIBBS |
| F18421L1-5 | 2022-09-251 | 472 | DIBBS |
| F49249E5-1 | 2022-09-251 | 472 | DIBBS |
| NAS1791C5-1 | 2022-09-251 | 472 | DIBBS |
| NS202041-054-1 | 2022-09-251 | 472 | DIBBS |
| BFN443-5-1 | 2021-05-131 | 1489 | DIBBS |
| F18421L1-5 | 2021-05-131 | 1489 | DIBBS |
| F49249E5-1 | 2021-05-131 | 1489 | DIBBS |
| NAS1791C5-1 | 2021-05-131 | 1489 | DIBBS |
| NS202041-054-1 | 2021-05-131 | 1489 | DIBBS |
| NAS1791C51 | 2021-02-49 | 50 | US |
| ST3M4435A1 | 2019-09-253 | 356 | Australia |
| NAS1791C51 | 2018-03-79 | 320 | US |
| NAS1791C51 | 2017-02-44 | 48 | US |
| 5310-01-098-6193 | 2015-06-159 | 25 | US |
| 5310-01-098-6193 | 2015-06-159 | 40 | US |
| NAS1791C51 | 2015-01-26 | 5 | PH |
| 5310-01-098-6193 | 2013-05-142 | 4362 | DIBBS |
| NAS1791C51 | 2012-11-318 | 12 | United States |
| 5310-01-098-6193 | 2012-02-55 | 4896 | DIBBS |
| NAS1791C51 | 2011-06-180 | 71 | United States |
| NAS1791C51 | 2011-06-173 | 100 | United States |
| 5310-01-098-6193 | 2011-06-168 | 300 | US |
| NAS1791C51 | 2010-12-343 | 1 | Taiwan |
| ST3M4435A1 | 2009-09-244 | 20 | US |
| NAS1791C51 | 2009-08-230 | 80 | United States |
Cross Reference | NSN 5310-01-098-6193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BFN443-5-1 | 27238 | BRISTOL INDUSTRIES |
| F18421L1-5 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F49249E5-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F49249E5-1 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| F49249E5-1 | R1120 | SATAIR A/S |
| NAS1791C5-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NS202041-054-1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M443-5A1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-098-6193
Related Products | NSN 5310-01-098-6193
Technical Data | NSN 5310-01-098-6193
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD PITCH DIAMETERS | 0.2854 TO 0.2890 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| SURFACE TREATMENT | PASSIVATE SHELL |
| HARDNESS RATING | NOT RATED |
| NUT LENGTH | 1.292 INCHES MAXIMUM |
| NUT HEIGHT | 0.331 INCHES MAXIMUM |
| PLATE THICKNESS | 0.036 INCHES MINIMUM AND 0.044 INCHES MAXIMUM |
| PLATE WIDTH | 0.650 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.070 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.317 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | PLATE U SHAPE 0.270 IN. HIGH TO HOLD RETAINING CLIP |
