NSN 5310-01-085-1212 NAS1791A35, NAS1791A3-5, 01-085-1212
Product Details | PLATE SELF-LOCKING NUT

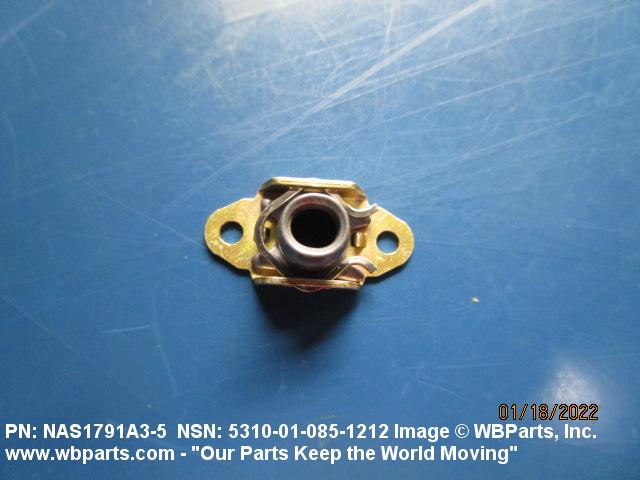

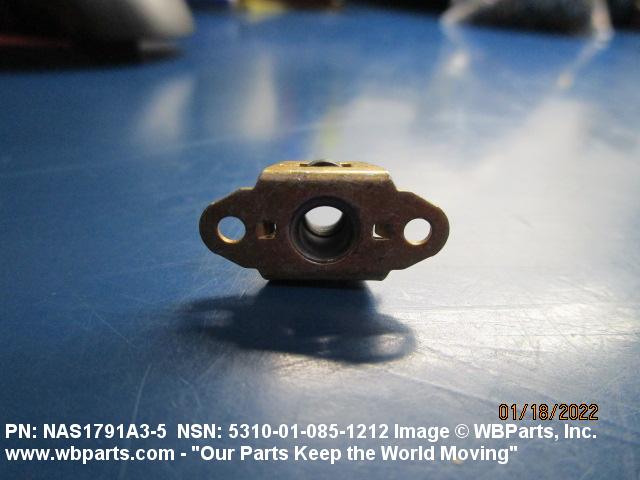

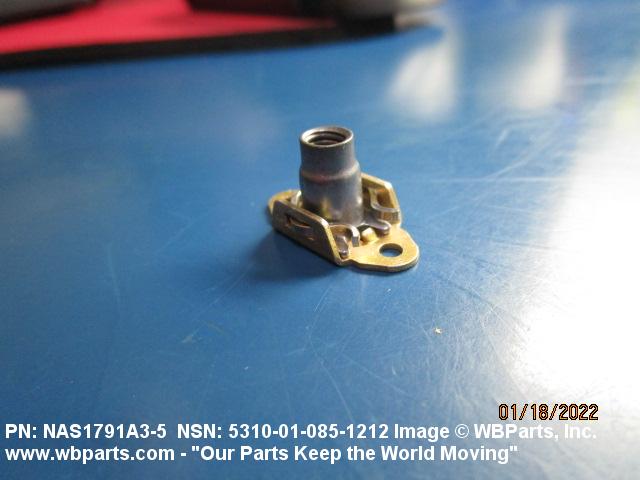

5310-01-085-1212 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1791A35, NAS1791A3-5, 5310-01-085-1212, 01-085-1212, 5310010851212, 010851212
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 OCT 1979 | 01-085-1212 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-085-1212
Demand History | NSN 5310-01-085-1212
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1791A35 | 2024-09-255 | 1 | United States |
| NAS1791A35 | 2024-01-31 | 3864 | United States |
| NAS1791A35 | 2023-02-58 | 2825 | United States |
| NAS1791A35 | 2022-01-12 | 3470 | United States |
| 5310-01-085-1212 | 2016-08-244 | 1811 | DIBBS |
| 5310-01-085-1212 | 2016-08-236 | 1811 | DIBBS |
| 5310-01-085-1212 | 2016-06-181 | 1811 | DIBBS |
| 5310-01-085-1212 | 2016-06-173 | 1811 | DIBBS |
Cross Reference | NSN 5310-01-085-1212
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1791A3-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-085-1212
Related Products | NSN 5310-01-085-1212
Technical Data | NSN 5310-01-085-1212

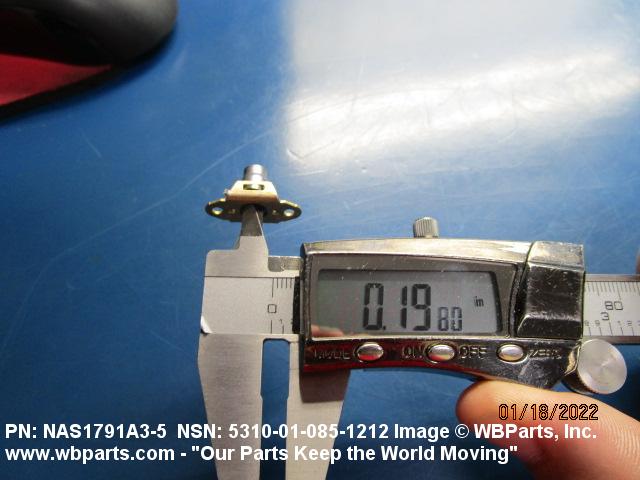

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL NUT STEEL SHELL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT CADMIUM AND CHROMATE SHELL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES NUT QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES SHELL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

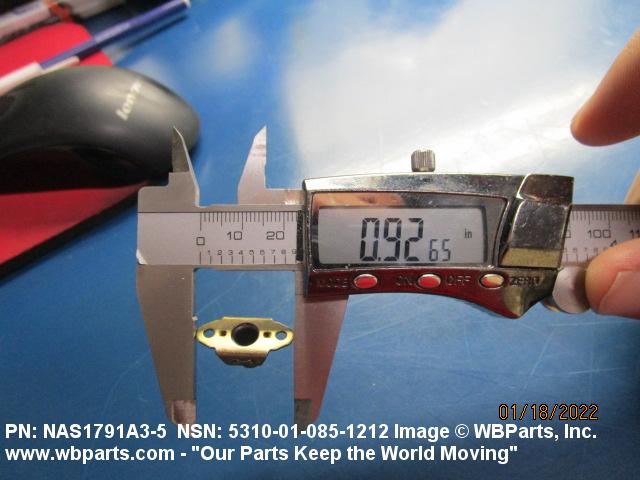

| NUT LENGTH | 0.948 INCHES MAXIMUM |

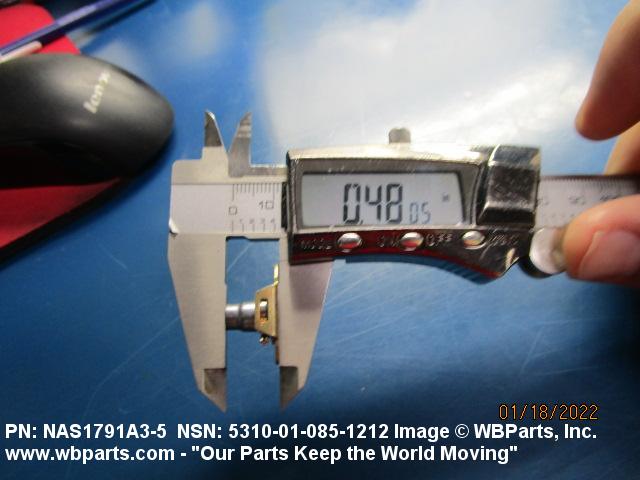

| NUT HEIGHT | 0.500 INCHES MAXIMUM |

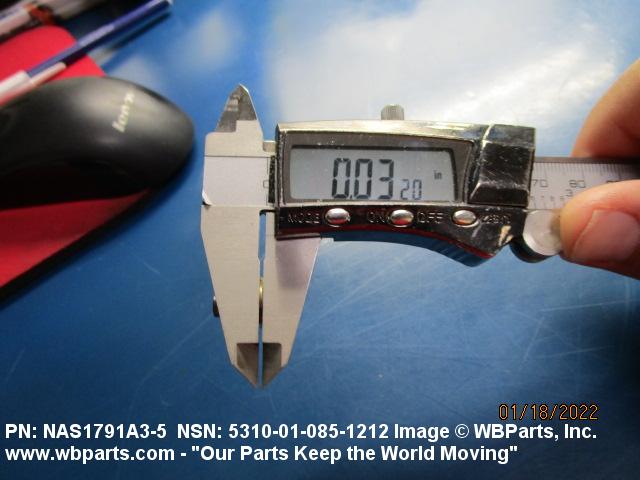

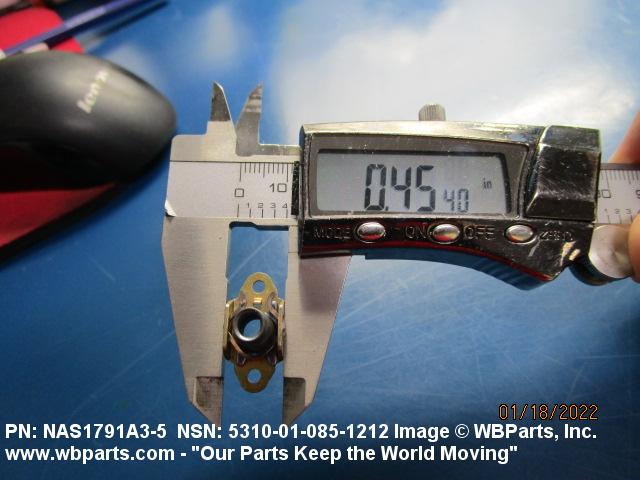

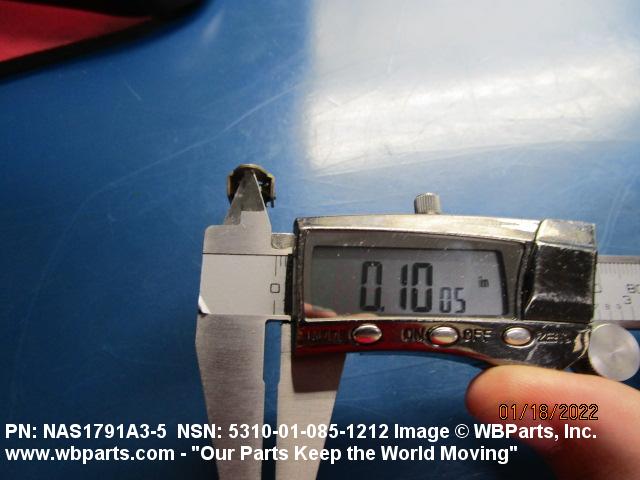

| PLATE THICKNESS | 0.027 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |
| PLATE WIDTH | 0.445 INCHES MAXIMUM |
| REMOVABLE NUT MANUFACTURER CODE | 80205 |
| REMOVABLE NUT MANUFACTURER PART NUMBER | NAS1794 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.313 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES NOMINAL NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.100 INCHES MINIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1791 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
