Product Details | HEXAGON SINGLE BALL SEAT SELF-LOCKING NUT

5310-01-084-7065 A nut having one convex, spherical bearing surface and 6 flat sides. Items may have a removable collar. An integral feature is incorporated for locking on the threads of a mating member. See also NUT (1), SELF-LOCKING, CONE SEAT, HEXAGON.

Part Alternates: S49336533, S4933653-3, 5310-01-084-7065, 01-084-7065, 5310010847065, 010847065

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 24 OCT 1979 01-084-7065

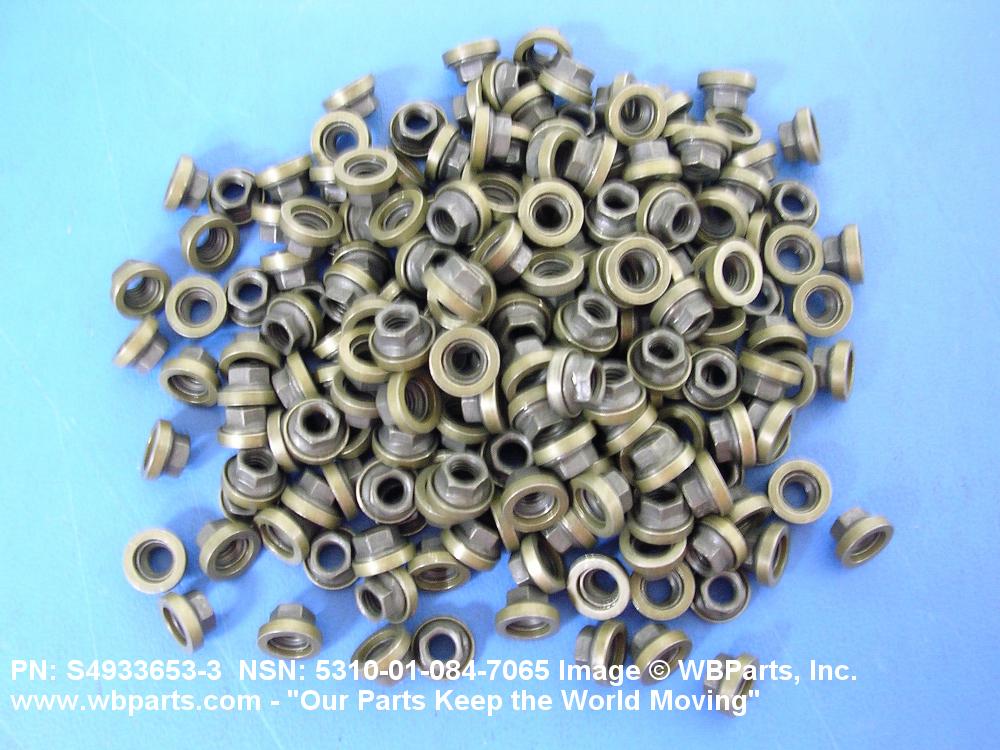

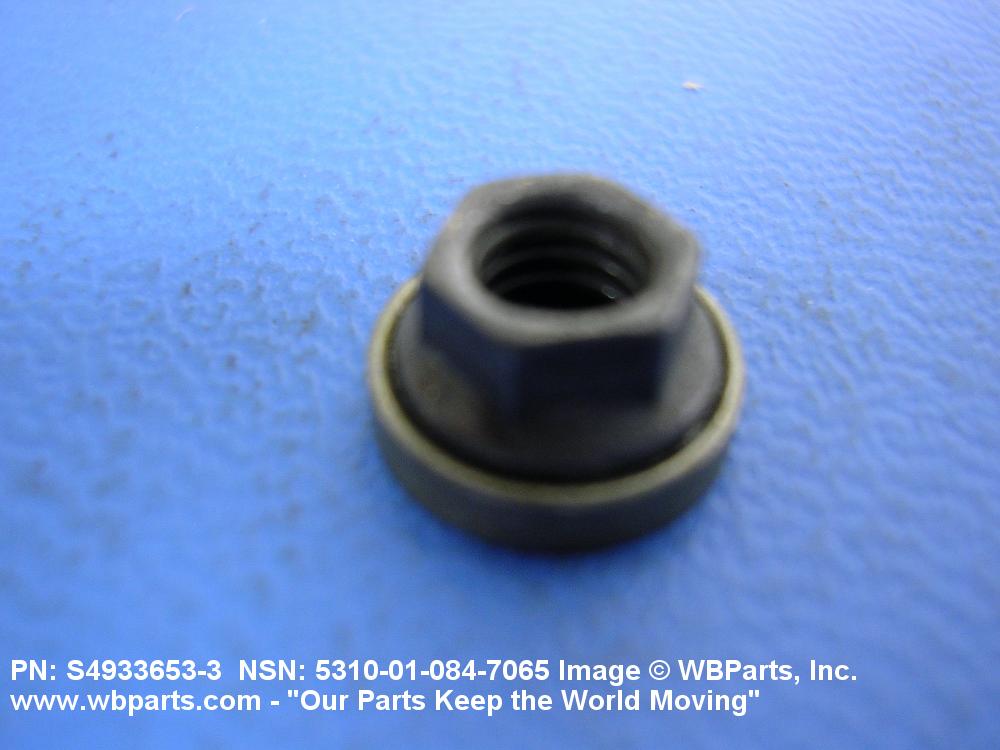

Drawings & Photos | NSN 5310-01-084-7065


Demand History | NSN 5310-01-084-7065

Part Number Request Date QTY Origin
5310-01-084-7065 2011-09-245 29316 DIBBS
5310-01-084-7065 2008-07-198 200 United States

Cross Reference | NSN 5310-01-084-7065

Part Number Cage Code Manufacturer
S4933653-3 27238 BRISTOL INDUSTRIES
S4933653-3 88277 BOEING COMPANY, THE DBA BOEING
S4933653-3 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
S4933653-3 92824 MAG AEROSPACE INDUSTRIES INC. DBA MONOGRAMSYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-084-7065

Technical Data | NSN 5310-01-084-7065

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 4340 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 45.0 ROCKWELL C MAXIMUM
NUT STYLE A8 SINGLE BALL SEAT, HEXAGON
BALL SEAT RADIUS 0.235 INCHES MINIMUM AND 0.245 INCHES MAXIMUM
NUT HEIGHT 0.243 INCHES MAXIMUM
WIDTH ACROSS FLATS 0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION DRY FILM LUBRICANT
TEMP RATING 450.0 DEG FAHRENHEIT MAXIMUM
SPECIAL FEATURES WASHER SUPPLIED IN AN ASSEMBLED COND
MANUFACTURERS CODE 88277
DESIGN CONTROL REFERENCE S4933653-3
