NSN 5310-01-081-1272 T308017402, 582R709H14, 5160102000
Product Details | INTERNAL WRENCHING PLAIN NUT
5310-01-081-1272 A cylindrical-shaped nut, the end opposite the bearing surface being designed with an internal socket or splines for use with an inserted wrench.
Part Alternates: T308017402, 582R709H14, 5160102000, 516-0102-000, 5310-01-081-1272, 01-081-1272, 5310010811272, 010811272
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 09 AUG 1979 | 01-081-1272 | 04893 ( NUT, PLAIN, INTERNAL WRENCHING ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-081-1272
Related Products | NSN 5310-01-081-1272
Technical Data | NSN 5310-01-081-1272
Characteristic | Specifications |
---|---|
THREAD SERIES | UNF |
NOMINAL THREAD SIZE | 0.190 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 2B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | STEEL CORROSION RESISTING OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | PASSIVATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE I,II,ORIII FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
HARDNESS RATING | NOT RATED |
NUT STYLE | A19 INTERNAL WRENCHING |
NUT DIAMETER | 0.259 INCHES NOMINAL |
NUT HEIGHT | 0.255 INCHES NOMINAL |
COUNTERSINK ANGLE | 45.0 DEGREES NOMINAL THREADS |

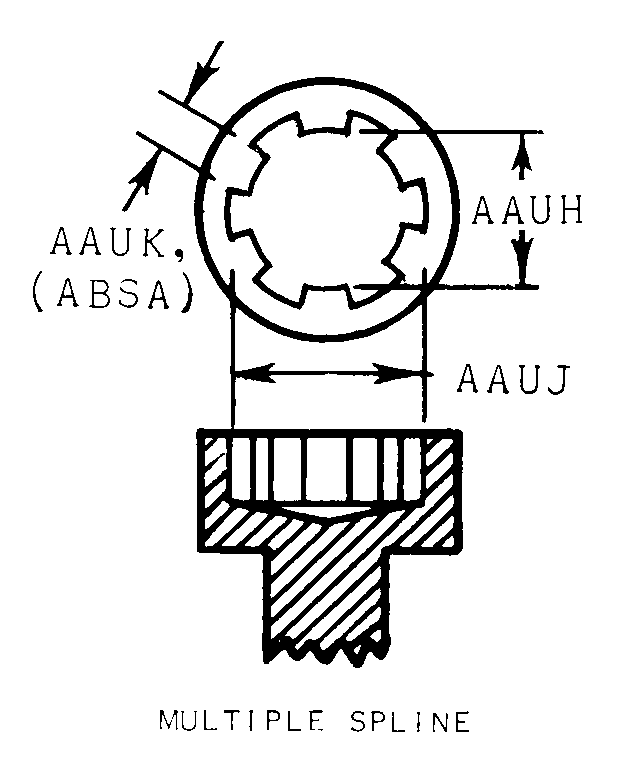

INTERNAL DRIVE STYLE | E7 MULTIPLE SPLINE |
SPLINE MAJOR DIAMETER | 0.202 INCHES NOMINAL |
SPLINE QUANTITY | 40 |
TEMP RATING | NOT RATED |
SPECIAL FEATURES | FLANGE AT THREAD END 0.310 IN. DIA,0.093 IN. WIDE |
MANUFACTURERS CODE | 97942 |
DESIGN CONTROL REFERENCE | 582R709H14 |
Restrictions/Controls & Freight Information | NSN 5310-01-081-1272
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-081-1272
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
