NSN 5310-01-067-9680 NAS1423C3, 10122076 , 2503789-19
Product Details | HEXAGON PLAIN NUT

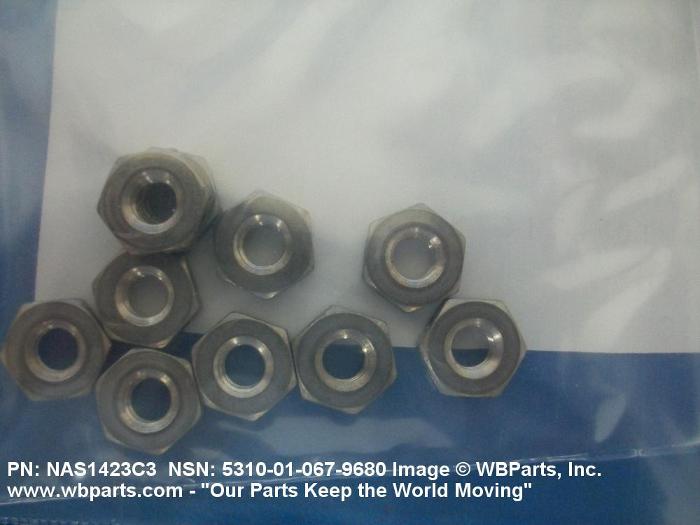

5310-01-067-9680 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: NAS1423C3, 10122076 , 2503789-19, 754/7/36533/000, 754736533000, 5310-01-067-9680, 01-067-9680, 5310010679680, 010679680, 250378919
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 11 NOV 1978 | 01-067-9680 | 01857 ( NUT, PLAIN, HEXAGON ) |
Demand History | NSN 5310-01-067-9680
Part Number | Request Date | QTY | Origin |
---|---|---|---|
2503789-19 | 2024-10-291 | 36 | DIBBS |
NAS1423C3 | 2024-10-291 | 36 | DIBBS |
2503789-19 | 2024-07-200 | 27 | DIBBS |
NAS1423C3 | 2024-07-200 | 27 | DIBBS |
2503789-19 | 2024-04-105 | 1228 | DIBBS |
NAS1423C3 | 2024-04-105 | 1228 | DIBBS |
NAS1423C3 | 2023-06-164 | 5 | US |
2503789-19 | 2023-05-128 | 85 | DIBBS |
NAS1423C3 | 2023-05-128 | 85 | DIBBS |
2503789-19 | 2023-03-80 | 42 | DIBBS |
NAS1423C3 | 2023-03-80 | 42 | DIBBS |
5310-01-067-9680 | 2018-05-130 | 1 | DIBBS-RFPs |
5310-01-067-9680 | 2016-07-213 | 1839 | DIBBS |
5310-01-067-9680 | 2016-04-118 | 1145 | DIBBS |
5310-01-067-9680 | 2015-11-322 | 1077 | DIBBS |
5310-01-067-9680 | 2011-08-224 | 4 | United States |
5310-01-067-9680 | 2006-08-242 | 90 | France |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5310-01-067-9680
Technical Data | NSN 5310-01-067-9680
Characteristic | Specifications |
---|---|
THREAD SERIES | UNJF |
NOMINAL THREAD SIZE | 0.190 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | IRON ALLOY 660 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | PASSIVATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
HARDNESS RATING | NOT RATED |
NUT STYLE | A12 HEXAGON |
NUT HEIGHT | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
WIDTH ACROSS FLATS | 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
HOLE CONFIGURATION STYLE | H2 CONFIGURATION B |
HOLE TYPE AND QUANTITY | 3 DRILLED |
DRILLED HOLE DIAMETER | 0.034 INCHES MINIMUM AND 0.039 INCHES MAXIMUM |
BEARING SURFACE TYPE | CHAMFERED |
TEMP RATING | NOT RATED |
SPECIFICATION/STANDARD DATA | 80205-NAS1423 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
III BEARING SURFACE FINISH | 125.0 MICROINCHES |
