NSN 5310-01-064-8801 G2338, G23-3-8, 01-064-8801
Product Details | BEVEL WASHER
5310-01-064-8801 A washer having a centrally located hole and two flat bearing surfaces which are not parallel.
Part Alternates: G2338, G23-3-8, 5310-01-064-8801, 01-064-8801, 5310010648801, 010648801
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 SEP 1978 | 01-064-8801 | 15929 ( WASHER, BEVEL ) |

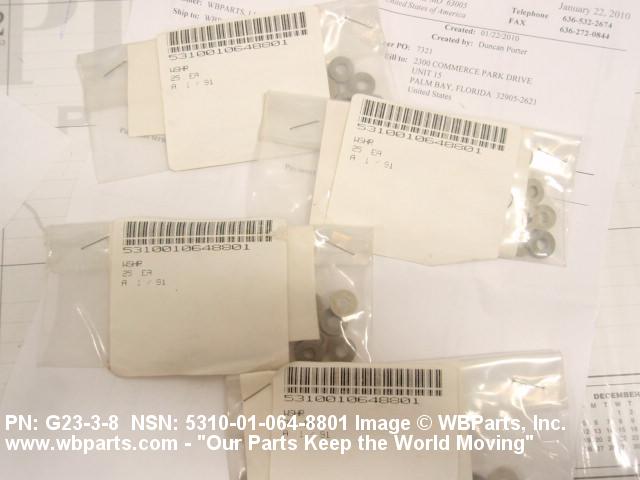

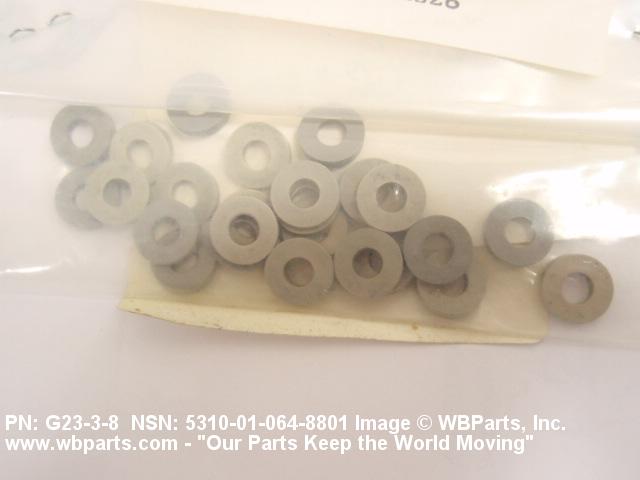

Drawings & Photos | NSN 5310-01-064-8801
Demand History | NSN 5310-01-064-8801
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| G23-3-8 | 2022-10-291 | 72 | DIBBS |
| G23-3-8 | 2021-11-319 | 25 | DIBBS |
| G23-3-8 | 2021-08-220 | 30 | DIBBS |
| G23-3-8 | 2020-10-281 | 34 | DIBBS |
| G23-3-8 | 2019-11-332 | 31 | DIBBS |
| G23-3-8 | 2019-10-301 | 24 | DIBBS |
| G23-3-8 | 2019-10-293 | 24 | DIBBS |
| 5310-01-064-8801 | 2010-01-15 | 100 | United States |
Cross Reference | NSN 5310-01-064-8801
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G23-3-8 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-064-8801
Related Products | NSN 5310-01-064-8801
Technical Data | NSN 5310-01-064-8801
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/3 TEMPER T4 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 TEMPER T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 2 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 11 BEVEL |
| HOLE DIAMETER | 0.192 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.438 INCHES NOMINAL |
| MINOR THICKNESS | 0.062 INCHES NOMINAL |
| MAJOR THICKNESS | 0.219 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 26512-G23 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-064-8801
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-064-8801
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
