NSN 5310-01-063-2379 BACN10HR6CS, BMN5024CPD36, BMN5024CPD3-6

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

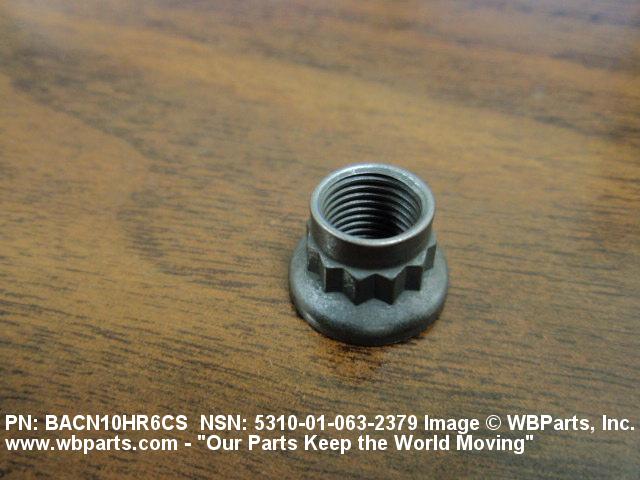

5310-01-063-2379 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BACN10HR6CS, BMN5024CPD36, BMN5024CPD3-6, BMN5024CPD6, H399536, H39953-6, H505536, H50553-6, SL70596, SL7059-6, SL7059C624, LD11400160006, LD114-0016-0006, LD1140016006, LD114-0016-006, 109LH90316, 109LH9031-6, 61170624, 61170-624, 67832AS624, 75146014, 7514-6014, 5310-01-063-2379, 01-063-2379, 5310010632379, 010632379

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	31 JUL 1978	01-063-2379	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

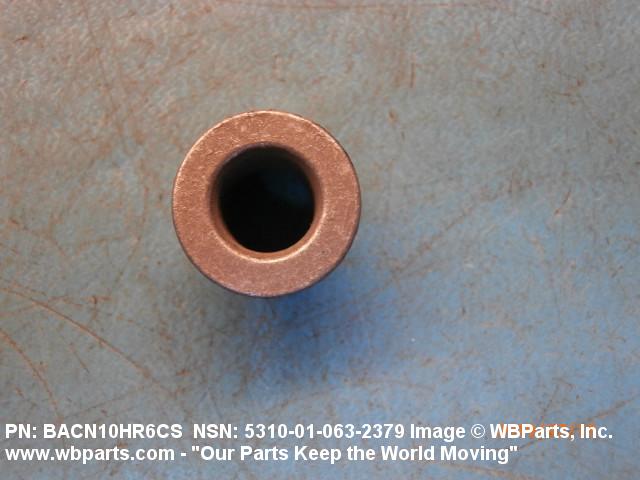

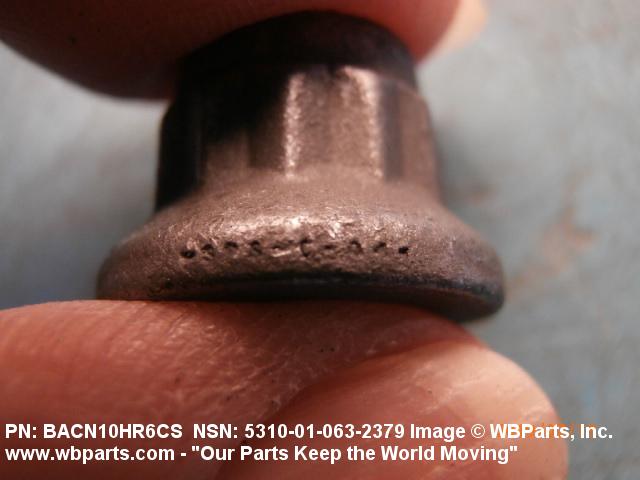

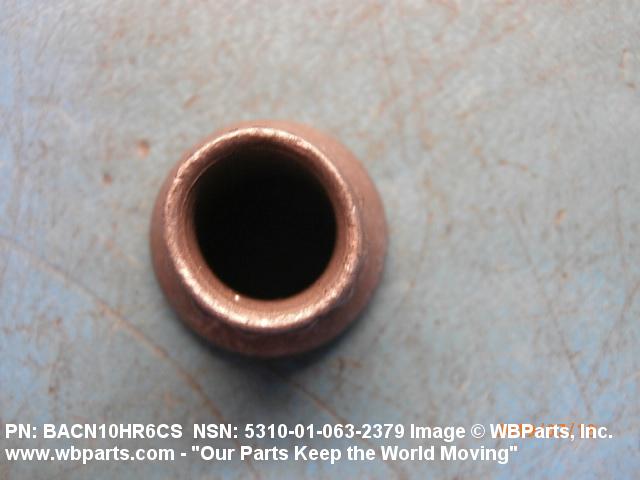

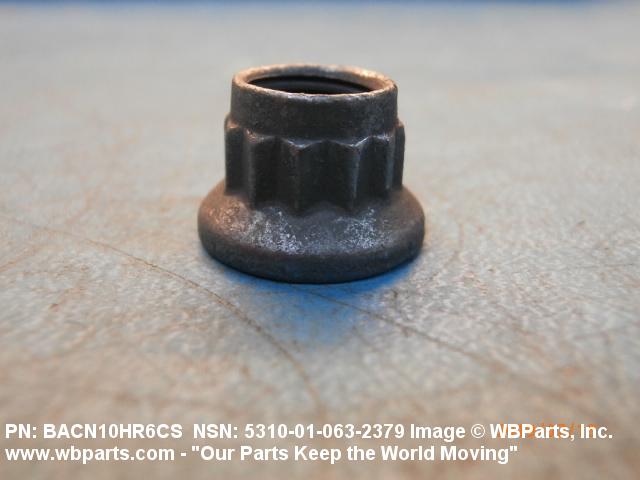

Drawings & Photos | NSN 5310-01-063-2379

Part Number	Request Date	QTY	Origin
LD11400160006	2024-09-10	50	US
61170624	2022-07-14	30	United States
61170624	2022-03-16	30	United States
61170624	2020-11-04	30	United States
5310-01-063-2379	2019-07-10	100	United States
5310-01-063-2379	2019-05-01	30	United States
61170624	2019-05-01	30	United States
5310-01-063-2379	2018-09-12	185	Singapore
5310-01-063-2379	2018-05-30	5934	DIBBS
5310-01-063-2379	2018-05-24	1	DIBBS-RFPs
5310-01-063-2379	2018-04-13	2598	DIBBS
5310-01-063-2379	2018-04-05	2598	DIBBS
5310-01-063-2379	2018-02-06	1301	DIBBS
5310-01-063-2379	2017-12-03	1301	DIBBS
5310-01-063-2379	2017-09-29	2690	DIBBS
5310-01-063-2379	2017-08-07	2690	DIBBS
5310-01-063-2379	2017-03-15	1671	DIBBS
5310-01-063-2379	2017-01-04	633	DIBBS
5310-01-063-2379	2016-09-29	192	DIBBS
61170624	2016-02-02	58	United States
5310-01-063-2379	2014-03-20	1142	DIBBS
5310-01-063-2379	2013-07-29	100	US
5310-01-063-2379	2013-07-26	50	United States
5310-01-063-2379	2011-11-29	464	DIBBS
61170624	2011-03-15	25	United States
BACN10HR6CS	2010-12-10	16	US
5310-01-063-2379	2010-12-08	28	United States
61170624	2010-03-05	20	US
61170624	2009-09-09	48	US
61170624	2009-09-09	10	US
5310-01-063-2379	2008-11-10	539	DIBBS

Cross Reference | NSN 5310-01-063-2379

Part Number	Cage Code	Manufacturer
109LH9031-6	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
109LH9031-6	72962	HARVARD INDUSTRIES INC
61170-624	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
67832AS624	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
7514-6014	43999	BOEING COMPANY, THE DBA BOEING
BACN10HR6CS	27238	BRISTOL INDUSTRIES
BACN10HR6CS	81205	THE BOEING COMPANY DBA BOEING
BMN5024CPD3-6	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BMN5024CPD3-6	97928	HUCK INTL INC
BMN5024CPD6	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BMN5024CPD6	97928	HUCK INTL INC
H39953-6	15653	ALCOA GLOBAL FASTENERS, INC.
H50553-6	15653	ALCOA GLOBAL FASTENERS, INC.
LD114-0016-0006	43999	BOEING COMPANY, THE DBA BOEING
LD114-0016-006	43999	BOEING COMPANY, THE DBA BOEING
SL7059-6	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
SL7059C624	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-063-2379

Compare

Related Products | NSN 5310-01-063-2379

5310-01-063-2380, 5310-01-063-2381, 5310-01-063-2964, 5310-01-063-2968, 5310-01-063-2970

Technical Data | NSN 5310-01-063-2379

Characteristic	Specifications
THREAD SERIES	UNJF

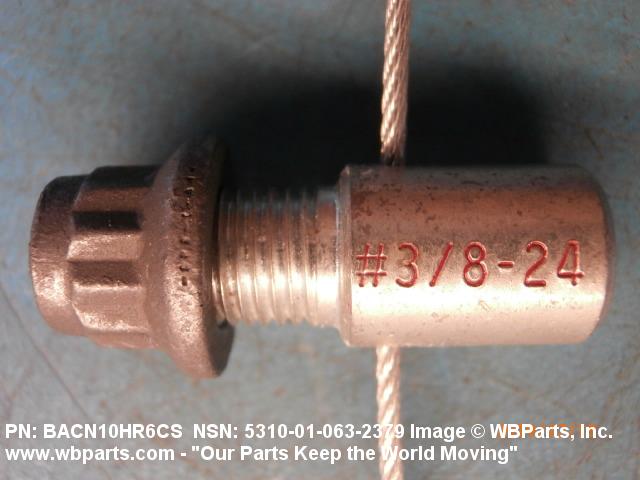

NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5757 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A293 DOUBLE HEXAGON

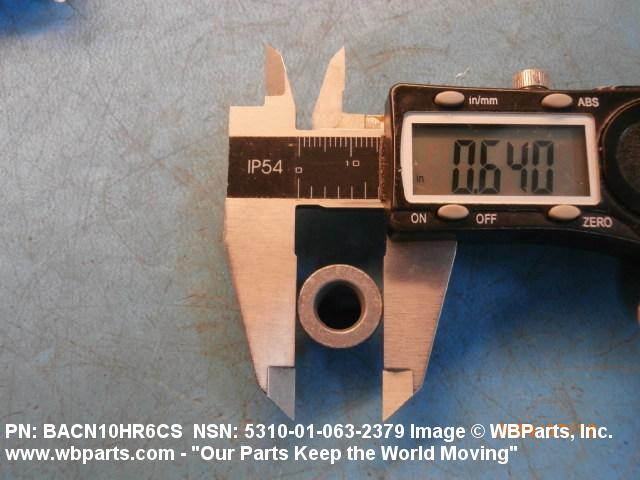

WASHER OUTSIDE DIAMETER	0.645 INCHES NOMINAL

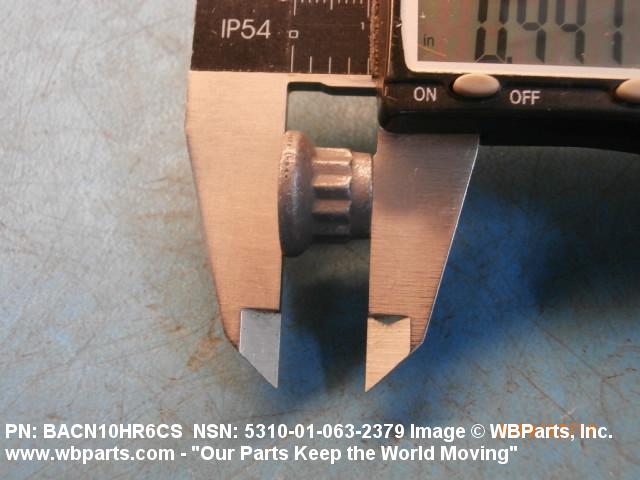

OVERALL HEIGHT	0.450 INCHES NOMINAL

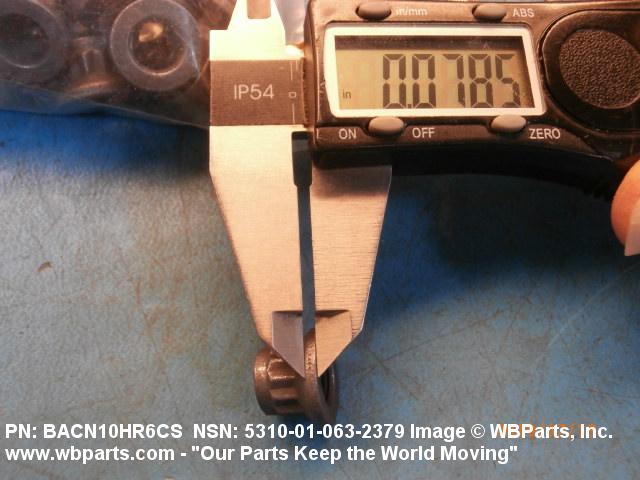

WASHER THICKNESS	0.065 INCHES NOMINAL

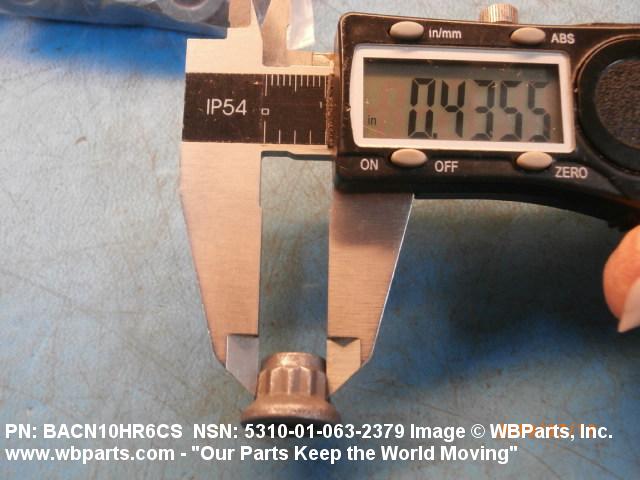

WIDTH ACROSS FLATS	0.443 INCHES NOMINAL
LOCKING FEATURE	FREE-RUNNING ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
SPECIAL FEATURES	DRY FILM LUBRICANT PER MIL-L-8937

Restrictions/Controls & Freight Information | NSN 5310-01-063-2379

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	48	Federal Aviation Administration Oklahoma City, OK 73125
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-063-2379

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
