NSN 5310-01-058-5395 NAS1169C8L, Z00.N5735271087, Z00N5735271087
Product Details | FINISHING WASHER
5310-01-058-5395 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: NAS1169C8L, Z00.N5735271087, Z00N5735271087, 5310-01-058-5395, 01-058-5395, 5310010585395, 010585395
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAR 1978 | 01-058-5395 | 15932 ( WASHER, FINISHING ) |

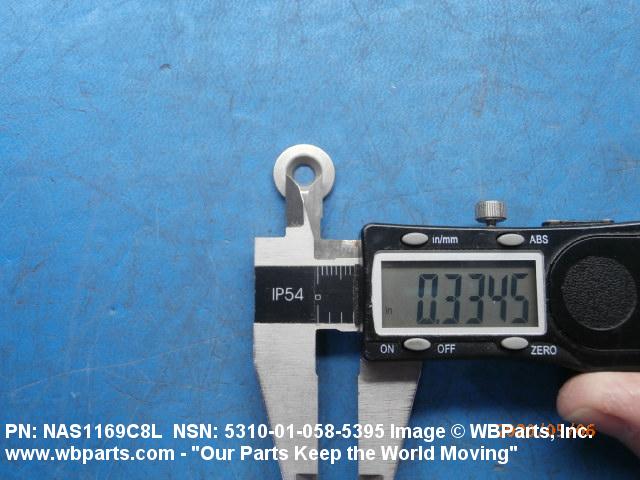

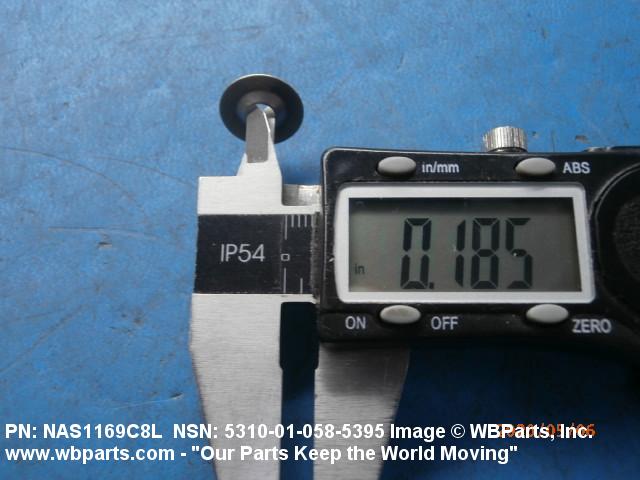

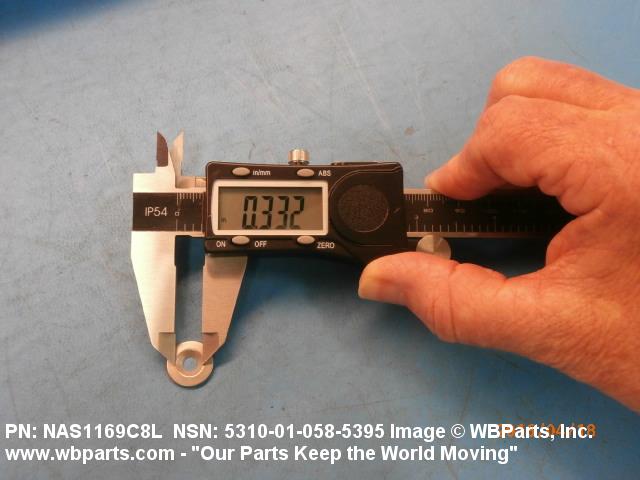

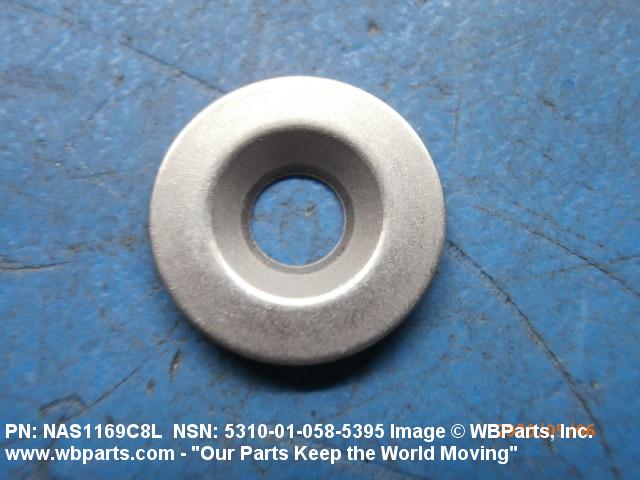

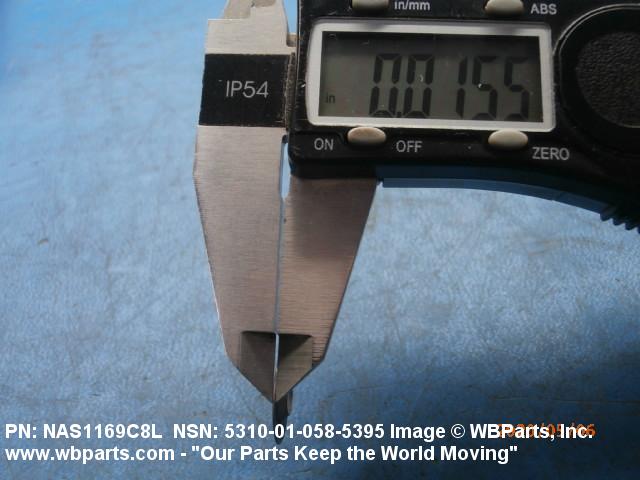

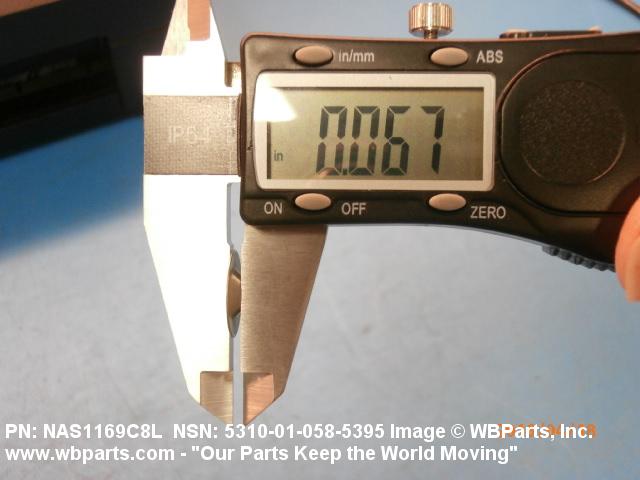

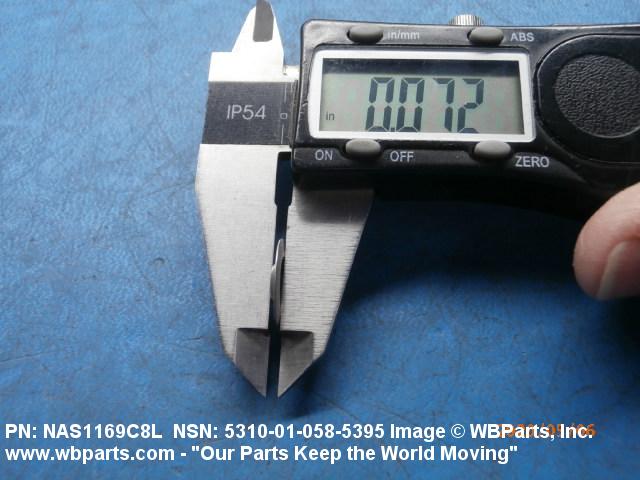

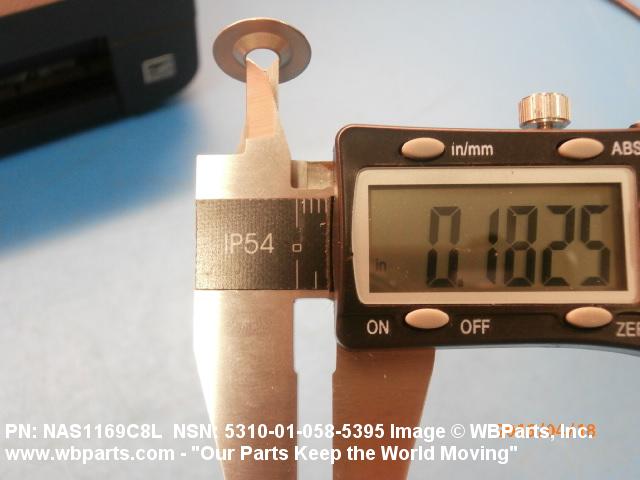

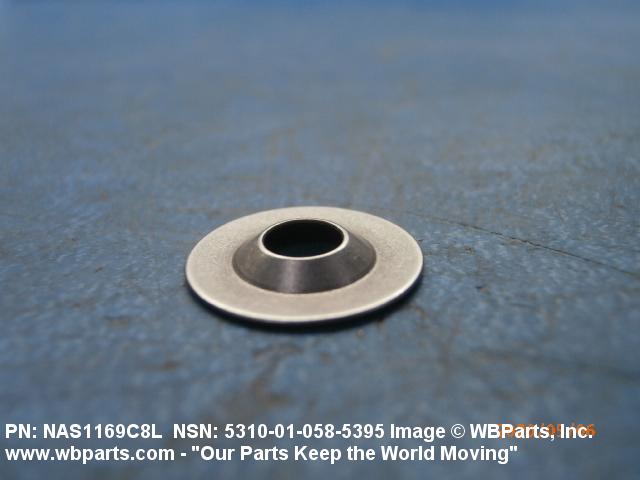

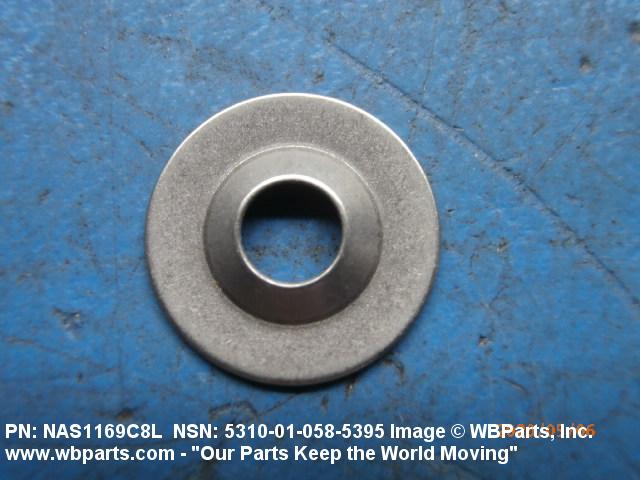

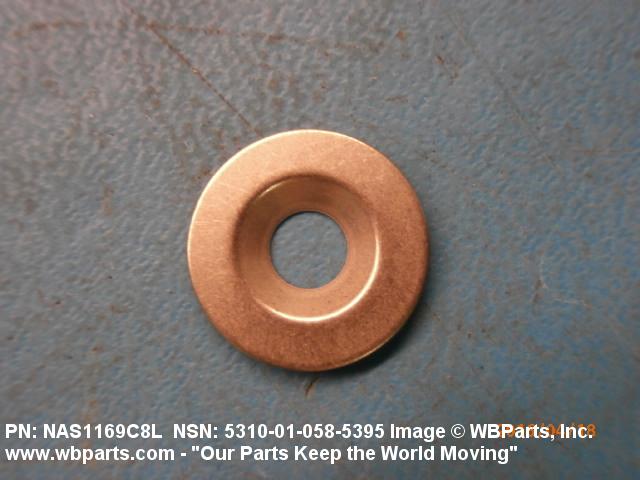

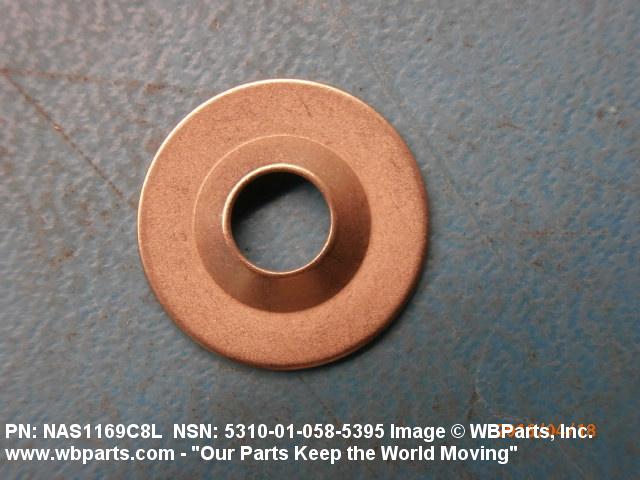

Drawings & Photos | NSN 5310-01-058-5395
Demand History | NSN 5310-01-058-5395
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1169C8L | 2022-07-192 | 780 | South Africa |
| NAS1169C8L | 2022-03-80 | 3750 | United States |
| NAS1169C8L | 2020-06-160 | 1100 | ES |
| 5310-01-058-5395 | 2019-10-303 | 131086 | DIBBS |
| 5310-01-058-5395 | 2019-02-55 | 67917 | DIBBS |
| 5310-01-058-5395 | 2019-01-27 | 44294 | DIBBS |
| 5310-01-058-5395 | 2018-01-21 | 42199 | DIBBS |
| NAS1169C8L | 2016-03-83 | 15 | Brazil |
| NAS1169C8L | 2016-02-41 | 1 | Thailand |
| NAS1169C8L | 2016-02-39 | 35 | Canada |
| 5310-01-058-5395 | 2015-10-302 | 54852 | DIBBS |
| 5310-01-058-5395 | 2015-07-202 | 8334 | DIBBS |
| NAS1169C8L | 2013-11-323 | 320 | Israel |
| 5310-01-058-5395 | 2013-08-221 | 14533 | DIBBS |
| NAS1169C8L | 2013-05-134 | 50 | CZ |
| 5310-01-058-5395 | 2009-05-151 | 38019 | DIBBS |
| 5310-01-058-5395 | 2009-05-125 | 18465 | DIBBS |
| 5310-01-058-5395 | 2008-08-232 | 1200 | US |
Cross Reference | NSN 5310-01-058-5395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1169C8L | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1169C8L | 25150 | DUPLICATE PARTS CO |
| NAS1169C8L | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1169C8L | 60360 | AIRCRAFT MISSILE PARTS MFG CORP DBA AMPM |
| NAS1169C8L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1169C8L | 86928 | SEASTROM MANUFACTURING CO., INC. DBA SEASTROM MANUFACTURING |
| Z00.N5735271087 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-058-5395
Related Products | NSN 5310-01-058-5395
Technical Data | NSN 5310-01-058-5395
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 27 FINISHING |
| HOLE DIAMETER | 0.166 INCHES MINIMUM AND 0.196 INCHES MAXIMUM |

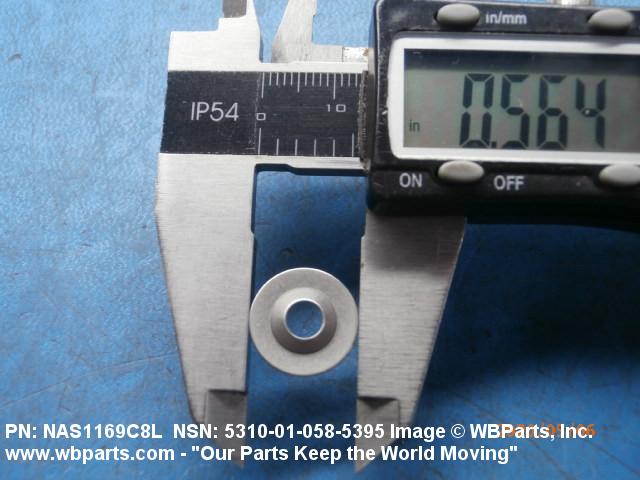

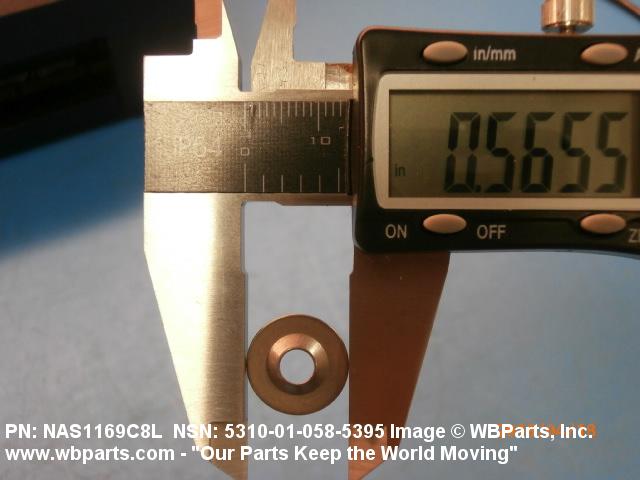

| OUTSIDE DIAMETER | 0.557 INCHES MINIMUM AND 0.582 INCHES MAXIMUM |

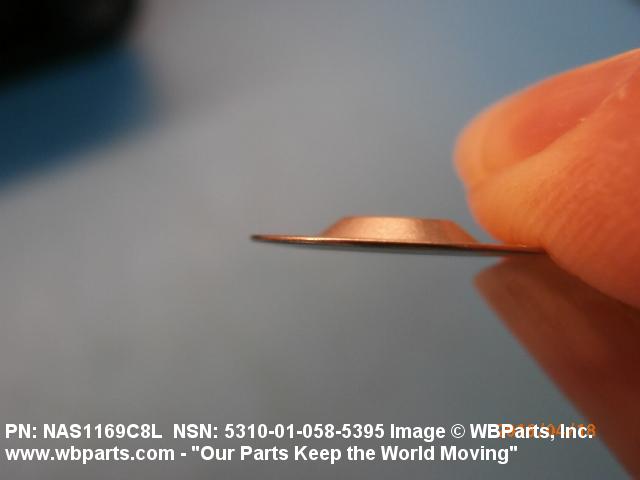

| OVERALL HEIGHT | 0.087 INCHES NOMINAL |
| RECESS DIAMETER | 0.332 INCHES MINIMUM AND 0.342 INCHES MAXIMUM |

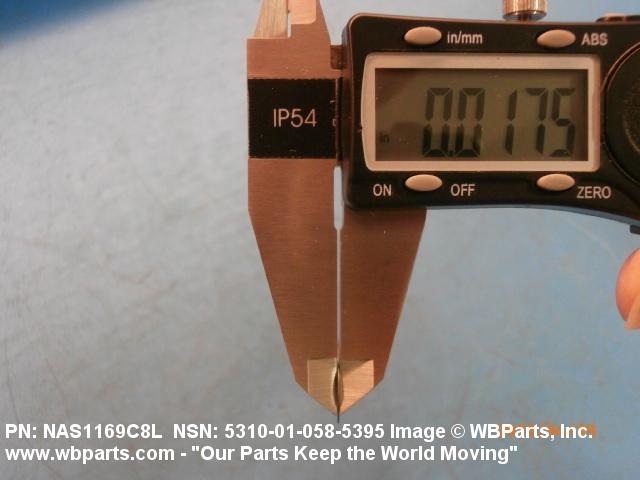

| MATERIAL THICKNESS | 0.014 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
| RECESS ANGLE | 99.0 DEGREES MINIMUM AND 103.0 DEGREES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1169 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5310-01-058-5395
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-058-5395
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
