NSN 5310-01-057-9359 MS14144L6, NASM14144L6, NASM25027

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-057-9359 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS14144L6, NASM14144L6, NASM25027, NSA50606, NSA5060-6, PHCR356M, PHCR-356M, RME98686, RME9868-6, 5310-01-057-9359, 01-057-9359, 5310010579359, 010579359

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 MAR 1978	01-057-9359	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

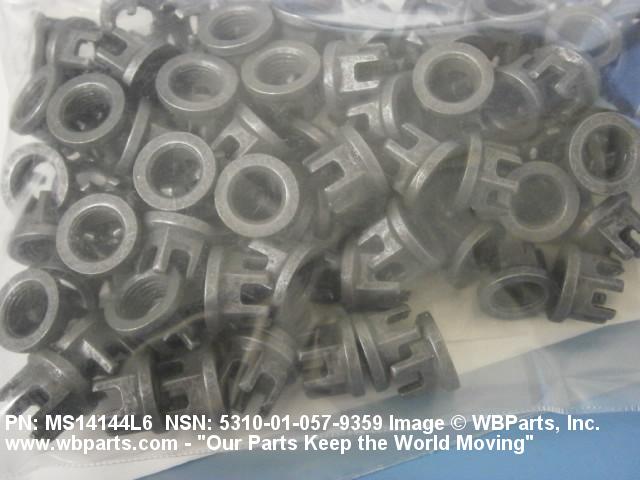

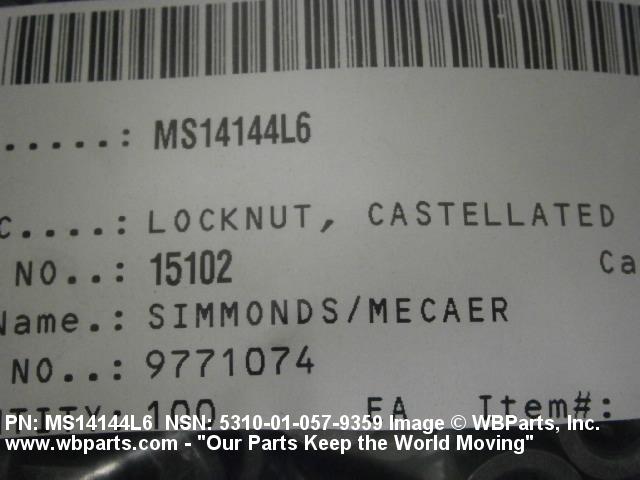

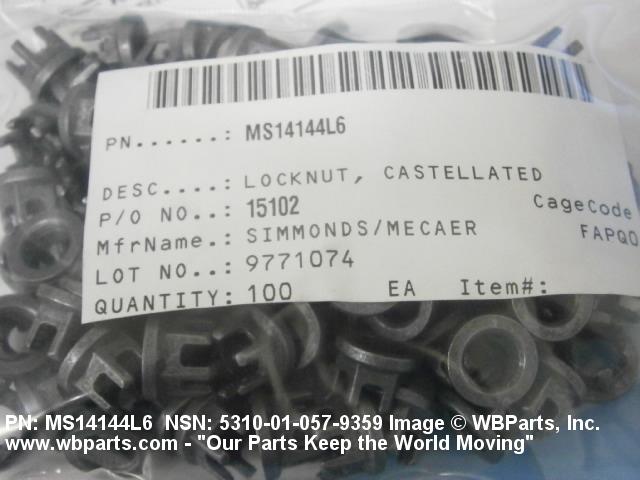

Drawings & Photos | NSN 5310-01-057-9359

Part Number	Request Date	QTY	Origin
MS14144L6	2022-12-356	100	US
5310-01-057-9359	2022-03-88	2	CO
NSA50606	2021-08-235	100	SG
MS14144L6	2021-05-124	41	Malaysia
5310-01-057-9359	2020-11-318	14	UK
MS14144L6	2020-10-293	20	Malaysia
MS14144L6	2020-09-266	4	Malaysia
MS14144L6	2020-08-237	25	United States
MS14144L6	2020-02-37	30	United States
MS14144L6	2018-09-255	50	United States
NSA50606	2018-08-215	1	US
5310-01-057-9359	2018-05-130	1	DIBBS-RFPs
5310-01-057-9359	2018-01-12	1	Malaysia
5310-01-057-9359	2016-01-19	7	United States
MS14144L6	2014-11-314	12	IN
NASM25027	2014-09-253	1500	Ukraine
MS14144L6	2014-06-167	20	US
MS14144L6	2014-02-56	1	United States
NASM25027	2014-01-27	16	US
NASM25027	2013-10-298	1	US
MS14144L6	2013-09-256	20	China
5310-01-057-9359	2013-08-224	2947	DIBBS
MS14144L6	2013-07-207	20	US
5310-01-057-9359	2013-07-186	2409	DIBBS
5310-01-057-9359	2013-03-86	1557	DIBBS
5310-01-057-9359	2012-09-268	748	DIBBS
5310-01-057-9359	2012-08-235	2845	DIBBS
MS14144L6	2012-08-227	20	US
5310-01-057-9359	2012-06-164	1423	DIBBS
5310-01-057-9359	2012-05-150	0	DIBBS
5310-01-057-9359	2012-05-143	709	DIBBS
5310-01-057-9359	2012-01-02	400	IN
5310-01-057-9359	2011-12-349	100	US
5310-01-057-9359	2011-12-349	100	US
5310-01-057-9359	2011-10-293	100	United States
5310-01-057-9359	2010-04-102	515	DIBBS
NSA50606	2010-03-76	1	US
NASM25027	2010-01-28	175	US
5310-01-057-9359	2009-11-327	966	DIBBS
MS14144L6	2009-11-309	50	Colombia
MS14144L6	2009-10-275	10	United States
5310-01-057-9359	2009-09-264	1046	DIBBS
MS14144L6	2009-08-238	1	MX
NASM25027	2009-08-225	200	United Kingdom
NASM25027	2009-07-191	48000	US
NASM25027	2009-06-176	1000	United Kingdom
5310-01-057-9359	2009-05-125	4569	DIBBS
NASM25027	2008-09-268	1	Netherlands
NASM25027	2008-09-261	25	us
NASM25027	2007-12-338	60	United States
NSA50606	2007-01-23	2	US
MS14144L6	2006-01-30	10	US

Cross Reference | NSN 5310-01-057-9359

Part Number	Cage Code	Manufacturer
MS14144L6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS14144L6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM14144L6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NASM25027	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NSA5060-6	K0999	BAE SYSTEMS
PHCR-356M	62554	ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV
RME9868-6	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RME9868-6	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-057-9359

Compare

Related Products | NSN 5310-01-057-9359

5310-01-057-9360, 5310-01-057-9361, 5310-01-057-9362, 5310-01-057-9365, 5310-01-057-9366

Technical Data | NSN 5310-01-057-9359

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A298 SLOTTED HEXAGON
WASHER OUTSIDE DIAMETER	0.579 INCHES MAXIMUM
OVERALL HEIGHT	0.391 INCHES MINIMUM AND 0.421 INCHES MAXIMUM
WASHER THICKNESS	0.070 INCHES NOMINAL
WIDTH ACROSS FLATS	0.429 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14144L6

Restrictions/Controls & Freight Information | NSN 5310-01-057-9359

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-057-9359

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
