NSN 5310-01-056-2170 20060051, 2006005-1, 01-056-2170
Product Details | HEXAGON PLAIN NUT
5310-01-056-2170 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: 20060051, 2006005-1, 5310-01-056-2170, 01-056-2170, 5310010562170, 010562170
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1978 | 01-056-2170 | 01857 ( NUT, PLAIN, HEXAGON ) |

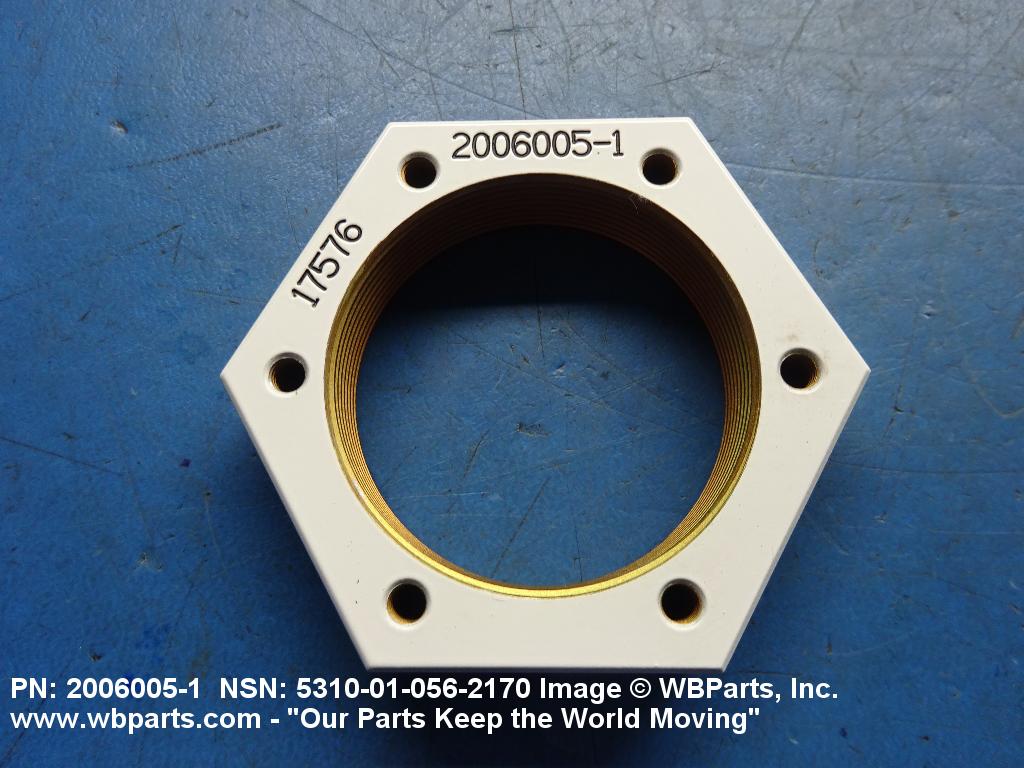

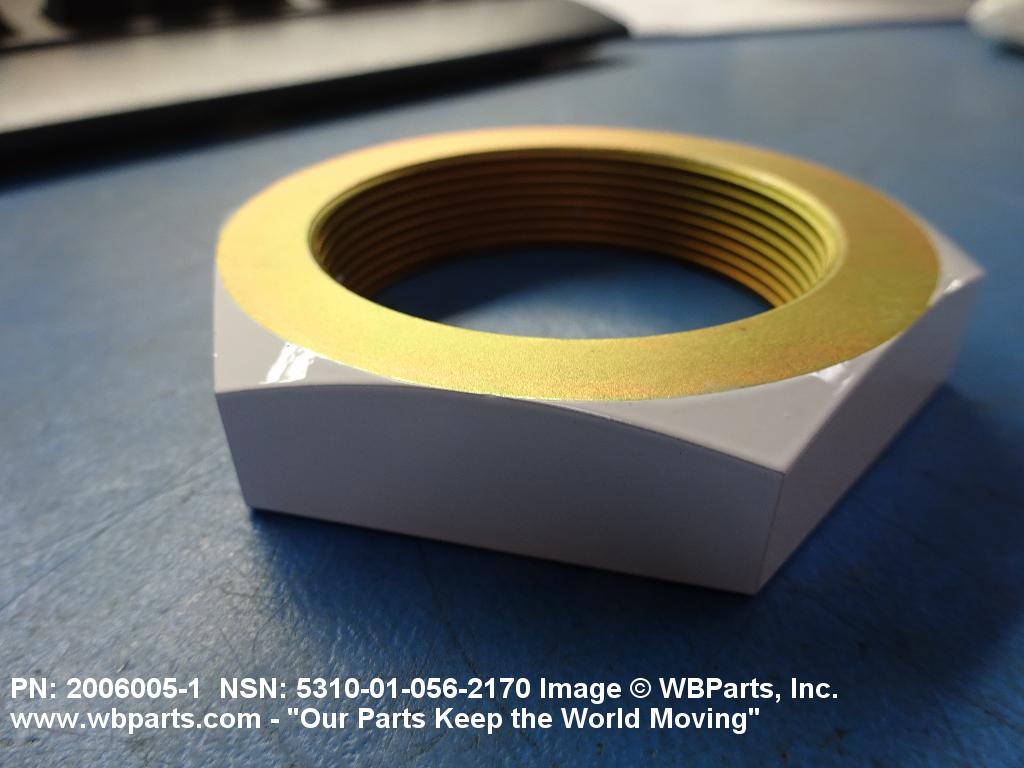

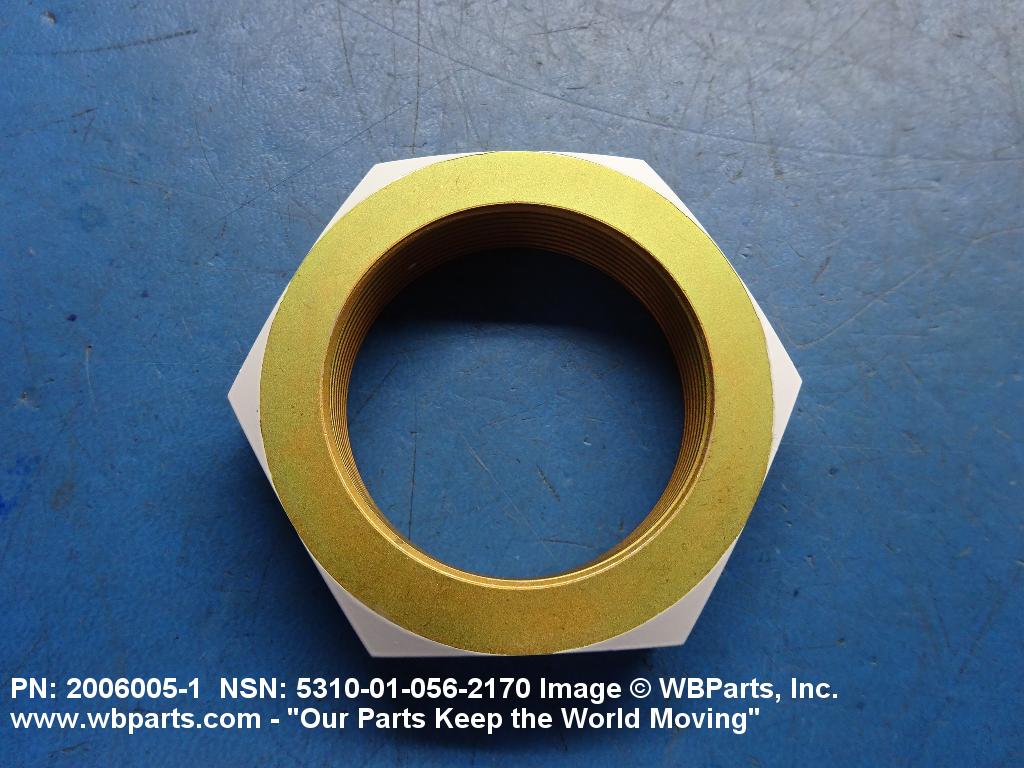

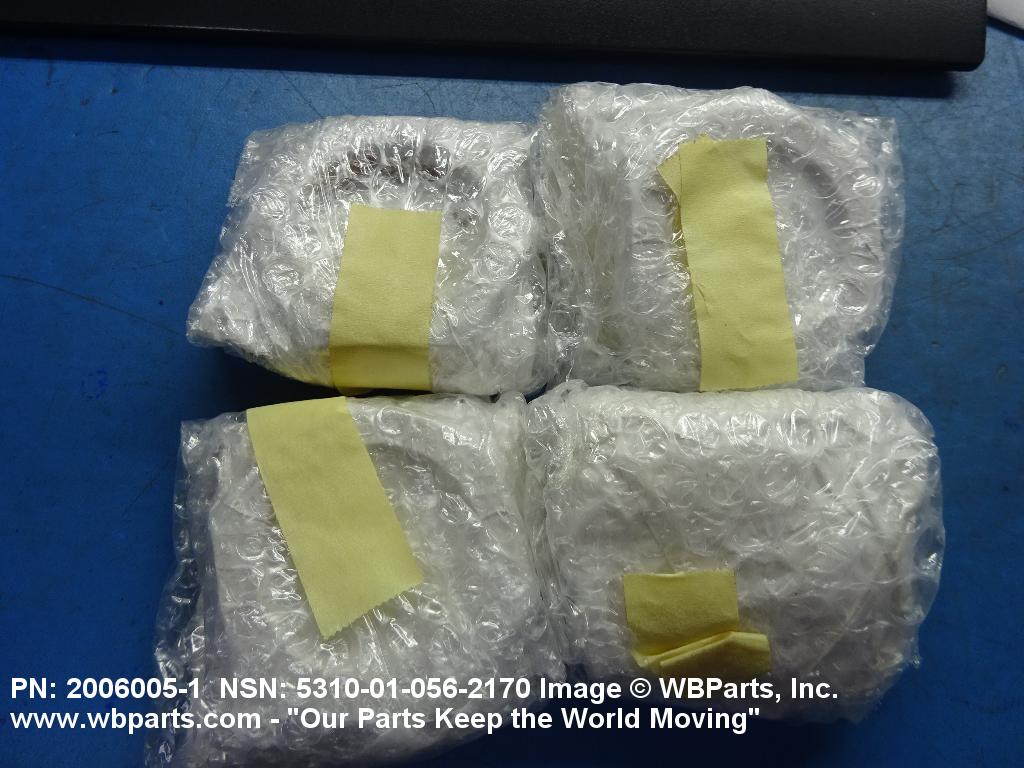

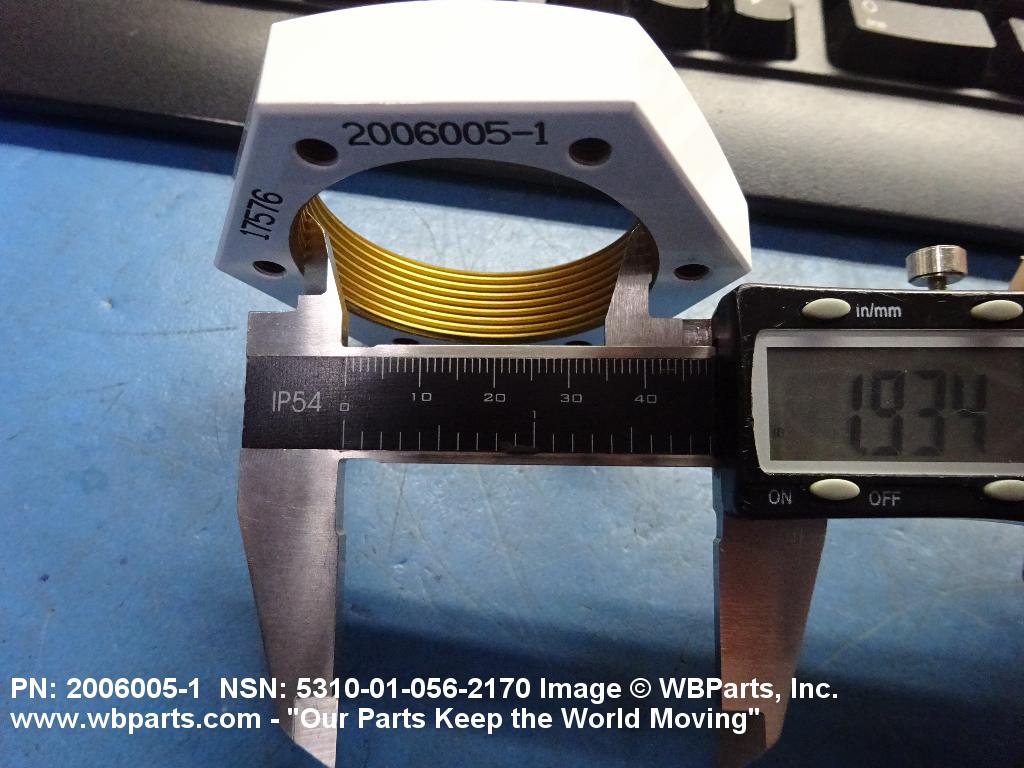

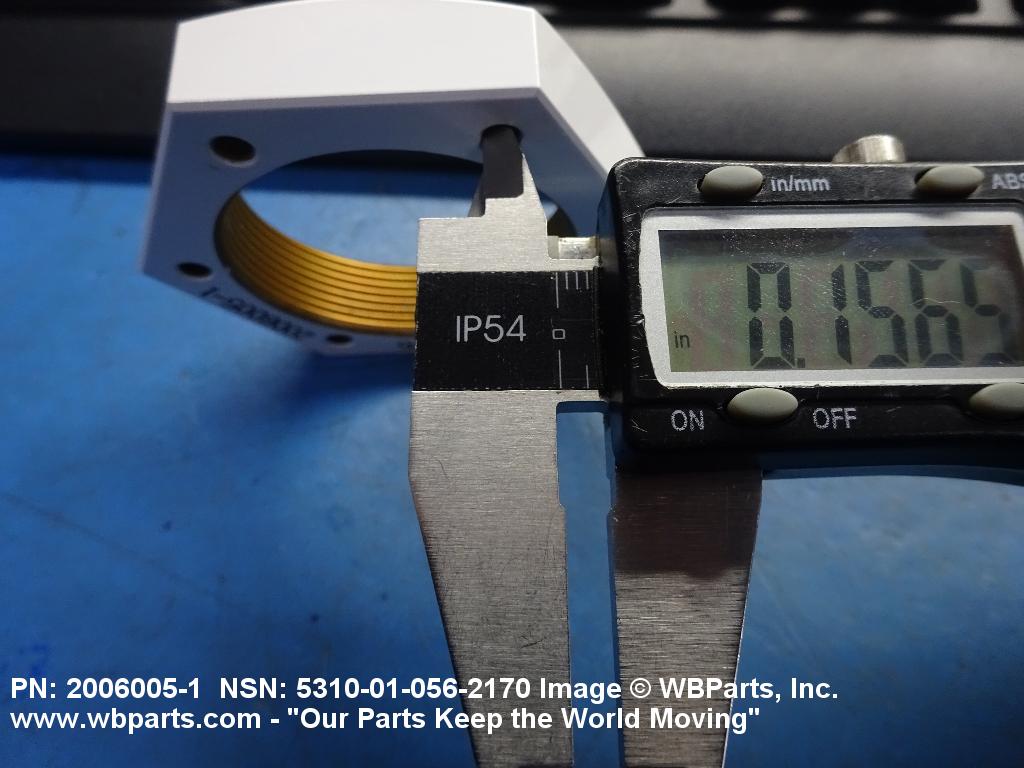

Drawings & Photos | NSN 5310-01-056-2170
Demand History | NSN 5310-01-056-2170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20060051 | 2022-04-110 | 4 | us |
| 20060051 | 2022-03-76 | 8 | us |
| 5310-01-056-2170 | 2019-04-98 | 296 | DIBBS |
| 5310-01-056-2170 | 2019-02-44 | 275 | DIBBS |
| 5310-01-056-2170 | 2017-06-157 | 118 | DIBBS |
| 5310-01-056-2170 | 2017-03-79 | 150 | DIBBS |
| 5310-01-056-2170 | 2014-03-89 | 197 | DIBBS |
| 20060051 | 2013-08-227 | 2 | United States |
| 5310-01-056-2170 | 2011-12-341 | 671 | DIBBS |
| 5310-01-056-2170 | 2010-04-113 | 1151 | DIBBS |
Cross Reference | NSN 5310-01-056-2170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2006005-1 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-056-2170
Related Products | NSN 5310-01-056-2170
Technical Data | NSN 5310-01-056-2170
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJ |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626,COND E4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND PAINT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CLASS 2,TYPE II FED SPEC 1ST TREATMENT RESPONSE AND MIL-P-23377 MIL SPEC 2ND TREATMENT RESPONSE AND MIL-C-83286 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

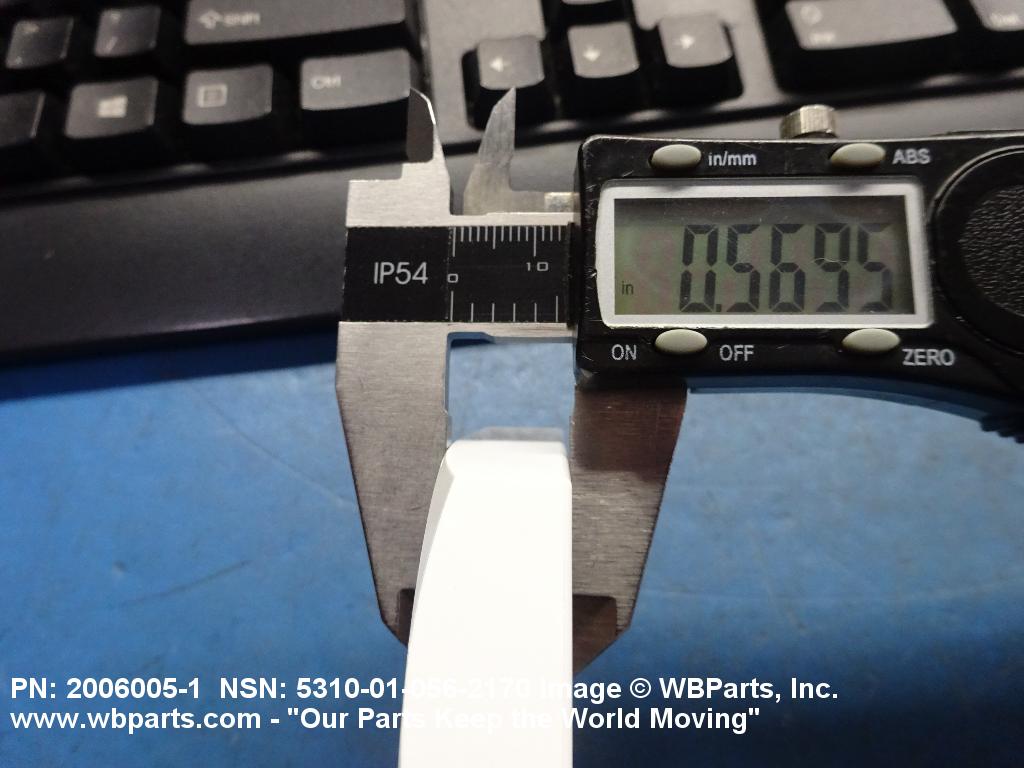

| NUT HEIGHT | 0.560 INCHES NOMINAL |

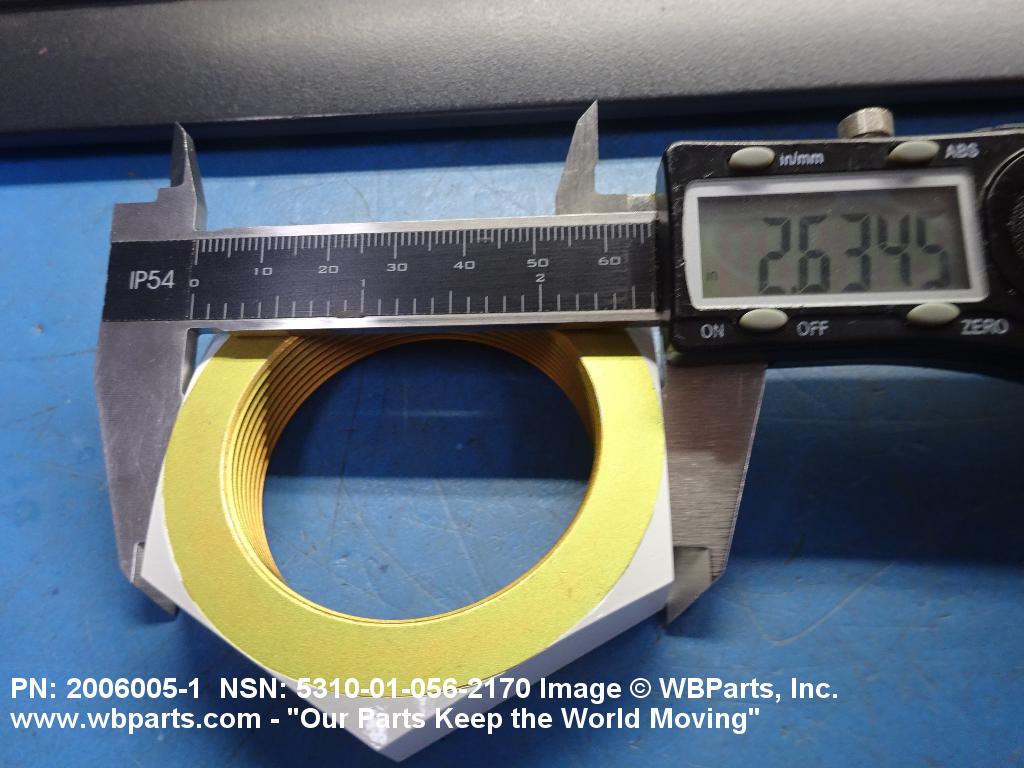

| WIDTH ACROSS FLATS | 2.625 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | H8 CONFIGURATION H |
| HOLE TYPE AND QUANTITY | 6 TAPPED |
| HOLE NOMINAL THREAD DIAMETER | 0.190 INCHES |
| HOLE THREAD QUANTITY PER INCH | 32 |
| BEARING SURFACE TYPE | CHAMFERED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | 2006005-1 |
Restrictions/Controls & Freight Information | NSN 5310-01-056-2170
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-056-2170
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
