NSN 5310-01-055-3853 MS14145L6, MS14145-L6, RMTE98686

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-055-3853 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS14145L6, MS14145-L6, RMTE98686, RMTE9868-6, THCR356M, THCR-356M, 5310PL0646049 , 717124434508, 5310-01-055-3853, 01-055-3853, 5310010553853, 010553853

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 FEB 1978	01-055-3853	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

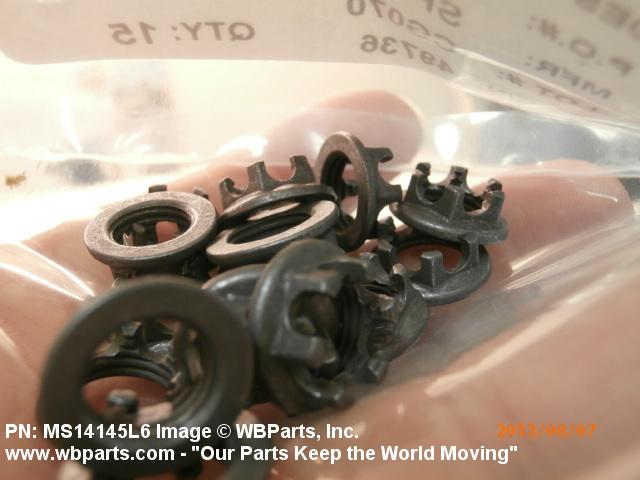

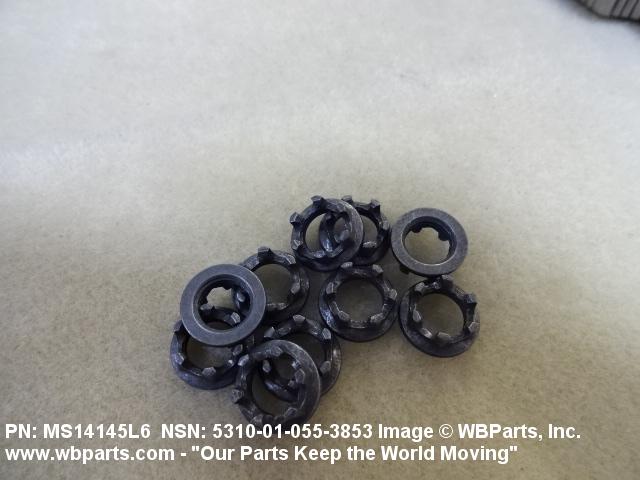

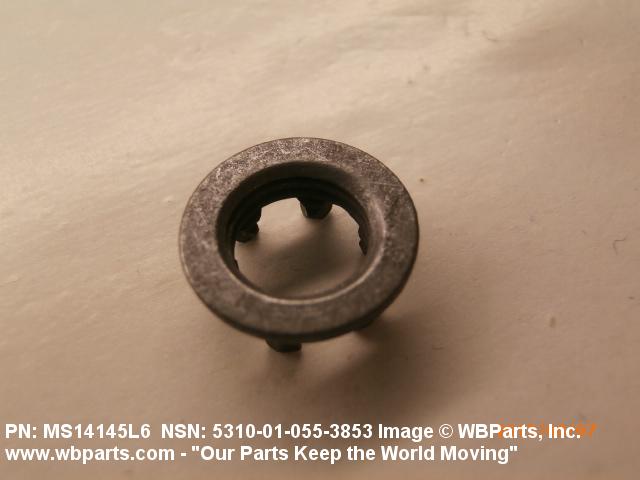

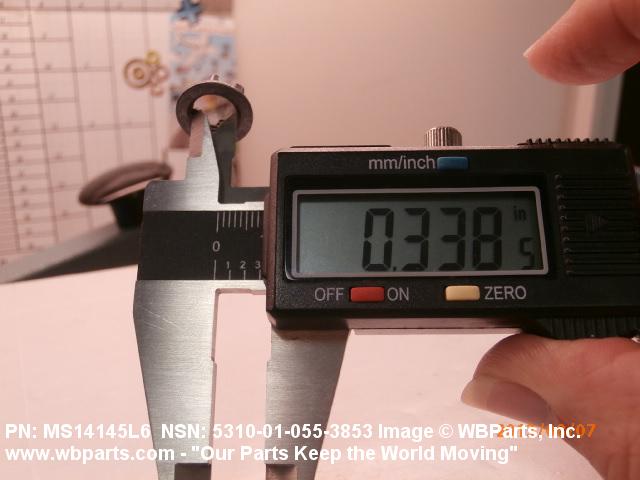

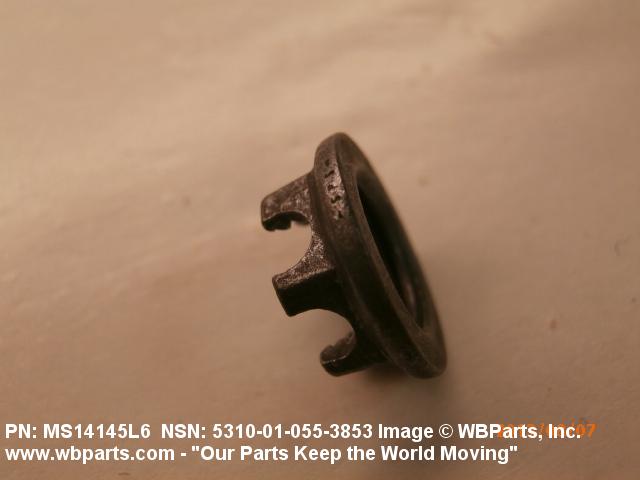

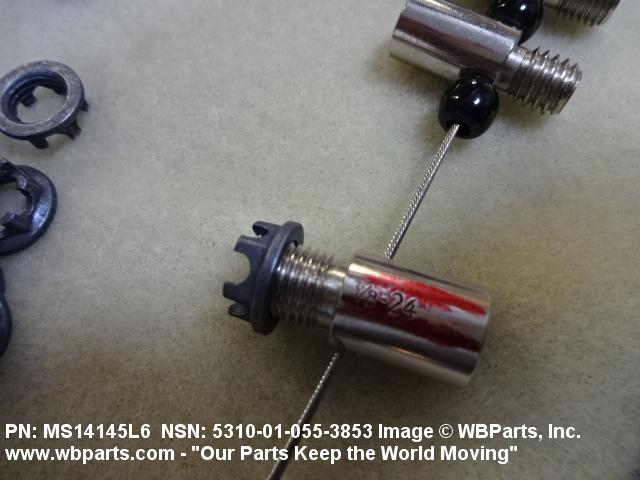

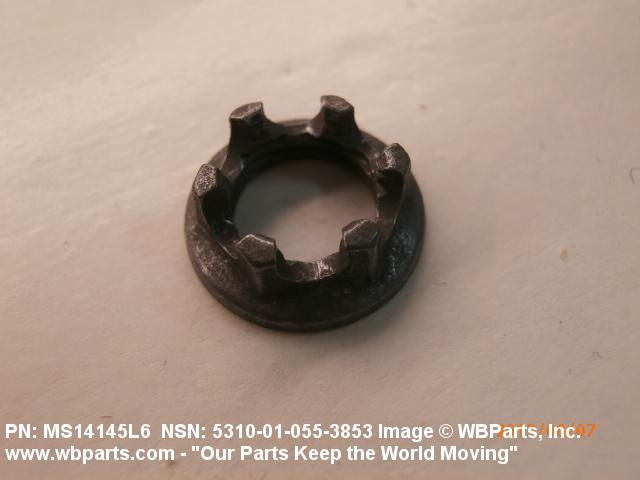

Drawings & Photos | NSN 5310-01-055-3853

Part Number	Request Date	QTY	Origin
MS14145L6	2024-09-263	5547	DIBBS
MS14145L6	2024-06-162	3020	DIBBS
MS14145L6	2024-05-128	1	United States
MS14145L6	2024-02-59	644	DIBBS
5310-01-055-3853	2023-03-61	4500	US
MS14145L6	2021-04-102	15	PH
MS14145L6	2020-11-324	4	China
5310-01-055-3853	2018-08-225	2598	DIBBS
5310-01-055-3853	2018-02-50	16500	DIBBS
MS14145L6	2017-10-297	10	United Arab Emirates
5310-01-055-3853	2017-06-173	5500	DIBBS
5310-01-055-3853	2017-04-99	1412	DIBBS
5310-01-055-3853	2017-02-53	27	MANUAL
5310-01-055-3853	2016-10-293	12000	US
5310-01-055-3853	2016-10-292	13000	DIBBS
5310-01-055-3853	2016-09-262	5023	DIBBS
MS14145L6	2015-09-246	5	BD
5310-01-055-3853	2015-06-165	3022	DIBBS
5310-01-055-3853	2015-05-130	6498	DIBBS
5310-01-055-3853	2015-04-102	4459	DIBBS
MS14145L6	2014-12-351	6	Ukraine
MS14145L6	2014-11-314	10	IN
5310-01-055-3853	2014-05-138	5606	DIBBS
5310-01-055-3853	2014-03-89	6005	DIBBS
MS14145L6	2013-08-220	30	LK
MS14145L6	2013-07-205	15	Singapore
5310-01-055-3853	2013-06-179	12035	DIBBS
MS14145L6	2013-04-109	1	US
5310-01-055-3853	2012-08-216	16222	DIBBS
5310-01-055-3853	2011-11-313	9808	DIBBS
5310-01-055-3853	2010-11-308	6531	DIBBS
MS14145L6	2010-04-98	132	Malaysia
MS14145L6	2010-04-98	132	Malaysia
5310-01-055-3853	2010-04-97	10	China
5310-01-055-3853	2010-03-83	5368	DIBBS
MS14145L6	2010-03-81	200	United States
5310-01-055-3853	2010-02-49	6	KH
5310-01-055-3853	2009-08-237	3963	DIBBS
5310-01-055-3853	2009-08-231	1000	DIBBS
5310-01-055-3853	2009-06-175	3179	DIBBS
MS14145L6	2009-06-169	6000	US
MS14145L6	2009-04-112	6252	US
5310-01-055-3853	2008-06-172	1	United States
MS14145L6	2008-06-154	10	Philippines

Cross Reference | NSN 5310-01-055-3853

Part Number	Cage Code	Manufacturer
5310PL0646049	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
MS14145-L6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS14145L6	001JK	EMBRAER S/A
MS14145L6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS14145L6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS14145L6	FB459	EMBRAER AVIATION INTERNATIONAL
RMTE9868-6	72962	HARVARD INDUSTRIES INC
THCR-356M	62554	ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-055-3853

Compare

Related Products | NSN 5310-01-055-3853

5310-01-055-3854, 5310-01-055-3855, 5310-01-055-3856, 5310-01-055-3860, 5310-01-055-3861

Technical Data | NSN 5310-01-055-3853

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A298 SLOTTED HEXAGON

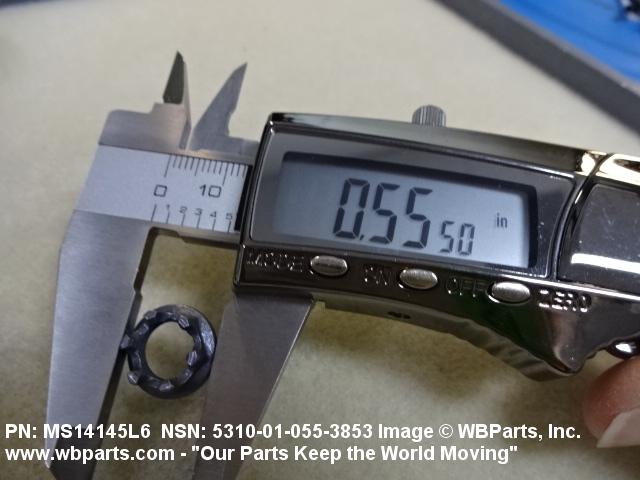

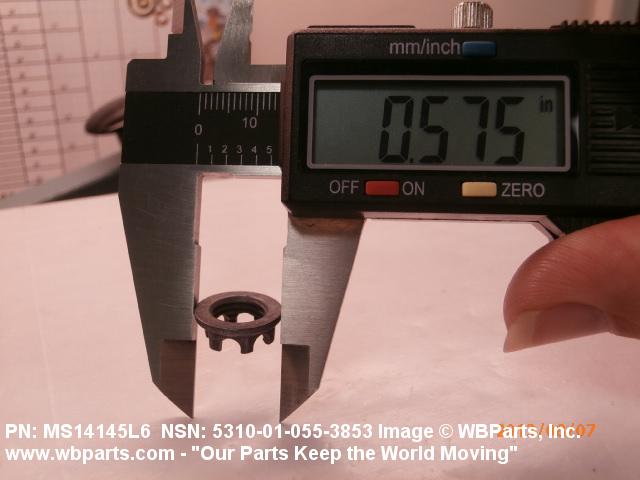

WASHER OUTSIDE DIAMETER	0.579 INCHES MAXIMUM

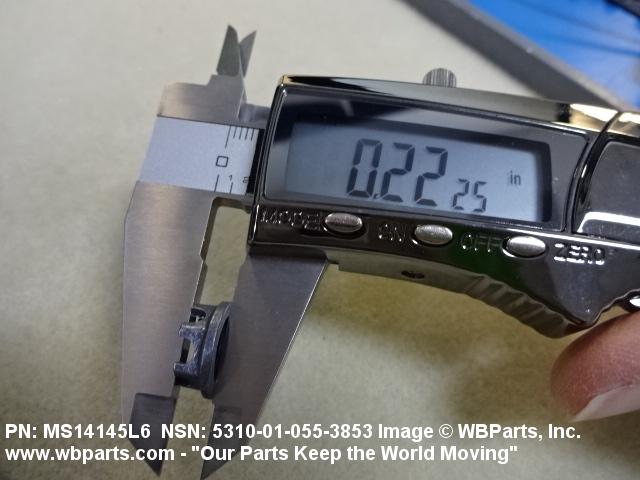

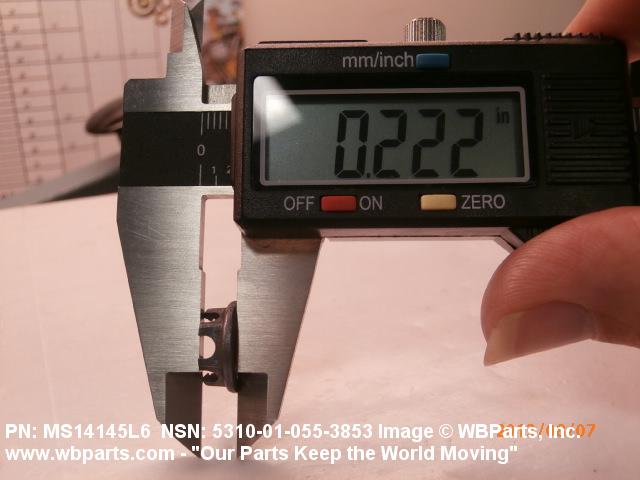

OVERALL HEIGHT	0.204 INCHES MINIMUM AND 0.234 INCHES MAXIMUM
WASHER THICKNESS	0.025 INCHES NOMINAL

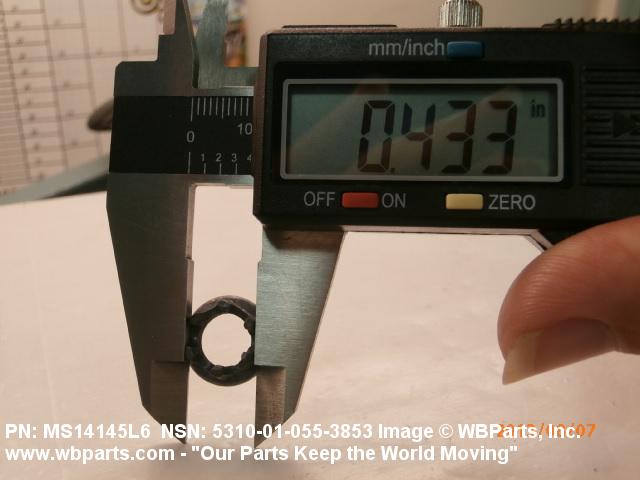

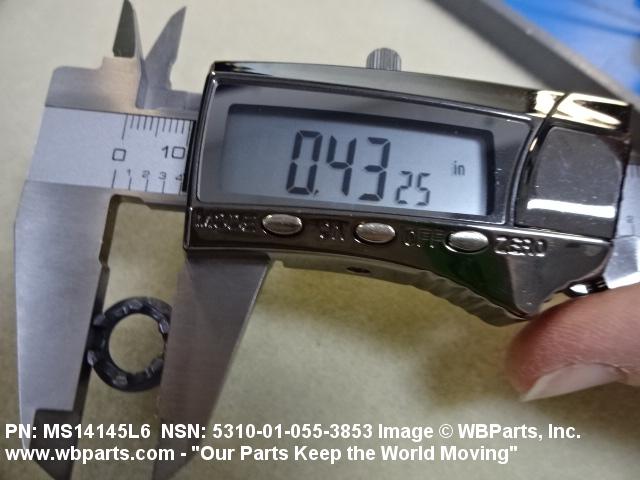

WIDTH ACROSS FLATS	0.429 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-01-055-3853

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-055-3853

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
