NSN 5310-01-053-3363 C79886, C7988-6, CA21024

Product Details | PLATE SELF-LOCKING NUT

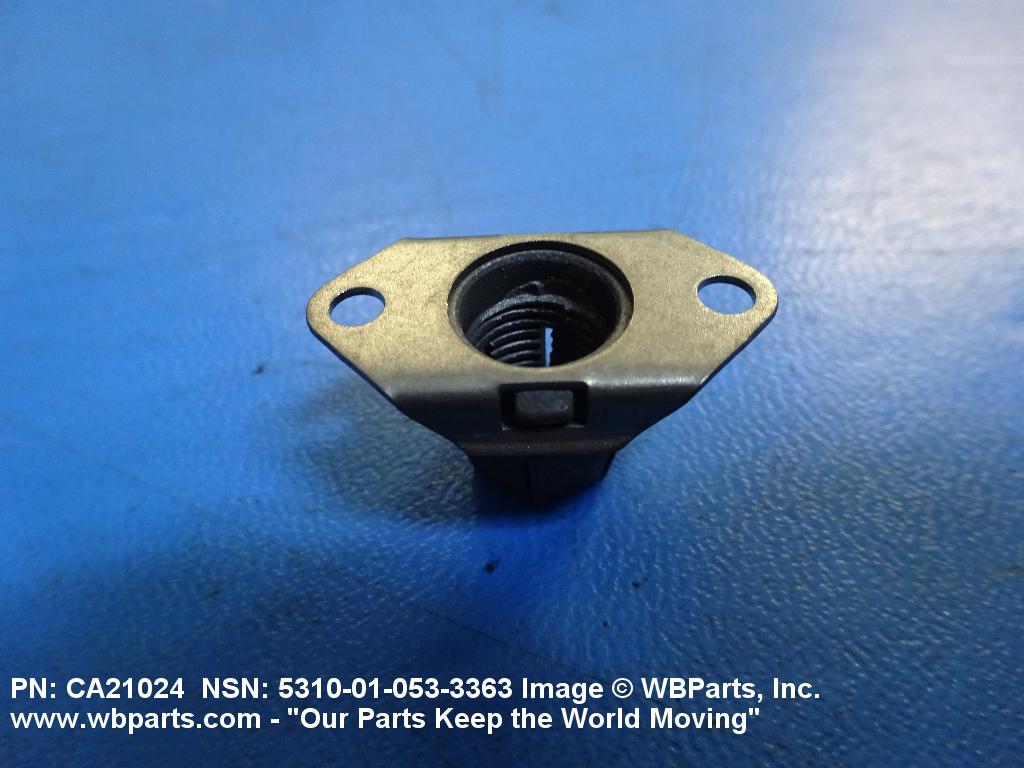

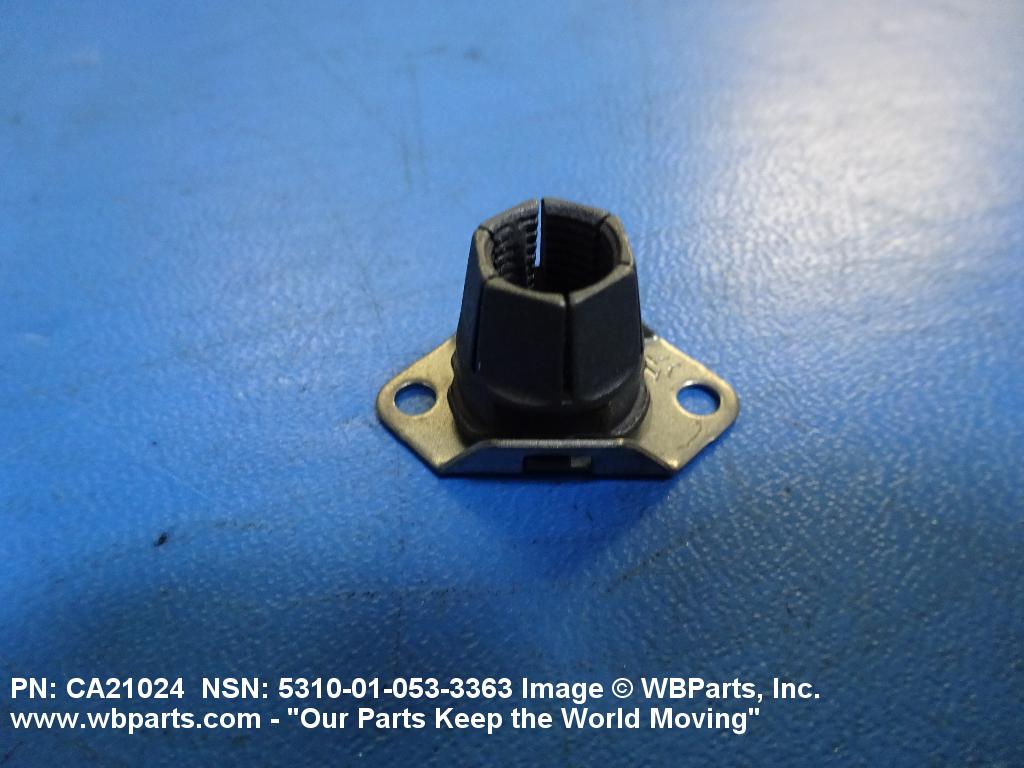

5310-01-053-3363 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: C79886, C7988-6, CA21024, TE11400020001, TE114-0002-0001, 1200036, 120003-6, 1200046, 120004-6, 5310-01-053-3363, 01-053-3363, 5310010533363, 010533363

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	02 JAN 1978	01-053-3363	05280 ( NUT, SELF-LOCKING, PLATE )

Drawings & Photos | NSN 5310-01-053-3363

Part Number	Request Date	QTY	Origin
5310-01-053-3363	2023-03-82	2	US
5310-01-053-3363	2022-02-46	10	United States
120004-6	2021-09-263	7033	DIBBS
CA21024	2021-09-263	7033	DIBBS
120004-6	2021-09-252	7033	DIBBS
CA21024	2021-09-252	7033	DIBBS
5310-01-053-3363	2021-04-113	2	Romania
120004-6	2020-01-29	1247	DIBBS
CA21024	2020-01-29	1247	DIBBS
5310-01-053-3363	2017-09-245	32	US
5310-01-053-3363	2017-02-53	18	MANUAL
5310-01-053-3363	2017-01-26	500	us
5310-01-053-3363	2014-08-238	231	US
CA21024	2012-06-171	200	US
5310-01-053-3363	2012-01-23	130	US
5310-01-053-3363	2011-08-222	32	US
5310-01-053-3363	2011-08-221	35	United States
5310-01-053-3363	2009-07-202	200	us
5310-01-053-3363	2009-02-41	4165	DIBBS

Cross Reference | NSN 5310-01-053-3363

Part Number	Cage Code	Manufacturer
120003-6	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
120004-6	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
C7988-6	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
CA21024	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
TE114-0002-0001	18441	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-053-3363

Compare

Related Products | NSN 5310-01-053-3363

5310-01-053-3364, 5310-01-053-3548, 5310-01-053-3551, 5310-01-053-3552, 5310-01-053-3555

Technical Data | NSN 5310-01-053-3363

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 8740 OR STEEL COMP 4140 NUT STEEL CORROSION RESISTING SHELL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE NUT AMS 5528 ASSN STD SINGLE MATERIAL RESPONSE SHELL
SURFACE TREATMENT	CADMIUM NUT PASSIVATE SHELL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE II,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHELL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE

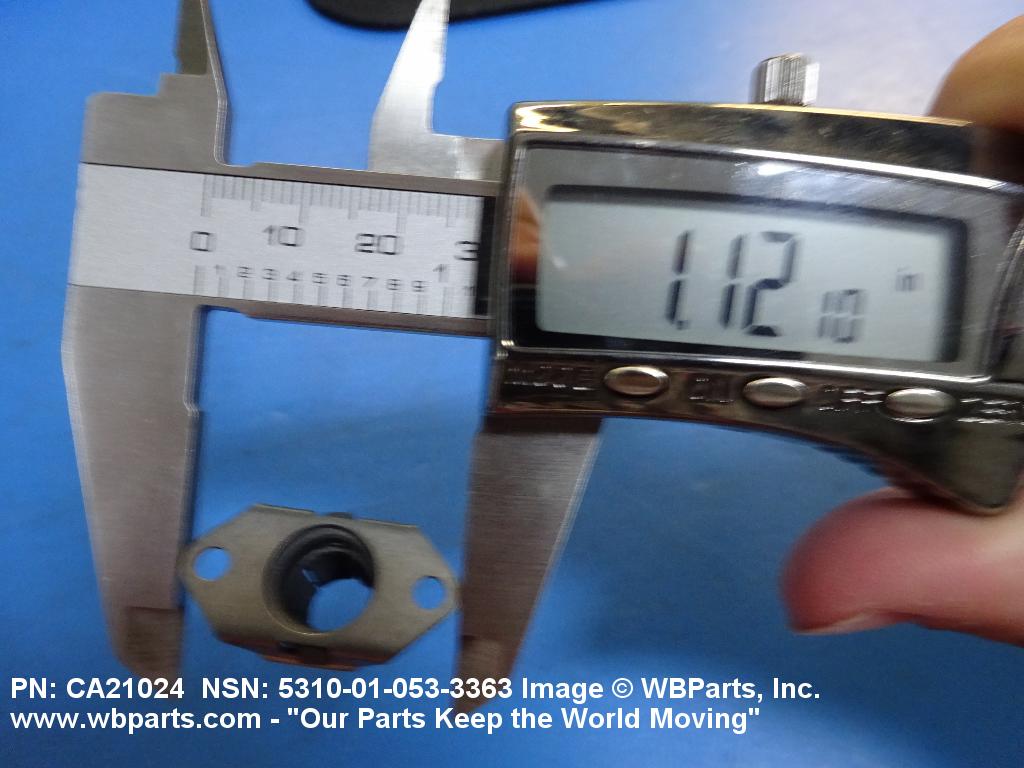

NUT LENGTH	1.115 INCHES NOMINAL
NUT HEIGHT	0.590 INCHES MINIMUM AND 0.630 INCHES MAXIMUM

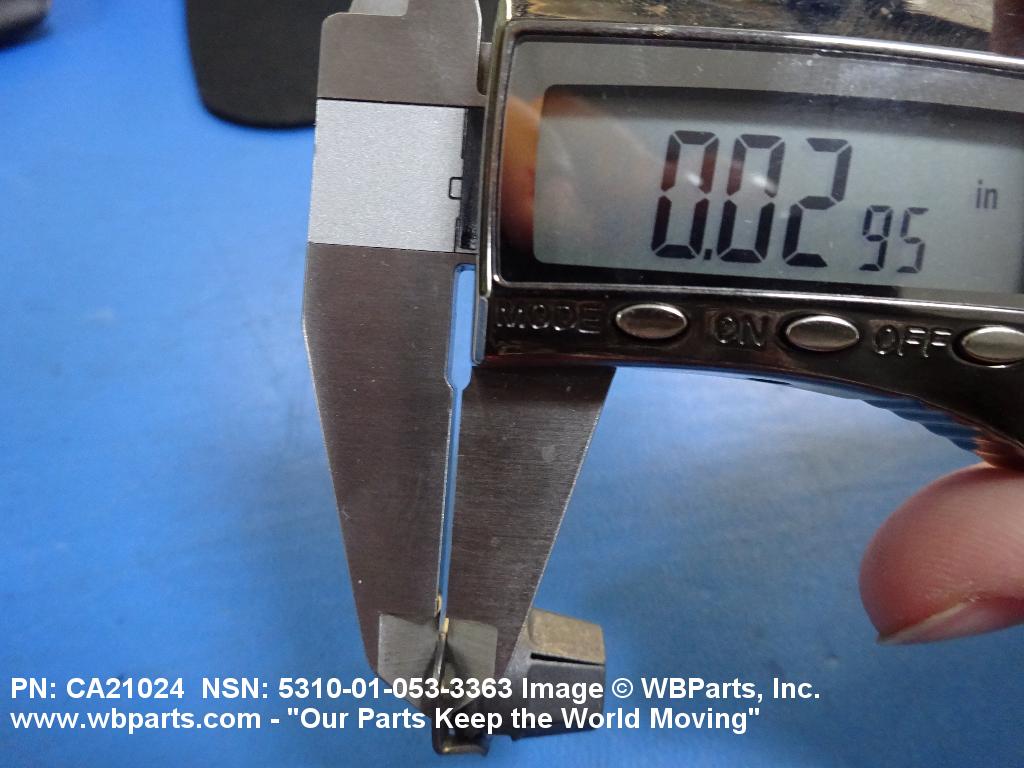

PLATE THICKNESS	0.025 INCHES MINIMUM AND 0.035 INCHES MAXIMUM
PLATE WIDTH	0.545 INCHES MINIMUM AND 0.575 INCHES MAXIMUM
REMOVABLE NUT MANUFACTURER CODE	29372
REMOVABLE NUT MANUFACTURER PART NUMBER	CA21024-1
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

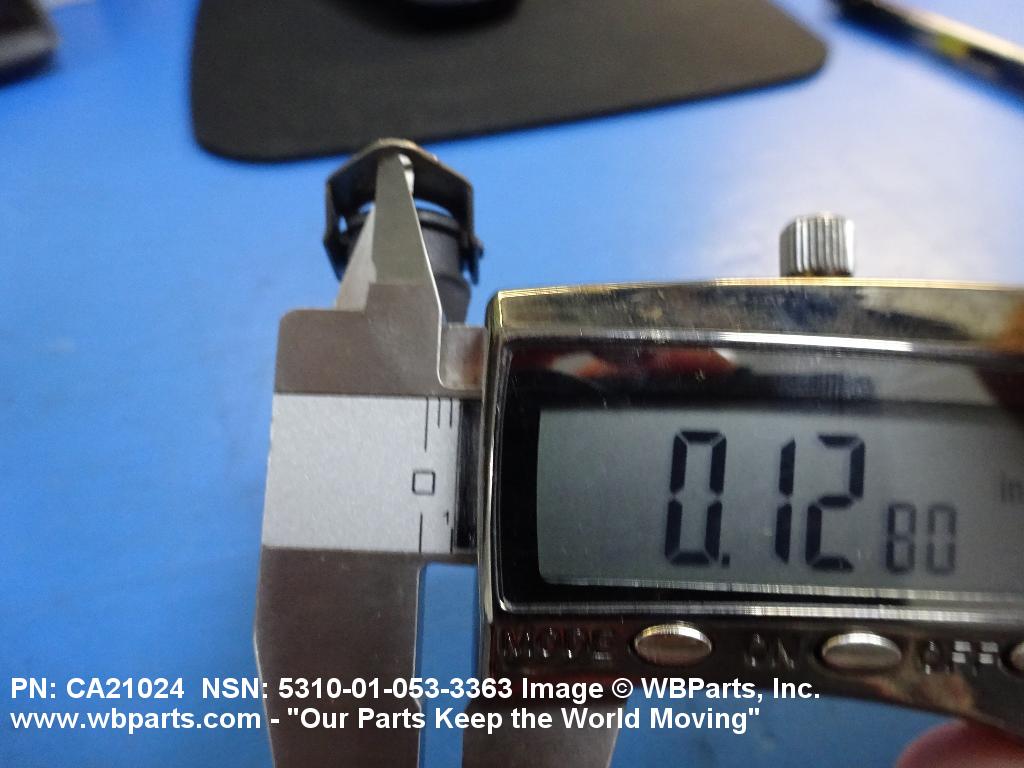

MOUNTING HOLE DIAMETER	0.125 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.435 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.873 INCHES MINIMUM AND 0.877 INCHES MAXIMUM
TEMP RATING	NOT RATED
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-01-053-3363

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-053-3363

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
