NSN 5310-01-049-8671 NS20213432, NS202134-3-2, C7929A32

Product Details | PLATE SELF-LOCKING NUT

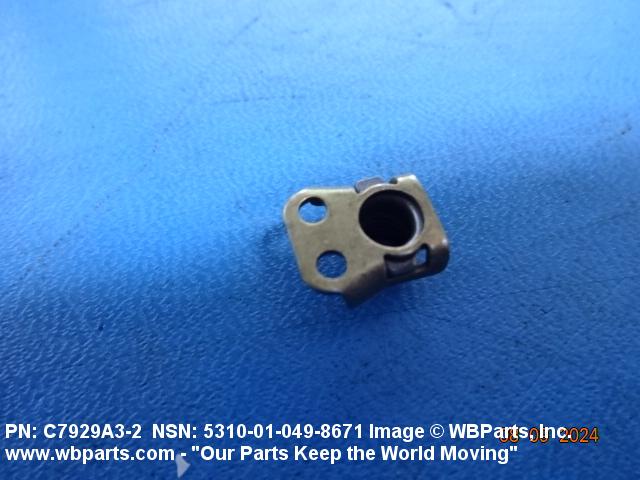

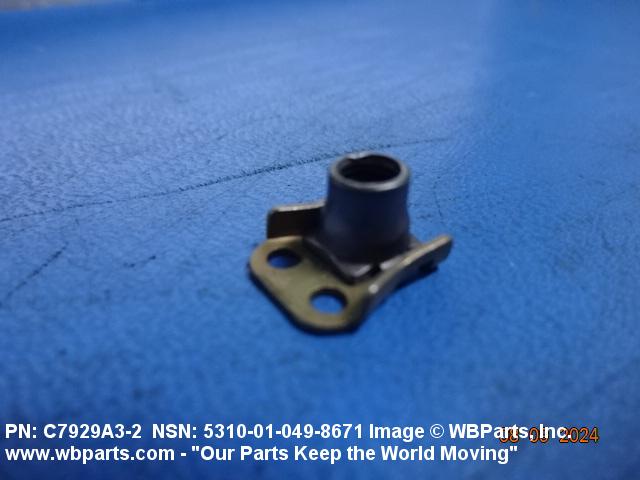

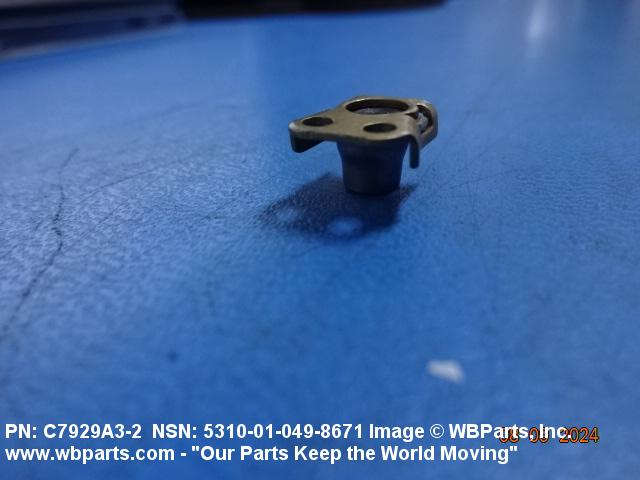

5310-01-049-8671 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NS20213432, NS202134-3-2, C7929A32, C7929A3-2, F1219123, F12191-2-3, 5310-01-049-8671, 01-049-8671, 5310010498671, 010498671

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	28 OCT 1977	01-049-8671	05280 ( NUT, SELF-LOCKING, PLATE )

Drawings & Photos | NSN 5310-01-049-8671

Part Number	Request Date	QTY	Origin
NS202134-3-2	2024-10-298	4138	DIBBS
5310-01-049-8671	2024-10-275	3	United States
5310-01-049-8671	2024-06-176	1	United States
5310-01-049-8671	2024-06-165	1	United States
5310-01-049-8671	2024-02-52	1	United States
NS202134-3-2	2024-02-39	4138	DIBBS
5310-01-049-8671	2024-01-23	1	United States
NS202134-3-2	2023-11-325	843	DIBBS
NS202134-3-2	2023-09-255	3322	DIBBS
NS202134-3-2	2023-04-108	3166	DIBBS
NS202134-3-2	2022-08-228	1320	DIBBS
5310-01-049-8671	2018-11-332	36	United States
5310-01-049-8671	2018-03-87	2678	DIBBS
5310-01-049-8671	2014-05-128	932	DIBBS
5310-01-049-8671	2013-12-336	936	DIBBS
5310-01-049-8671	2013-10-289	936	DIBBS
5310-01-049-8671	2012-09-261	340	DIBBS
5310-01-049-8671	2012-08-214	275	DIBBS

Cross Reference | NSN 5310-01-049-8671

Part Number	Cage Code	Manufacturer
C7929A3-2	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
F12191-2-3	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F12191-2-3	72962	HARVARD INDUSTRIES INC
NS202134-3-2	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-049-8671

Compare

Related Products | NSN 5310-01-049-8671

5310-01-049-8672, 5310-01-049-9051, 5310-01-049-9058, 5310-01-049-9077, 5310-01-049-9164

Technical Data | NSN 5310-01-049-8671

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1030 OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A127 PLATE
DISTANCE FROM CENTERLINE TO FLAT	0.206 INCHES NOMINAL
NUT LENGTH	0.556 INCHES MAXIMUM
NUT HEIGHT	0.257 INCHES NOMINAL
PLATE THICKNESS	0.032 INCHES NOMINAL
PLATE WIDTH	0.490 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F2 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM MOUNTING HOLE CENTER TO BASE	0.100 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH	0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
TEMP RATING	NOT RATED
