NSN 5310-01-046-5385 BACN10JB6, F1716, F171-6

Product Details | PLATE SELF-LOCKING NUT

5310-01-046-5385 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BACN10JB6, F1716, F171-6, 43600064, 43600-064, 5310-01-046-5385, 01-046-5385, 5310010465385, 010465385

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 AUG 1977	01-046-5385	05280 ( NUT, SELF-LOCKING, PLATE )

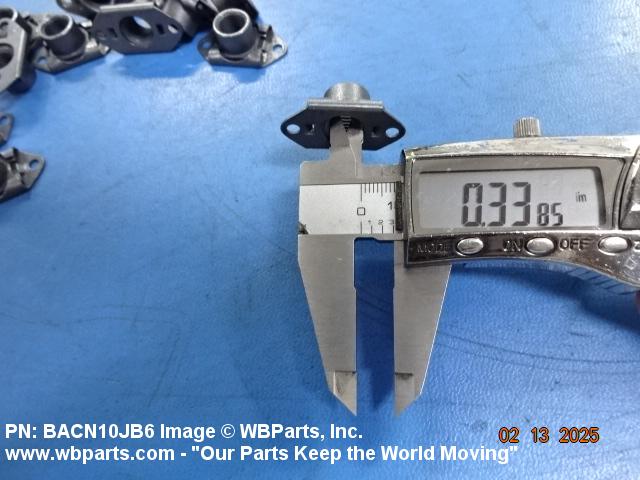

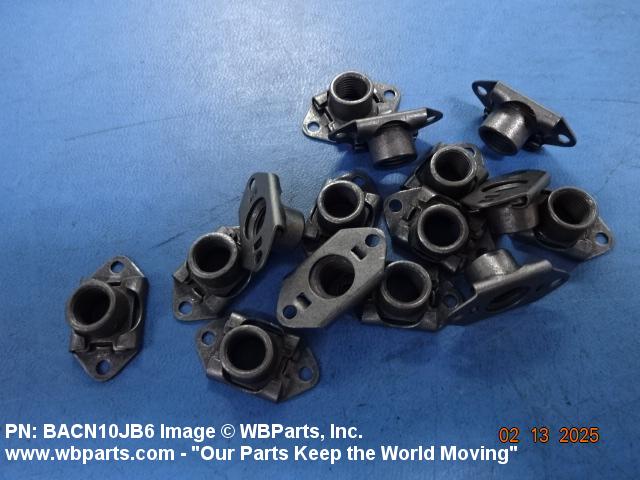

Drawings & Photos | NSN 5310-01-046-5385

Part Number	Request Date	QTY	Origin
5310-01-046-5385	2015-08-223	40	DIBBS
5310-01-046-5385	2015-07-210	40	DIBBS
5310-01-046-5385	2013-12-345	15	DIBBS
5310-01-046-5385	2013-10-283	9	DIBBS
5310-01-046-5385	2013-10-283	20	DIBBS
5310-01-046-5385	2013-10-275	23	DIBBS
5310-01-046-5385	2013-08-234	38	DIBBS
5310-01-046-5385	2013-05-125	9	DIBBS
5310-01-046-5385	2013-05-125	20	DIBBS
5310-01-046-5385	2013-04-120	4	DIBBS
5310-01-046-5385	2010-04-109	15	DIBBS

Cross Reference | NSN 5310-01-046-5385

Part Number	Cage Code	Manufacturer
43600-064	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
BACN10JB6	52828	REPUBLIC FASTENER MFG. CORP.
BACN10JB6	81205	THE BOEING COMPANY DBA BOEING
F171-6	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-046-5385

Compare

Related Products | NSN 5310-01-046-5385

5310-01-046-5386, 5310-01-046-5388, 5310-01-046-5389, 5310-01-046-5390, 5310-01-046-5392

Technical Data | NSN 5310-01-046-5385

Characteristic	Specifications

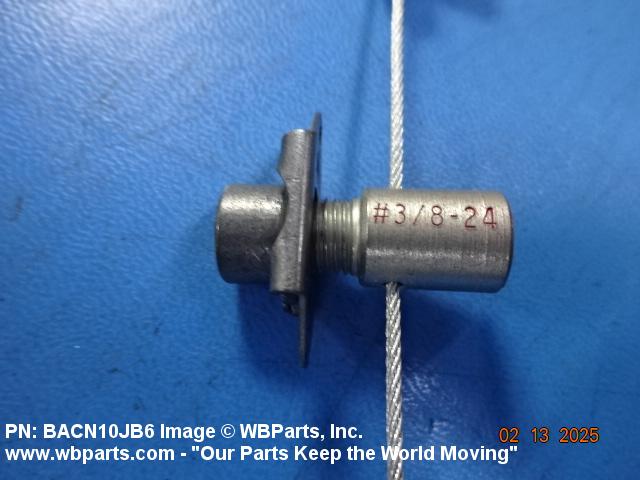

THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 4130 OR STEEL COMP 4340 OR STEEL COMP 8740 OR STEEL COMP 1035 OR STEEL COMP 1536 OR STEEL COMP 1037 OR STEEL COMP 1038 OR STEEL COMP 1039 OR STEEL COMP 1040 OR STEEL COMP 1541 OR STEEL COMP 1042 OR STEEL COMP 1043 OR STEEL COMP 1044 OR STEEL COMP 1045 OR STEEL COMP 1046 OR STEEL COMP 1548 OR STEEL COMP 1049 OR STEEL COMP 1050 OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE

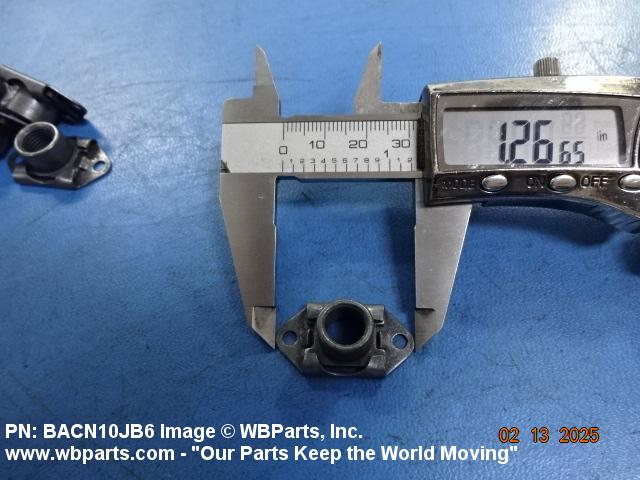

NUT LENGTH	1.292 INCHES MAXIMUM

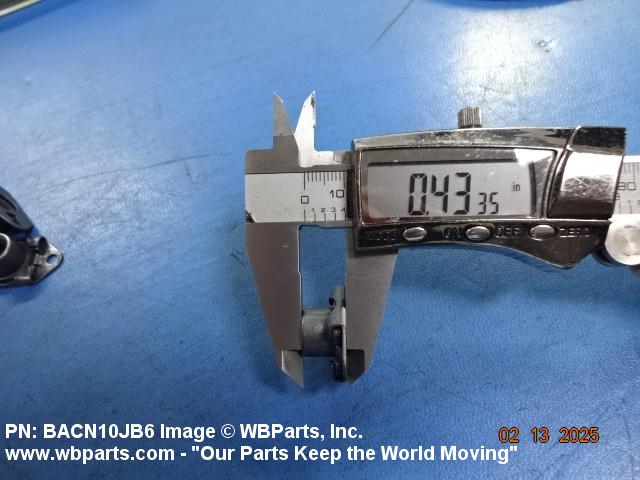

NUT HEIGHT	0.440 INCHES MAXIMUM

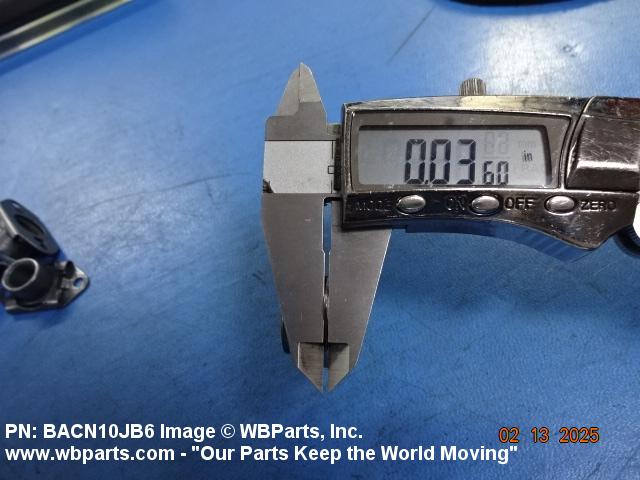

PLATE THICKNESS	0.035 INCHES NOMINAL

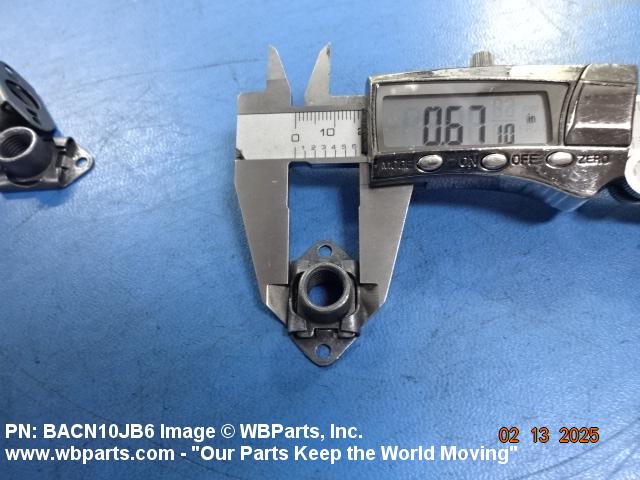

PLATE WIDTH	0.680 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

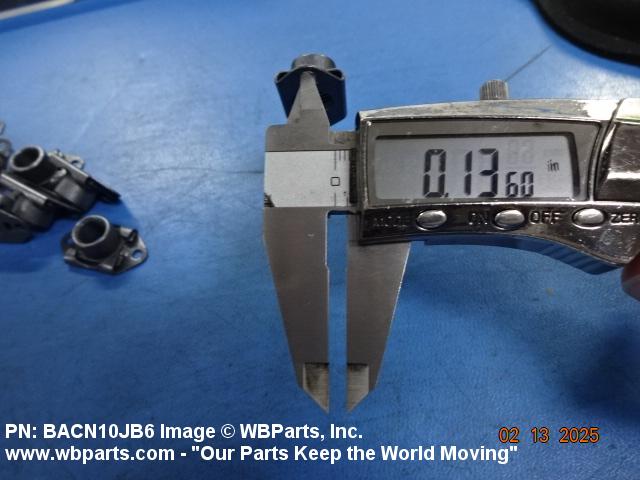

MOUNTING HOLE DIAMETER	0.130 INCHES MINIMUM AND 0.145 INCHES MAXIMUM

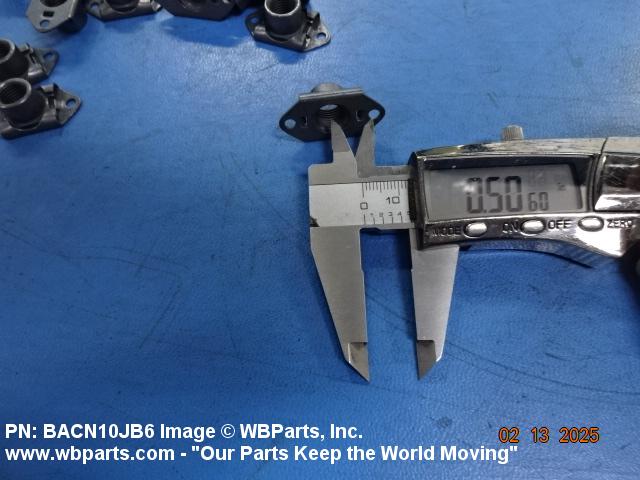

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM

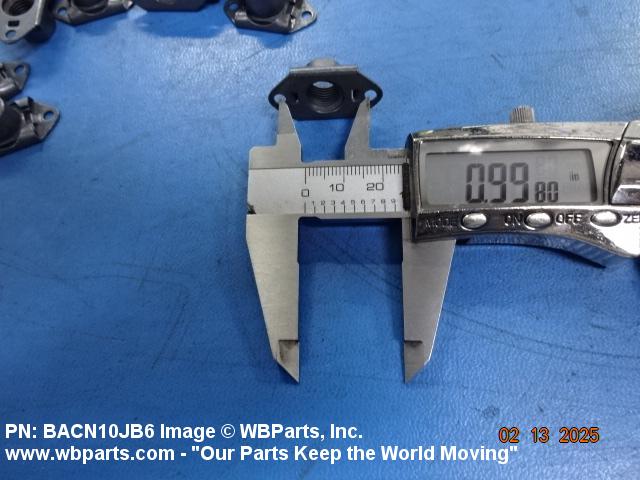

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT
SPECIAL FEATURES	160000 PSI MIN TENSILE STRENGTH

Restrictions/Controls & Freight Information | NSN 5310-01-046-5385

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-046-5385

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
