NSN 5310-01-046-3286 BACN10TL33, BACN10TL3-3, WS143
Product Details | PLATE SELF-LOCKING NUT

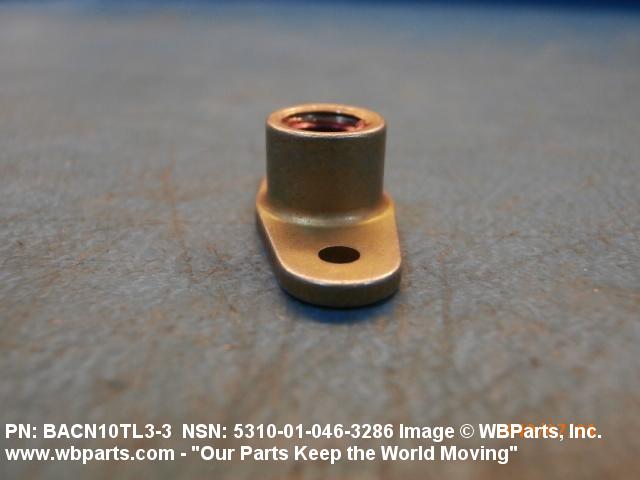

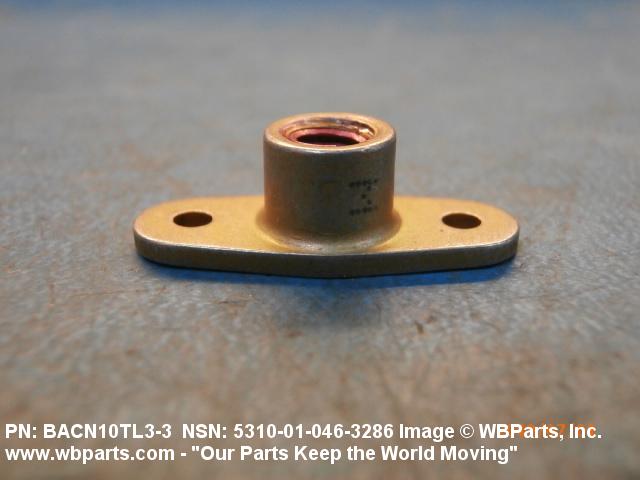

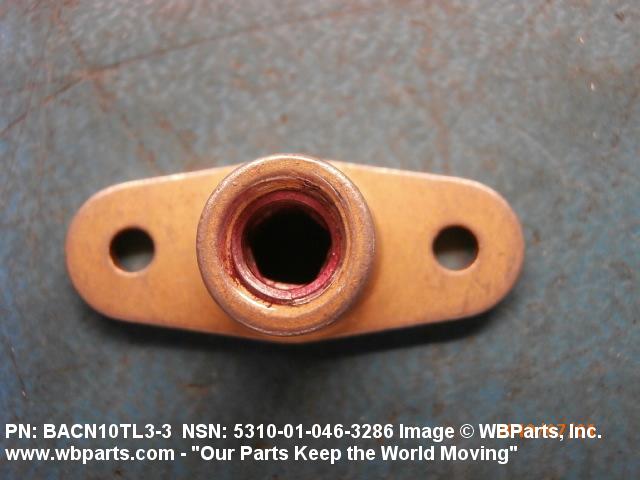

5310-01-046-3286 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10TL33, BACN10TL3-3, WS143, WS1-4-3, WSI43, WSI4-3, 5310-01-046-3286, 01-046-3286, 5310010463286, 010463286
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 AUG 1977 | 01-046-3286 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-046-3286
Demand History | NSN 5310-01-046-3286
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10TL3-3 | 2024-06-182 | 263 | DIBBS |
| BACN10TL33 | 2024-03-86 | 25 | us |
| 5310-01-046-3286 | 2020-08-234 | 150 | United States |
| BACN10TL33 | 2019-06-170 | 120 | United States |
| BACN10TL33 | 2018-12-338 | 120 | United States |
| 5310-01-046-3286 | 2017-12-338 | 100 | United States |
| BACN10TL33 | 2017-04-103 | 35 | United States |
| 5310-01-046-3286 | 2016-12-346 | 237 | DIBBS |
| 5310-01-046-3286 | 2014-10-288 | 130 | US |
| 5310-01-046-3286 | 2013-10-302 | 20 | Canada |
| WSI43 | 2013-09-248 | 5 | United States |
| WSI43 | 2013-09-247 | 5 | United States |
| BACN10TL33 | 2013-07-189 | 20 | United States |
| 5310-01-046-3286 | 2013-05-121 | 363 | DIBBS |
| 5310-01-046-3286 | 2013-03-72 | 583 | DIBBS |
| WSI43 | 2012-10-282 | 30 | US |
| BACN10TL33 | 2011-07-207 | 100 | US |
| BACN10TL33 | 2008-07-205 | 100 | US |
| WSI43 | 2008-07-198 | 10 | US |
| 5310-01-046-3286 | 2006-09-258 | 80 | US |
Cross Reference | NSN 5310-01-046-3286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10TL3-3 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| BACN10TL3-3 | 6D154 | HARTWELL CORPORATION |
| BACN10TL3-3 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10TL3-3 | 82918 | THE BOEING COMPANY DBA BOEING |
| WS1-4-3 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
| WSI4-3 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-046-3286
Related Products | NSN 5310-01-046-3286
Technical Data | NSN 5310-01-046-3286

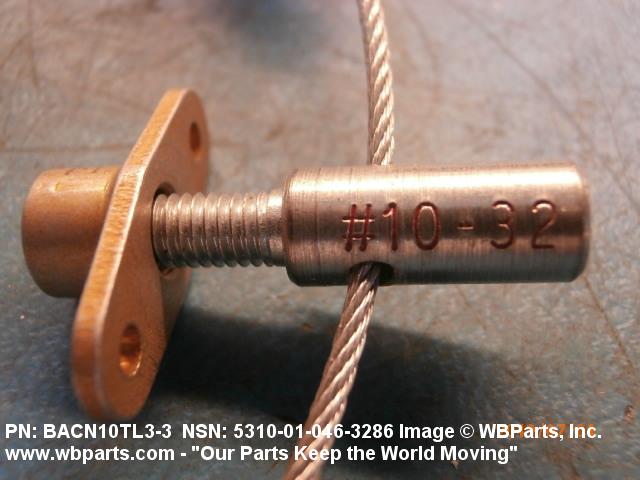

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-12545 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

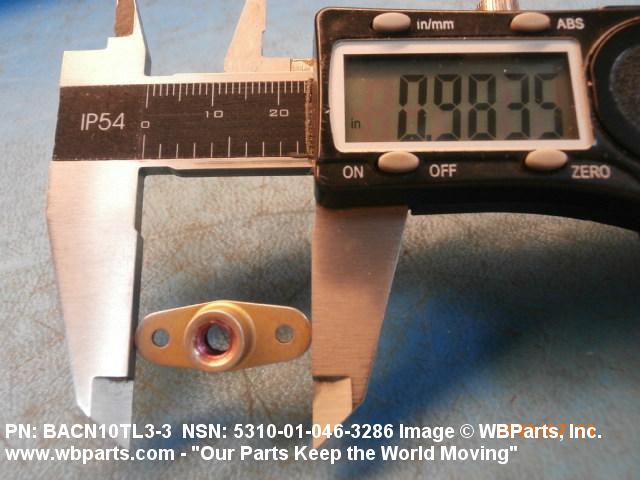

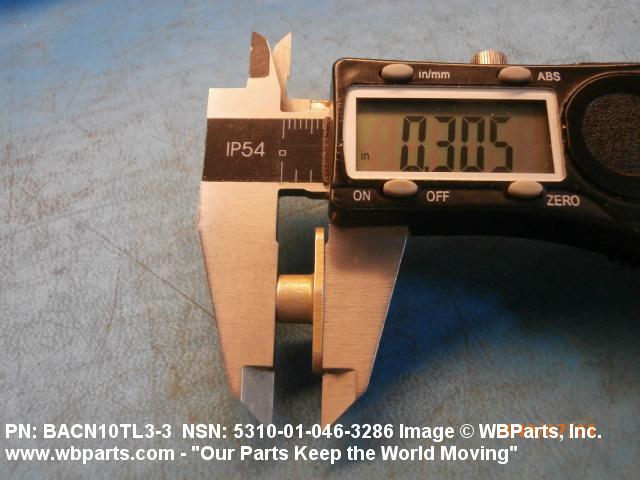

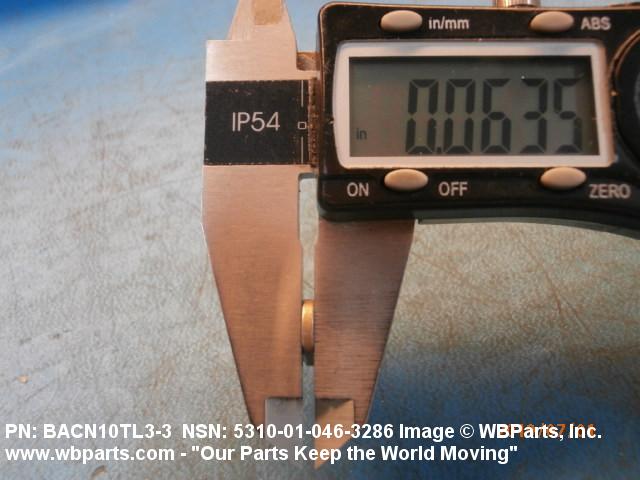

| NUT LENGTH | 0.985 INCHES NOMINAL |
| NUT HEIGHT | 3.000 INCHES NOMINAL |
| PLATE THICKNESS | 0.060 INCHES NOMINAL |
| PLATE WIDTH | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |

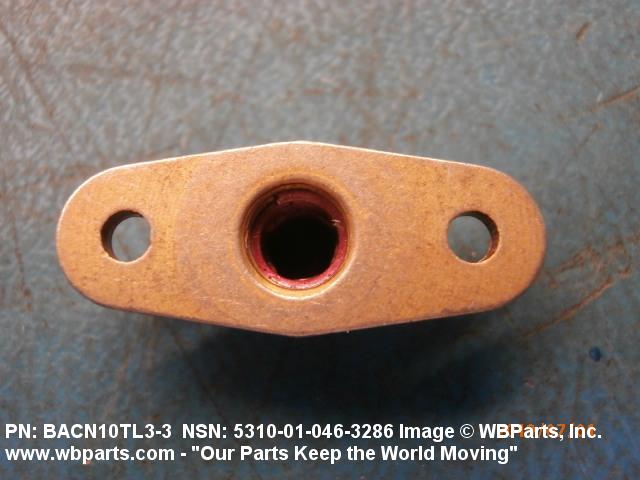

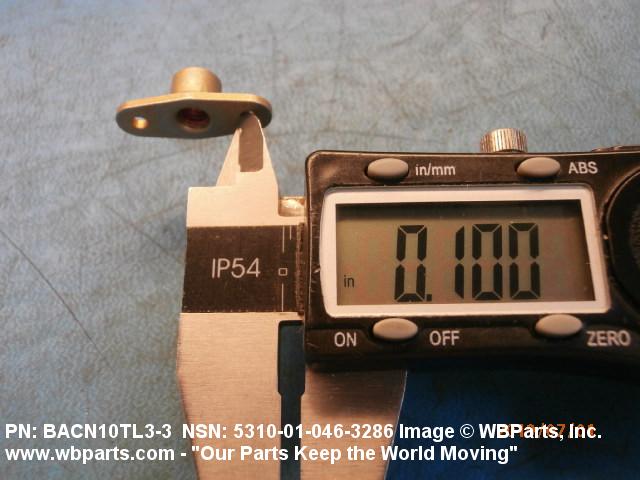

| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |

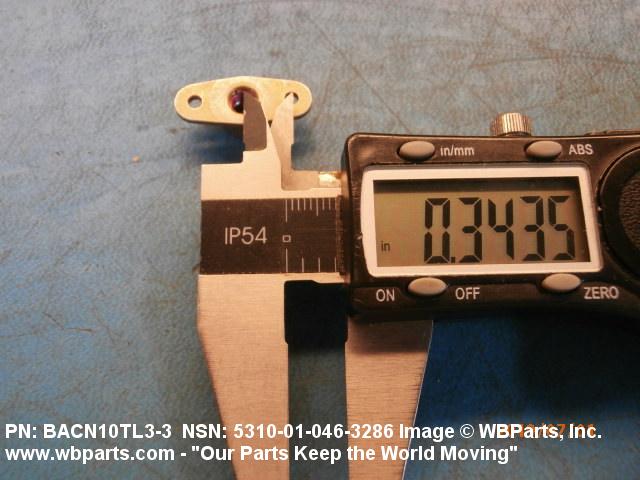

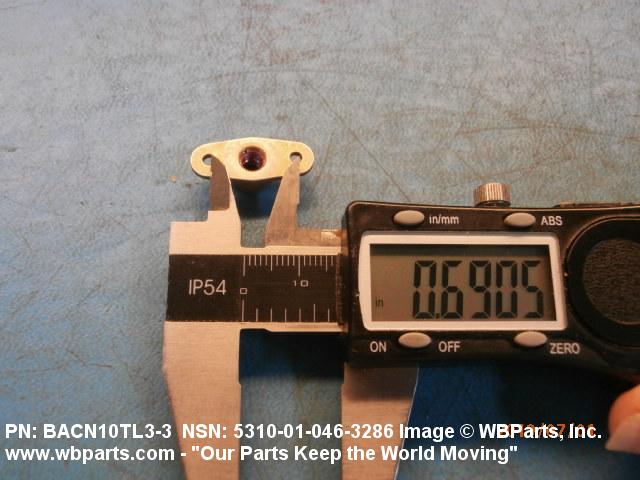

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.688 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 04169 |
| DESIGN CONTROL REFERENCE | WSI4-3 |
