NSN 5310-01-045-3709 MS1908169, MS19081-69, MS519832

Product Details | HEXAGON SINGLE BALL SEAT PLAIN NUT

5310-01-045-3709 A nut having 1 convex, spherical bearing surface and 6 flat sides. Items may have a removable collar. See also NUT (1), PLAIN, CONE SEAT, HEXAGON.

Part Alternates: MS1908169, MS19081-69, MS519832, MS51983-2, MS519836, MS51983-6, A32804, A52427-R-0.750, A52427R0750, AA52427, A-A-52427, 537803, 74000448, 0151787, 070HN1371, 070HN137-1, 11276, 1127612, 11276-12, 13220E43551, 13220E4355-1, 151787, 15264P11, 21008B, 211790A, 3300007, 37888E, 3788E, 4540350105, 45403-501-05, 52D77868, 52D7786-8, 5310-01-045-3709, 01-045-3709, 5310000537803 , 5310005948038, 5310010453709, 010453709

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 AUG 1977	01-045-3709	04892 ( NUT, PLAIN, SINGLE BALL SEAT, HEXAGON )

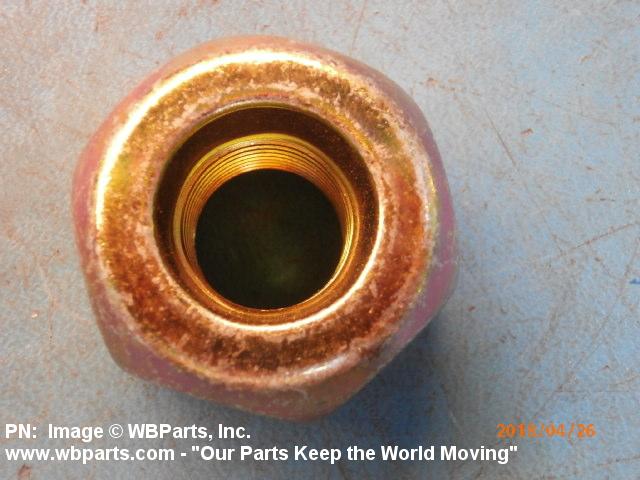

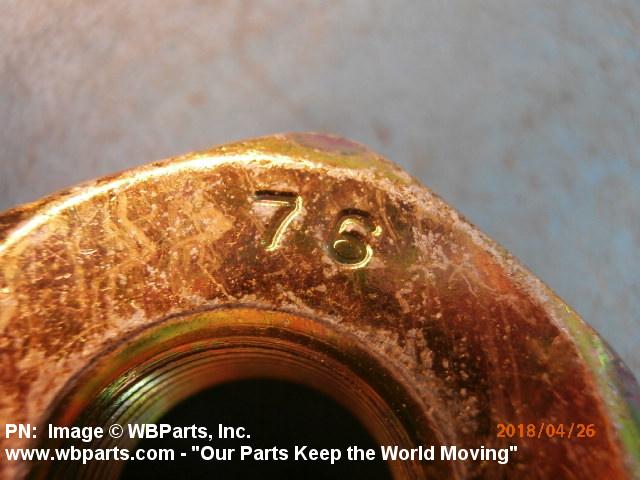

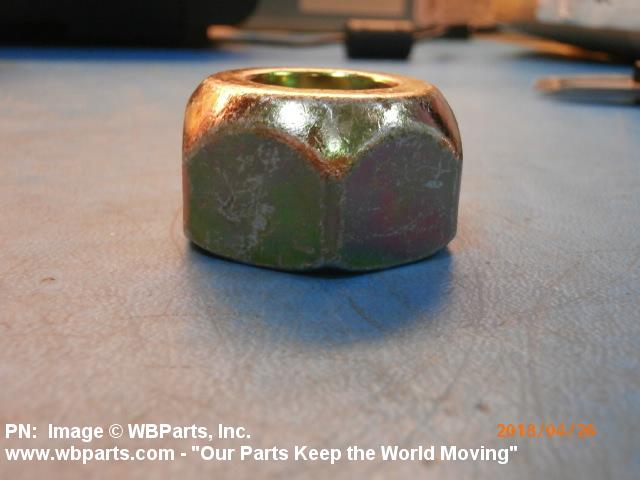

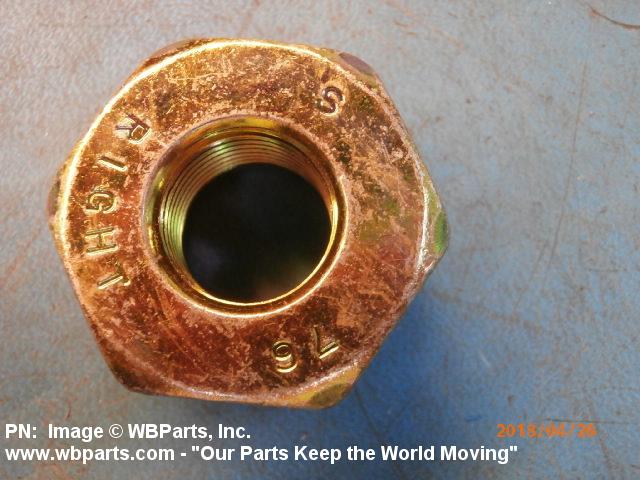

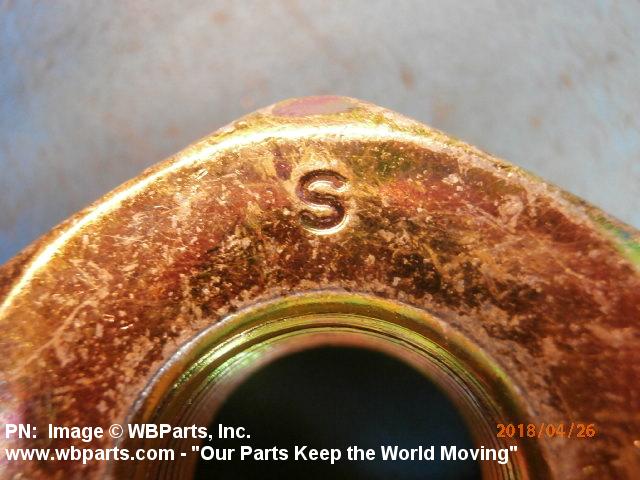

Drawings & Photos | NSN 5310-01-045-3709

Part Number	Request Date	QTY	Origin
5310-01-045-3709	2023-10-286	25	United States
5310-01-045-3709	2020-04-100	14	United States
AA52427	2020-02-50	616	us
AA52427	2020-02-50	1232	us
5310-00-594-8038	2019-12-346	6	US
MS51983-2	2019-12-346	6	US
5310-01-045-3709	2019-07-199	5	AU
5310-01-045-3709	2018-10-304	5000	DIBBS
5310-01-045-3709	2018-05-130	1	DIBBS-RFPs
5310-01-045-3709	2018-04-102	2	United States
5310-01-045-3709	2017-11-313	15000	DIBBS
5310-01-045-3709	2017-08-215	4287	DIBBS
5310-00-594-8038	2012-10-293	1	US
5310-01-045-3709	2012-02-37	9600	US
5310-01-045-3709	2012-01-23	9600	US
5310-01-045-3709	2010-05-133	5742	DIBBS
5310-01-045-3709	2010-05-133	5908	DIBBS
5310-01-045-3709	2010-05-125	5742	DIBBS
5310-01-045-3709	2010-05-125	5908	DIBBS
MS519832	2009-06-153	12	US
5310-00-594-8038	2007-08-228	22	Israel

Cross Reference | NSN 5310-01-045-3709

Part Number	Cage Code	Manufacturer
0151787	H0001	DAF TRUCKS N.V.
070HN137-1	95019	DANA CORP SPICER TRANSMISSION DIV
11276	04627	NACCO MATERIALS HANDLING GROUP INC
11276	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
11276-12	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
13220E4355-1	97403	CECOM LR CENTER
151787	H0001	DAF TRUCKS N.V.
15264P11	27618	TAYLOR MACHINE WORKS, INC.
21008B	81795	ALLIANZ SWEEPER COMPANY
211790A	51665	RIVINIUS INC LITTLEFORD MACHINERY DIV
3300007	51905	JLG INDUSTRIES, INC.
37888E	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
3788E	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
45403-501-05	31245	TEREX USA, LLC DBA CEDARAPIDS
52D7786-8	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
52D7786-8	D2638	EME ELEKTRO-METALL EXPORT GMBH
5310000537803	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310005948038	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
537803	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
74000448	64559	MAXON INDUSTRIES INC.
A-A-52427	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A32804	59690	KOEHRING CO LORAIN DIV
A32804	8E499	KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO
A52427-R-0.750	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
MS19081-69	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51983-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51983-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-045-3709

Compare

Related Products | NSN 5310-01-045-3709

5310-01-045-3710, 5310-01-045-4095, 5310-01-045-4096, 5310-01-045-4114, 5310-01-045-4249

Technical Data | NSN 5310-01-045-3709

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.750 INCHES

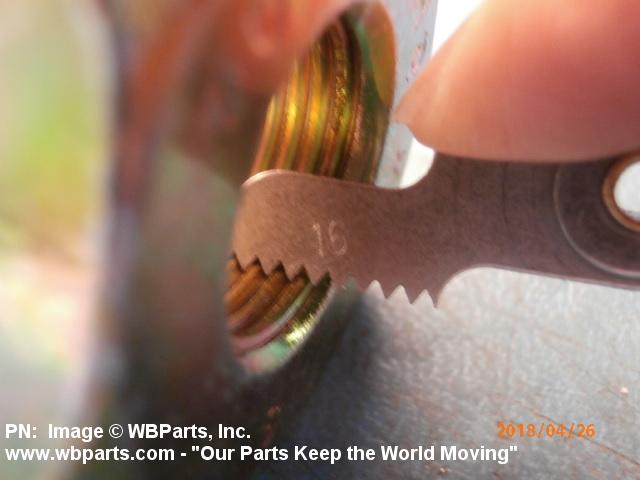

THREAD QUANTITY PER INCH	16
THREAD CLASS	2B

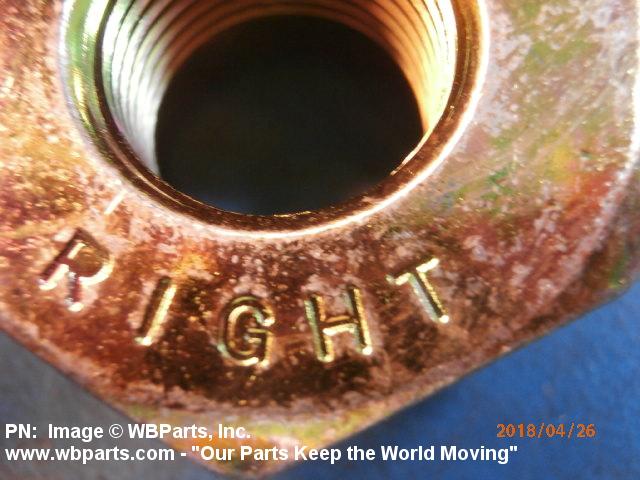

THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OR ZINC OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-Z-325 TY 2 CL 2 FED SPEC 2ND TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED

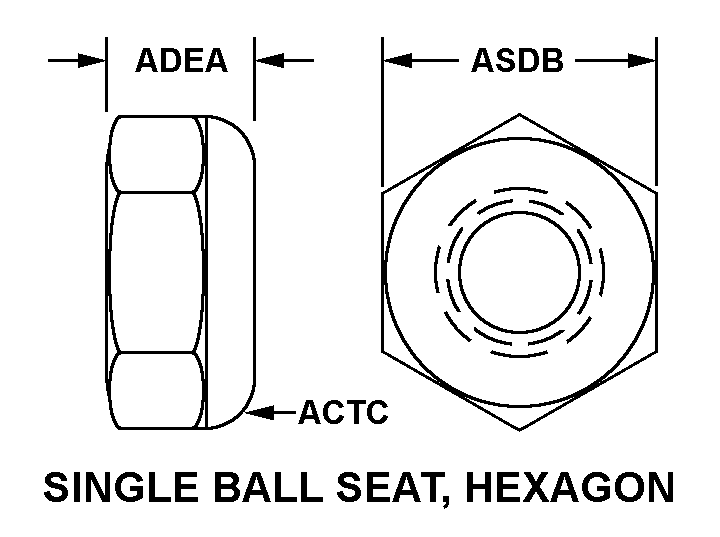

NUT STYLE	A8 SINGLE BALL SEAT, HEXAGON
BALL SEAT RADIUS	0.875 INCHES NOMINAL

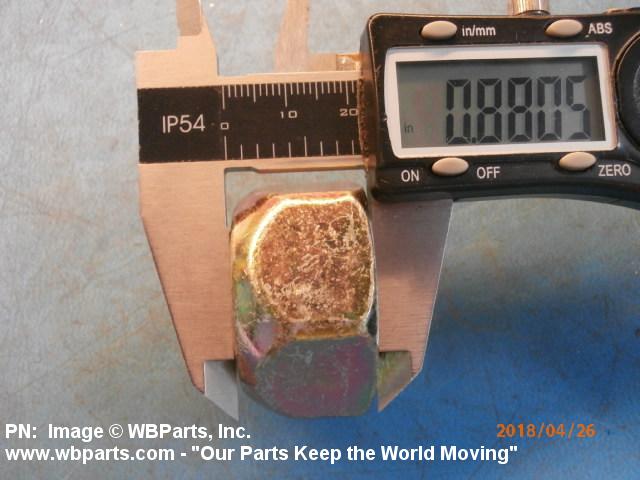

NUT HEIGHT	0.870 INCHES MINIMUM AND 0.890 INCHES MAXIMUM

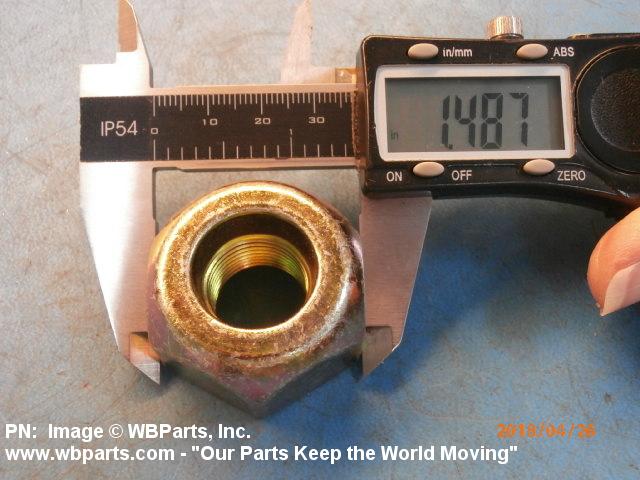

WIDTH ACROSS FLATS	1.465 INCHES NOMINAL
TEMP RATING	NOT RATED
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-52427
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A52427-R-0.750

Restrictions/Controls & Freight Information | NSN 5310-01-045-3709

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-045-3709

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
